Shared projects

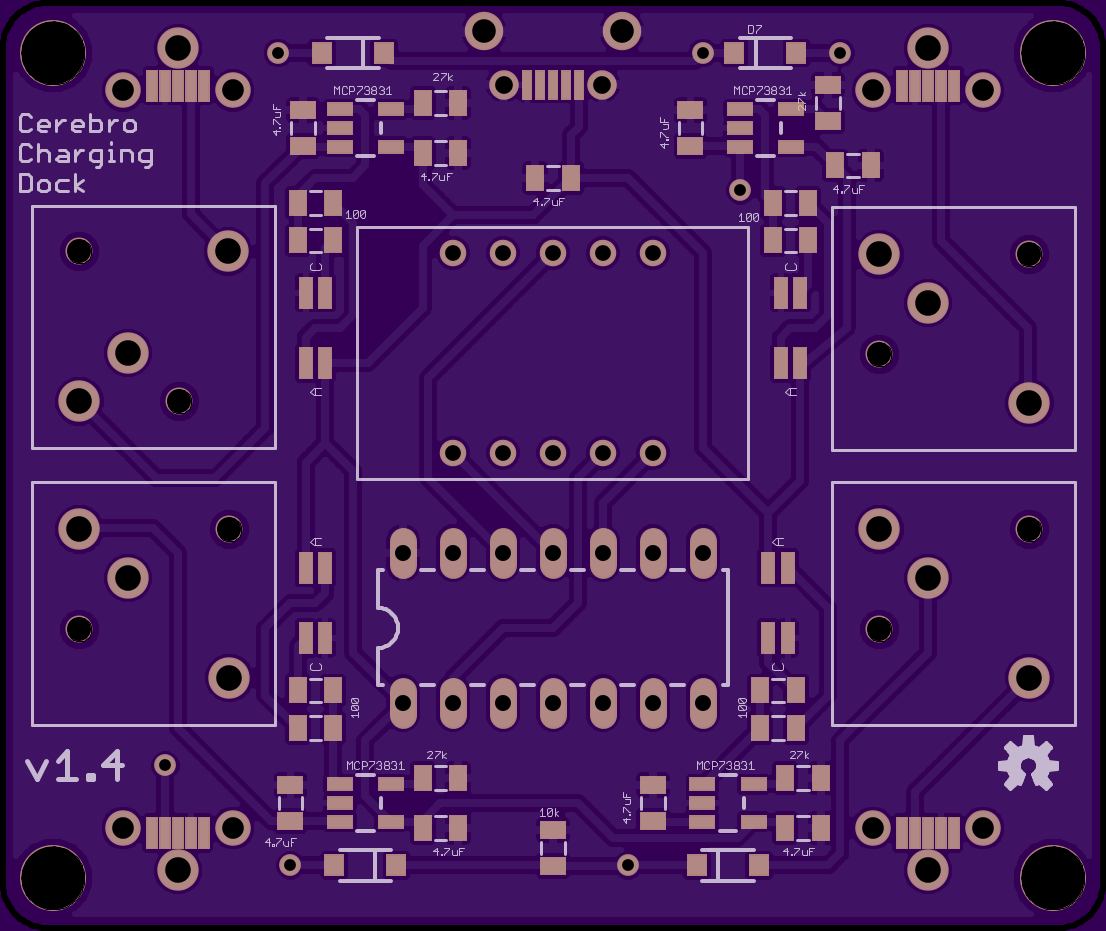

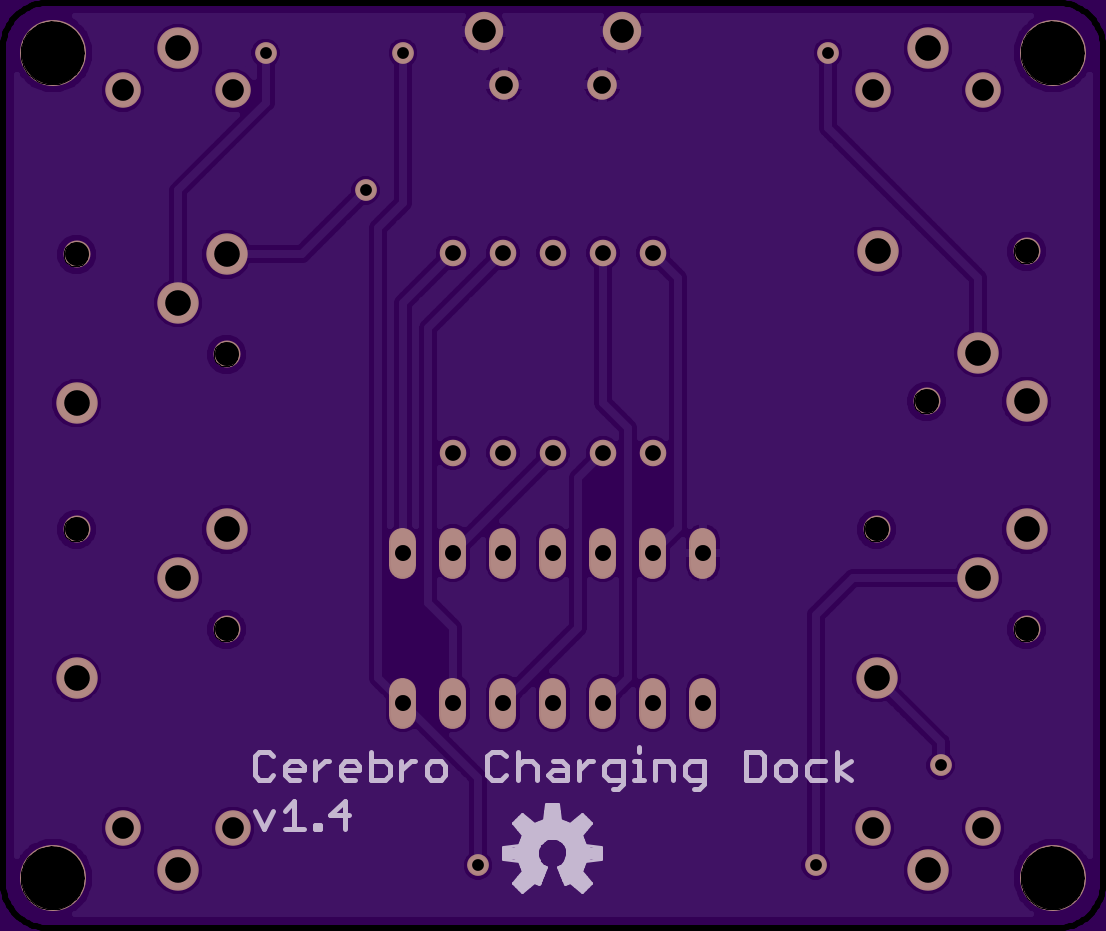

Charging Dock v1.4

by Bluestaz.
Top
Bottom

2 layer board of 2.21x1.86 inches (56.21x47.32 mm).
Shared on November 20th, 2015 23:32.

Dock for charging up to 4 Cerebro receivers at a time. Click here for documentation

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

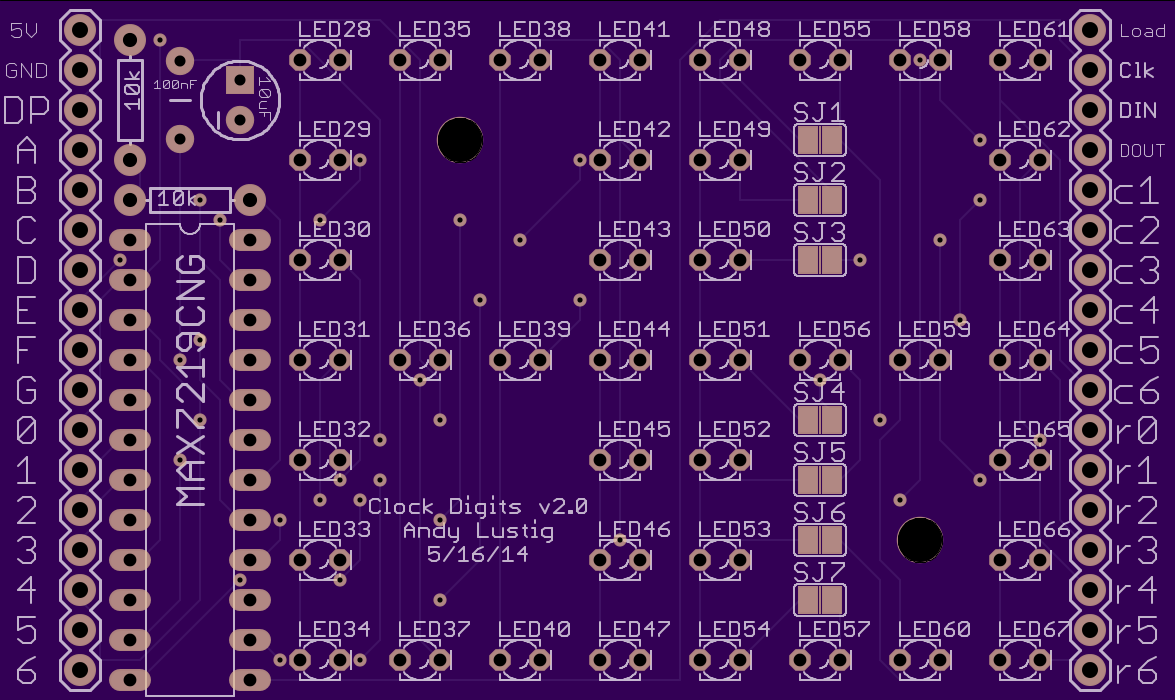

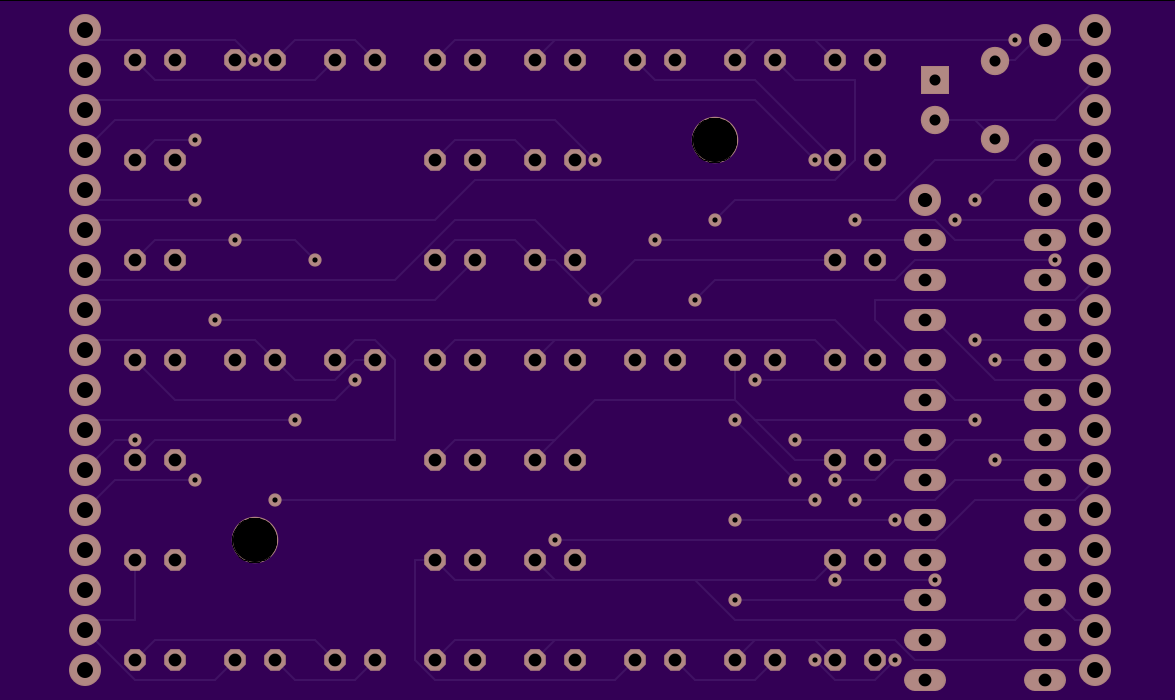

Clock Display v2

by Bluestaz.
Top
Bottom

2 layer board of 2.94x1.75 inches (74.60x44.45 mm).
Shared on June 26th, 2014 02:29.

MAX7219 daisy chained digits

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
