Generic RF filter

2 layer board of 1.81x0.38 inches (45.87x9.68 mm).
Shared on November 2nd, 2016 19:13.

Blank board for building RF filters. Uses edge-mount SMA connectors. Supports 0603 and larger SMT discretes and up to 4 series elements

Copy this HTML into your page to embed a link to order this shared project

Digital Step Attenuator

4 layer board of 1.44x1.33 inches (36.68x33.81 mm).
Shared on June 30th, 2016 04:41.

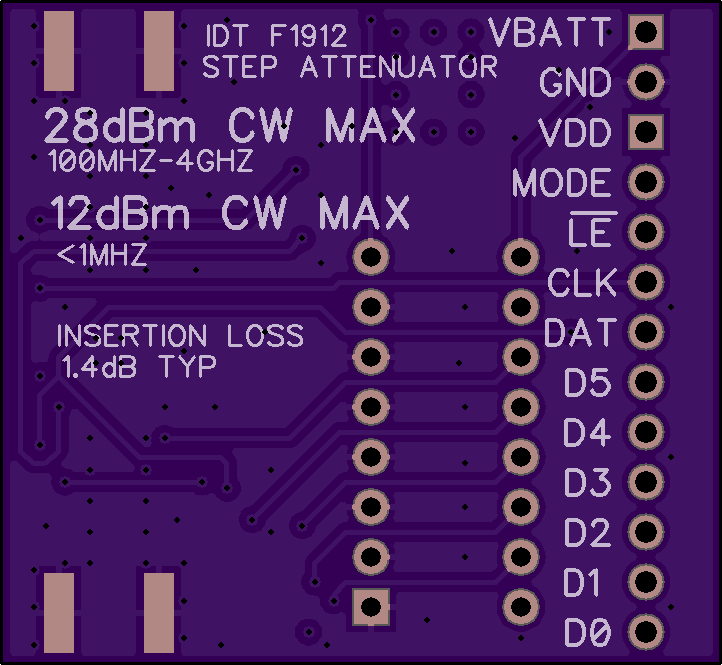

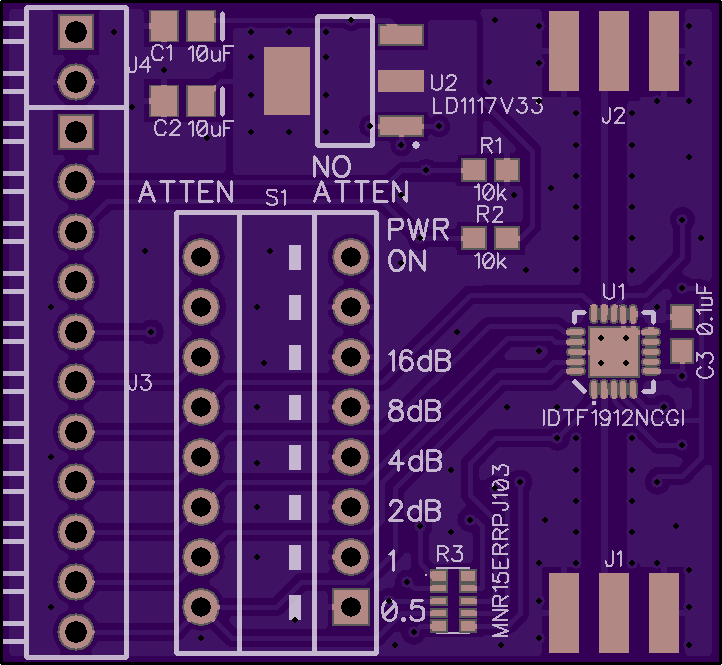

Carrier board for ITD F1912 31.5dB step attenuator. Controlled with DIP switches, external parallel control, or external serial.
