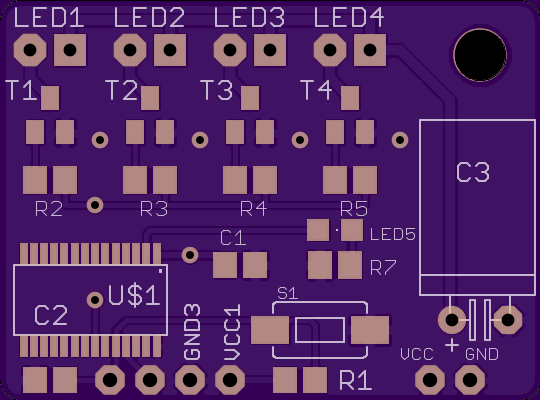

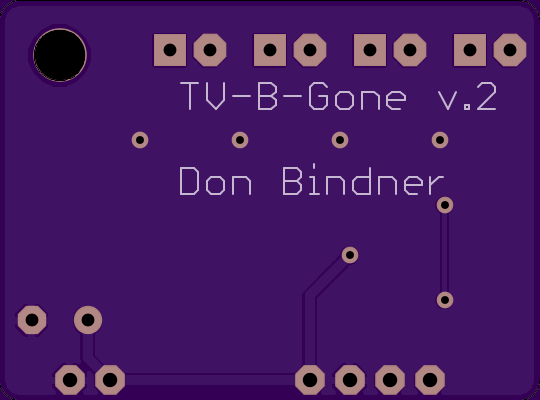

TV-B-Gone v.2

by DonBindner.
Top
Bottom

2 layer board of 1.35x1.00 inches (34.29x25.43 mm).
Shared on January 29th, 2015 02:59.

Turns off most TVs.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

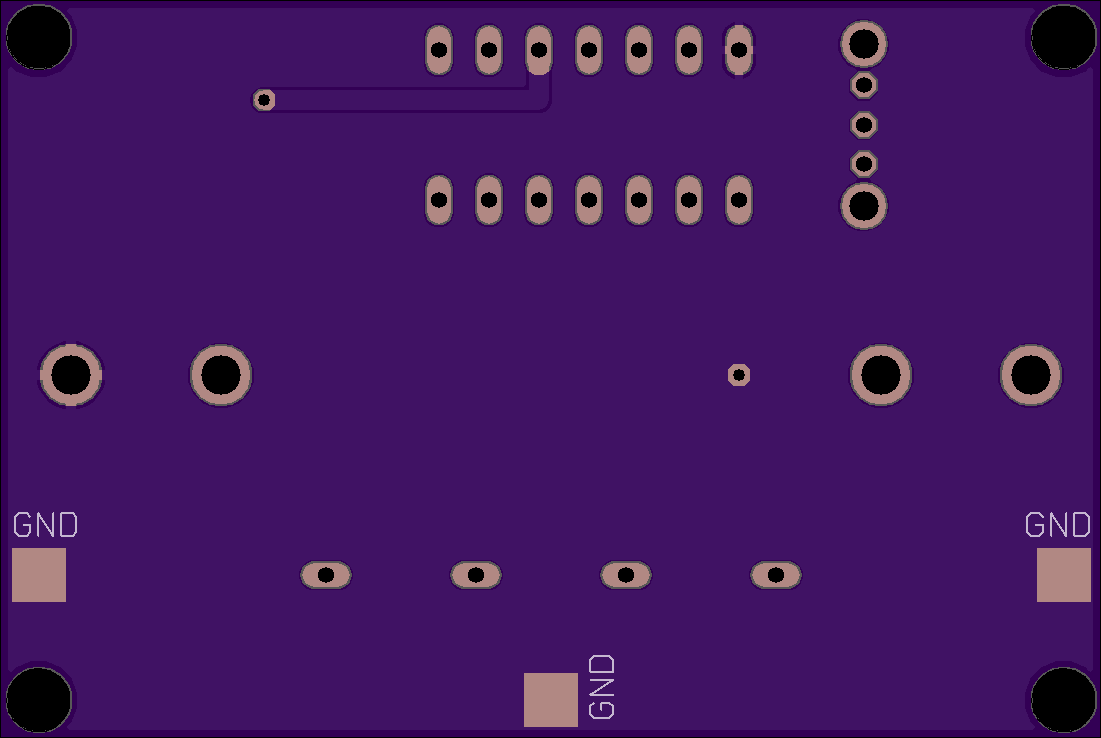

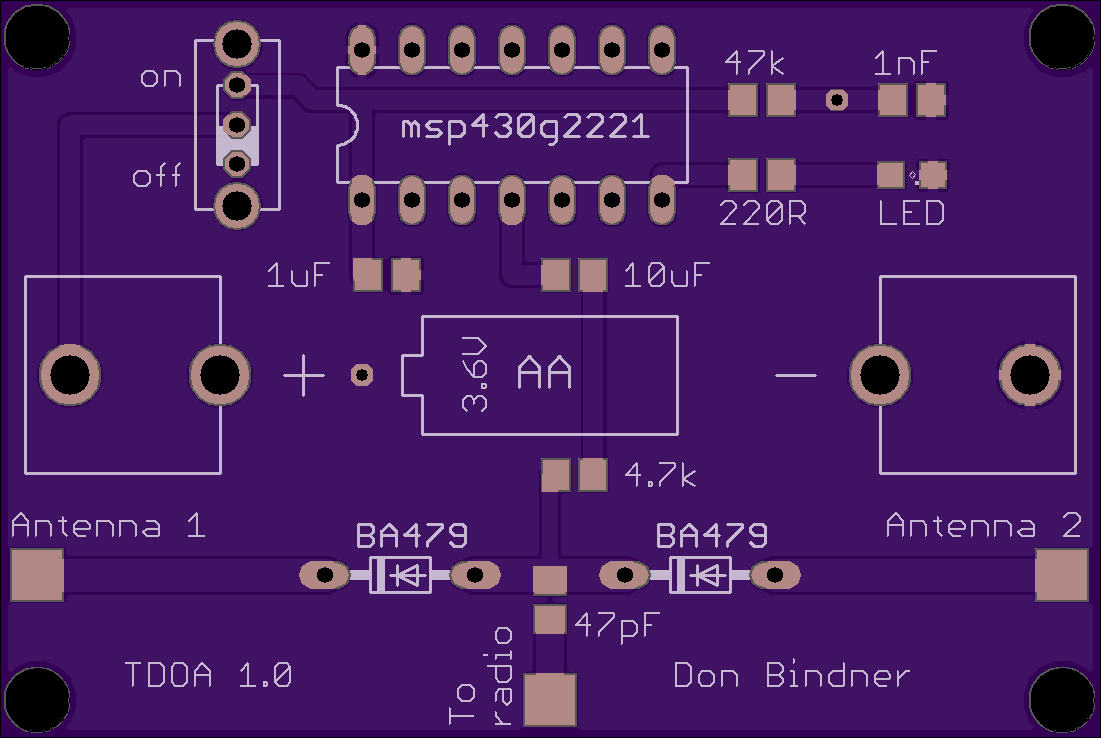

TDOA v1.0

by DonBindner.
Top
Bottom

2 layer board of 2.20x1.48 inches (55.88x37.46 mm).
Shared on May 8th, 2014 15:24.

Direction finder (time difference of arrival)

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

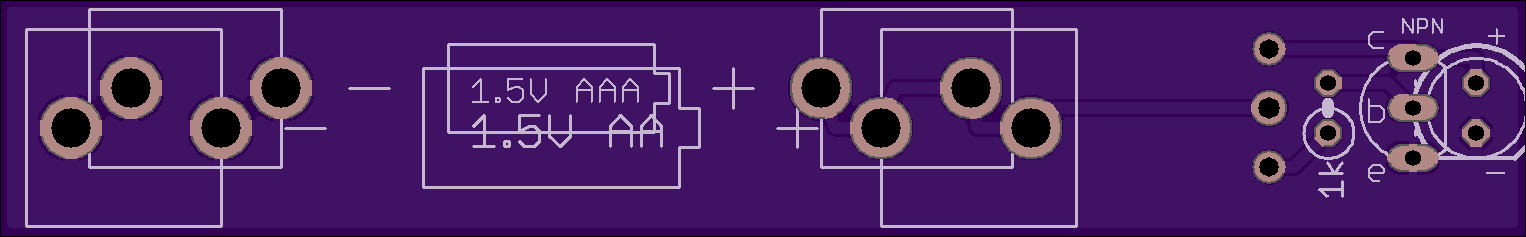

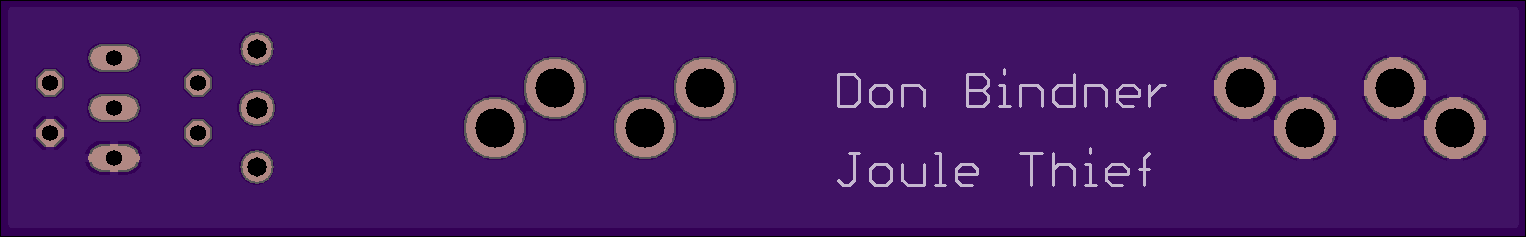

Joule Thief

by DonBindner.
Top
Bottom

2 layer board of 3.05x0.47 inches (77.52x12.01 mm).
Shared on September 20th, 2013 12:17.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

MSP430 breakout

by DonBindner.
Top
Bottom

2 layer board of 2.60x1.26 inches (66.07x32.08 mm).
Shared on August 4th, 2013 21:16.

A breakout board for MSP430F5510.

I’ve used it for a couple of projects. Would be better if the legends for pins were larger, and if the “bootstrap loader jumper” were made into a temporary switch.
