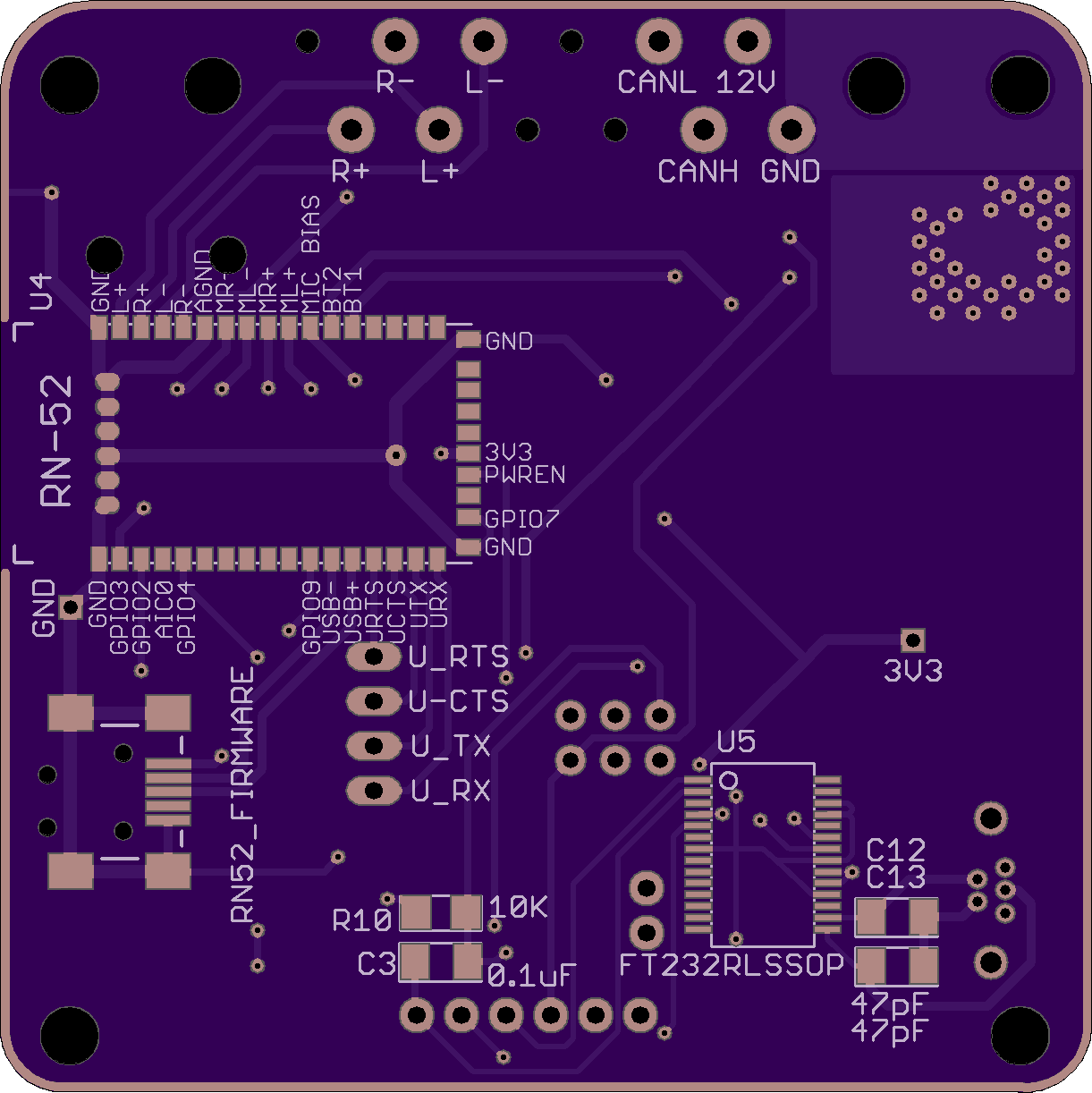

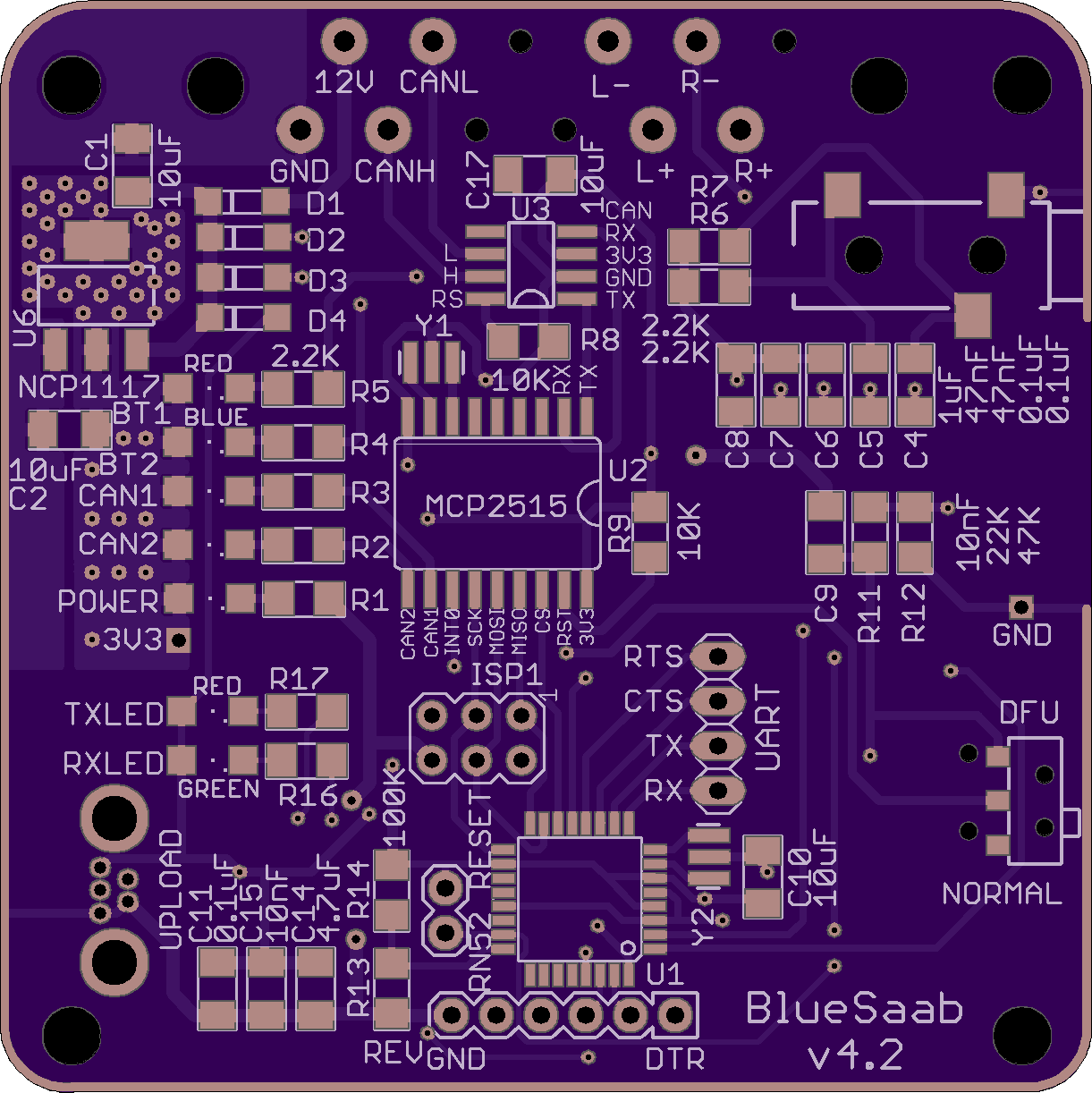

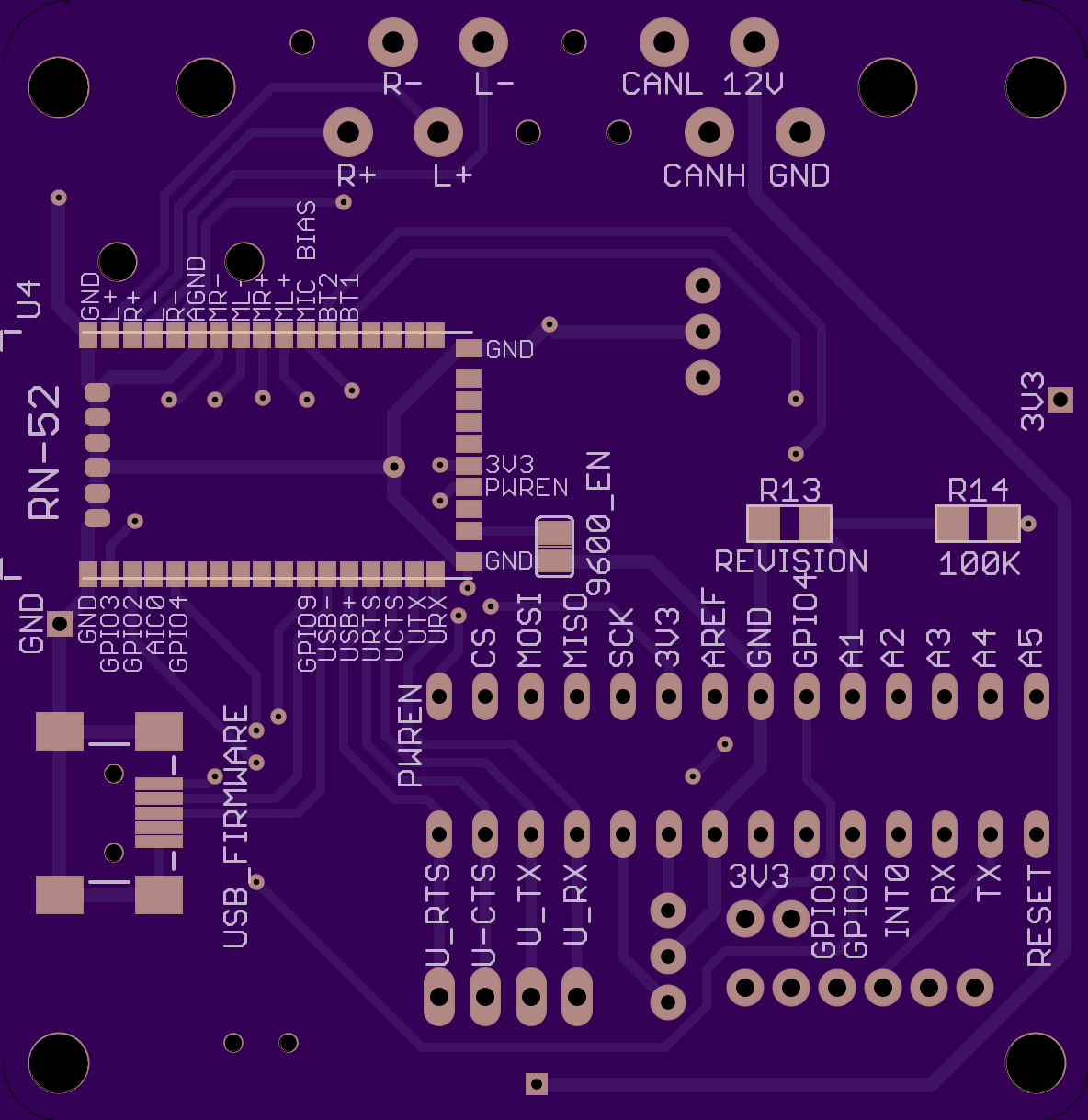

BlueSaab v4.2

by Edison517.
Top
Bottom

2 layer board of 2.44x2.44 inches (61.98x62.00 mm).
Shared on July 27th, 2016 16:58.

Added caps, fixed USB mounting holes, added via stitching to 3.3v

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

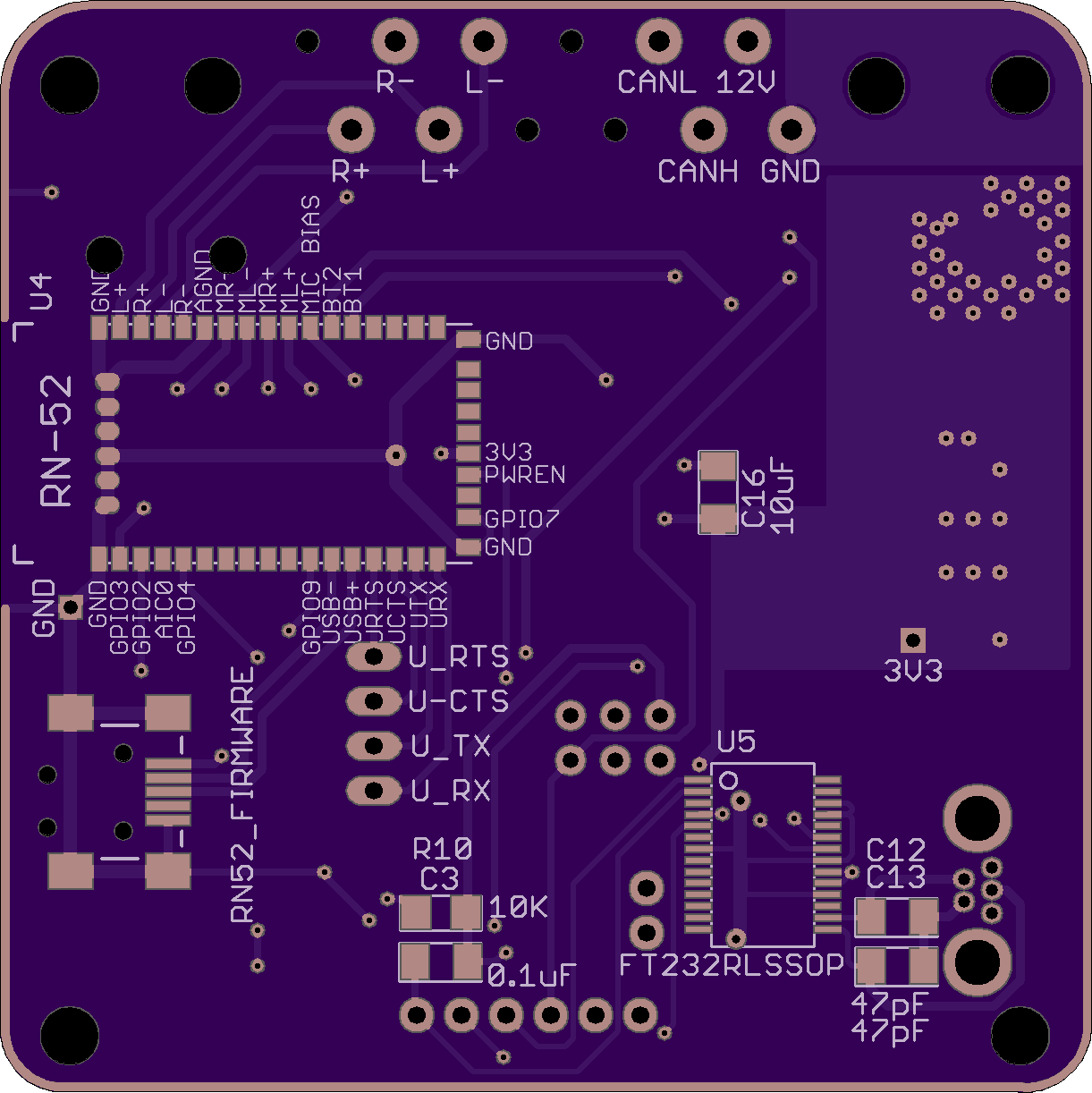

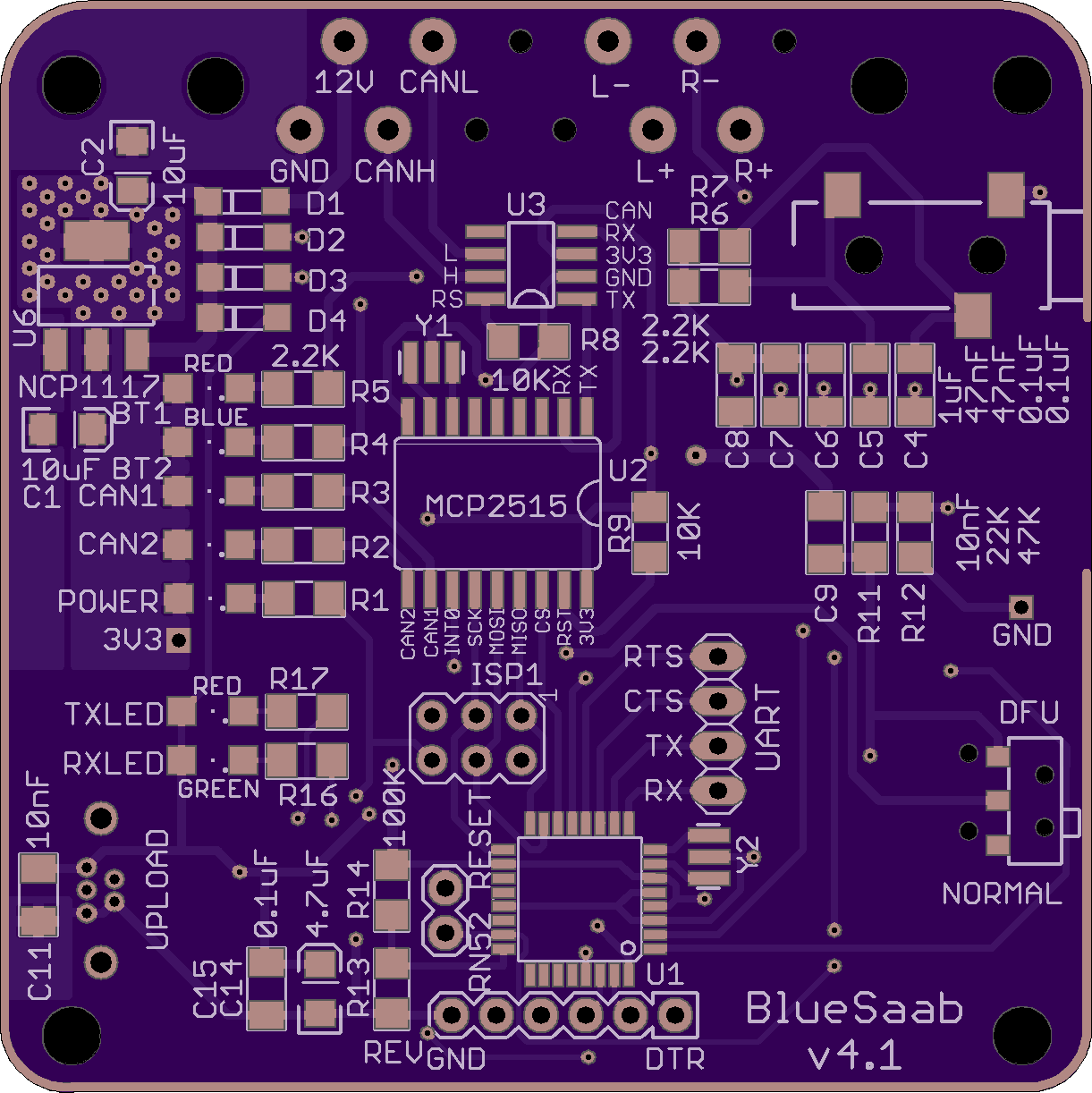

BlueSaab v4.1

by Edison517.
Top
Bottom

2 layer board of 2.44x2.44 inches (61.98x62.00 mm).
Shared on June 23rd, 2016 19:15.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

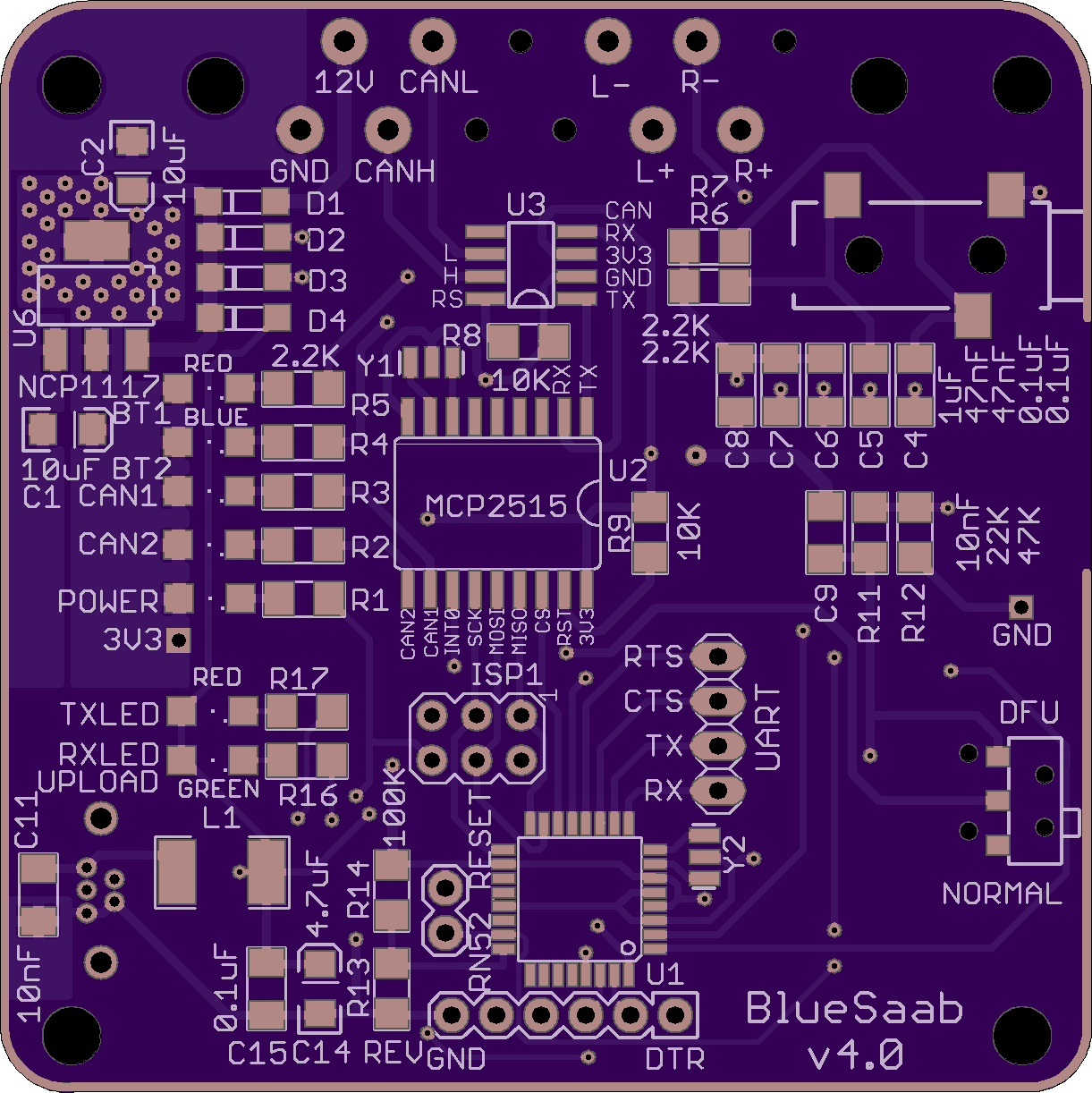

BlueSaab v4.0

by Edison517.
Top
Bottom

2 layer board of 2.44x2.44 inches (61.98x62.00 mm).
Shared on June 7th, 2016 17:31.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

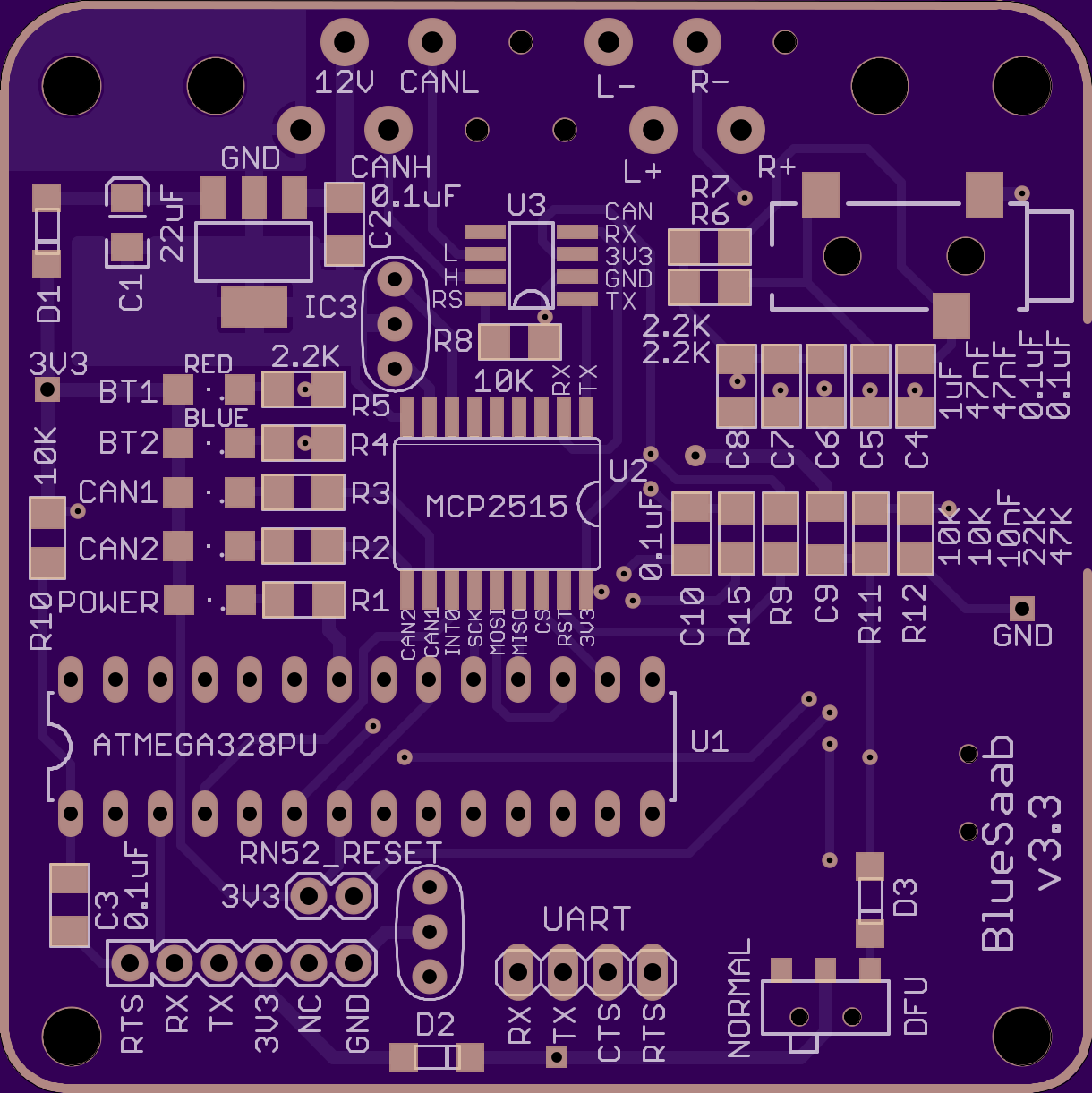

BlueSaab v3.3a

by Edison517.
Top
Bottom

2 layer board of 2.44x2.44 inches (61.98x62.03 mm).
Shared on February 11th, 2016 21:36.

Added GND border to top and bottom.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

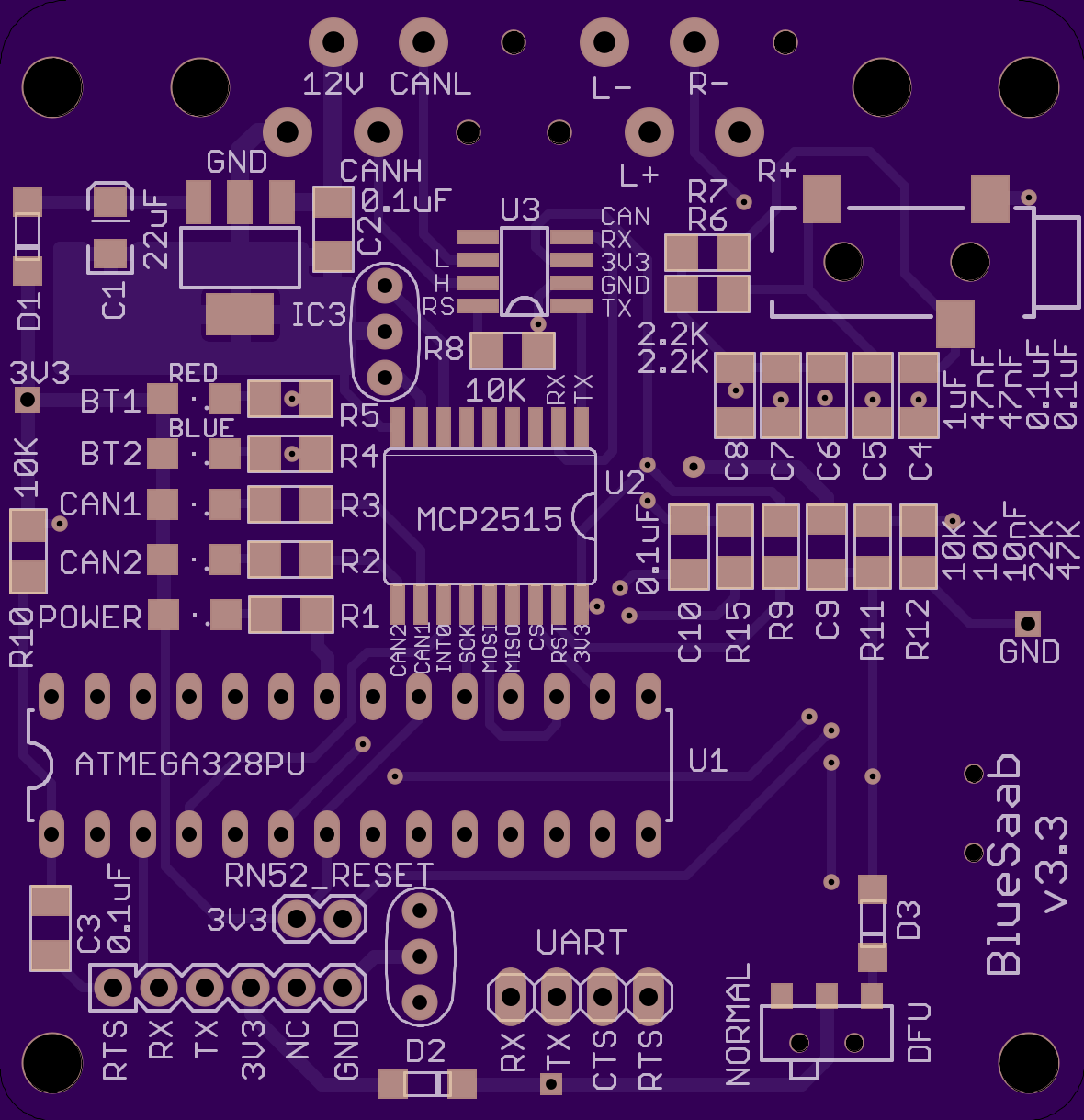

BlueSaab v3.3

by Edison517.
Top
Bottom

2 layer board of 2.36x2.44 inches (59.97x61.95 mm).
Shared on February 11th, 2016 19:13.

Added additional bottom silk screen labels to RN52. MINOR tweak to BT1 and BT2 vias. Added Hardware Rev resistor R13 with R14 (resistor divider network) for possible future use. Added R15 & C10 for outputting pwm power signal to PWREN pin on RN52. Added SMD jumper to short GPIO7 to ground to force 9600 baud instead of 115200.
