OSH Park
Profile for JoyMonkey
Shared projects

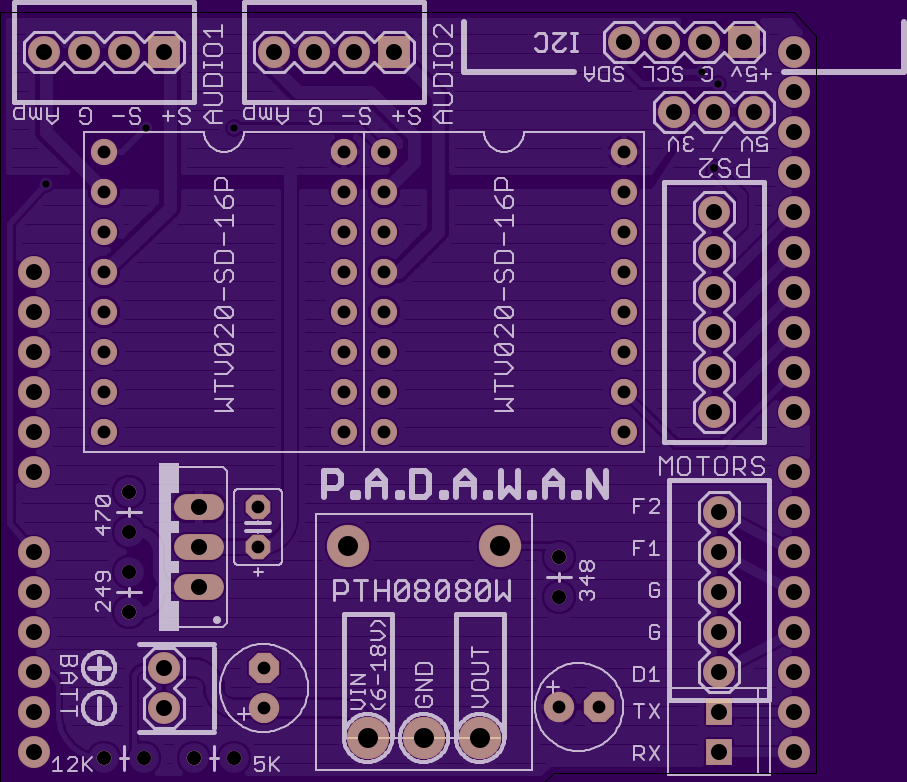

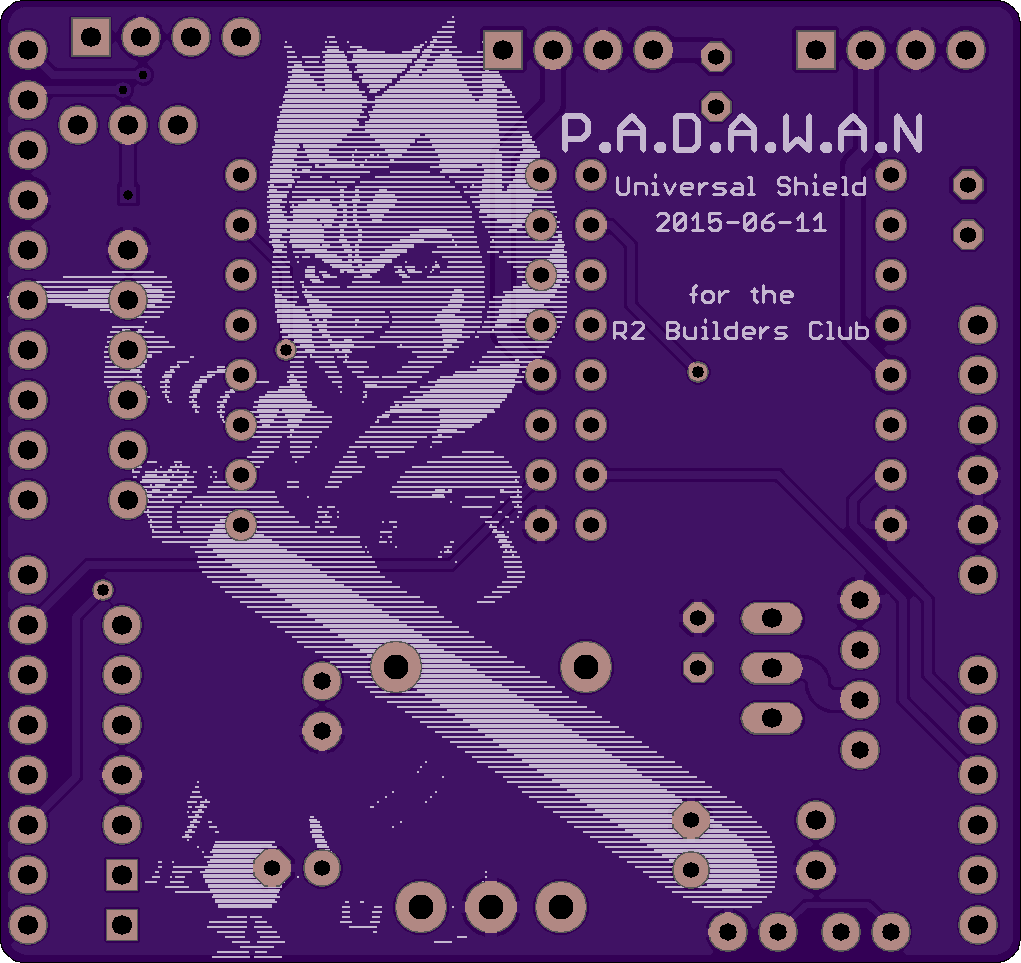

Padawan Shield v4
by
JoyMonkey.
2
layer board of
2.04x1.93
inches
(51.84x48.90
mm).
Shared on
July 14th, 2015 14:34.
Arduino Shield to simplify wiring of R2 Builders' Padawan control system. Also has a nifty 2 channel audio system.

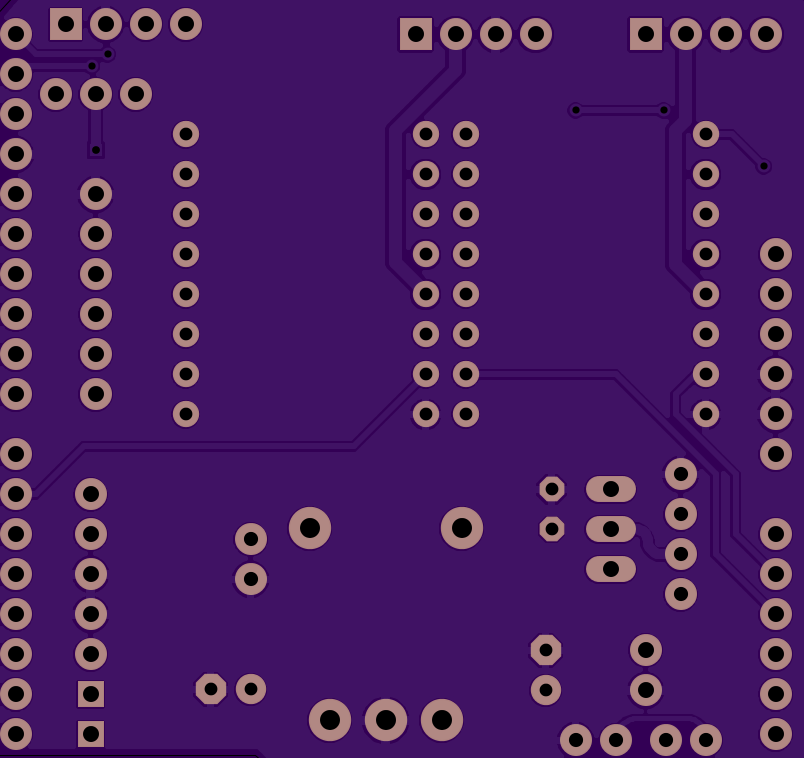

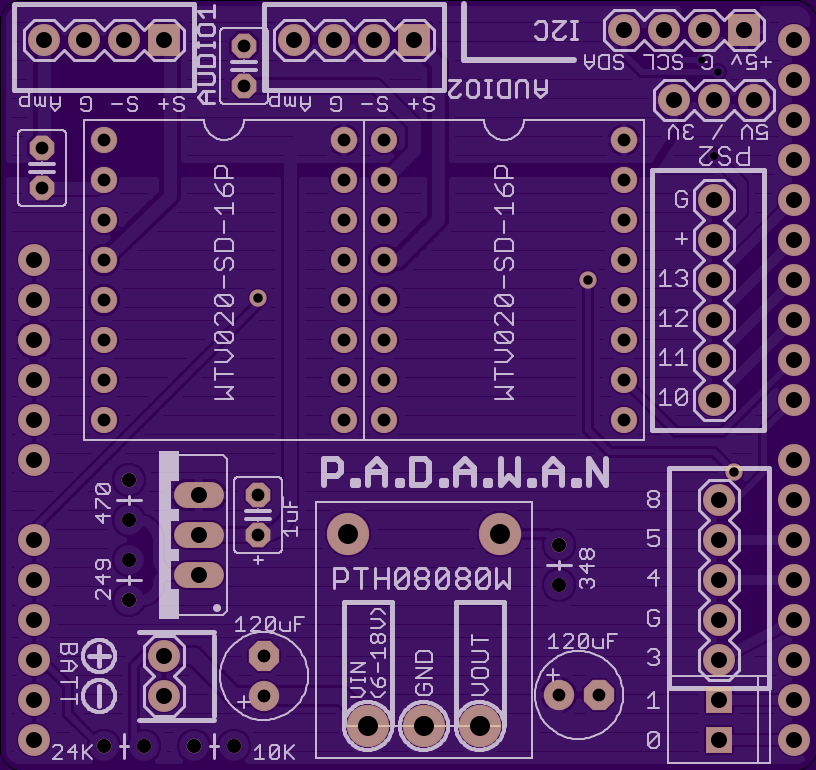

Padawan Universal Shield
by
JoyMonkey.
2
layer board of
2.04x1.93
inches
(51.84x48.90
mm).
Shared on
February 4th, 2015 17:02.
First Prototype

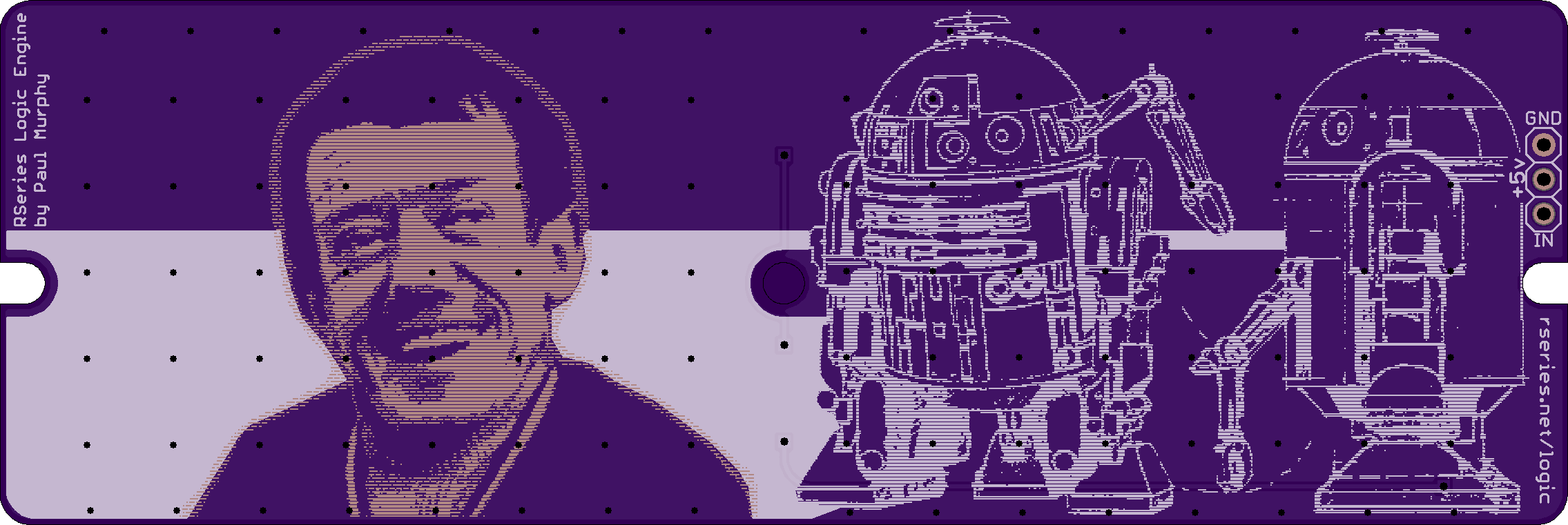

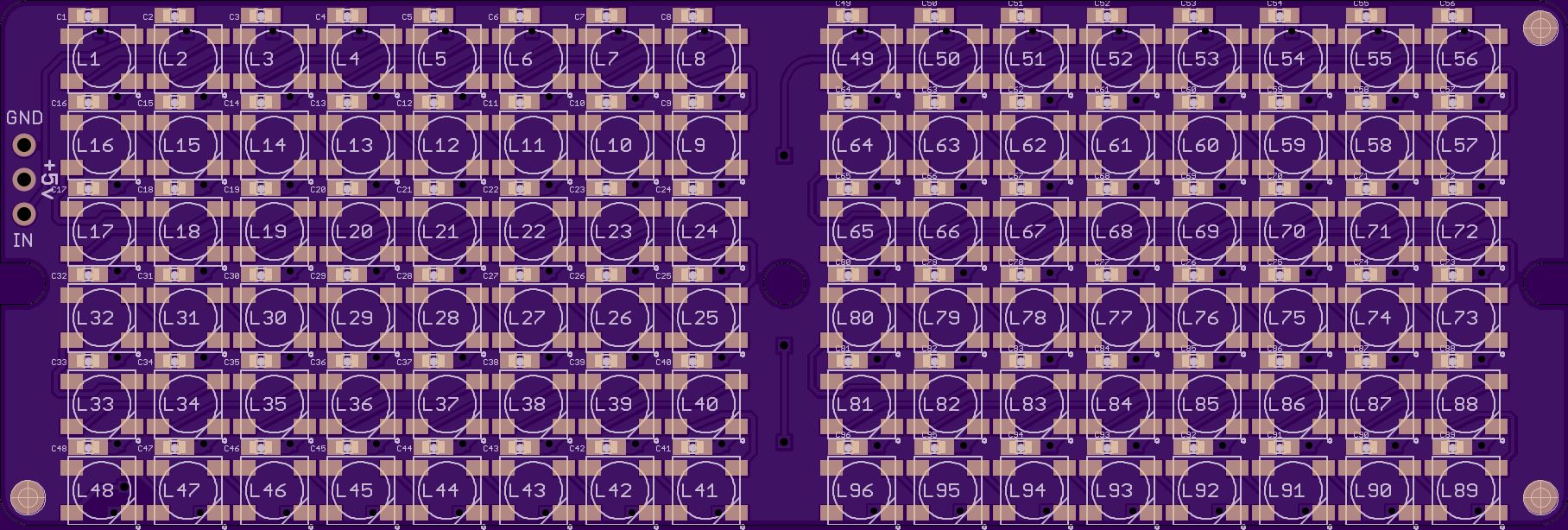

Rear Logic 3
by
JoyMonkey.
2
layer board of
4.54x1.52
inches
(115.32x38.63
mm).
Shared on
May 16th, 2014 15:16.
Same great taste, now with a Kenny for everyone’s droid!

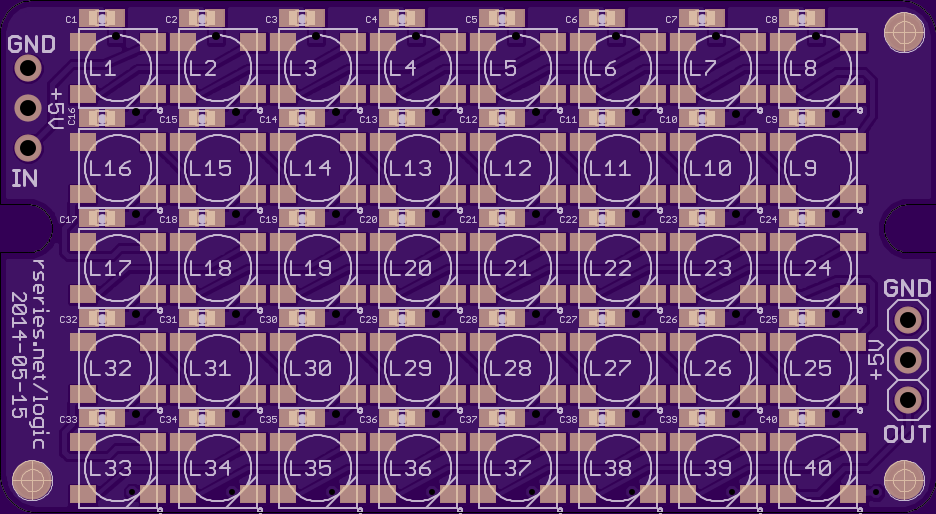

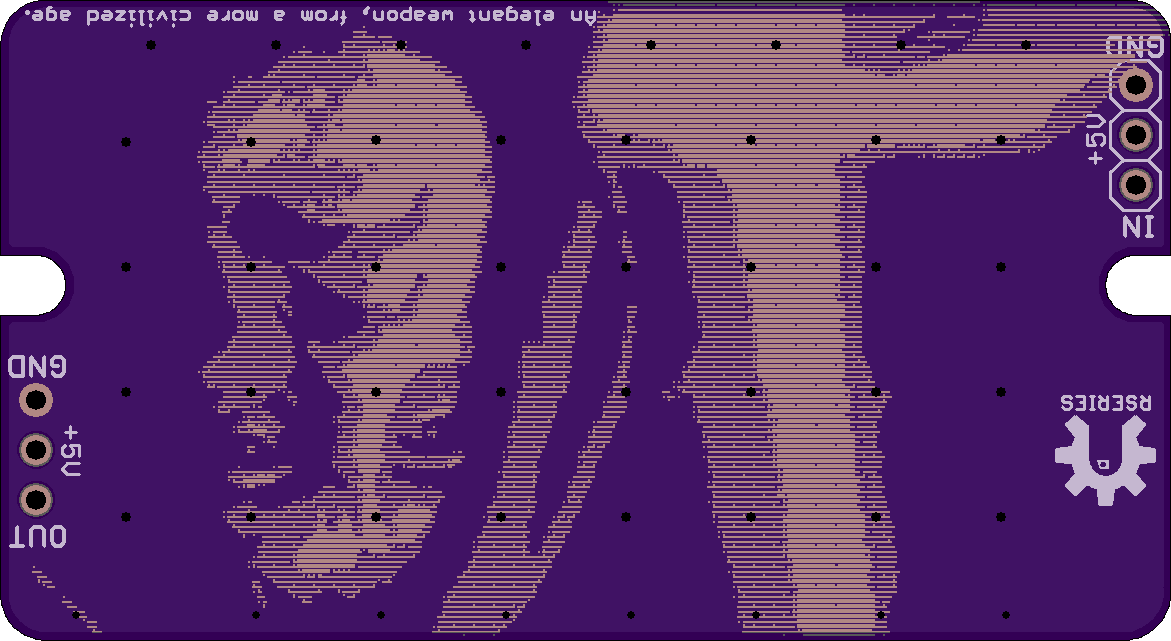

Front Logic 3
by
JoyMonkey.
2
layer board of
2.34x1.28
inches
(59.46x32.54
mm).
Shared on
May 15th, 2014 15:49.
Less LEDs, more Obiwan.
Part of the RSeries Logic Engine by Paul Murphy for the R2 Builders Club.
Logic 2B
by
JoyMonkey.
2
layer board of
2.34x1.52
inches
(59.46x38.63
mm).
Shared on
December 27th, 2013 13:51.
Modular Logic Board with 4-pin LEDs
