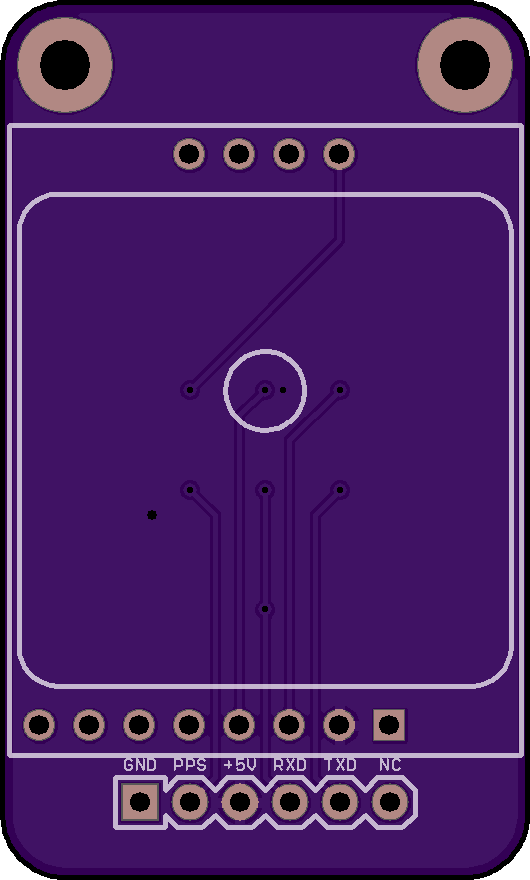

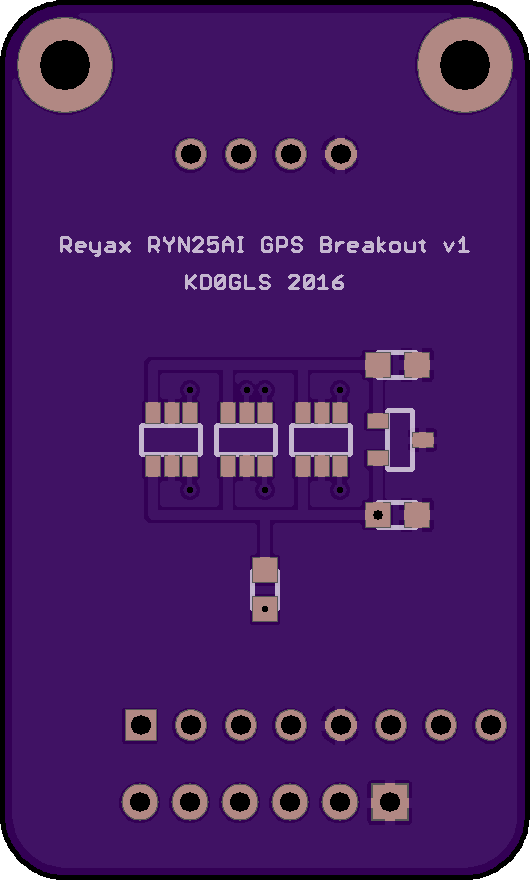

Reyax RYN25AI GPS Breakout

by KD0GLS.
Top
Bottom

2 layer board of 1.06x1.76 inches (26.92x44.73 mm).
Shared on February 26th, 2017 01:46.

Reyax RYN25AI GPS Breakout

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

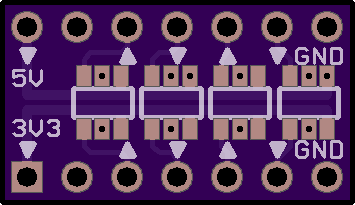

Quad Level Shifter

by KD0GLS.
Top
Bottom

2 layer board of 0.71x0.41 inches (18.06x10.44 mm).
Shared on August 7th, 2016 18:20.

Quad 5V to/from 3V3 level shifter in 14-pin DIP package utilizing SN74LVC1T45DBVR and LM3480-3V3.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

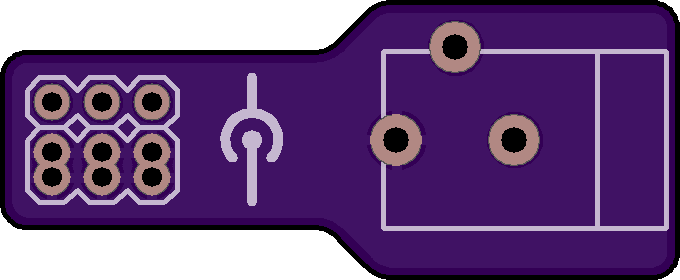

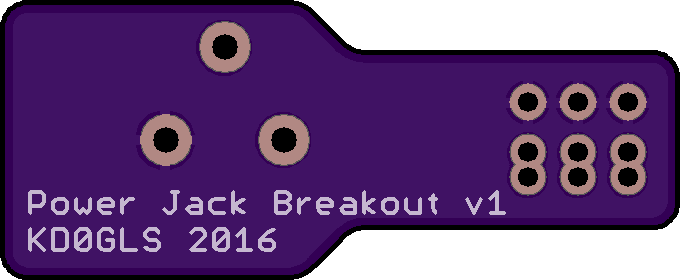

Power Jack Breakout

by KD0GLS.
Top
Bottom

2 layer board of 1.36x0.56 inches (34.54x14.22 mm).
Shared on August 7th, 2016 18:18.

Power jack breakout for solderless breadboard power rails (0.100 and 0.150).

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

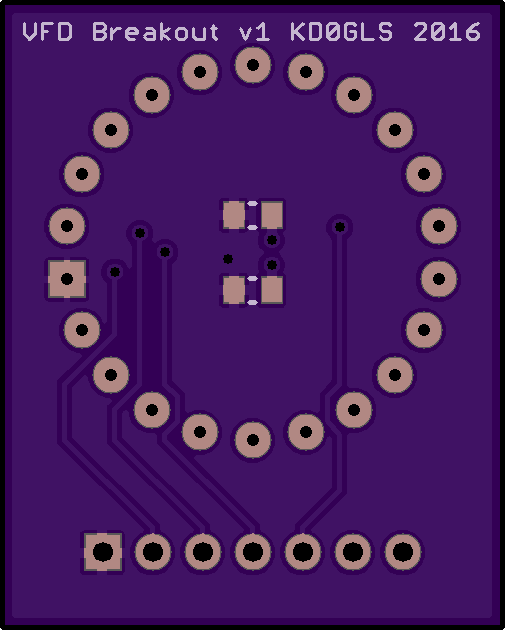

IV-18 VFD Breakout

by KD0GLS.
Top
Bottom

2 layer board of 1.01x1.26 inches (25.68x32.03 mm).
Shared on July 26th, 2016 17:59.

IV-18 VFD breakout with MAX6921 driver

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

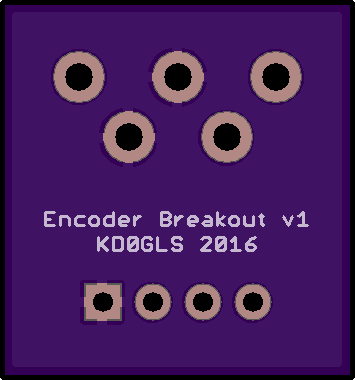

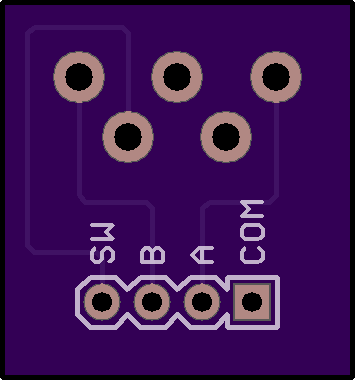

CTS Encoder Breakout

by KD0GLS.
Top
Bottom

2 layer board of 0.71x0.76 inches (18.06x19.30 mm).
Shared on July 12th, 2016 00:11.

CTS Encoder Breakout

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
