Profile for LA3PNA
Shared projects

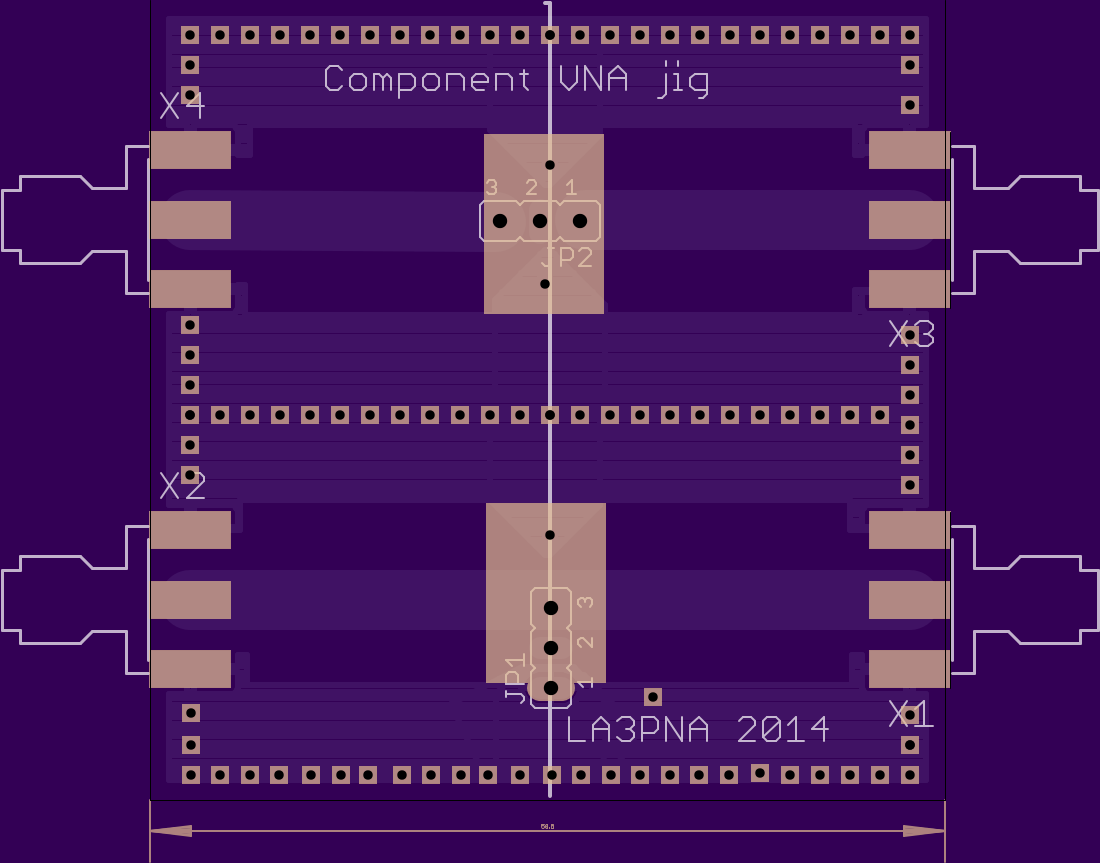

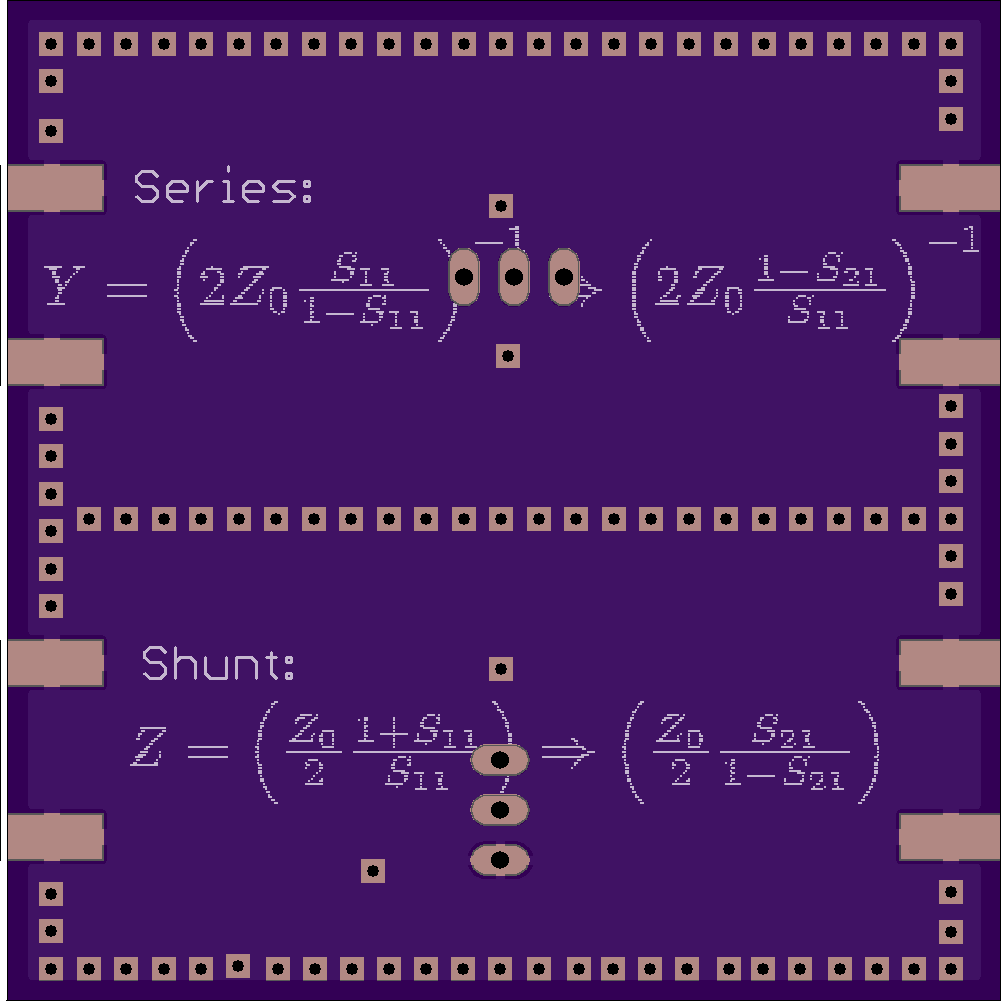

Small Board Xtal
by
LA3PNA.
2
layer board of
2.00x2.00
inches
(50.80x50.80
mm).
Shared on
November 22nd, 2014 17:24.

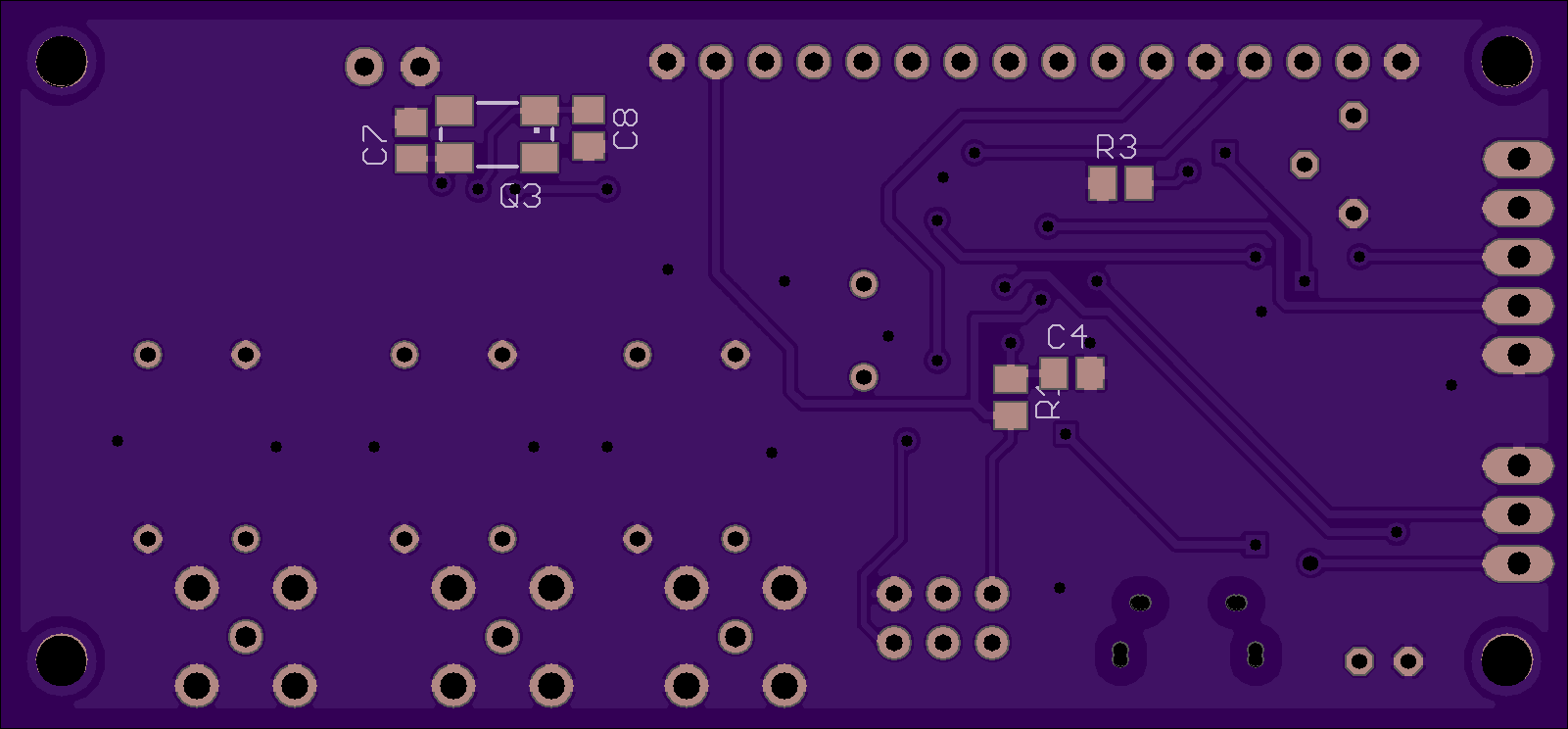

VNA measurment of crystals

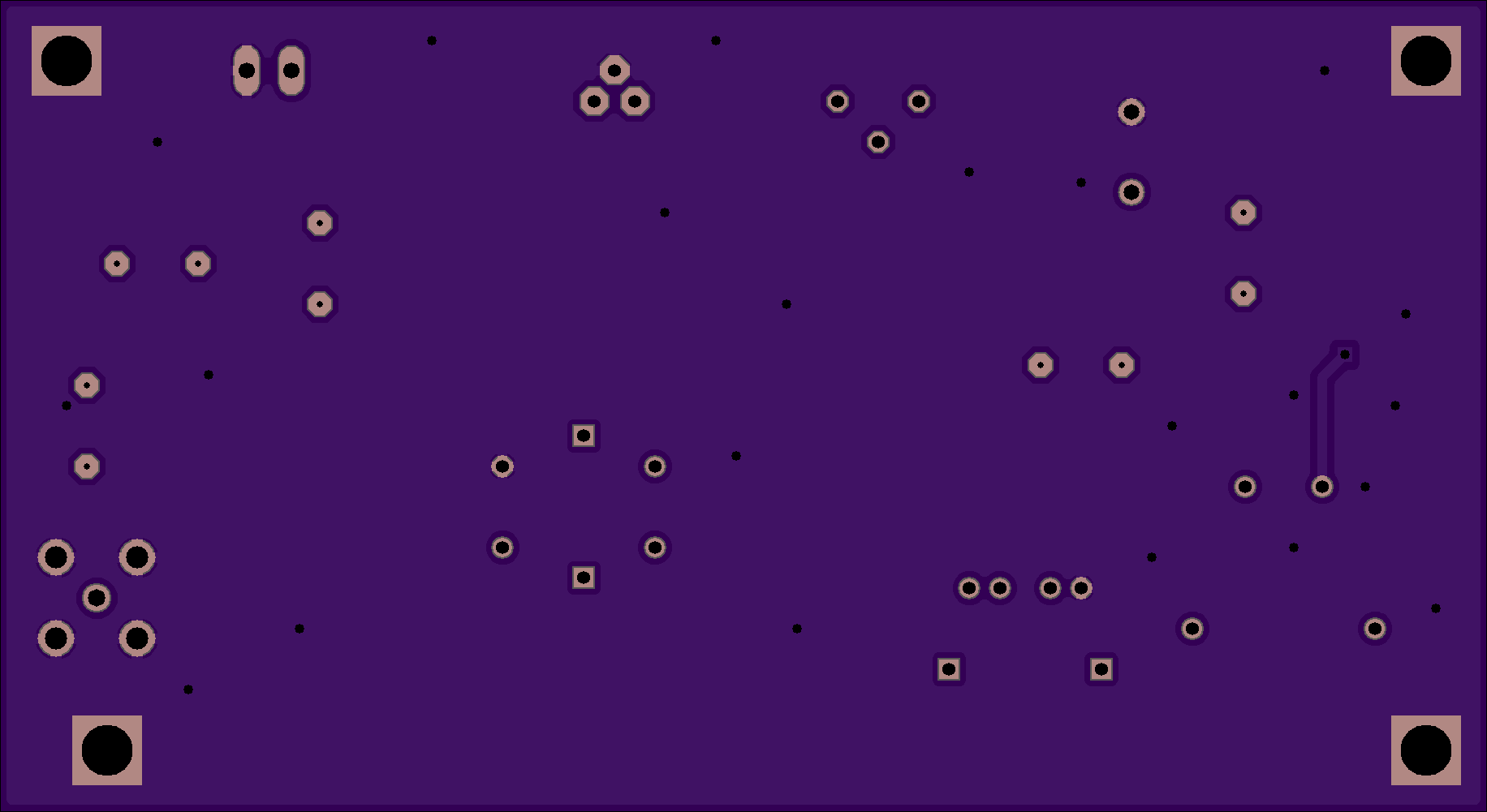

Lcd Backpack
by
LA3PNA.
2
layer board of
3.20x1.49
inches
(81.28x37.80
mm).
Shared on
November 10th, 2014 21:11.

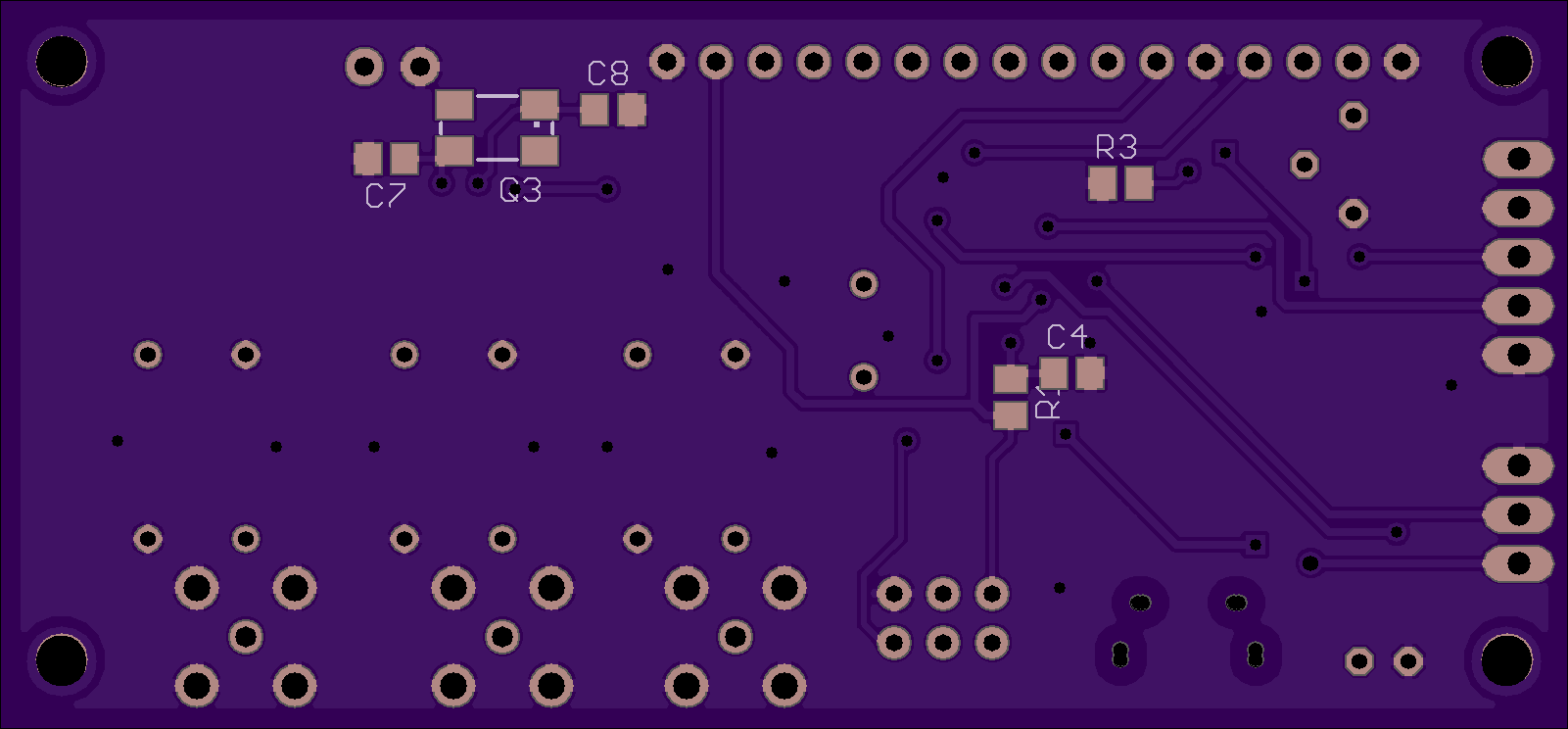

Lcd Backpack
by
LA3PNA.
2
layer board of
3.20x1.49
inches
(81.28x37.80
mm).
Shared on
November 7th, 2014 01:11.

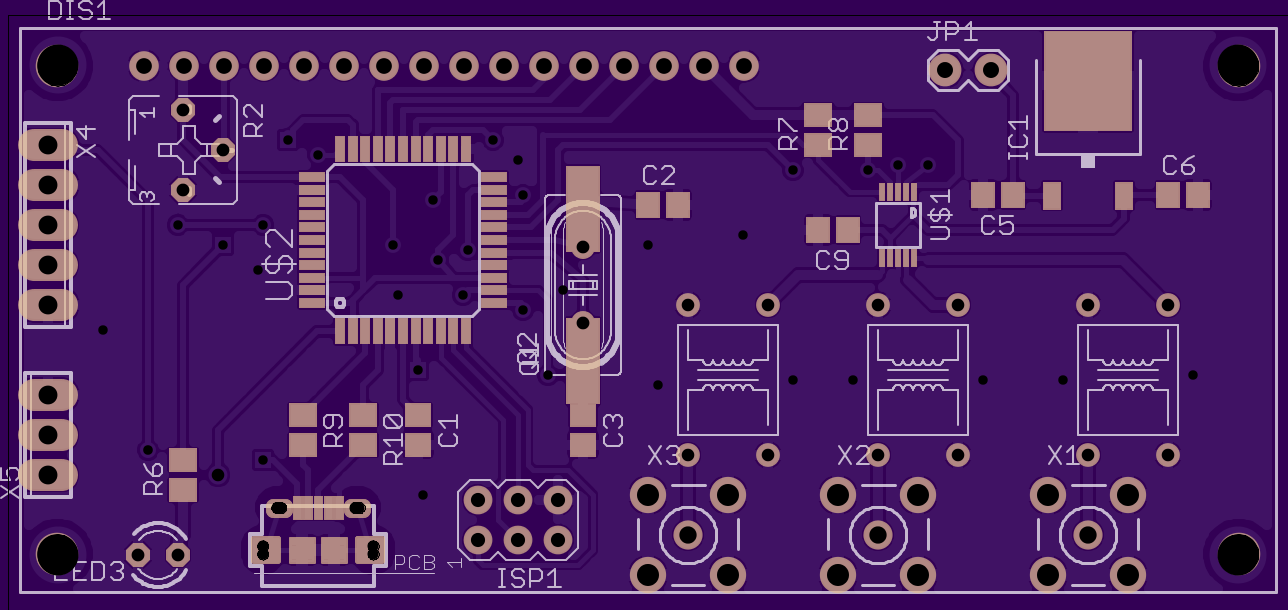

Generator
by
LA3PNA.
2
layer board of
3.66x2.00
inches
(93.04x50.80
mm).
Shared on
November 6th, 2014 02:39.

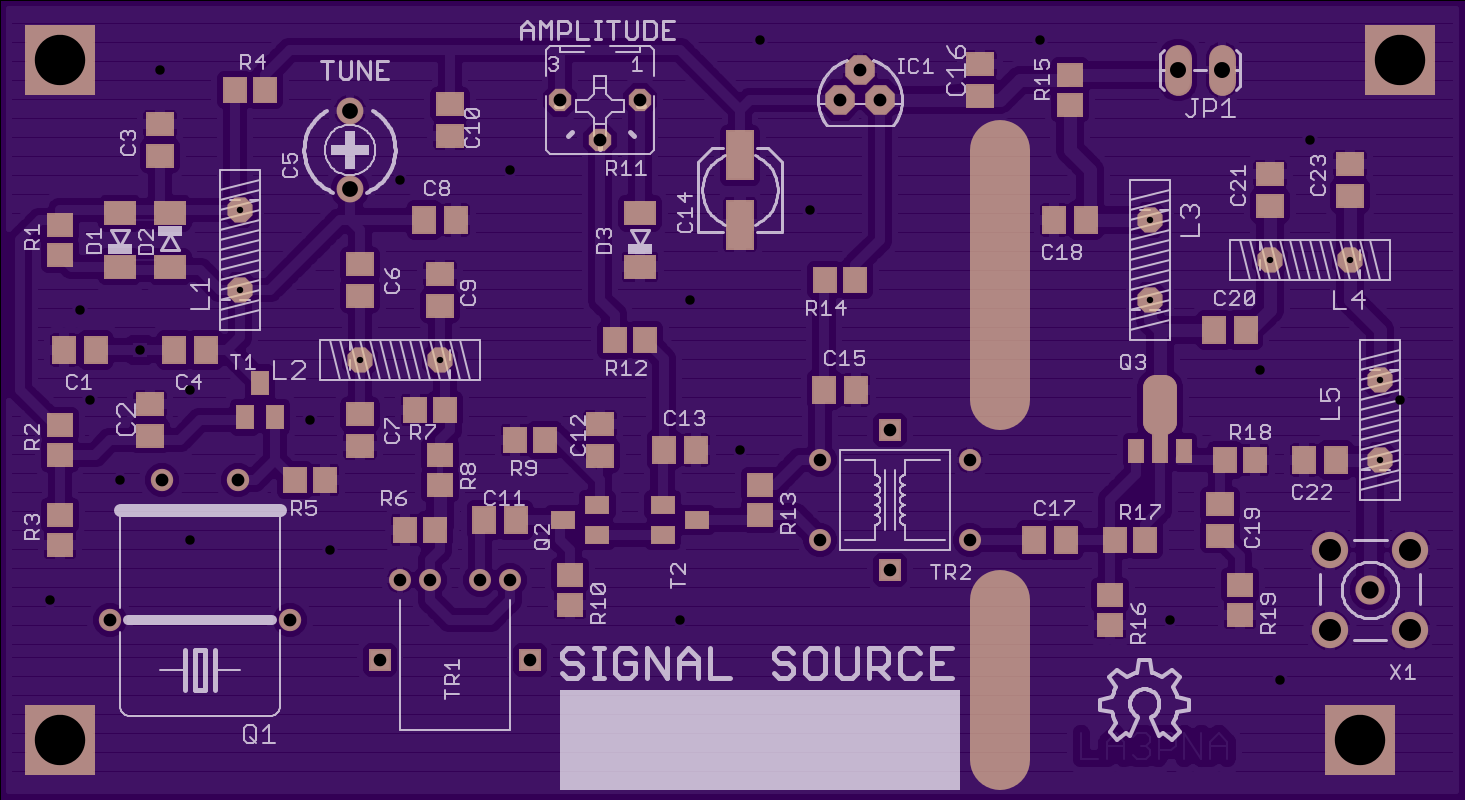

Wilkinson
by
LA3PNA.
2
layer board of
1.99x1.00
inches
(50.50x25.40
mm).
Shared on
October 2nd, 2013 22:32.
Wilkinson RF power divider.
R1 = 100Ohm
C1 = 2 * C4
C4, C7 = 1/(2 * pi * frequency * 70.7)
L1, L2, = 70.7/(2 * pi * frequency)
The splitter will have an 3dB in-phase split at the wanted frequency.
C2,C3,C5,C6,C8,C9 is extra pads in order to paralell capacitors to obtain the correct value.
All the capacitors are 1206 size and the inductors are wound on T50 size toroidal inductors or as airwound inductors.
