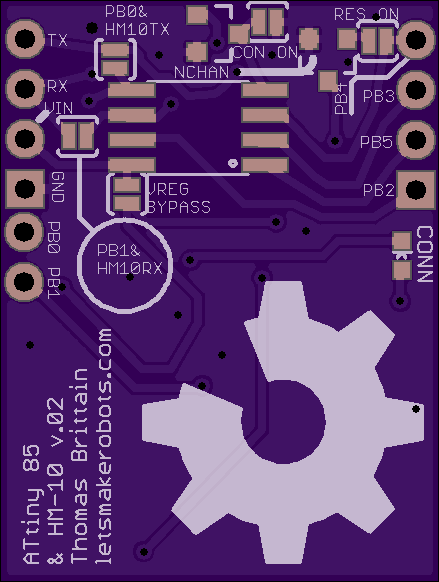

Atiny Bitsy Spider
by
Ladvien.
2
layer board of
0.88x1.16
inches
(22.25x29.51
mm).
Shared on
January 4th, 2014 07:31.
ATtiny85 and HM-10
http://letsmakerobots.com/node/39795

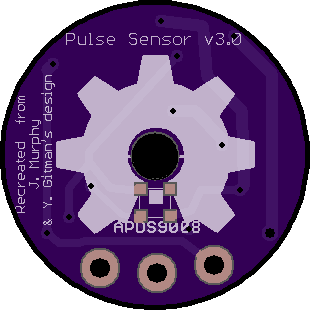

Pulse Sensor v3
by
Ladvien.
2
layer board of
0.62x0.62
inches
(15.77x15.77
mm).
Shared on
November 27th, 2013 04:04.

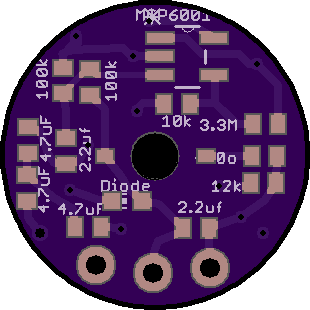

Pulse Sensor v3
Added tented vias and did some re-routing. Tested and working.
http://letsmakerobots.com/node/38544
ATTiny85 Breakout
by
Ladvien.
2
layer board of
0.45x0.40
inches
(11.40x10.16
mm).
Shared on
November 11th, 2013 13:33.
ATTiny85 Breakout v.9
Just a little board to work with the cheap SMD ATTiny 85.
ATTiny 85: http://www.digikey.com/product-search/en?pv7=2&k=ATTINY85-20SU-ND&mnonly=0&newproducts=0&ColumnSort=0&page=1&quantity=0&ptm=0&fid=0&pageSize=25
You can use an Arduino as ISP: http://www.instructables.com/id/Program-an-ATtiny-with-Arduino/
NOTE: If you see the following it means you’ve programmed the ATtiny85 successfully:
“avrdude: please define PAGEL and BS2 signals in the configuration file for part ATtiny85”
It’s an error, but one you can ignore :)
Xbee breakout for Bluetooth 4.0
by
Ladvien.
2
layer board of
0.98x1.10
inches
(24.92x27.91
mm).
Shared on
August 11th, 2013 15:42.
This is a Xbee breakout for the HM-10
http://www.fasttech.com/products/0/10004051/1292002-ti-cc2540-bluetooth-40-ble-2540-transparent-serial
It allows Arduino compatibility.
http://letsmakerobots.com/node/38009

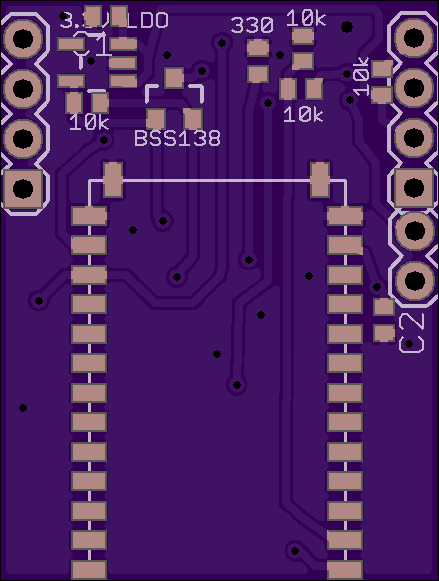

ADUM1250ARZ
by
Ladvien.
2
layer board of
0.79x0.70
inches
(19.99x17.78
mm).
Shared on
August 1st, 2013 01:38.
An i2c or serial logic converter (5v-3.3v) that’s galvanically isolated (functionally like optoisolation). ADUM1250ARZ Breakout v1
