SourDough 8ch Logic Level Converter - 3.3v to 5v DC

by PhantomicLabs.

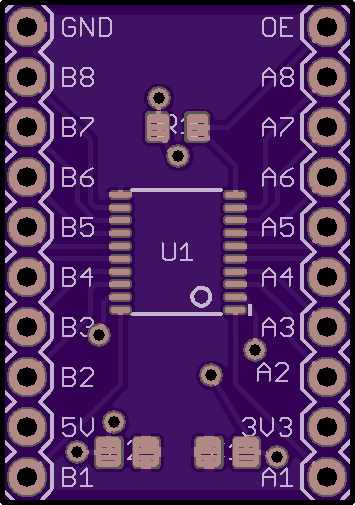

Top

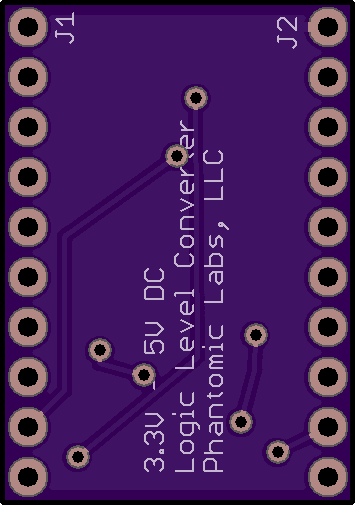

Bottom

2 layer board of 0.71x1.01 inches (18.06x25.68 mm).
Shared on November 3rd, 2016 06:18.

BOM — TXB0108PWR - TI logic conveter chip. Two 0.1uF Caps, 0805. 100k resistor, 0805. Two 10-position male pin headers, 2.54mm pitch.
