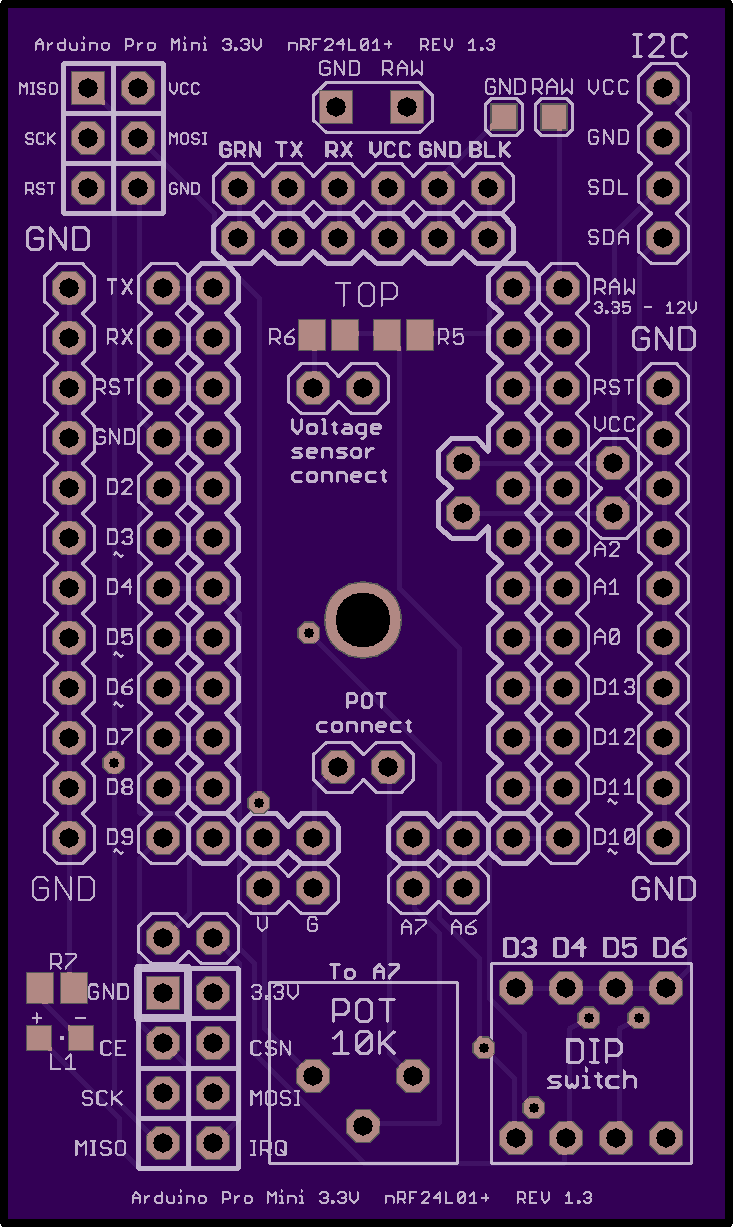

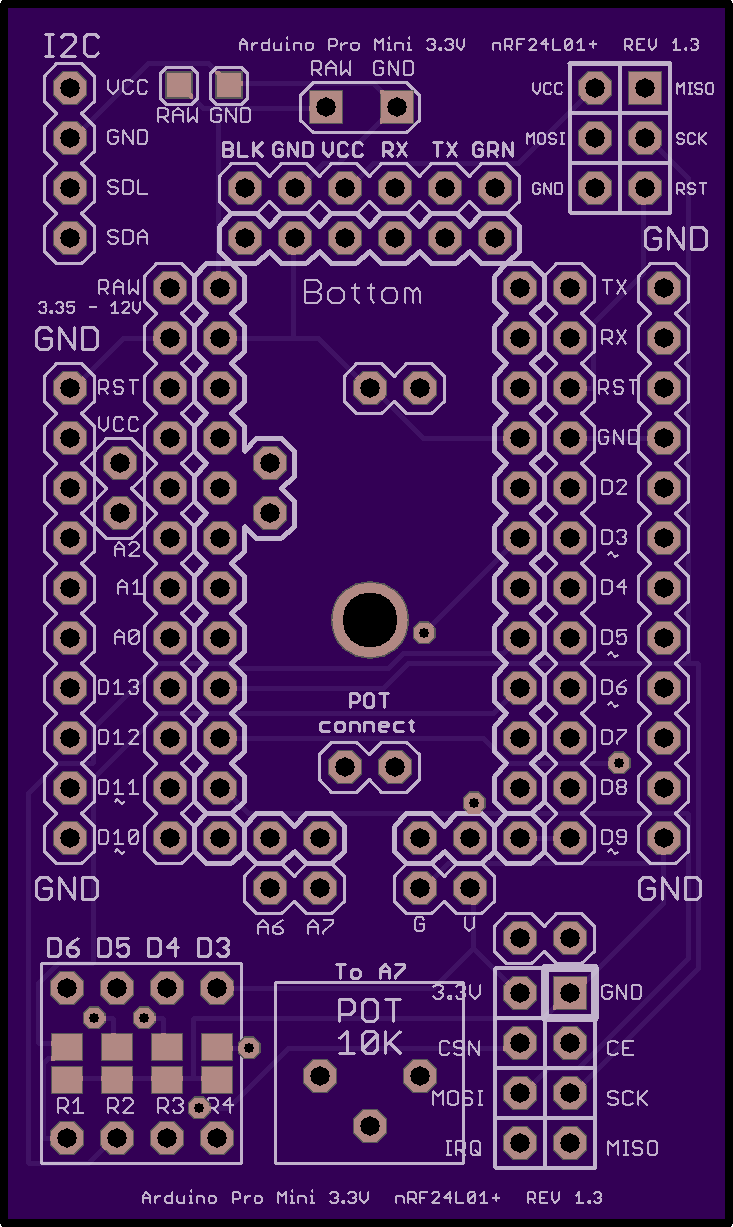

Wireless Board V1.3

by Ruben.
Top
Bottom

2 layer board of 1.47x2.45 inches (37.26x62.33 mm).
Shared on March 28th, 2014 17:31.

Breakout board for arduino pro mini 3.3v, with an nRF2401+ connection. Also includes 4-DIP switches and a pot. The I2C and SPI lines are also broken out.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

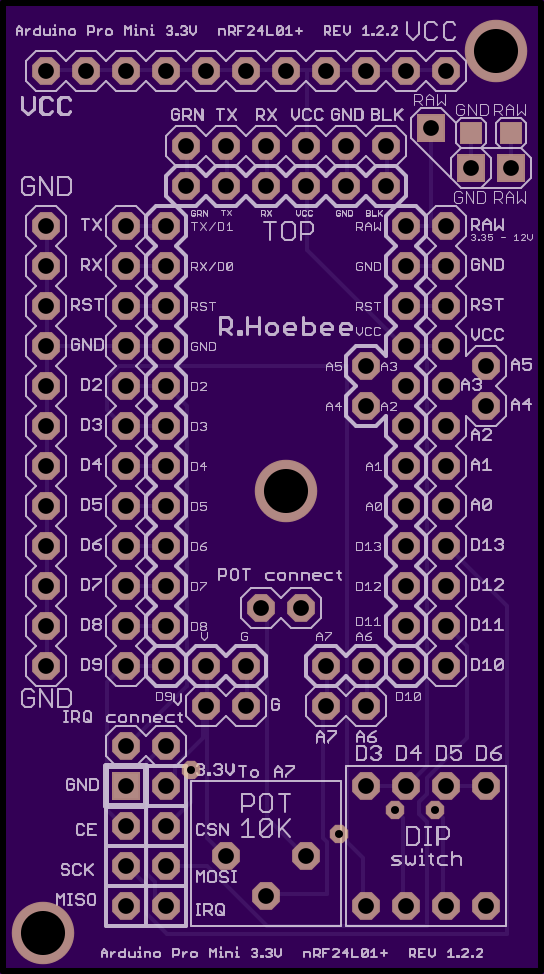

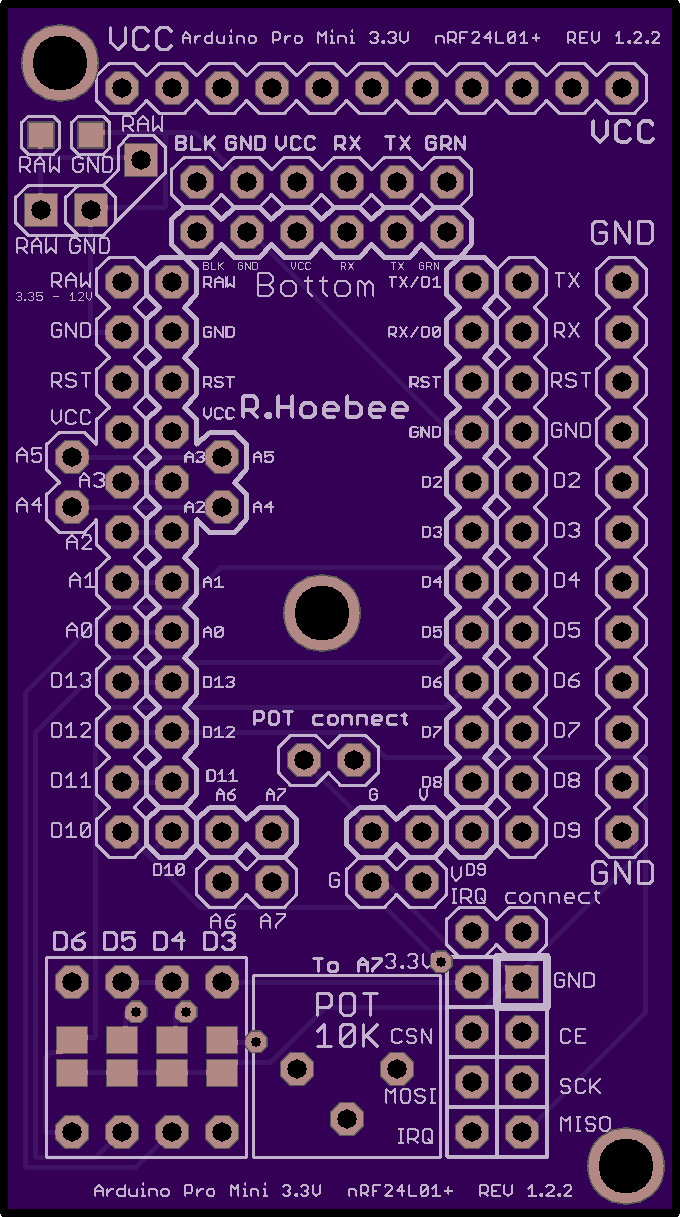

Wireless Board V1.2.2

by Ruben.
Top
Bottom

2 layer board of 1.36x2.44 inches (34.54x61.85 mm).
Shared on March 28th, 2014 14:07.

Breakout board for arduino pro mini 3.3v, with an nRF2401+ connection. Also includes 4-DIP switches and a pot. Replaces REV 1.2

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

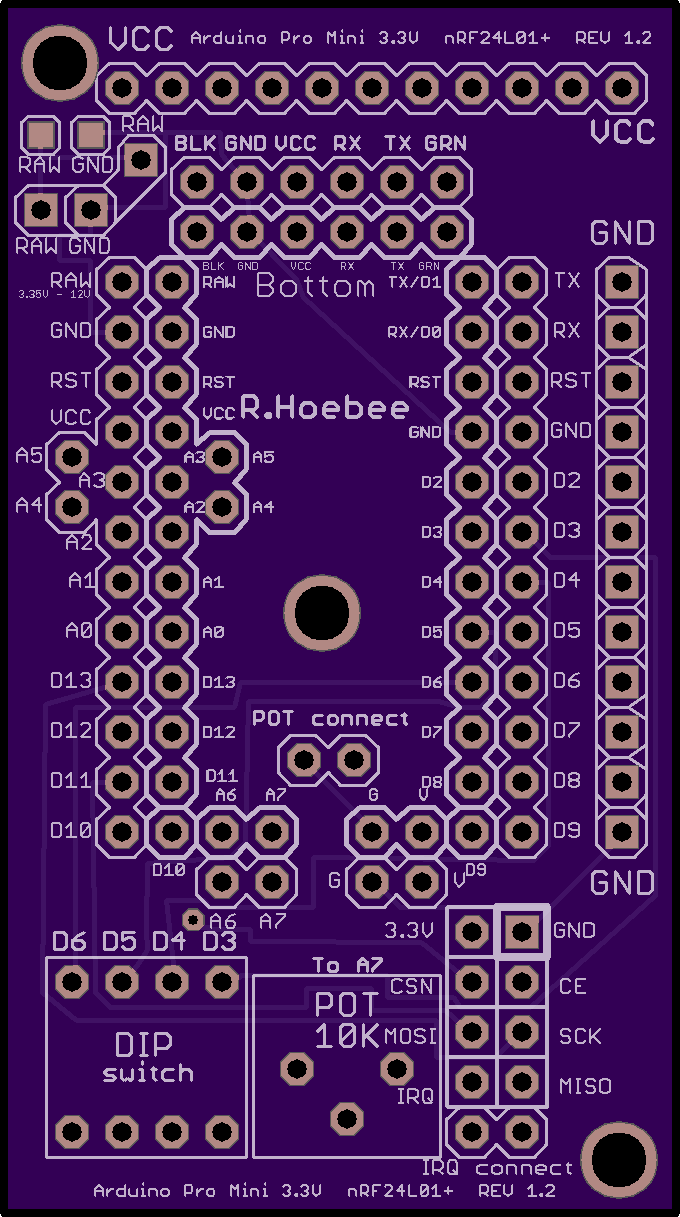

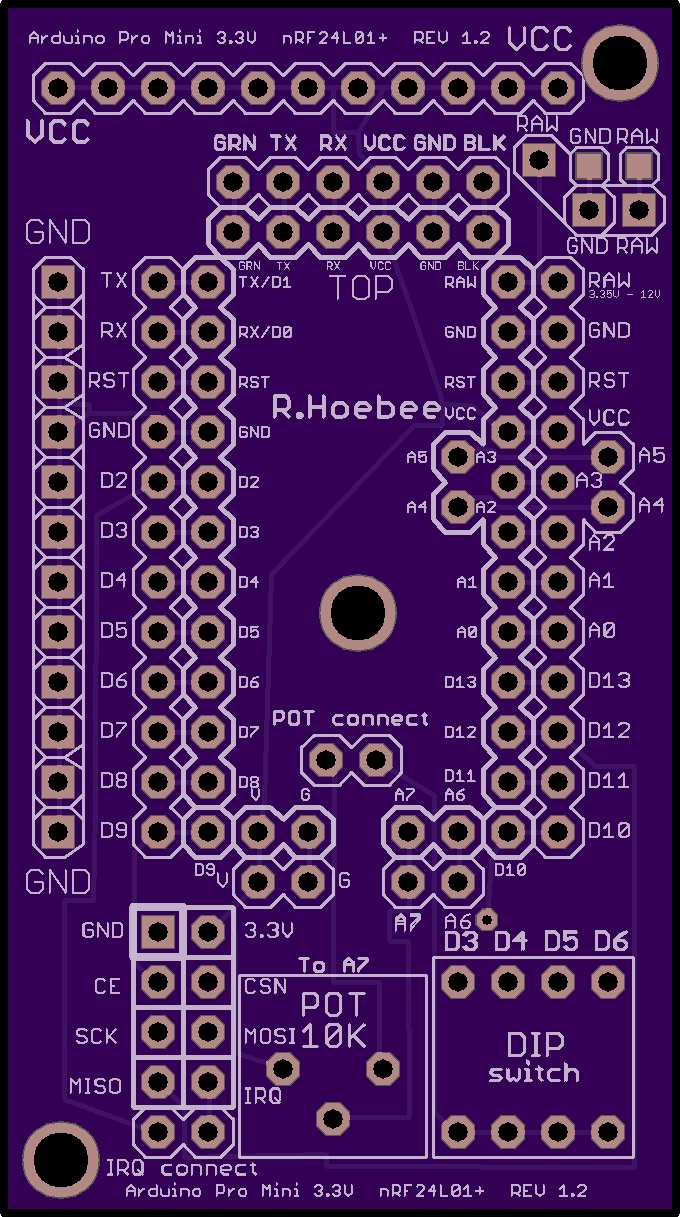

Wireless Board REV1.2

by Ruben.
Top
Bottom

2 layer board of 1.36x2.44 inches (34.54x61.85 mm).
Shared on March 27th, 2014 08:55.

Breakout board for arduino pro mini 3.3v, with an nRF2401+ connection. Also includes 4-DIP switches and a pot. (unfortunately due to a design error the dip-switches are useless, an updated version will be updated later on). Replaced by REV 1.2.2

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
