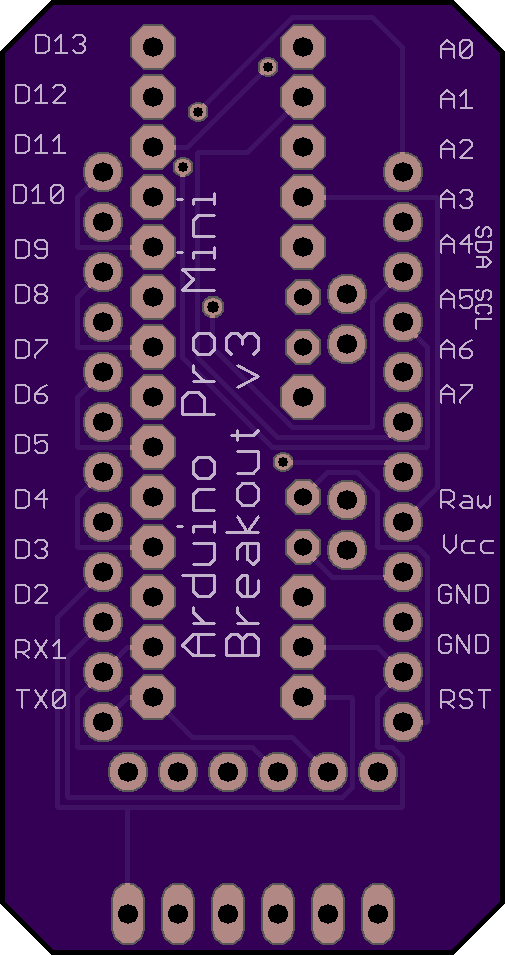

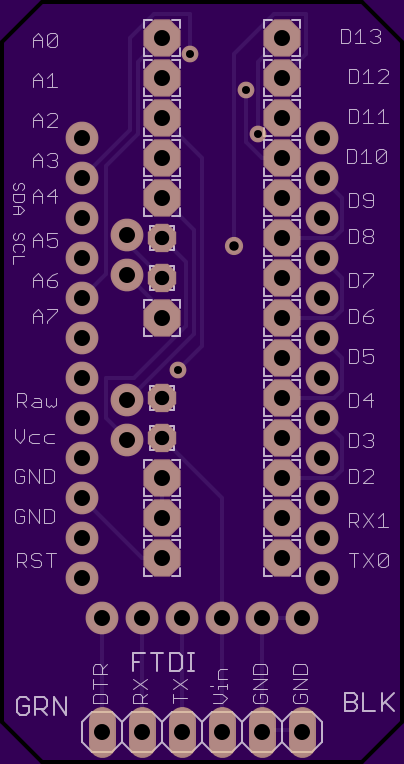

Pro-Mini Breakout v3

2 layer board of 1.01x1.91 inches (25.68x48.54 mm).
Shared on August 5th, 2014 04:01.

Breakout board for Arduino pro mini so you can plug into breadboard

Copy this HTML into your page to embed a link to order this shared project

Metal Detector

2 layer board of 2.06x1.65 inches (52.32x41.86 mm).
Shared on January 2nd, 2014 00:36.

Ref: Silicon Chip June 2002 Thomas Scarborough
Eagle board files are on GitHub
PDF Instructions
04106021
