Shared projects

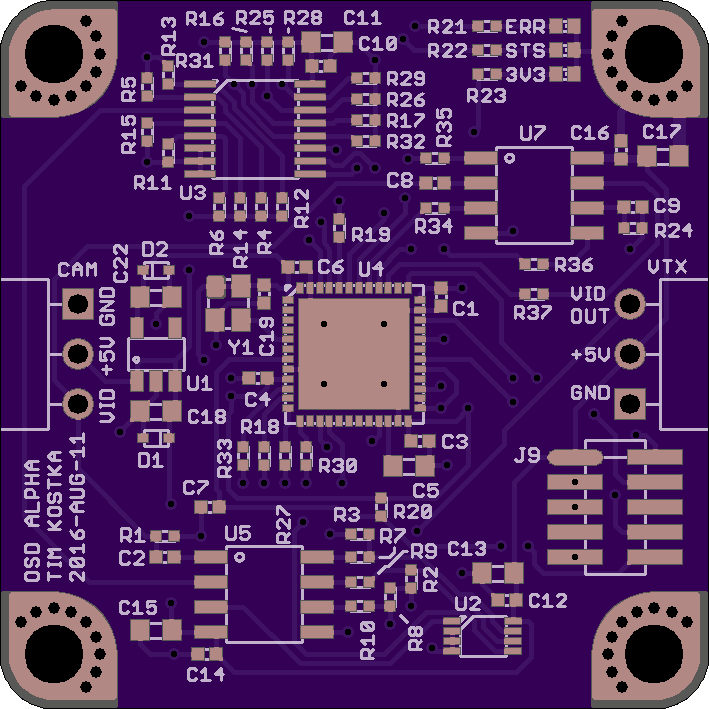

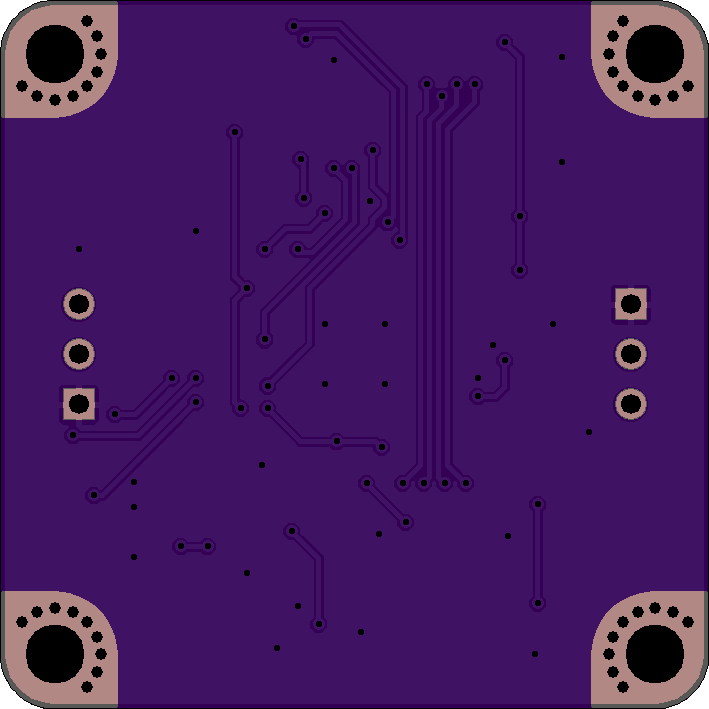

OSD Alpha rev1

by TimKostka.
Top
Bottom

2 layer board of 1.42x1.42 inches (36.02x36.02 mm).
Shared on August 12th, 2016 01:13.

A cheap color OSD for FPV flying.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

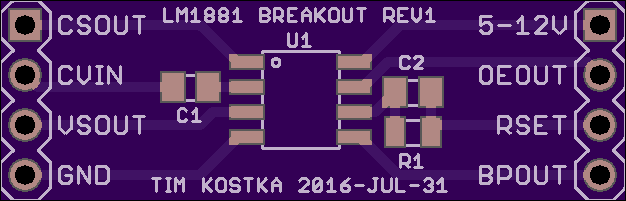

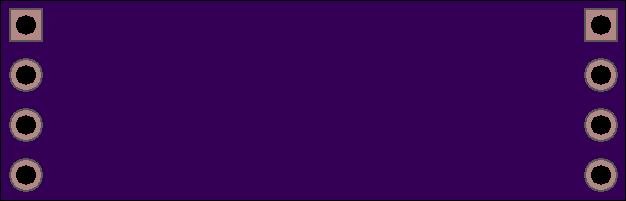

LM1881 Video Sync Separator Breakout

by TimKostka.
Top
Bottom

2 layer board of 1.25x0.40 inches (31.78x10.16 mm).
Shared on July 31st, 2016 19:25.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

OSD36

by TimKostka.
Top
Bottom

2 layer board of 1.43x1.43 inches (36.27x36.27 mm).
Shared on January 2nd, 2015 22:24.

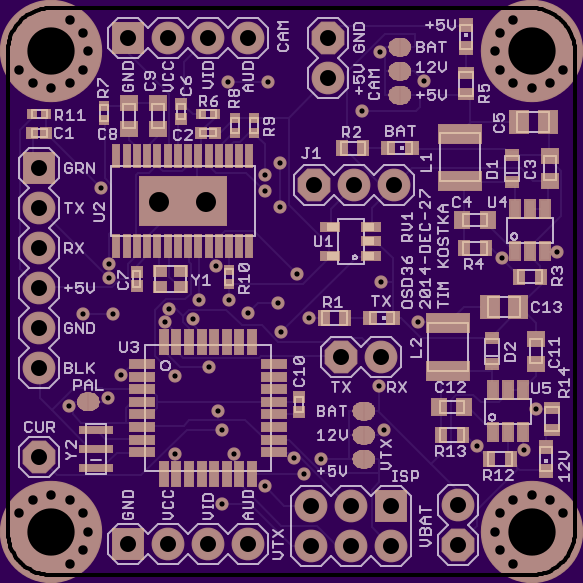

The OSD36 is an onscreen display module for multicopters in a 36mm form factor. This board directly stacks with the Naze32 rev5.

The OSD36 features onboard +5V and +12V switching regulators with solder jumpers to select camera and transmitter voltages. The +5V line also powers the flight controller.

The board is fully compatible with all MinimOSD firmware.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

PDB36

by TimKostka.
Top
Bottom

2 layer board of 1.42x1.42 inches (36.07x36.07 mm).
Shared on January 2nd, 2015 22:23.

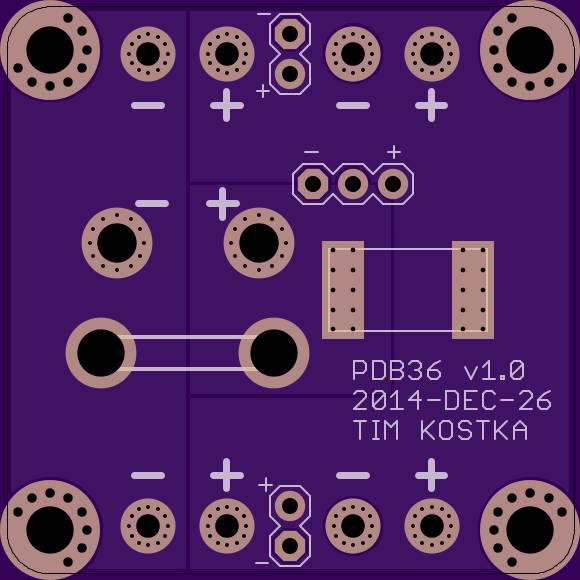

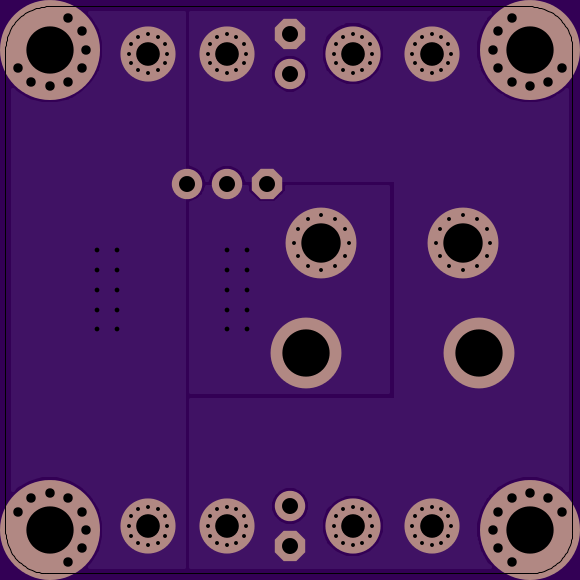

The PDB36 is a power distribution board for a quadcopter in a 36mm form factor.

A 0.001Ω power resistor is included for current monitoring.

This board is meant to stack below the OSD36 board.
