Soft Power Controller.brd

by TruckinGeek.
Top
Bottom

2 layer board of 0.90x0.50 inches (22.89x12.70 mm).
Shared on November 16th, 2016 15:43.

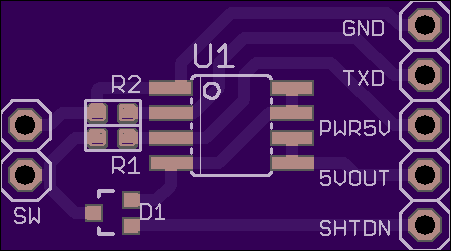

RasPI Soft Power Controller Board - R1&R2 are 100K, U1 is IRF7319, D1 is BAT54C. This is my layout of a board design found at othermod.com/raspberry-pi-soft-onoff-circuit

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Relay Board

by TruckinGeek.
Top
Bottom

2 layer board of 1.00x0.30 inches (25.43x7.62 mm).
Shared on January 6th, 2016 14:08.

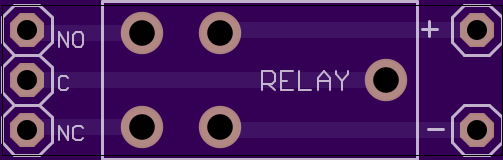

Relay Prototyping Board - OMRON G8N-1

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

LED Board

by TruckinGeek.
Top
Bottom

2 layer board of 0.80x0.60 inches (20.32x15.27 mm).
Shared on December 23rd, 2015 14:38.

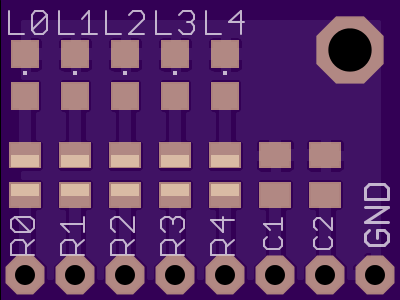

Allows to have 4 LEDs and a couple of CAPs easy to hand for your proto board!

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

OptoBoard

by TruckinGeek.
Top
Bottom

2 layer board of 0.40x0.80 inches (10.16x20.32 mm).
Shared on December 2nd, 2015 20:45.

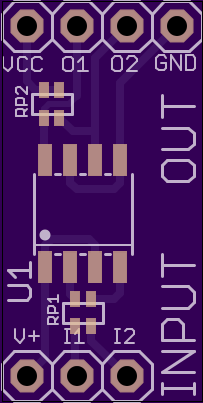

Opto Coupler w/Pullups

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

PSoC Module

by TruckinGeek.
Top
Bottom

2 layer board of 1.29x0.80 inches (32.72x20.32 mm).
Shared on December 2nd, 2015 20:45.

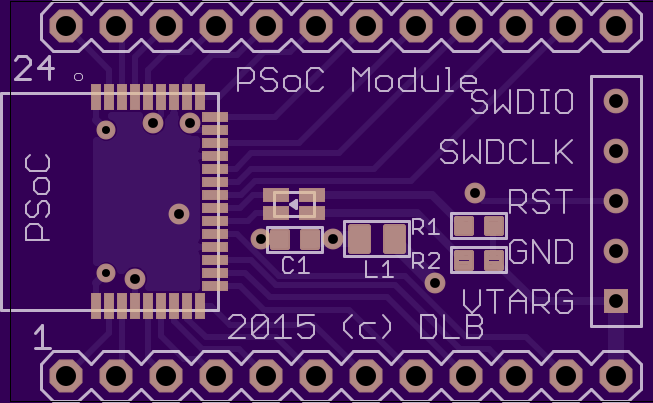

PSoC Module Breakout

Order board. Download. Permalink. Embed order link.
