Profile for Wire
Shared projects

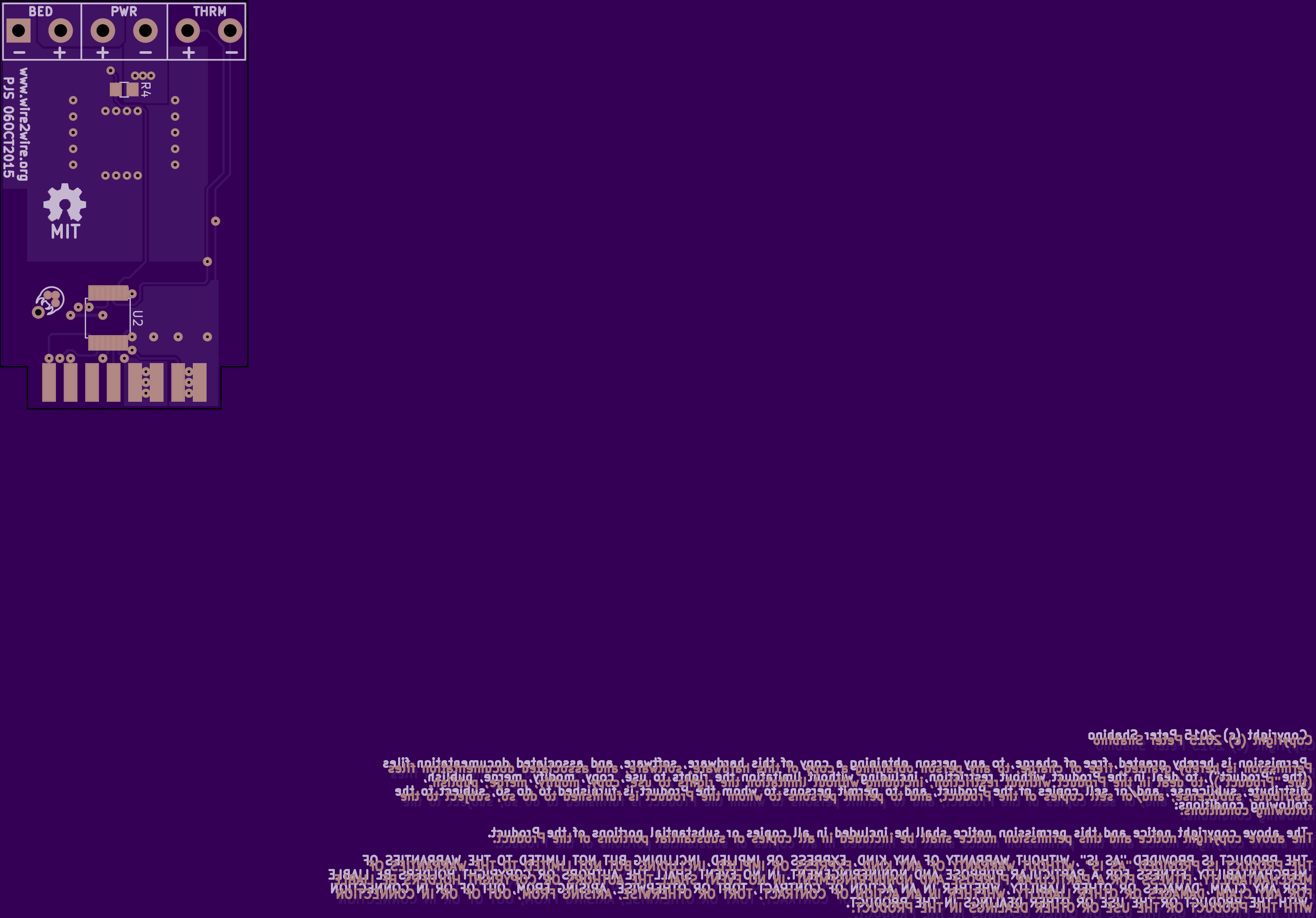

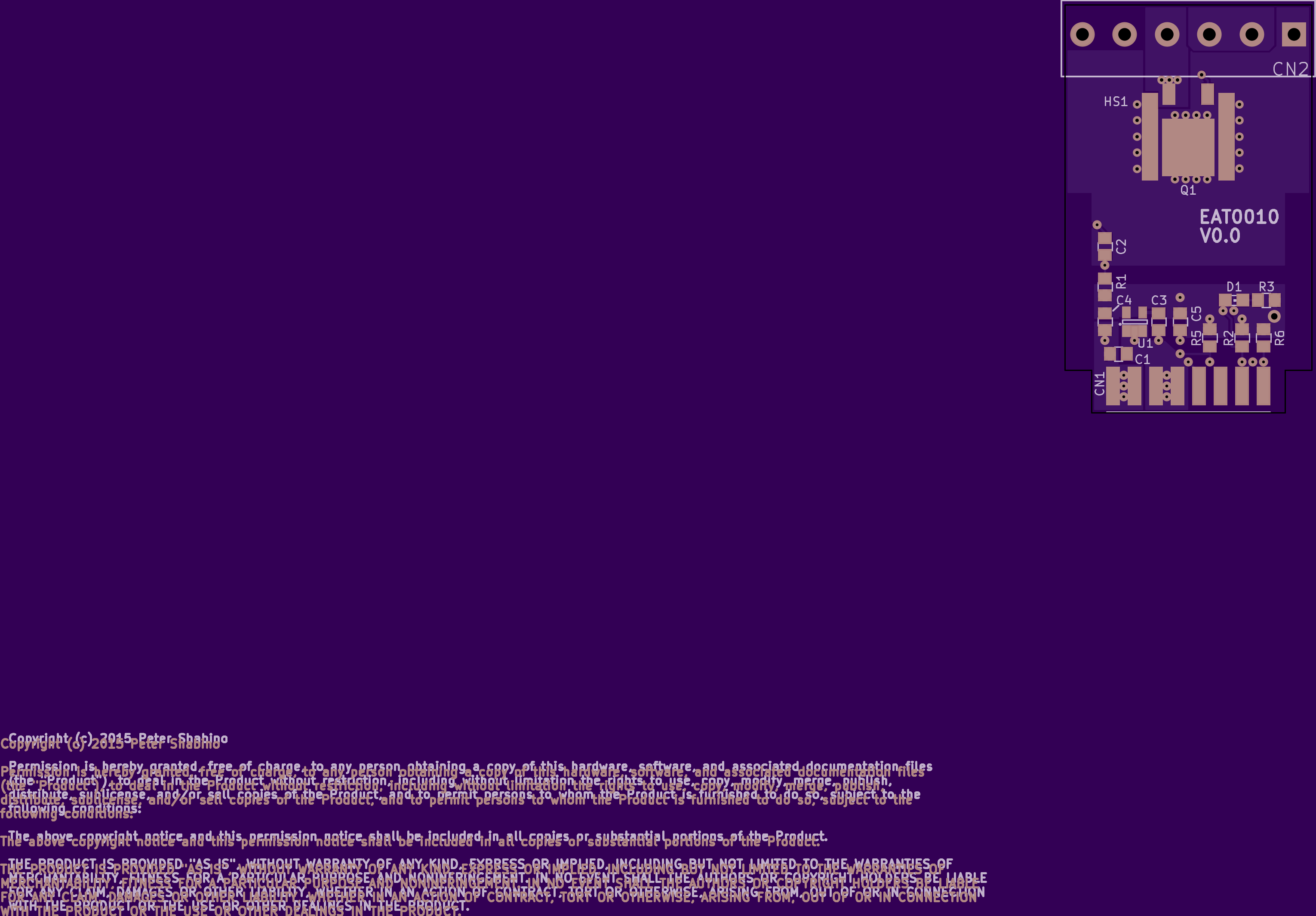

FPD EAT0010
by
Wire.
2
layer board of
1.16x1.90
inches
(29.36x48.36
mm).
Shared on
October 26th, 2015 03:08.
modular tool EAT0010 for fire pick delta. Controls the bed heater with I2C ADC on board. Should fix the issues with the original EATs due to multiple voltage references and electrical noise.

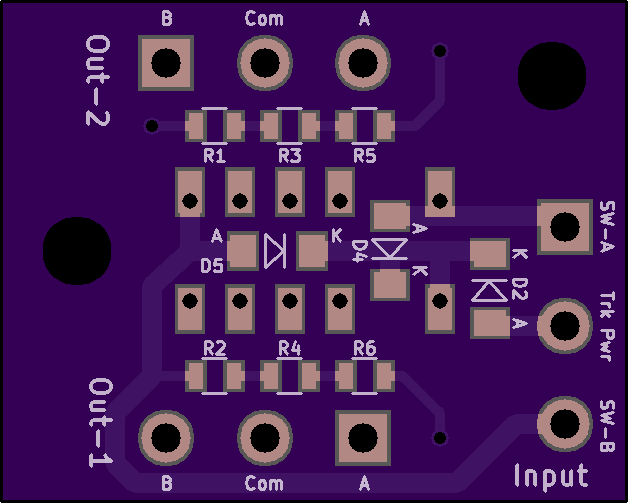

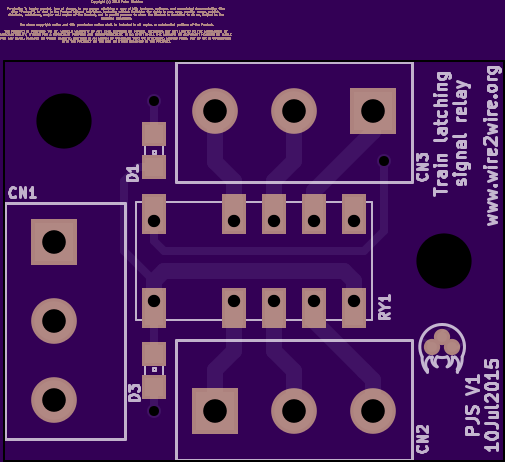

Train latching relay
by
Wire.
2
layer board of
1.26x1.01
inches
(31.90x25.55
mm).
Shared on
July 11th, 2015 04:29.
Train latching relay for O gauge trains. ~9 to 20Vac or ~9 to 14Vdc

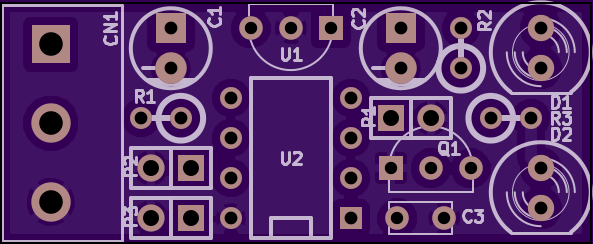

IR repeater RX
by
Wire.
2
layer board of
1.43x0.60
inches
(36.30x15.34
mm).
Shared on
January 17th, 2015 02:30.
receiver for IR repeater system
More details at http://www.wire2wire.org/IR_repeater/IR_repeater.html

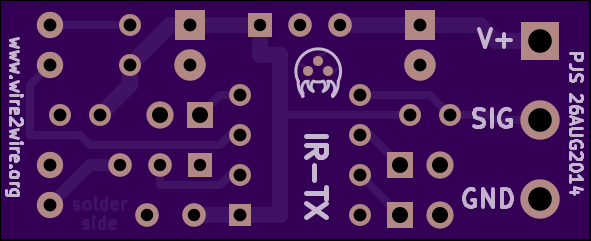

IR_repeater_tx
by
Wire.
2
layer board of
1.48x0.60
inches
(37.57x15.34
mm).
Shared on
January 17th, 2015 02:30.
inferred repeater transmitter
More details at http://www.wire2wire.org/IR_repeater/IR_repeater.html

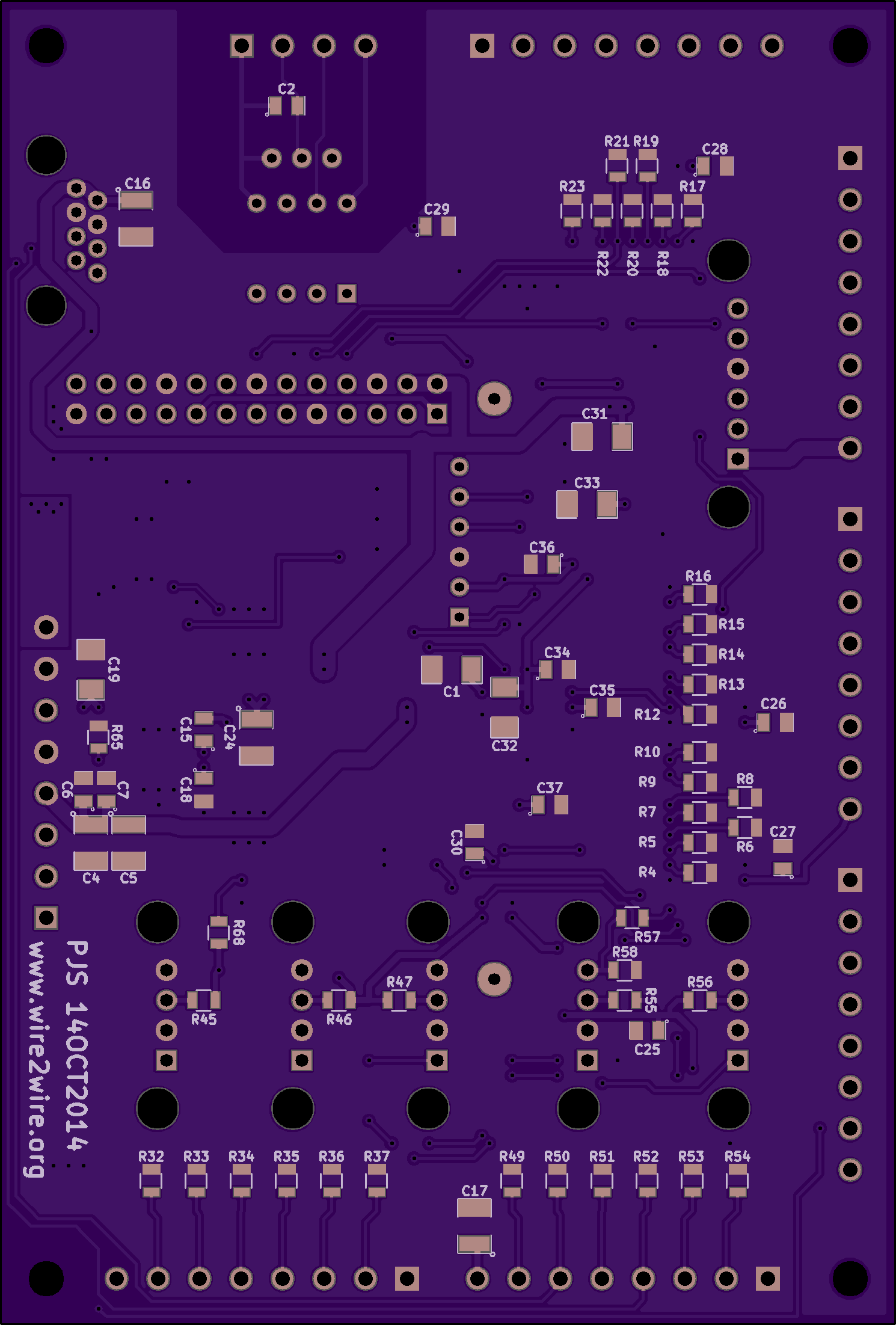

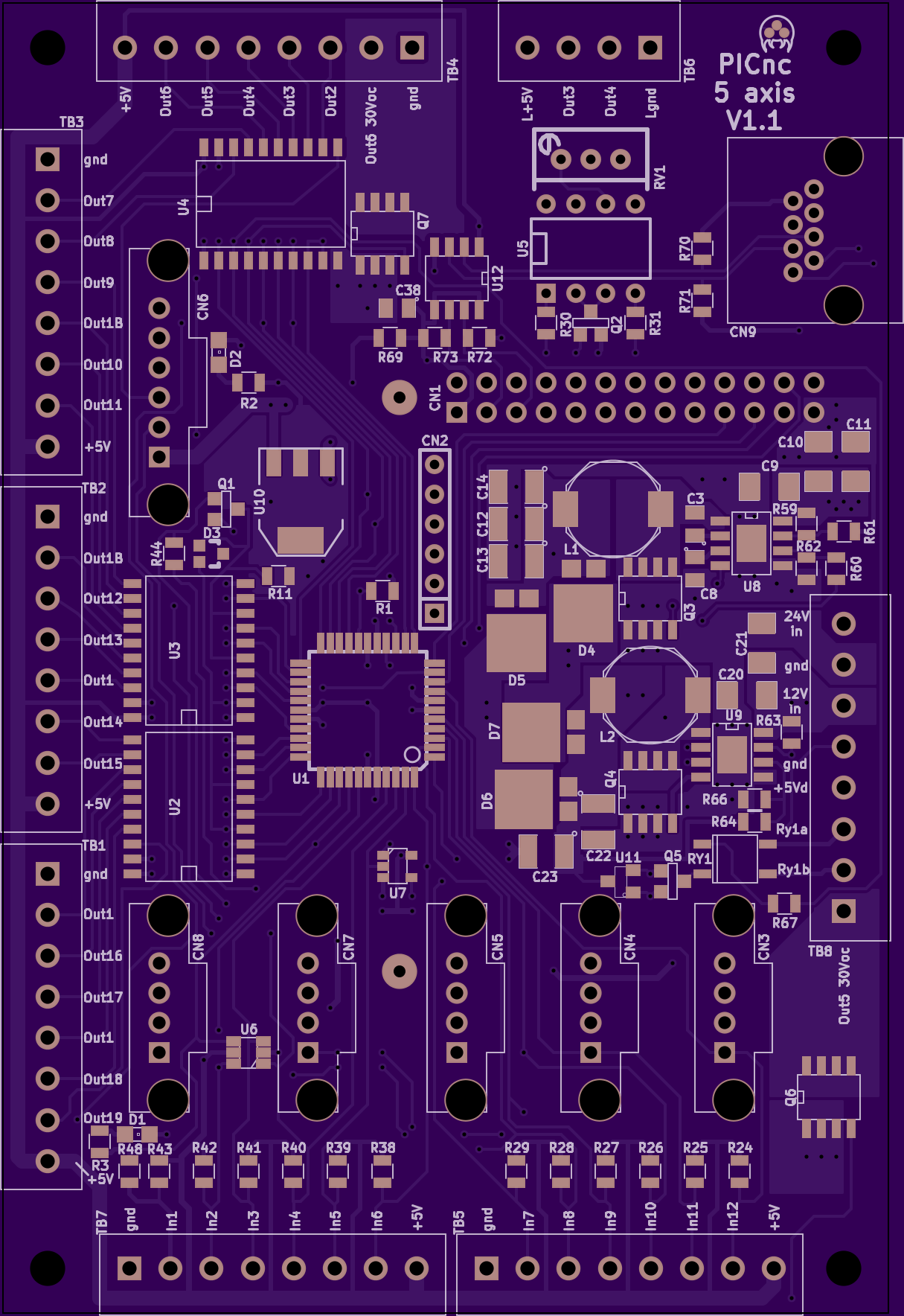

PICnc 5 axis V1.1
by
Wire.
2
layer board of
2.98x4.41
inches
(75.72x111.91
mm).
Shared on
October 21st, 2014 15:42.
5 axis PICnc driver board for LinuxCNC running on a Raspberry Pi with options to enable laser cutter use.
