Shared projects

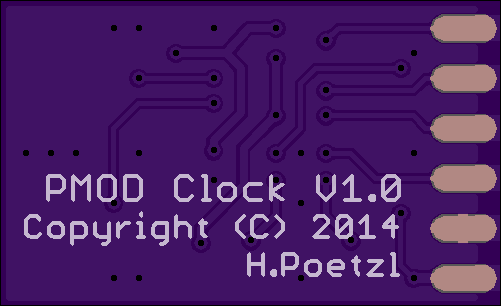

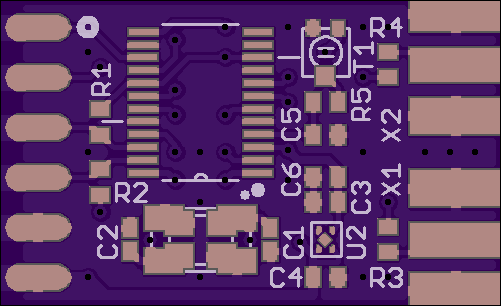

PMOD Clock V1.0

by apertus.
Top
Bottom

2 layer board of 1.00x0.61 inches (25.43x15.52 mm).
Shared on July 17th, 2014 13:43.

PLL Based Clock Module with PMOD Connector and 2xSMA

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

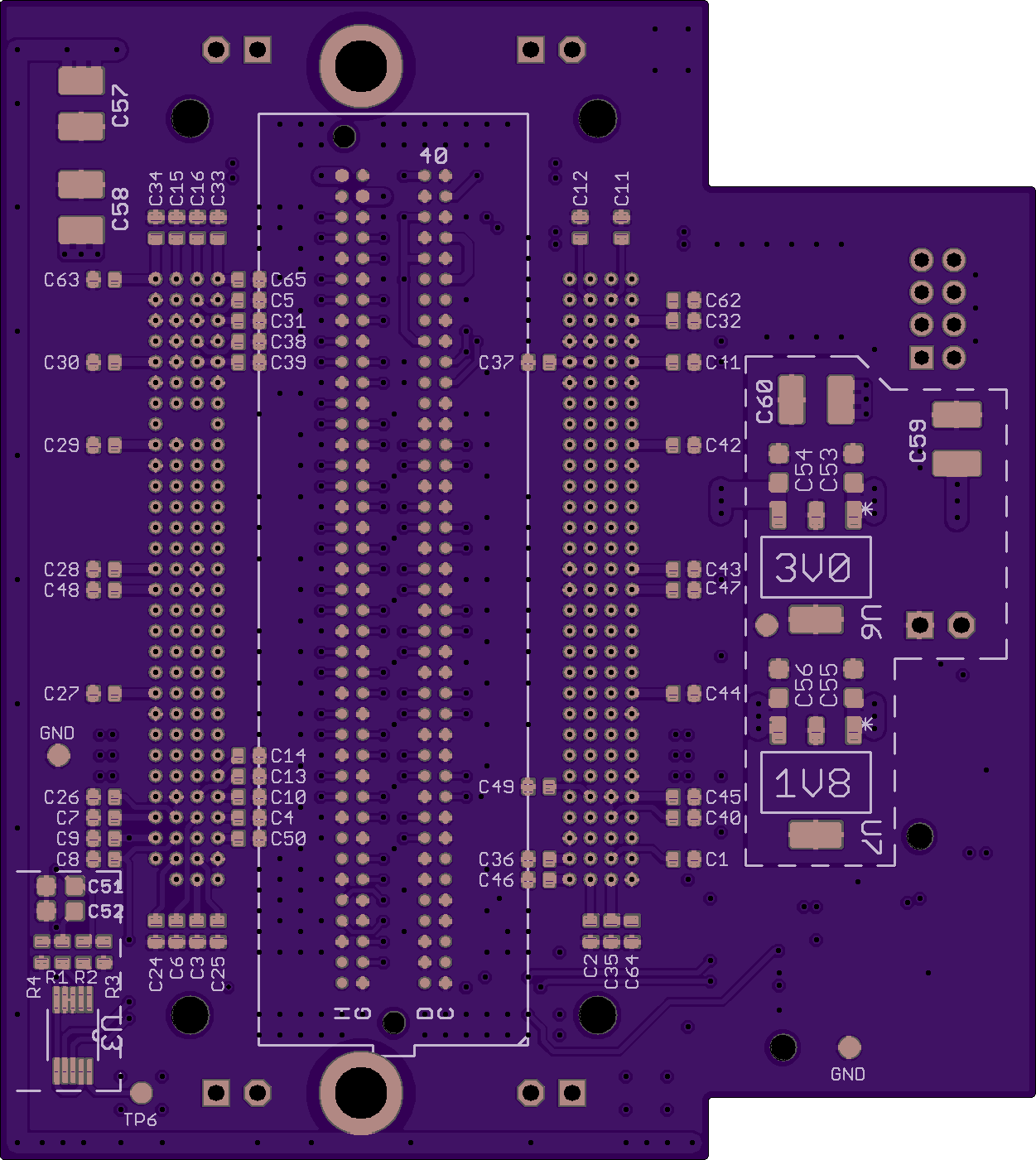

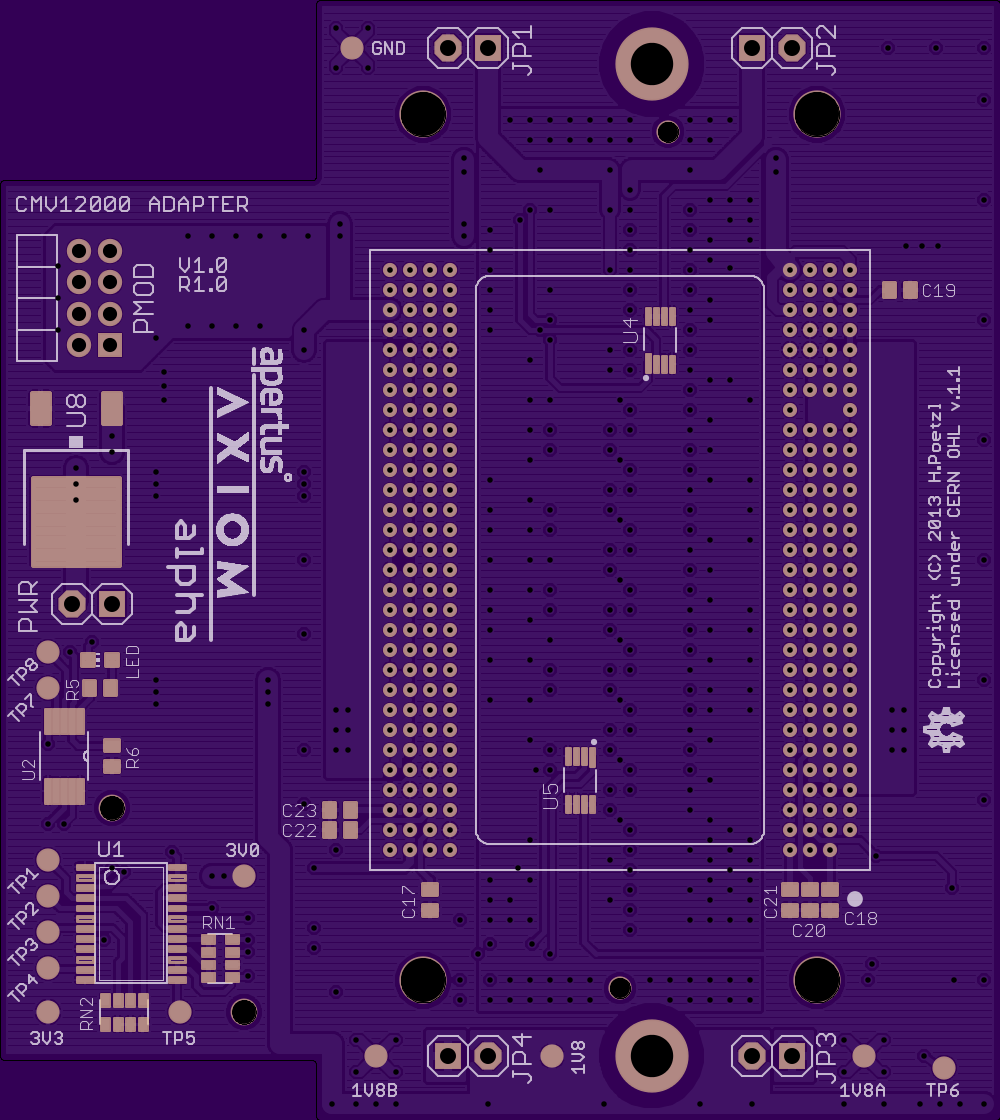

C12k Adapter V1.2

by apertus.
Top
Bottom

4 layer board of 2.50x2.80 inches (63.50x71.12 mm).
Shared on May 14th, 2014 09:22.

CMV12000 Cmosis Frontend Adapter for the Zedboard LPC FMC “AXIOM Alpha”

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

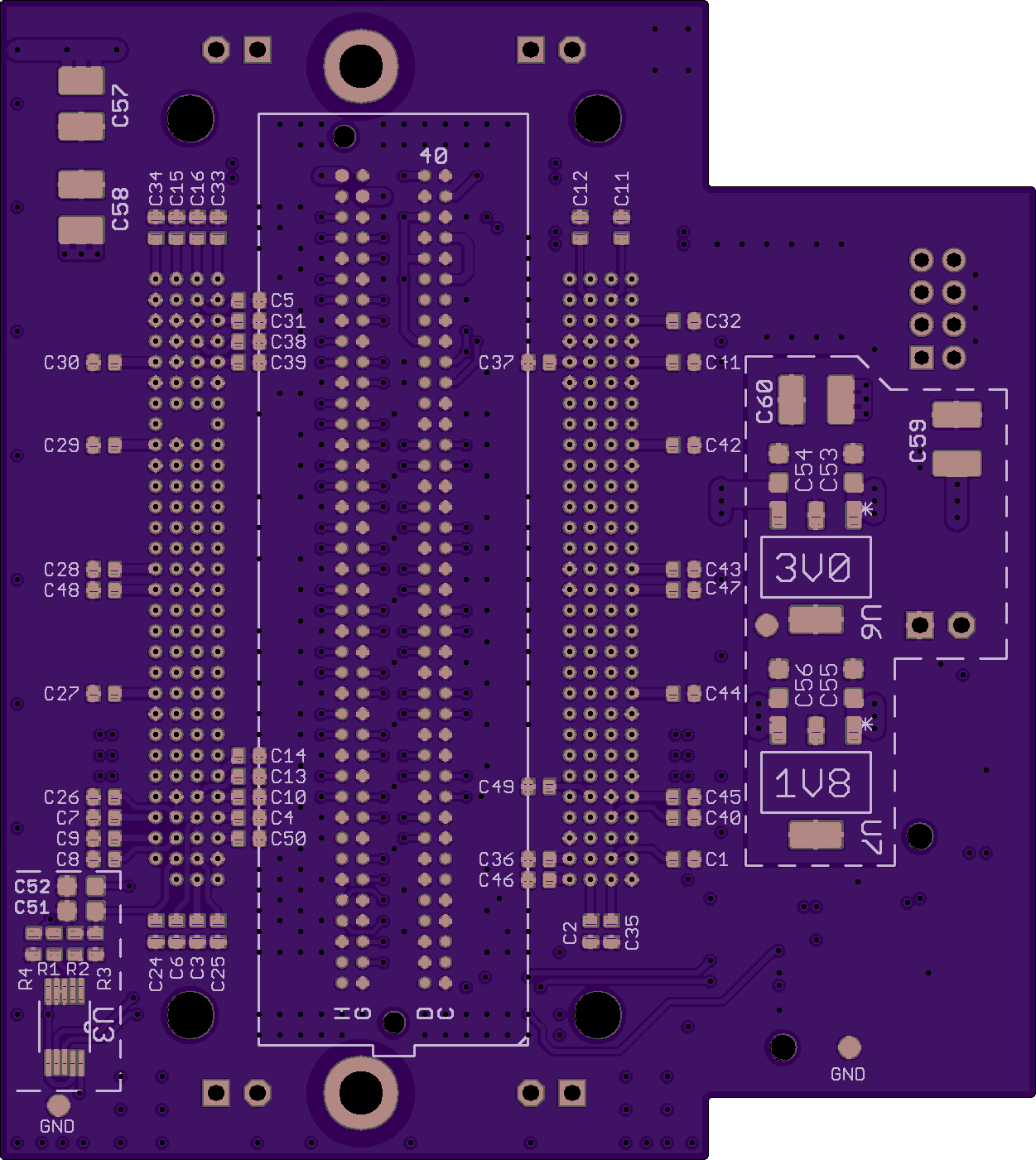

C12k Adapter V1.1

by apertus.
Top
Bottom

4 layer board of 2.50x2.80 inches (63.50x71.12 mm).
Shared on May 14th, 2014 09:20.

CMV12000 Cmosis Frontend Adapter for the Zedboard LPC FMC “AXIOM Alpha”

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

C12k Adapter V1.0

by apertus.
Top
Bottom

4 layer board of 2.50x2.80 inches (63.50x71.12 mm).
Shared on May 14th, 2014 09:02.

CMV12000 Cmosis Frontend Adapter for the Zedboard LPC FMC “Axiom Alpha”

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

PMOD Debug V1.0

by apertus.
Top
Bottom

2 layer board of 2.26x0.61 inches (57.30x15.52 mm).
Shared on August 24th, 2013 16:13.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
