V3 Switch Board

by cstalsworth.
Top
Bottom

2 layer board of 1.19x0.64 inches (30.15x16.15 mm).
Shared on October 28th, 2015 13:27.

Provides the reversing wiring on the back of a switch. Smaller than the original board.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

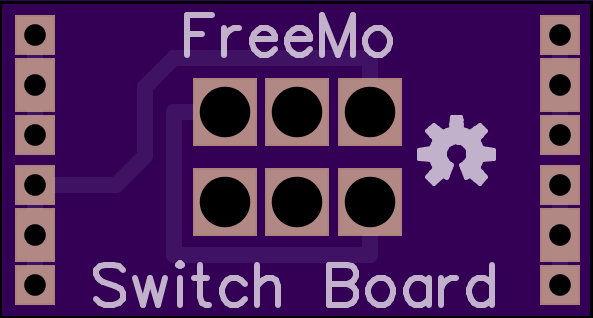

Freemo Switch board

by cstalsworth.
Top
Bottom

2 layer board of 1.33x0.72 inches (33.81x18.24 mm).
Shared on June 8th, 2014 01:31.

Wire board for switch control on module

Order board. Download. Permalink. Embed order link.
