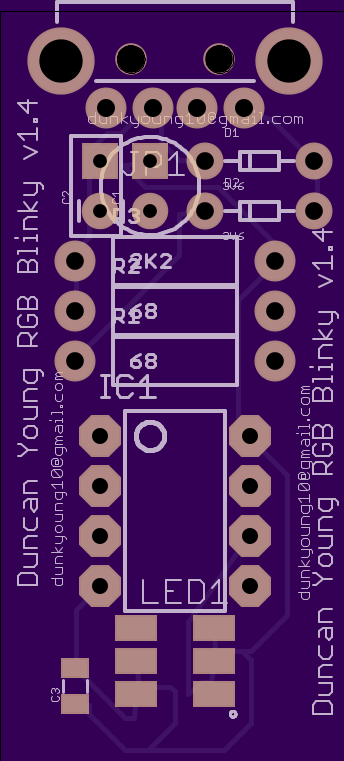

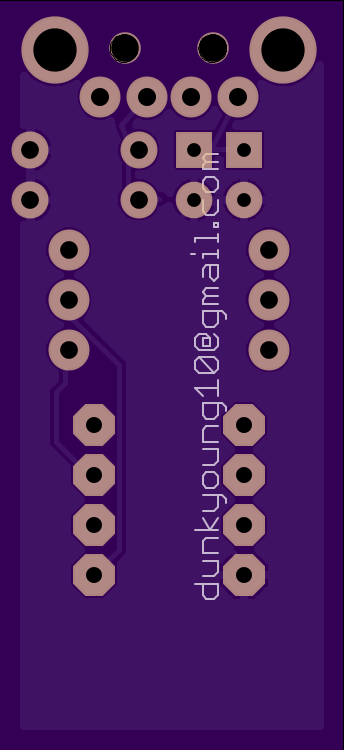

blinky 1.1
by
dunk8888.
2
layer board of
0.69x1.50
inches
(17.48x38.10
mm).
Shared on
March 19th, 2016 14:53.
led notifier
led controller
by
dunk8888.
2
layer board of
3.89x3.10
inches
(98.76x78.74
mm).
Shared on
March 14th, 2016 16:31.
controll led strings rgb led controller for rgb leds,firmware schematic can be had by email to dunkyoung10@gmail.com fully working.

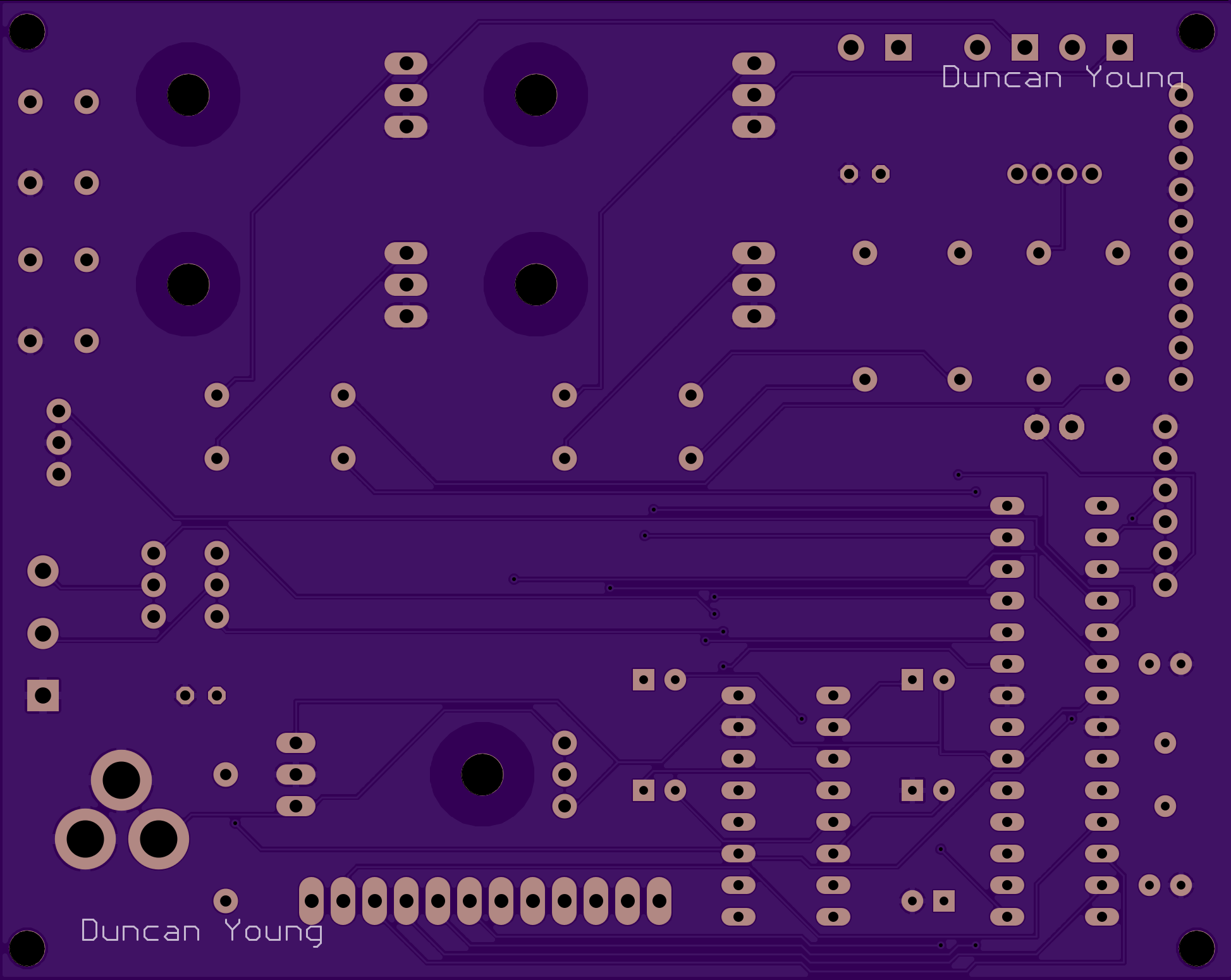

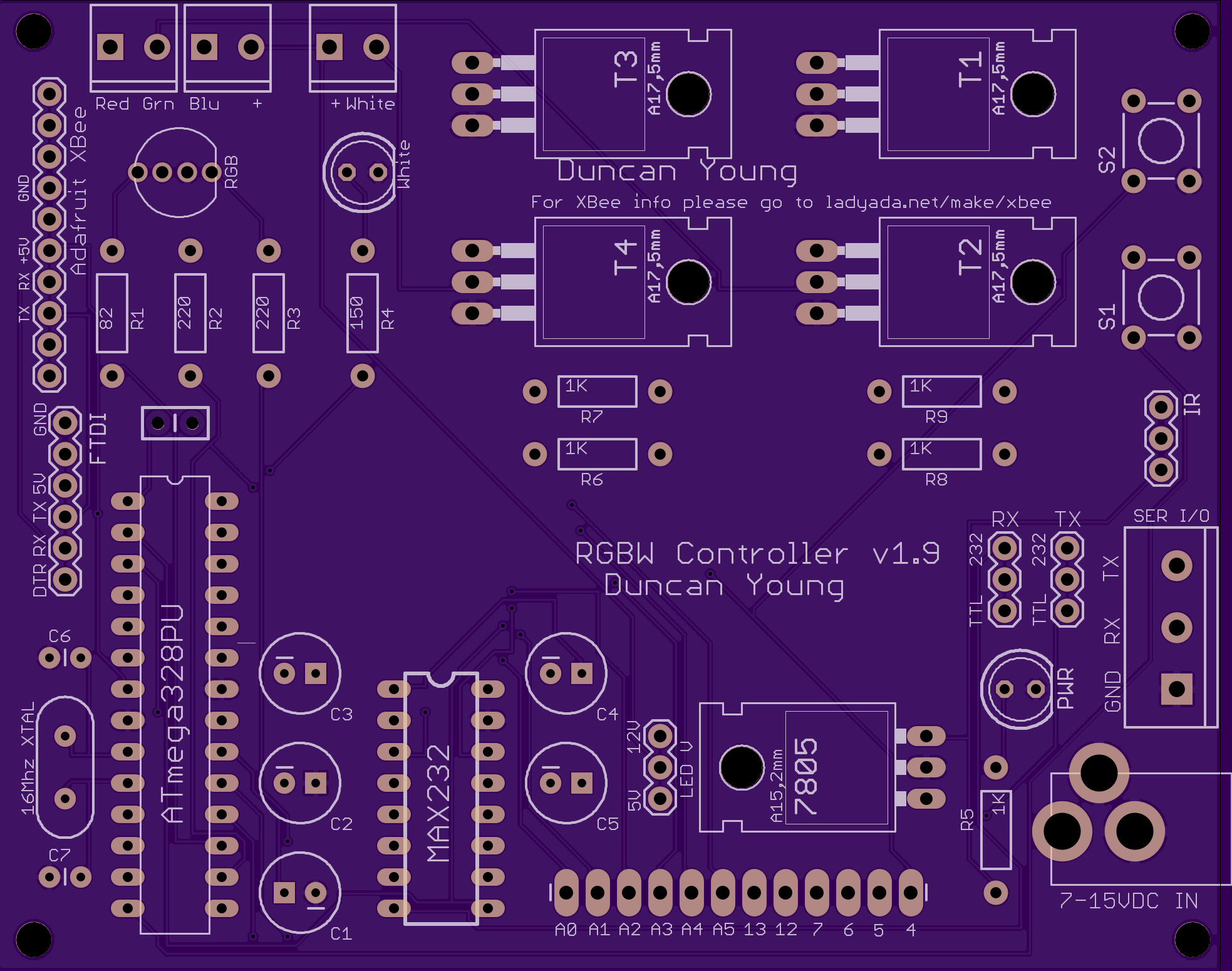

rgb controller
by
dunk8888.
2
layer board of
3.90x3.10
inches
(99.09x78.77
mm).
Shared on
March 14th, 2016 16:17.
led controller for rgb leds,firmware schematic can be had by email to dunkyoung10@gmail.com fully working.

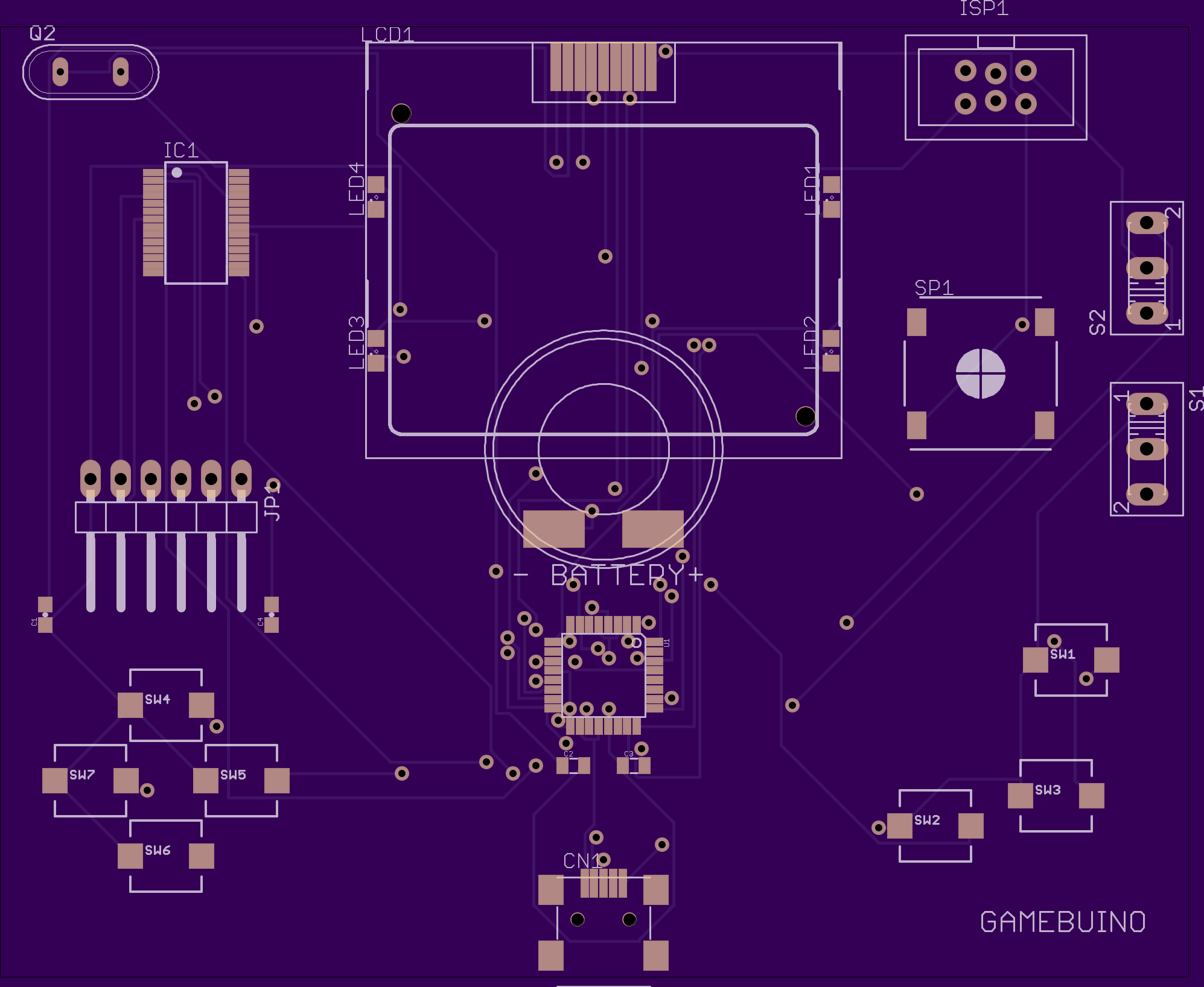

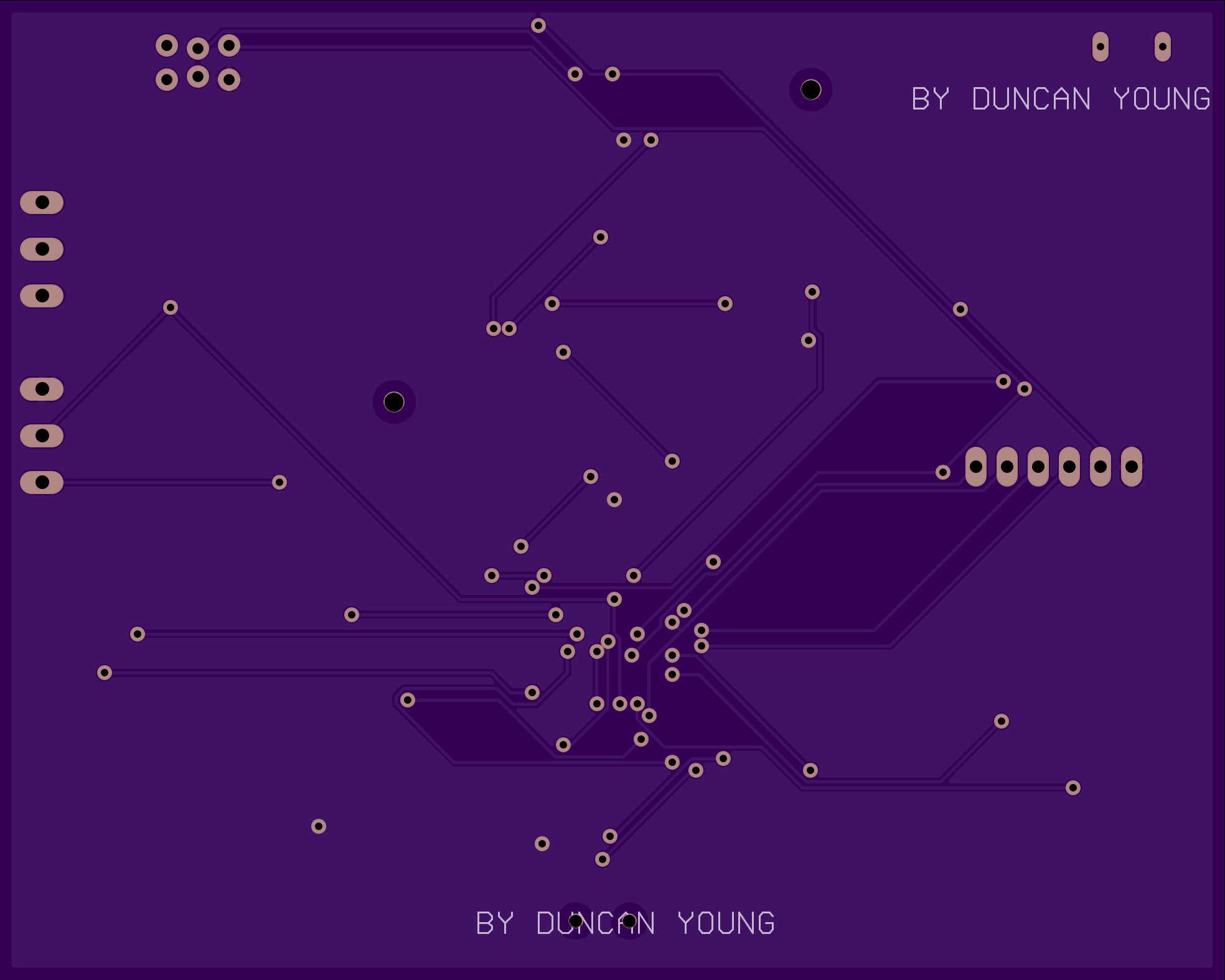

GAMEBUINO
by
dunk8888.
2
layer board of
3.94x3.15
inches
(100.00x80.01
mm).
Shared on
March 8th, 2016 16:41.
GAME CONSOLE ARDUINO Avr Arduino Game Console,if you want the schematic to look over just ask at dunkyoung10@gmail.com ,a 3.2v battery will be soldered to the pads in the middle where the circle is negative left and positive on the right pad. So solder the battery there,and the pinouts on the left are for the sd card breakout board,they are the ones off ebay called catalex,they are blue,left to right is gnd vcc miso mosi sck cs.download all firmware at gamebuino.com. Use a 2 gig and under sd card only ,there are loads of games on the site too,you need the bootloader burned to the 328p, and also the loader file and settings file need to be downloader and copyed to the sd card with the games hex files all the instructions are on site.thanks

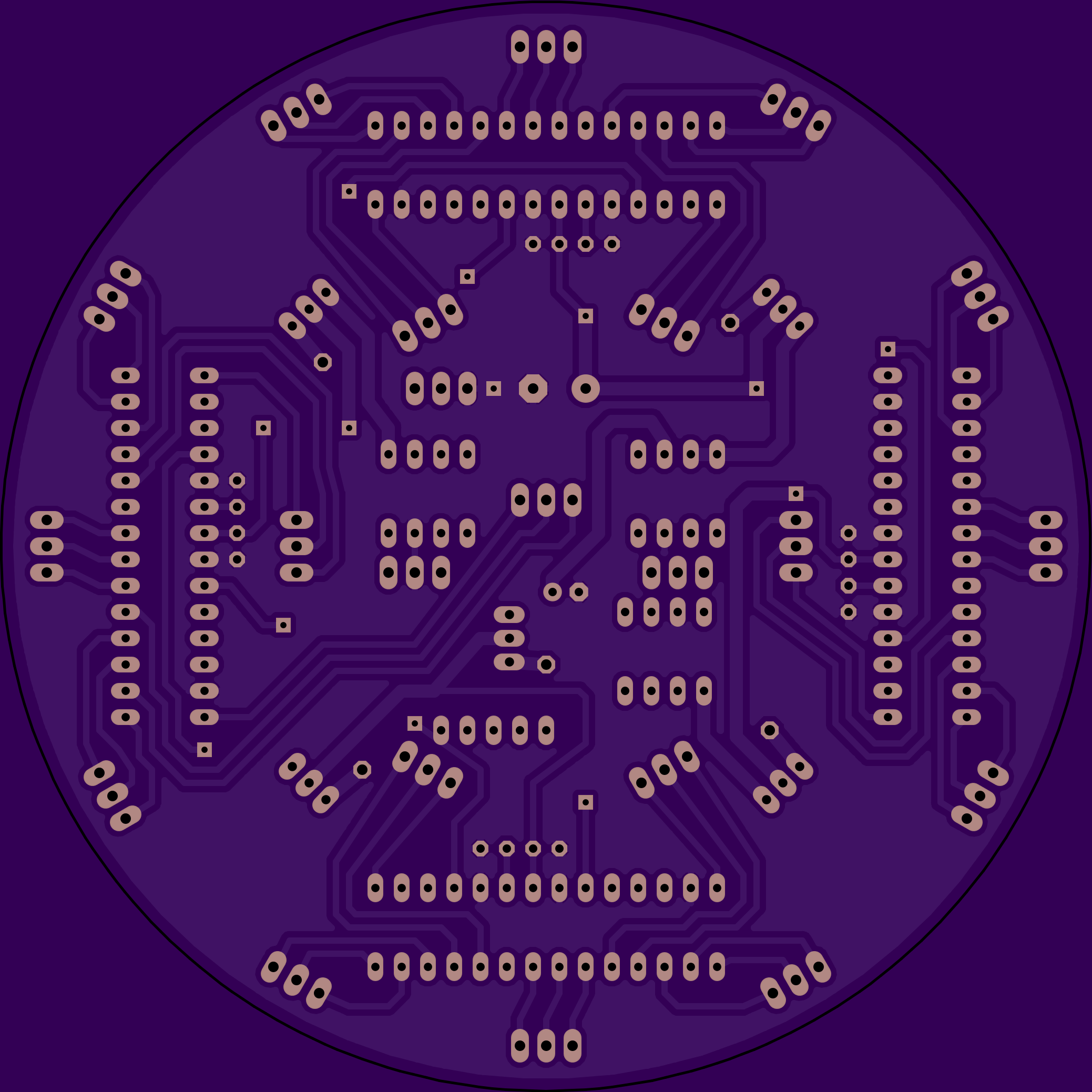

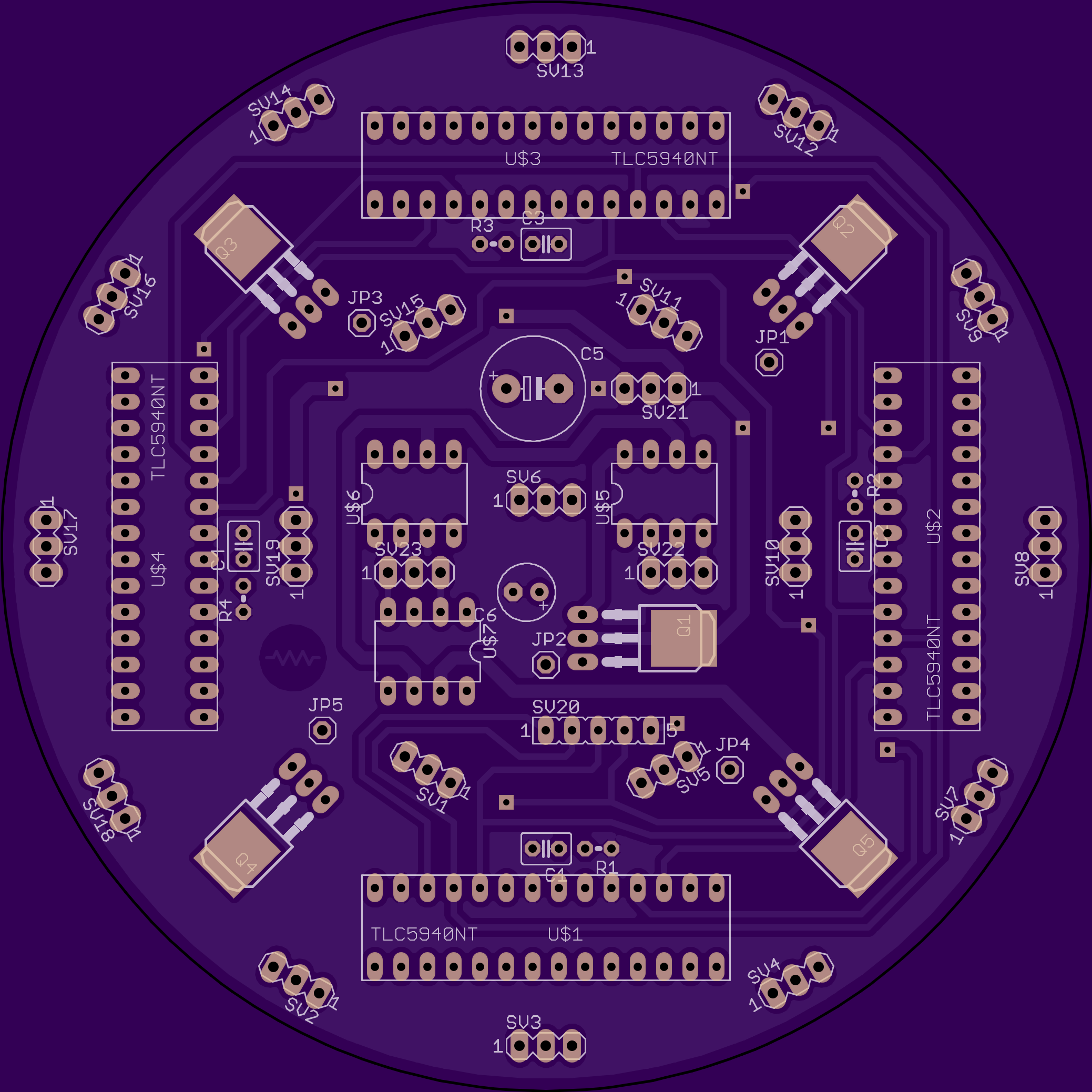

led cylinder
by
dunk8888.
2
layer board of
4.15x4.15
inches
(105.51x105.51
mm).
Shared on
February 23rd, 2016 21:10.
RGB Led Cylinder
