OSH Park
Profile for dword1511
Shared projects

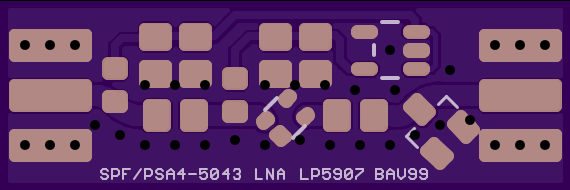

lna0805-v2
by
dword1511.
2
layer board of
1.14x0.38
inches
(28.98x9.68
mm).
Shared on
May 15th, 2016 03:32.
RTL-SDR LNA 0805 version with protection diode

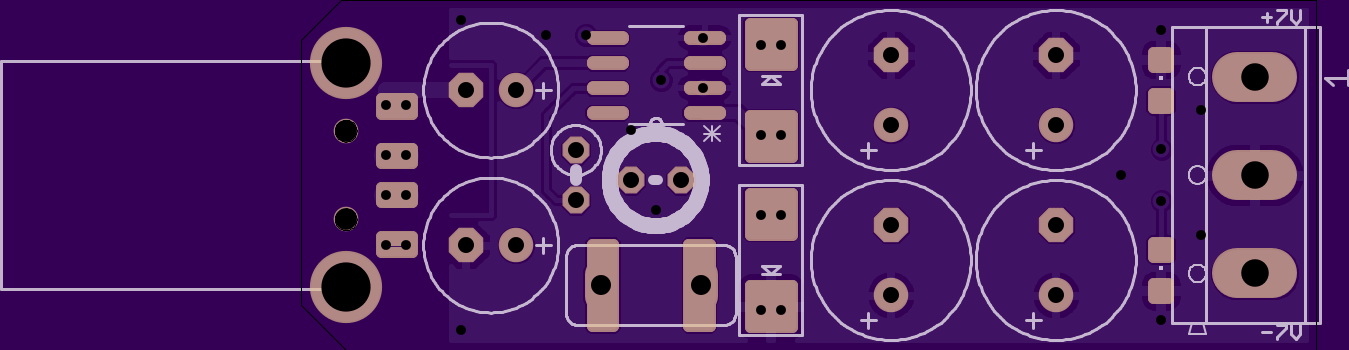

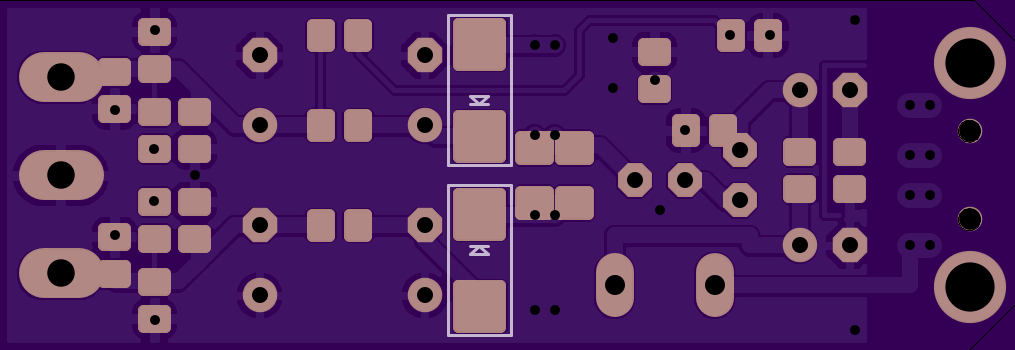

ncp3063-dualsupply
by
dword1511.
2
layer board of
2.03x0.70
inches
(51.56x17.78
mm).
Shared on
April 10th, 2016 19:16.
Single NCP3063 generates positive and negative outputs. Check feedback line for possible fab error before soldering to minimize the chance of burning capacitors.

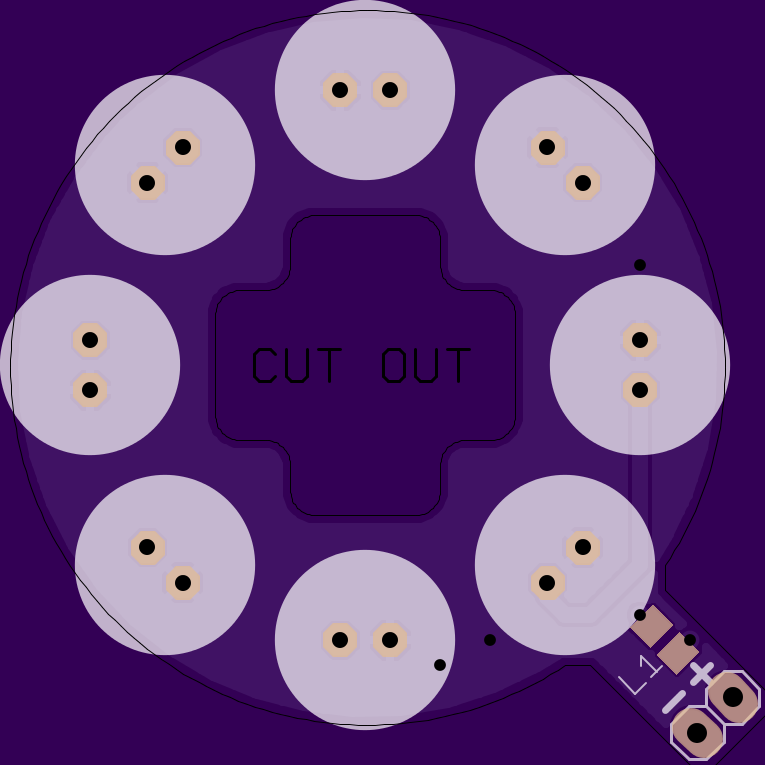

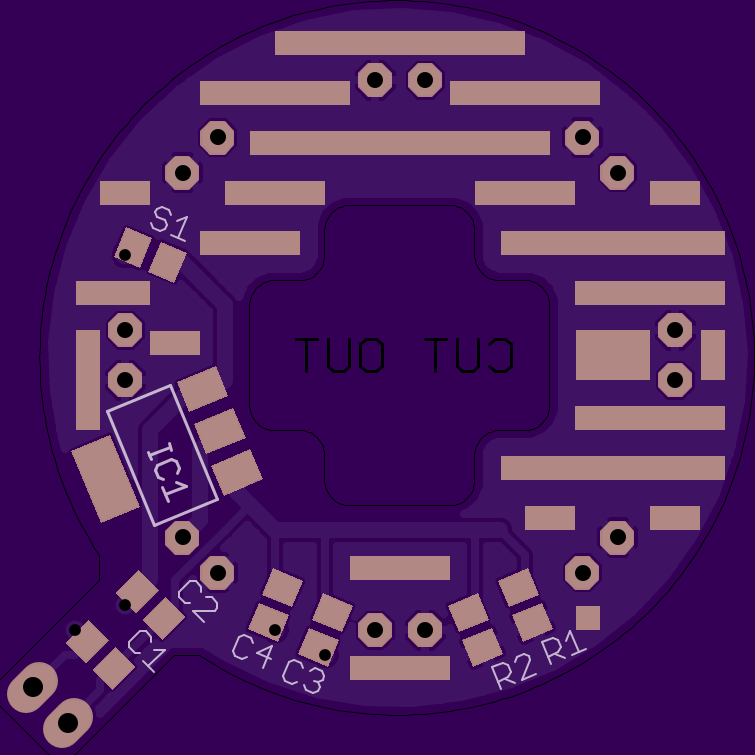

led-ring-light
by
dword1511.
2
layer board of
1.51x1.51
inches
(38.35x38.35
mm).
Shared on
April 10th, 2016 19:15.
LED ring light for M12

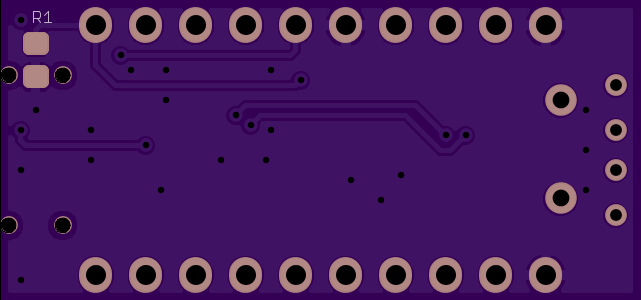

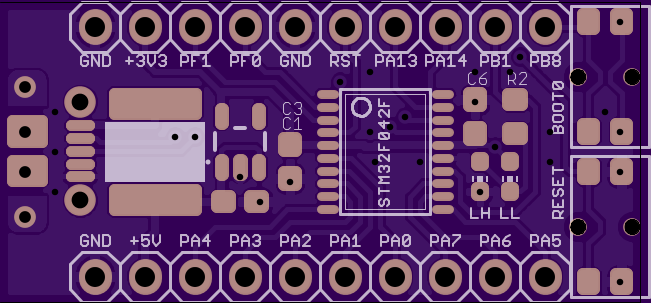

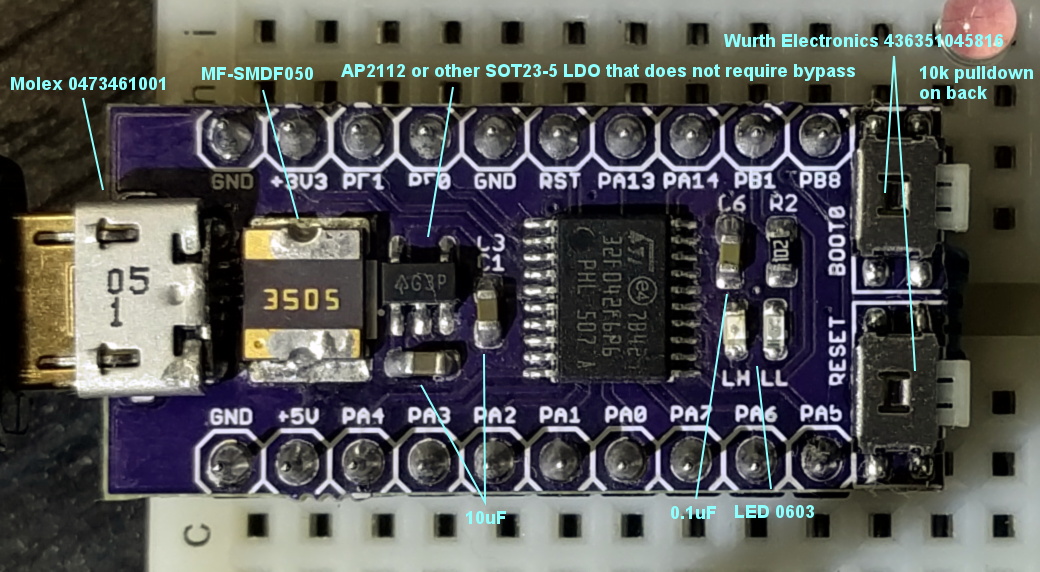

stm32-boardtoaster
by
dword1511.
2
layer board of
1.28x0.60
inches
(32.54x15.27
mm).
Shared on
February 28th, 2016 06:10.
STM32F042F6P6 module for bread board.
NOTE: hard to solder. For experienced users only, or consider using hot air gun.
Uses Molex 0473461001 Micro USB and WE 436351045816 push button. Works with SOT23-5 LDO that does not require bypass: AP2112, LP5907, MIC5301, etc.

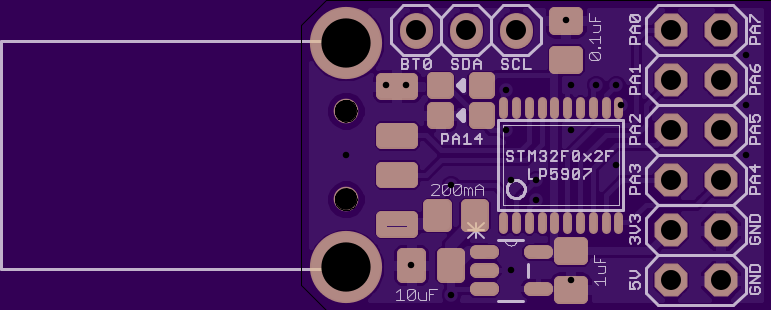

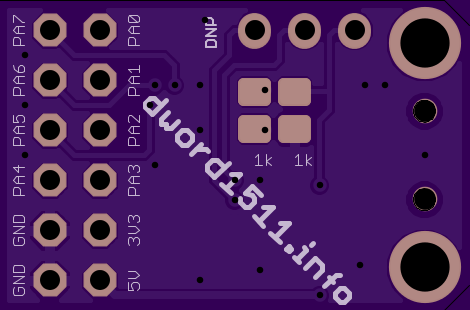

stm32-tiny042-v2
by
dword1511.
2
layer board of
0.94x0.62
inches
(23.88x15.75
mm).
Shared on
February 10th, 2016 03:39.
Tiny STM32F042 USB board version 2, with PA0-PA7, PF0 & PF1 broken out and dual LEDs. Uses LP5907 LDO or other LDOs that has NC on BP pin.
