fg_PMHB-01

by flyguy.
Top
Bottom

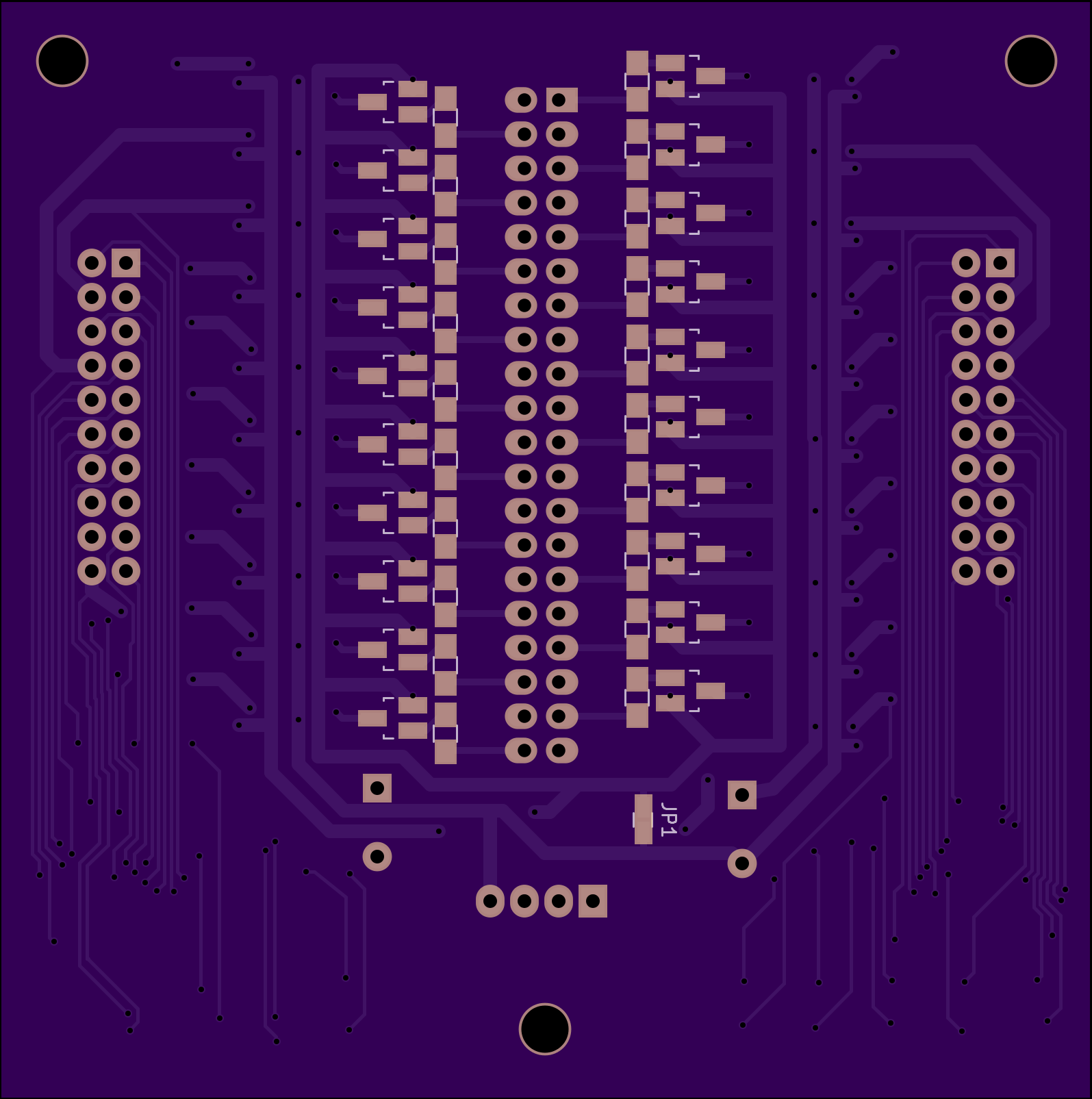

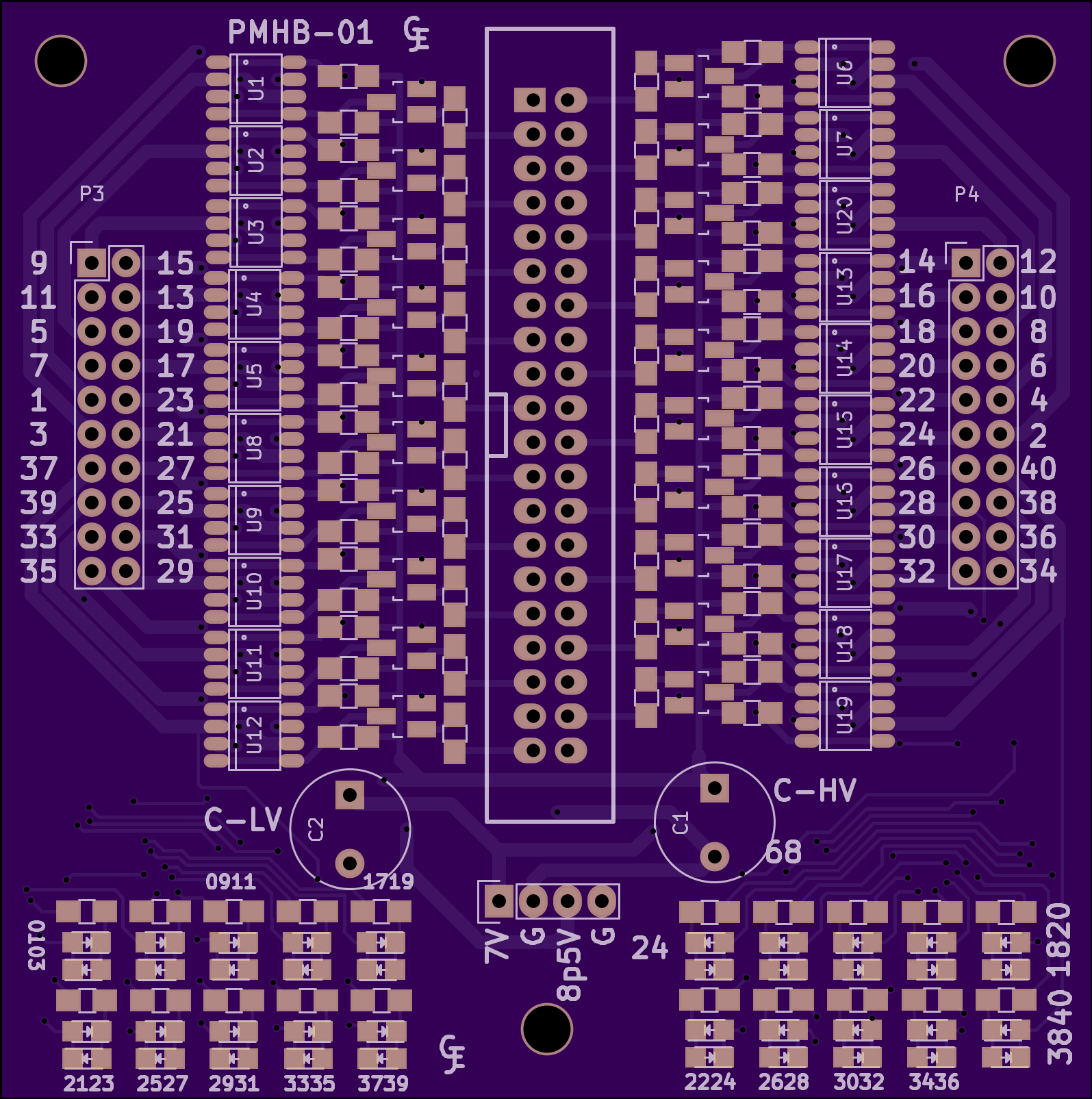

2 layer board of 3.19x3.21 inches (81.05x81.56 mm).
Shared on February 1st, 2017 02:25.

20 HBridges

40-pin 3V3 inputs, 2x20-pin <30V 2A outputs.

Ribbon cables galore.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

fg_PMHB-01-SBO

by flyguy.
Top
Bottom

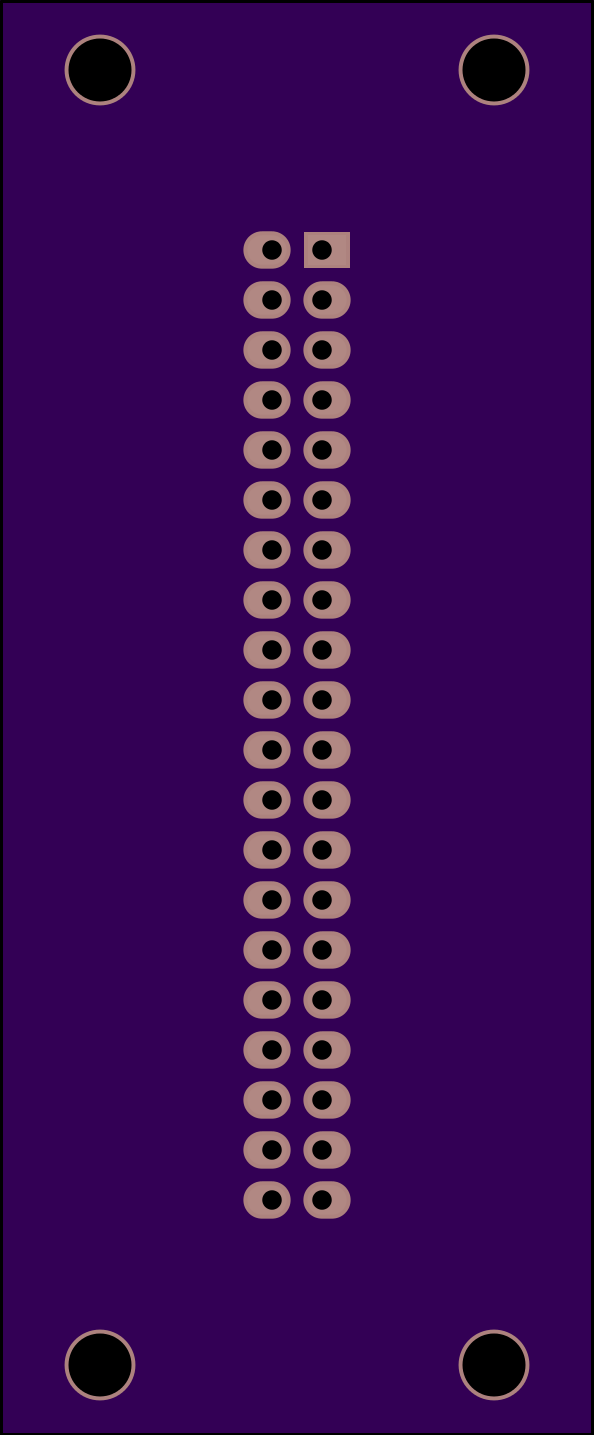

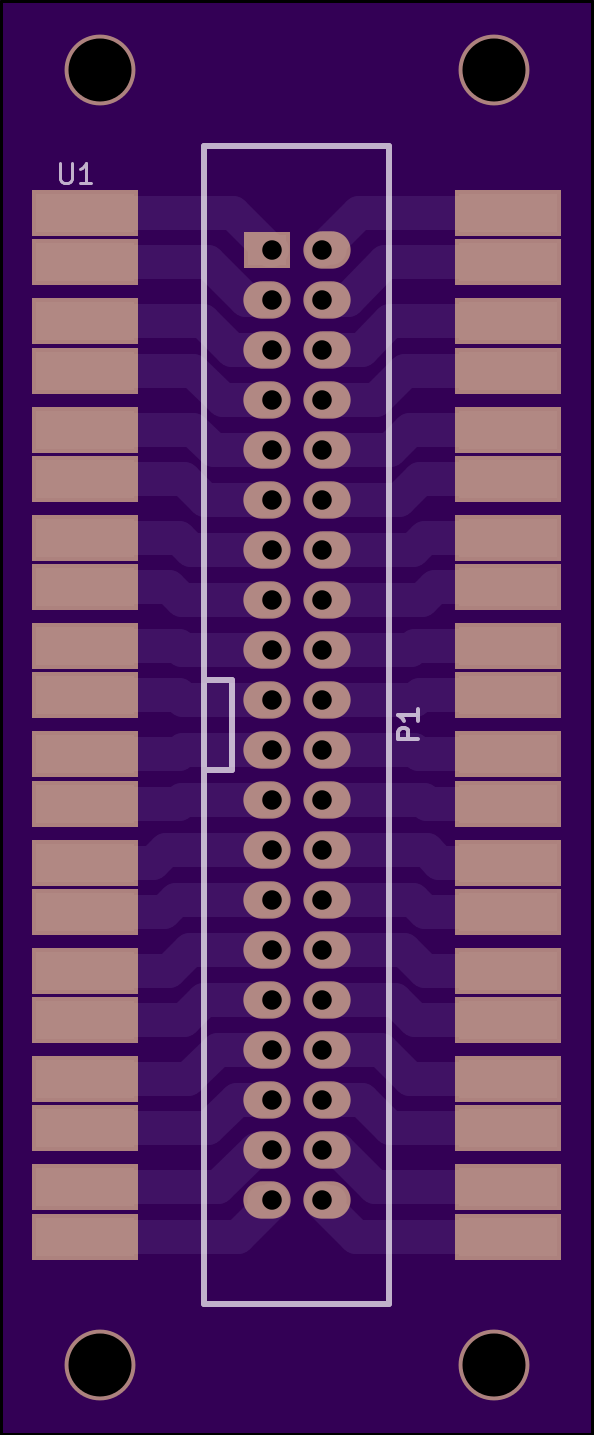

2 layer board of 1.19x2.87 inches (30.18x72.92 mm).
Shared on February 1st, 2017 02:25.

Solder pad breakout for fg_PMHB-01

1.2x3" 40-pin socket for ribbon cable.

Order board. Download. Permalink. Embed order link.
