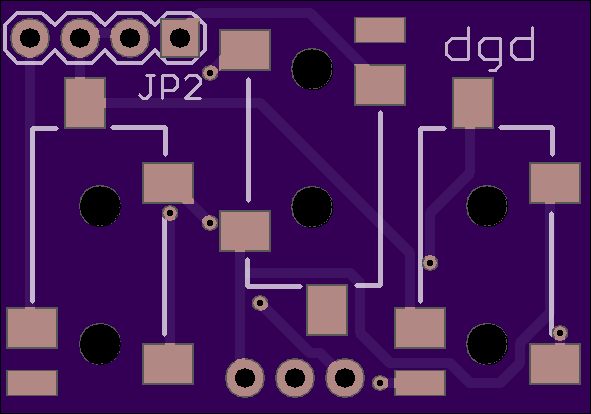

Dual Hall Effect Current Sensor Board
by
icenyne.
2
layer board of
0.74x0.95
inches
(18.72x24.13
mm).
Shared on
March 30th, 2015 15:08.
HCPB Teensy3.1 Button Box Breakout
by
icenyne.
2
layer board of
0.67x0.76
inches
(16.92x19.18
mm).
Shared on
January 23rd, 2015 15:13.
Happy Camper Photo Booth button box controller breakout board.
mono/stereo/splitter adapter
by
icenyne.
2
layer board of
1.18x0.83
inches
(29.97x20.96
mm).
Shared on
February 19th, 2014 16:47.
mono/stereo mic/headphone adapter for camcorder
FET Shield for FRDM-KL25Z
by
icenyne.
2
layer board of
1.89x2.06
inches
(48.03x52.20
mm).
Shared on
December 28th, 2013 19:27.

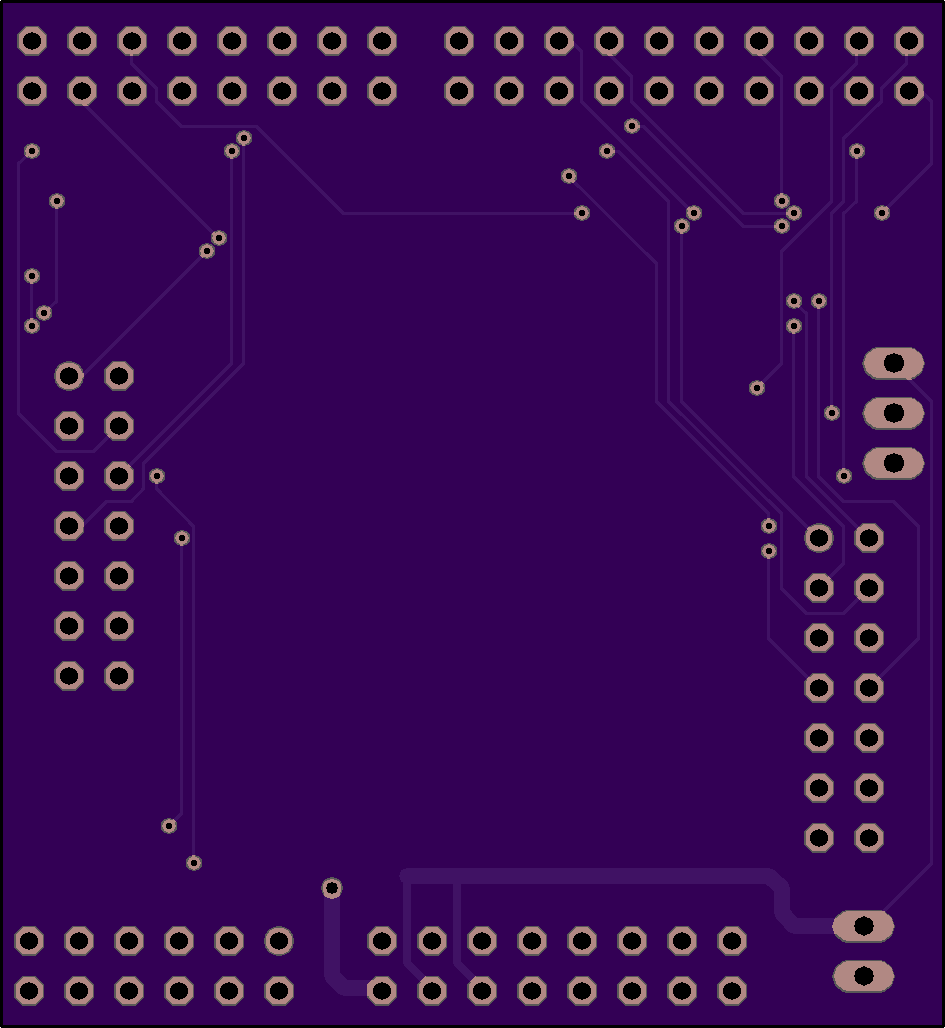

This shield for the FRDM-KL25Z allows controlling 18 SOT-23 FETs to pull down external non-inductive loads. It was originally designed to drive two large 7-segment displays and a DSLR for a photo booth application. The control function has since been moved to an i.MX6Q Sabre SD board…
microKL25Z-v1
by
icenyne.
2
layer board of
0.65x1.35
inches
(16.54x34.29
mm).
Shared on
October 17th, 2013 19:36.
DIP breakout board for KL25Z. Board is tested and it works.
Soldering the QFN is a little bit of a pain: use gentle hot air or a hot plate. Pre-tin the pad ring first. Solder the tab after the pad ring is soldered.
