Shared projects

UsbAmps [B1314]

by jmedved.

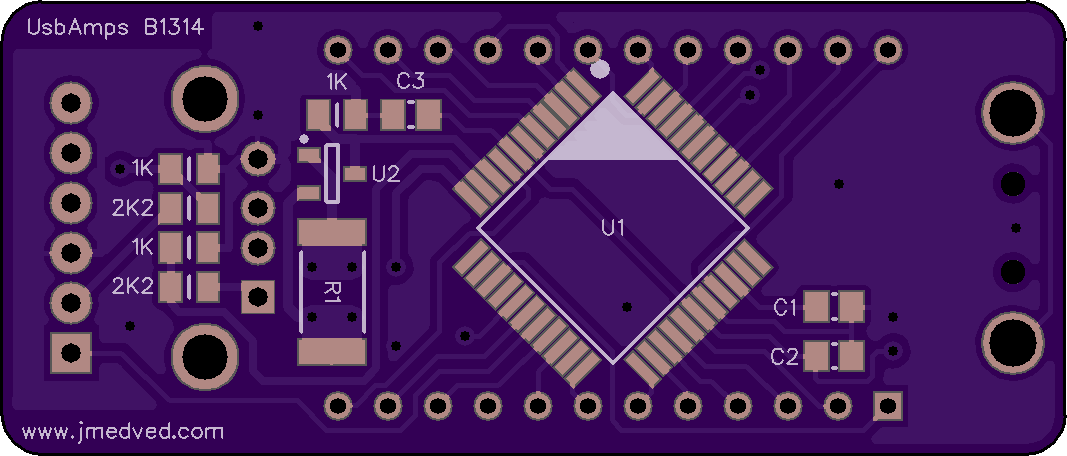

Top
Bottom

2 layer board of 2.13x0.91 inches (54.15x23.16 mm).
Shared on August 14th, 2013 02:39.

UsbAmps is a small USB pass-through device that measures current, voltage and power used by whatever is connected on its output.

Details at http://jmedved.com/usbamps/.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

AgIR [C1323]

by jmedved.

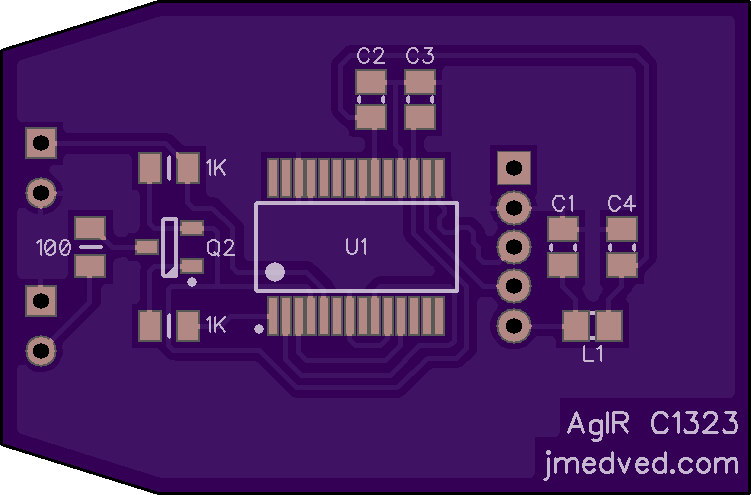

Top

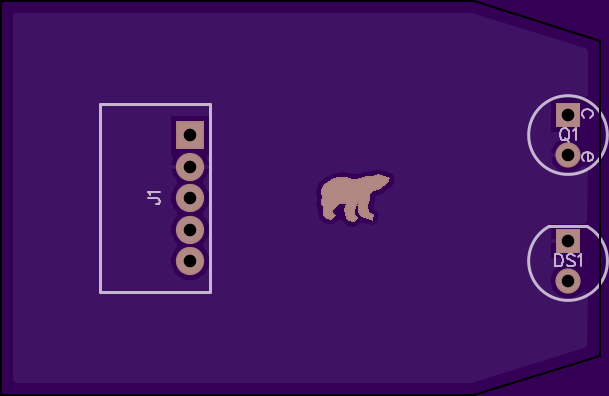

Bottom

2 layer board of 1.50x0.99 inches (38.15x25.15 mm).
Shared on August 14th, 2013 02:38.

This board uses FT232RL chip and it is direct replacement for one used in Agilen'ts USB to IR cable (U1173A).

Details at http://jmedved.com/agir/.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
