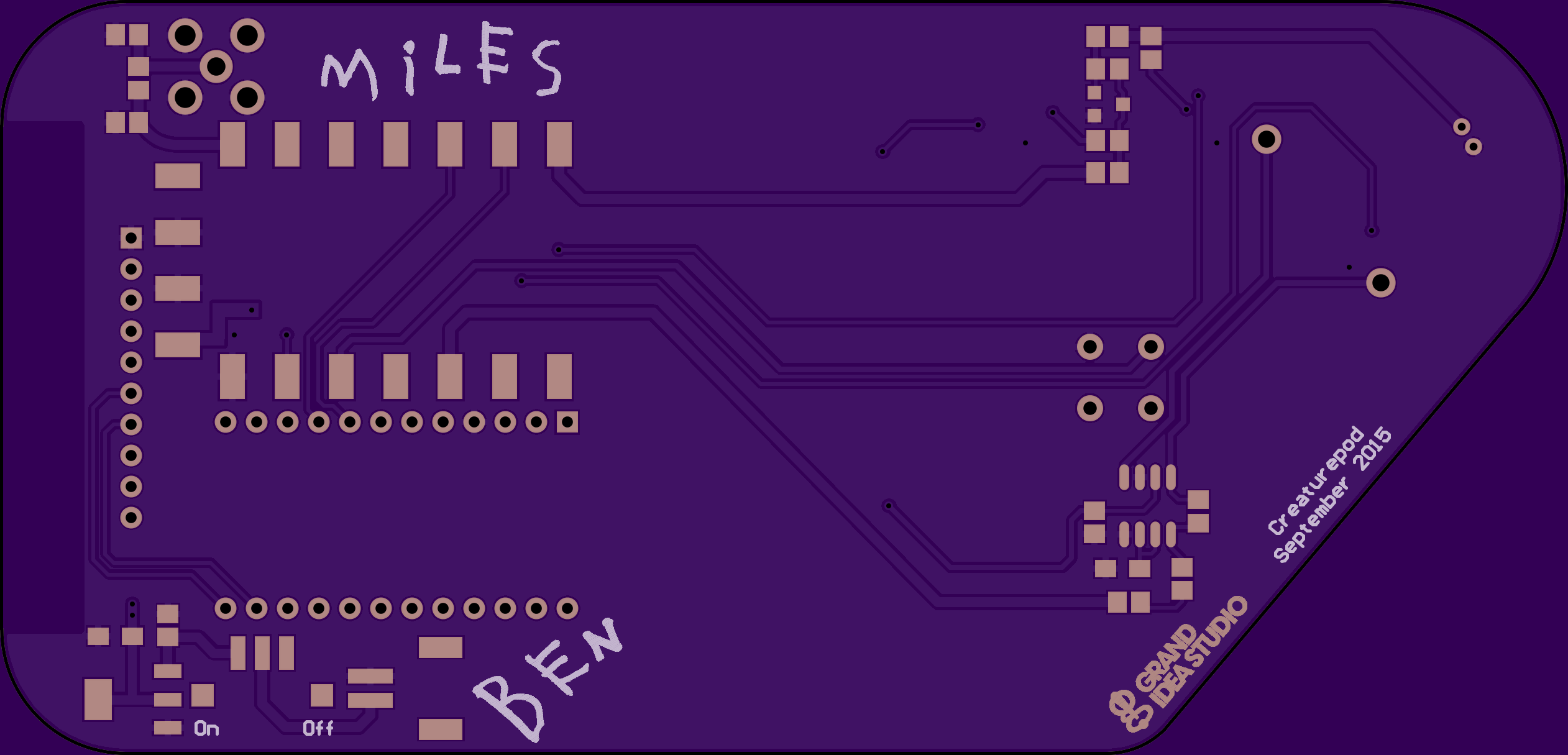

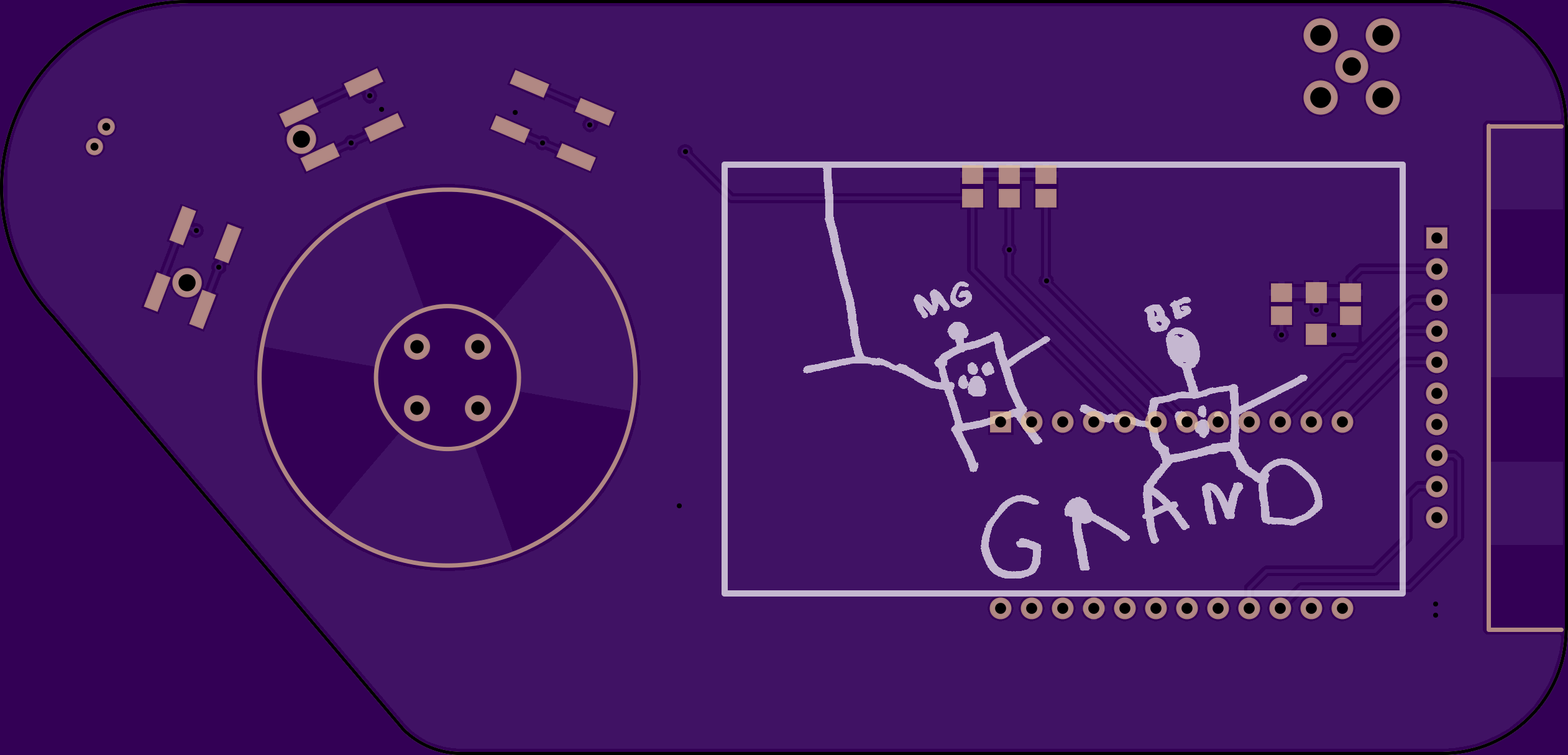

Creaturepod

by

2 layer board of 5.05x2.43 inches (128.17x61.72 mm).
Shared on September 23rd, 2015 16:46.

A real-life Wild Kratts Creaturepod! (www.grandideastudio.com/portfolio/creaturepod/)

Copy this HTML into your page to embed a link to order this shared project

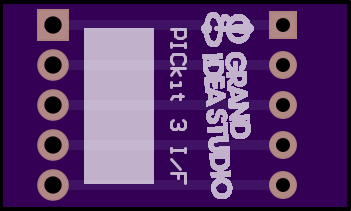

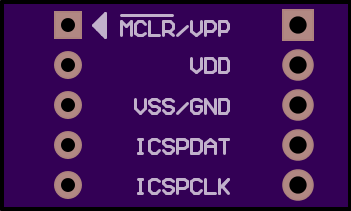

PICkit 3 Interface Board

by

2 layer board of 0.88x0.53 inches (22.33x13.41 mm).
Shared on December 13th, 2014 20:18.

Screw terminals (TE 282834-5) to R/A male header (Molex 22-28-8050)

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 6.01x2.26 inches (152.68x57.40 mm).
Shared on August 19th, 2013 20:29.

JTAGulator: Assisted discovery of on-chip debug interfaces (www.jtagulator.com)

Copy this HTML into your page to embed a link to order this shared project
