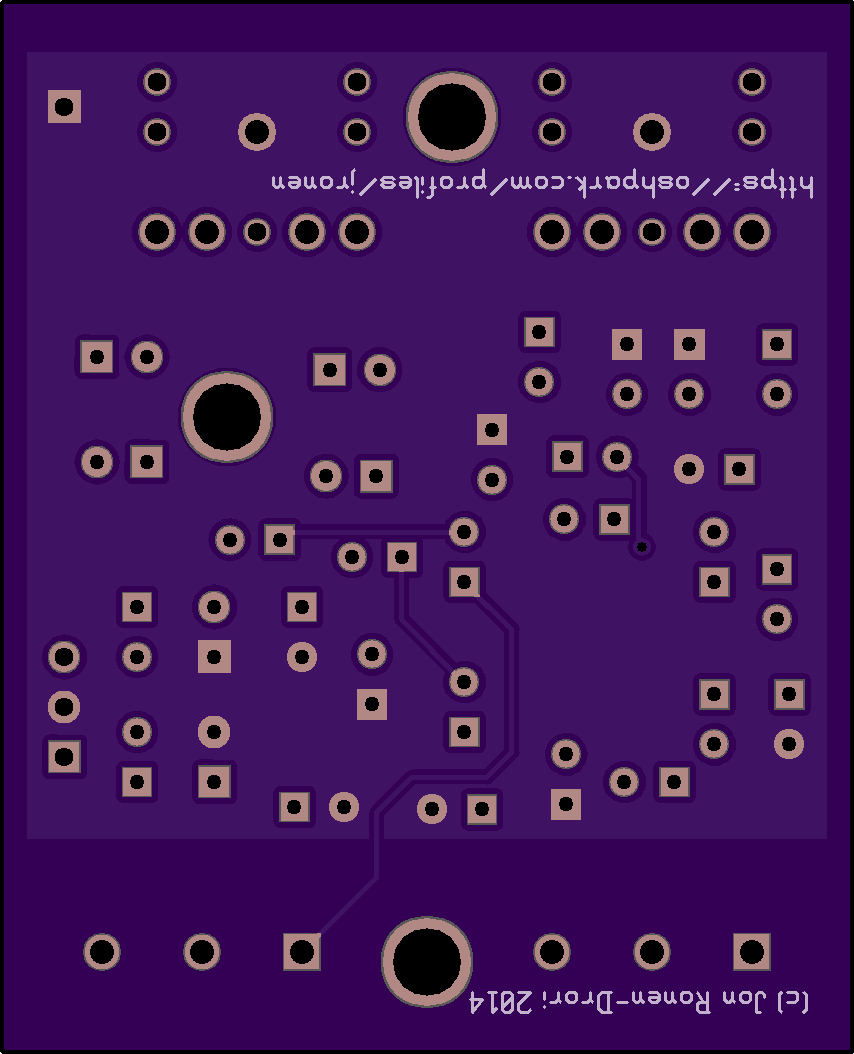

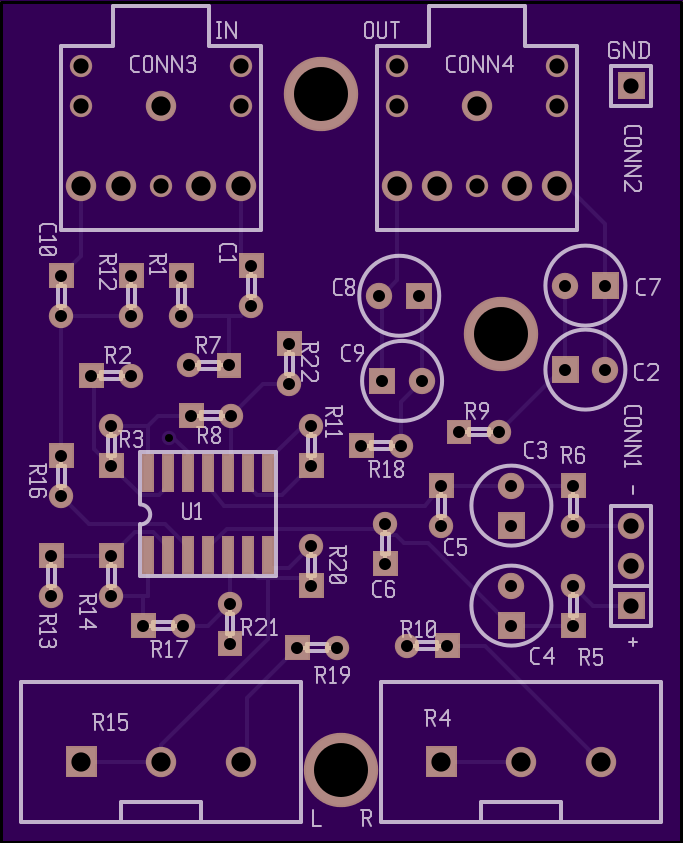

Headphones Stereo Preamp
by
jronen.
2
layer board of
1.71x2.11
inches
(43.36x53.54
mm).
Shared on
October 19th, 2014 19:33.

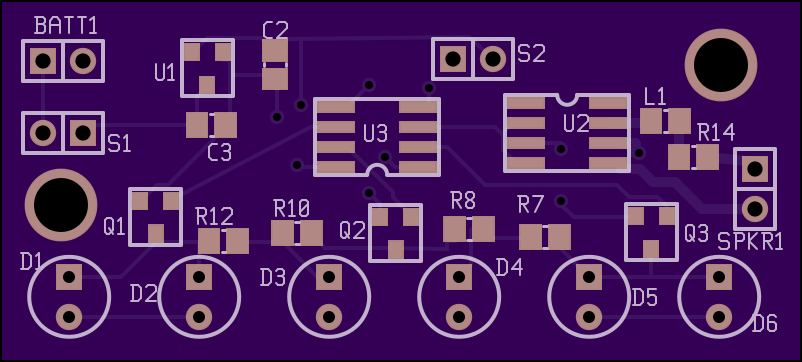

ATtiny Toy Prototype
by
jronen.
2
layer board of
2.01x0.91
inches
(50.95x23.04
mm).
Shared on
August 17th, 2014 19:28.

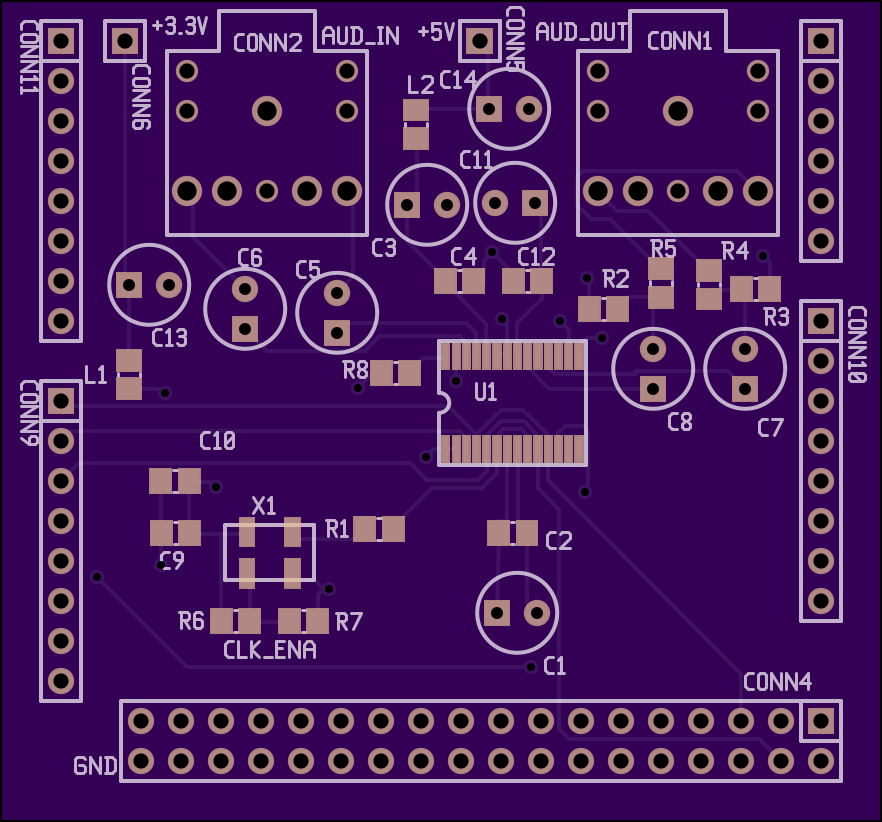

RasPi PCM3060 Shield
by
jronen.
2
layer board of
1.76x1.76
inches
(44.60x44.60
mm).
Shared on
August 3rd, 2014 20:14.
A raspberry pi shield that provides high quality, 24-bit DAC and ADC at 48KHz.
Schematics can be found at https://github.com/jonronen/geda-stuff/tree/master/audio_shield/pcm3060_rpi
Kernel sources can be found at https://github.com/jonronen/raspi-linux
Based on work by Florian Meier: http://blog.koalo.de/2013/05/i2s-support-for-raspberry-pi.html

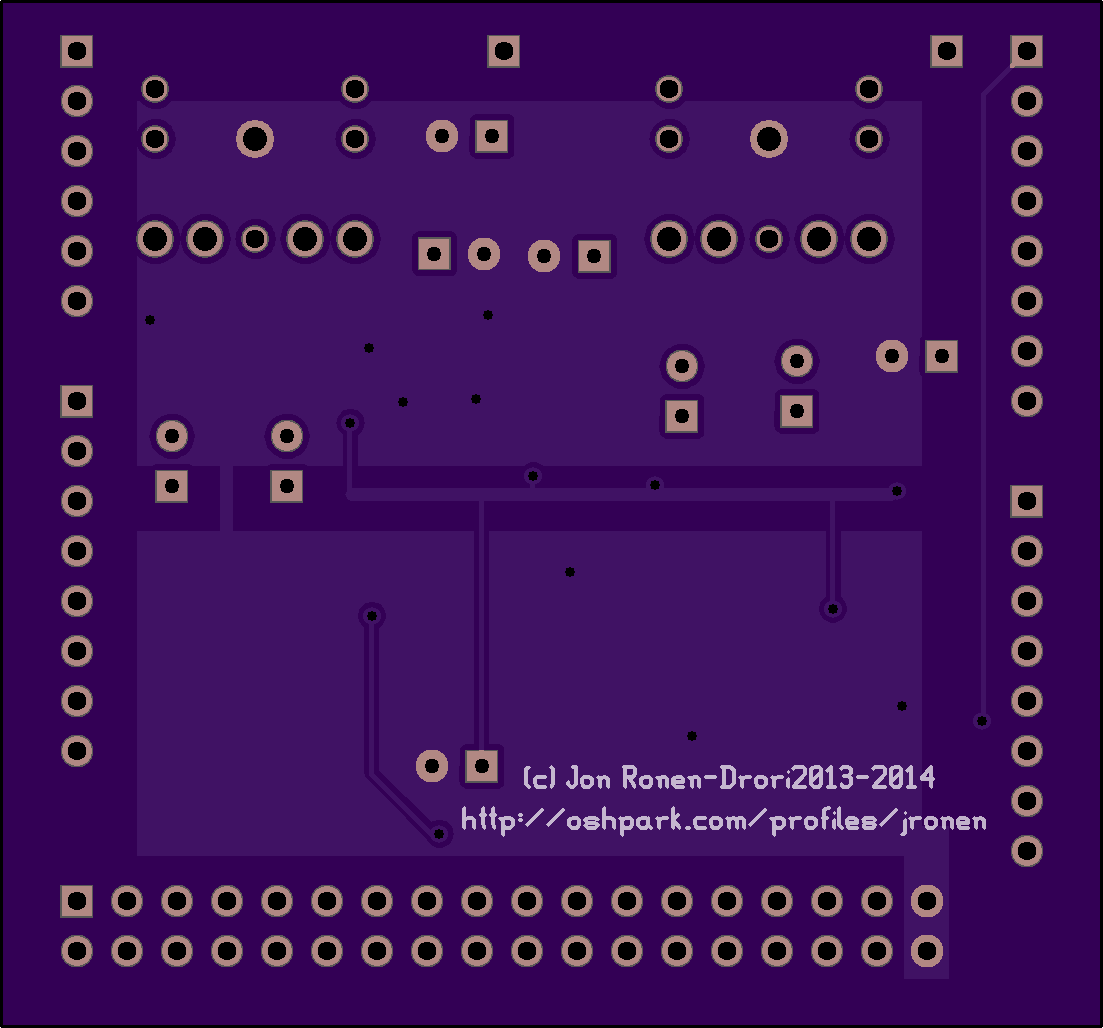

PCM3060 Arduino DUE Shield
by
jronen.
2
layer board of
2.21x2.06
inches
(56.06x52.22
mm).
Shared on
April 13th, 2014 20:14.
An Arduino DUE shield that provides high quality, 24-bit DAC and ADC at 48KHz.
Compatible with Arduino DUE only.
Schematics can be found at https://github.com/jonronen/geda-stuff/tree/master/audio_shield/pcm3060 and sample code can be found at https://github.com/jonronen/audio-fx

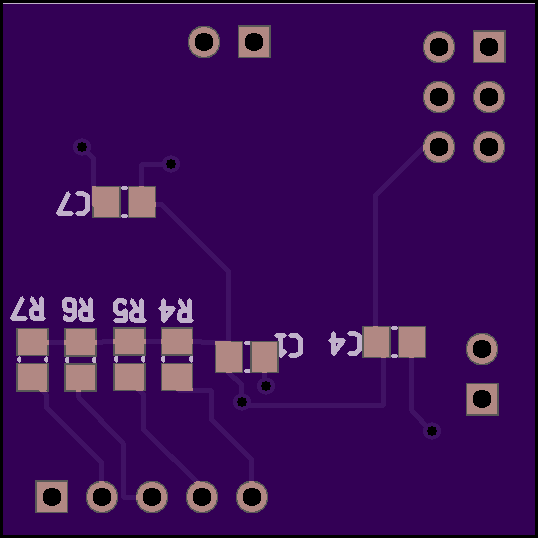

Sounds with ATmega128
by
jronen.
2
layer board of
1.08x1.08
inches
(27.36x27.36
mm).
Shared on
January 29th, 2014 19:17.
Create up to four sounds and trigger them by pressing buttons
