Shared projects

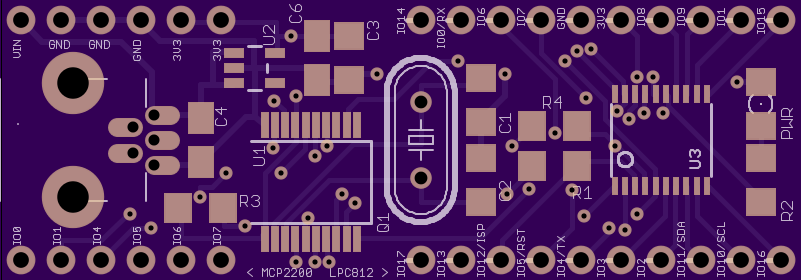

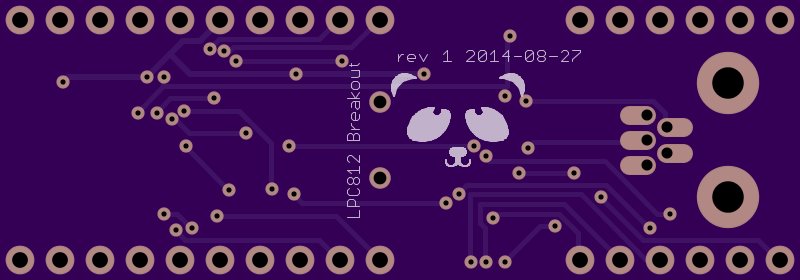

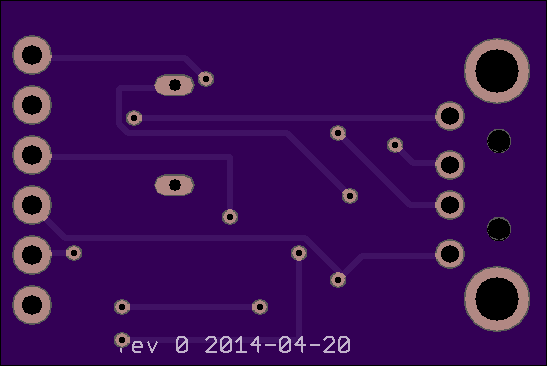

Lpc812 Breakout rev 1
by
julbouln.
2
layer board of
2.00x0.70
inches
(50.80x17.78
mm).
Shared on
September 28th, 2014 09:12.

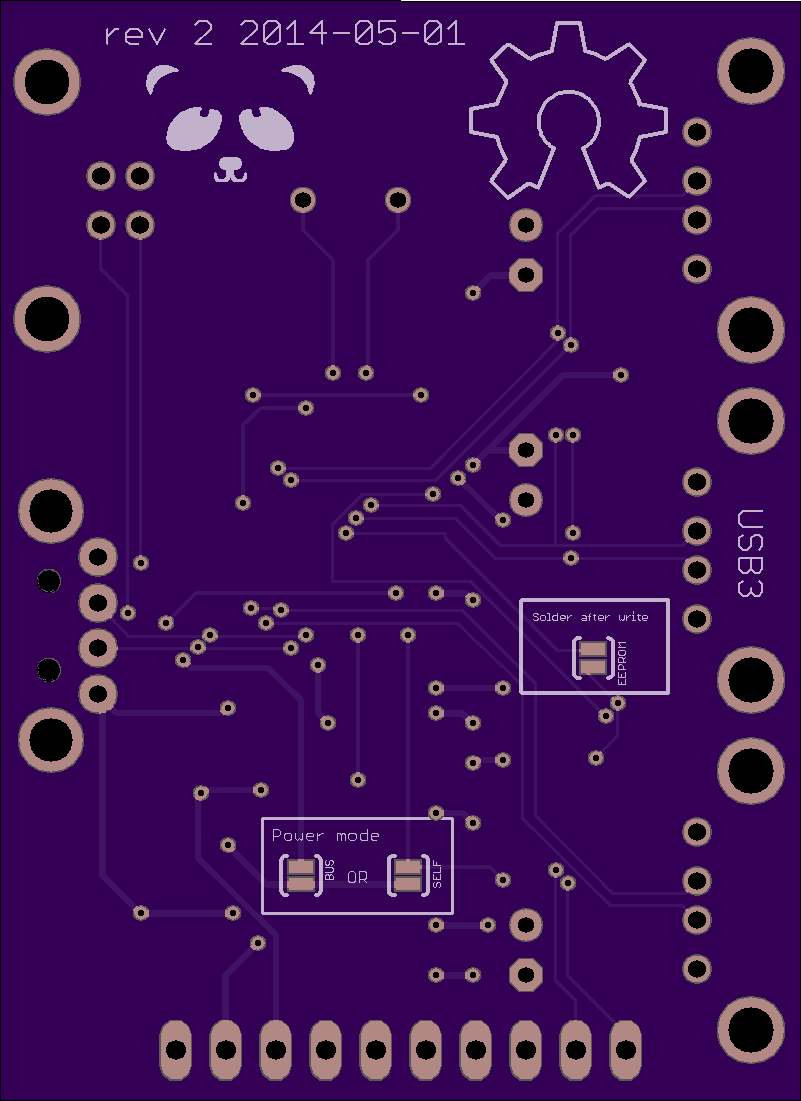

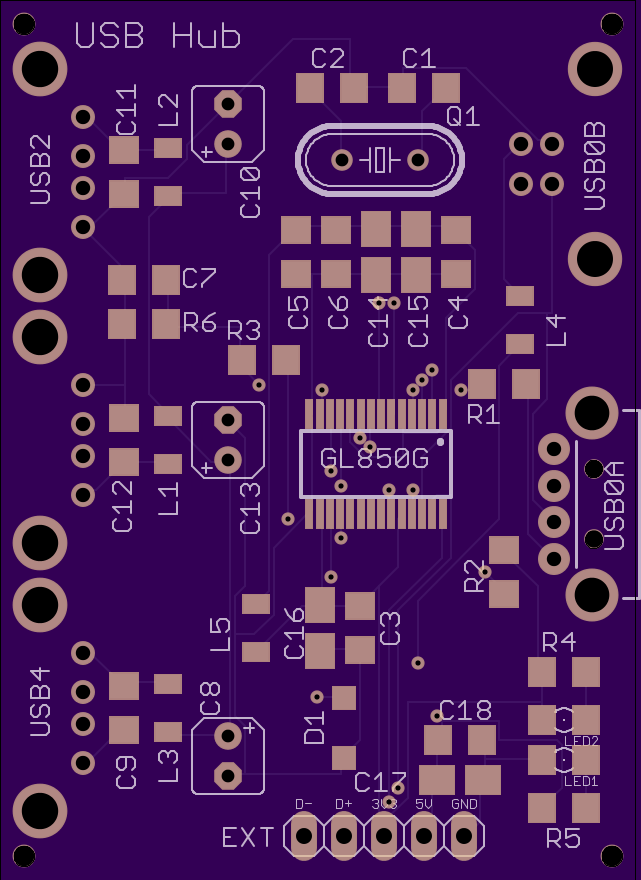

Usb Hub rev2
by
julbouln.
2
layer board of
1.60x2.20
inches
(40.64x55.88
mm).
Shared on
May 26th, 2014 18:50.
OSHW USB Hub documentation and schematics here

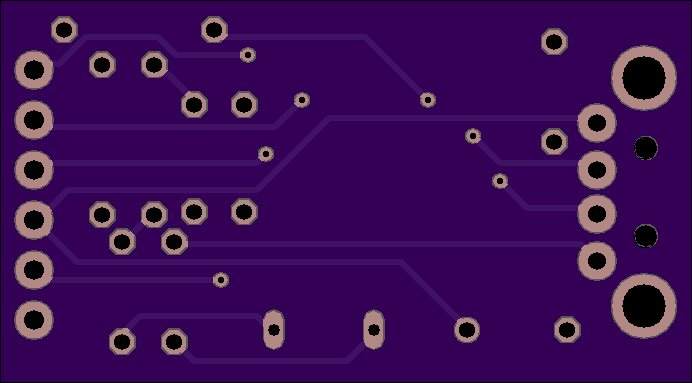

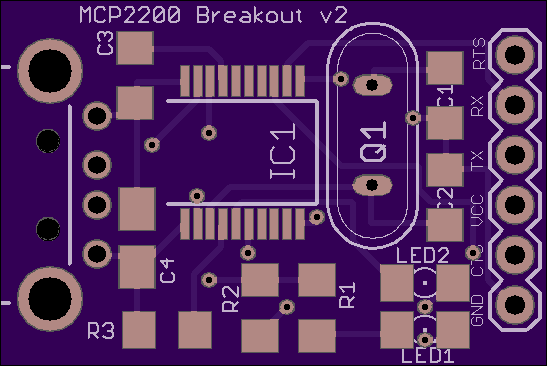

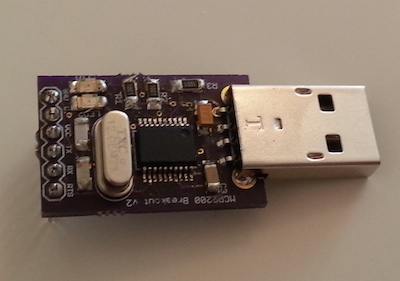

MCP2200 Breakout v2
by
julbouln.
2
layer board of
1.09x0.73
inches
(27.76x18.54
mm).
Shared on
May 9th, 2014 12:50.
USB to serial using Microchip MCP2200

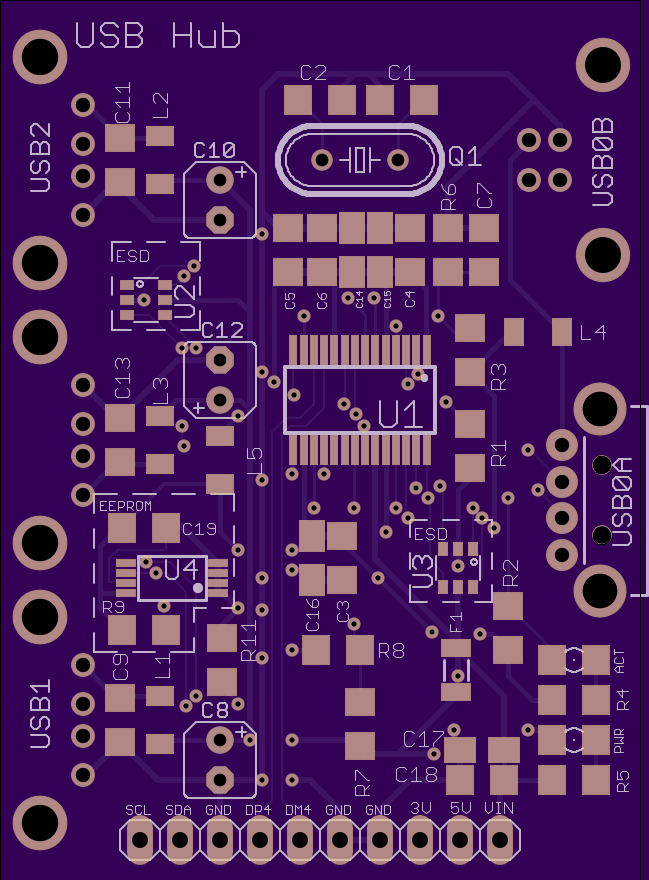

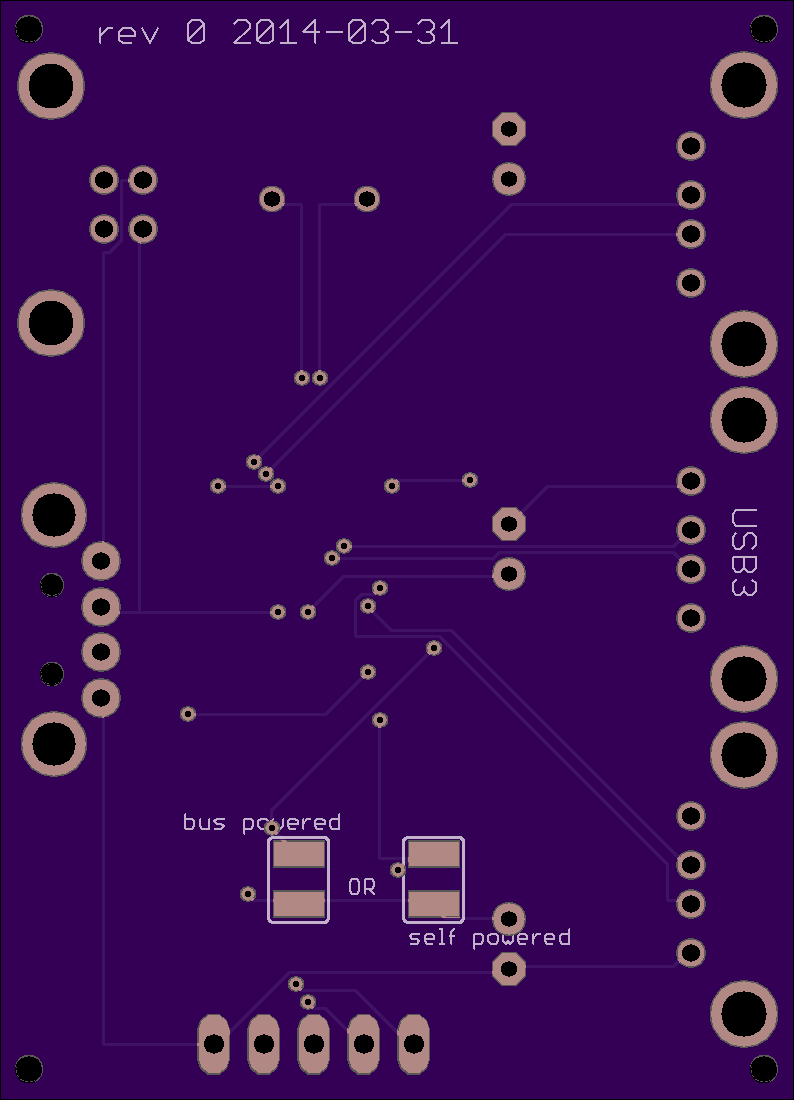

USB Hub rev0
by
julbouln.
2
layer board of
1.59x2.20
inches
(40.34x55.88
mm).
Shared on
April 19th, 2014 09:11.

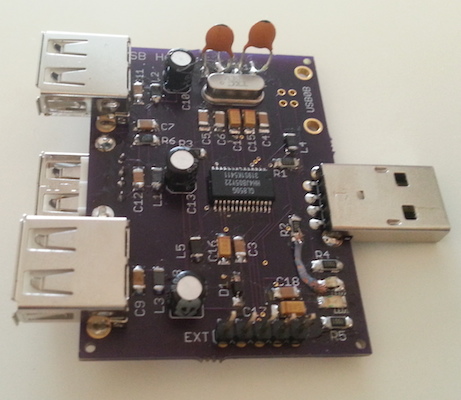

This is a board for an home made tiny USB hub. Board + BOM cost less than 10€/unit for 3 units (Farnell components + OSHpark board + USB chip, see below). Hub is based on Genesys Logic GL850G chip The Genesys Logic (taiwanese manufacturer) chip is the hardest component to find but it only cost 0.67€/unit for 4 units. In Europe, you can find it at Arduiner online store (it).
(ignore through hole capacitors near quartz, I ordered the wrong SMD capacitors and must use these instead)
You can choose to solder USB0A (A male) or USB0B (B female). USB0A is mainly there because I need to extend Raspberry Pi rev A single port, so I can connect the hub directly to it without cable.
The hub works in bus powered or self powered mode, you just need to solder appropriate jumper. There is no DC jack for self powered, you must connect external supply to EXT 5V.
It is a 3 ports hub but there is a fourth port available via EXT D+/D-.
IMPORTANT There is a bug in this rev0 board with R4 and LED2 : do not solder (board works without that, led is about sleep mode). This is fixed in attached rev1 schematics and board files.

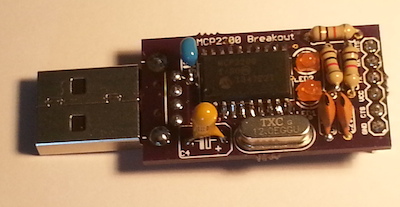

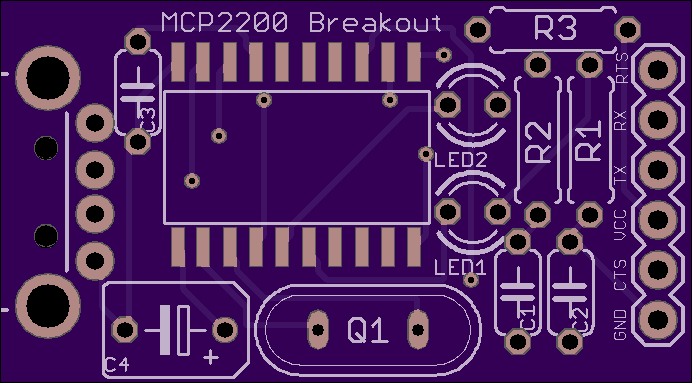

MCP2200 Breakout
by
julbouln.
2
layer board of
1.38x0.77
inches
(35.13x19.43
mm).
Shared on
March 8th, 2014 12:37.
USB to serial using Microchip MCP2200
