Shared projects

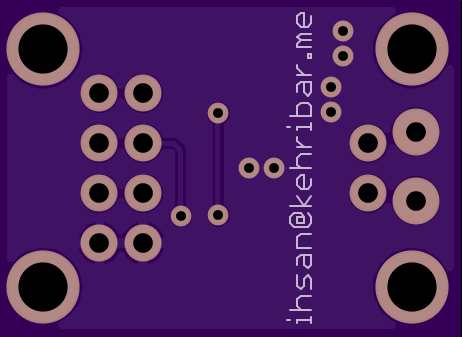

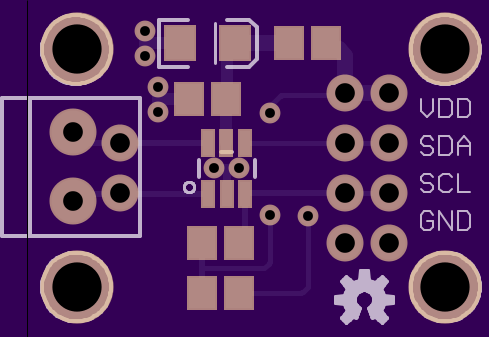

18bit ADC board

by kehribar.
Top
Bottom

2 layer board of 0.93x0.68 inches (23.49x17.15 mm).
Shared on October 26th, 2016 19:09.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

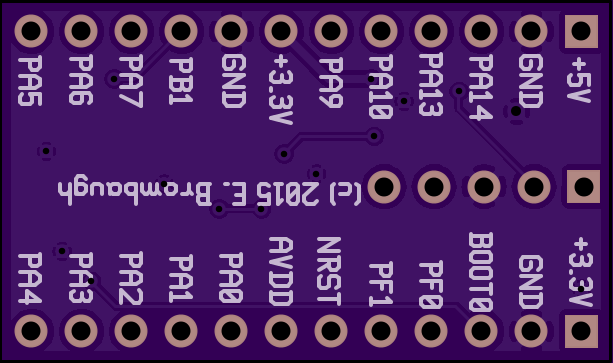

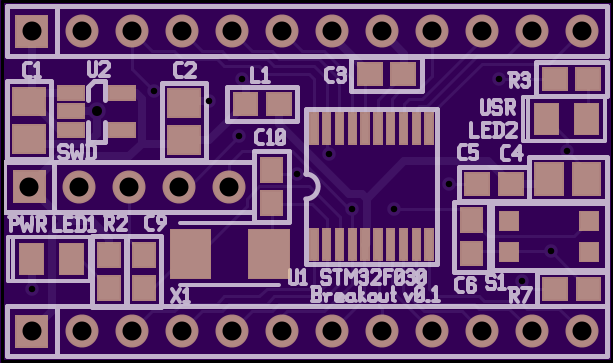

Remake of STM32F031 board

by kehribar.
Top
Bottom

2 layer board of 1.23x0.73 inches (31.14x18.44 mm).
Shared on October 26th, 2016 19:08.

Taken from: http://ebrombaugh.studionebula.com/embedded/stm32f030breakout/index.html

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

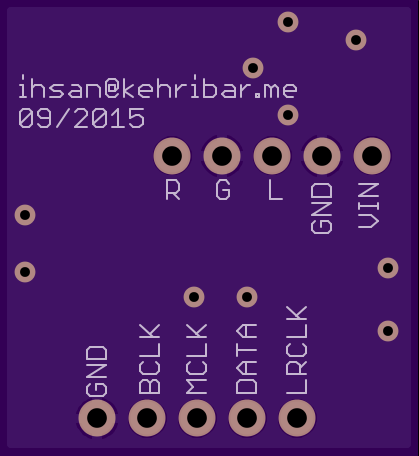

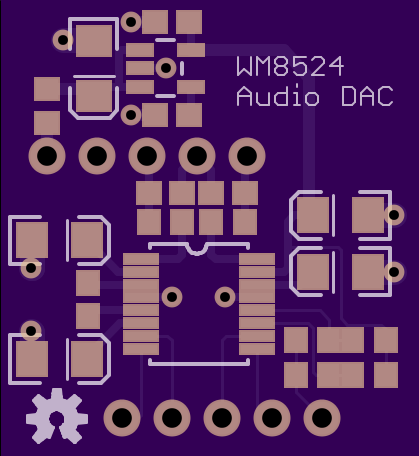

WM8524 DAC

by kehribar.
Top
Bottom

2 layer board of 0.84x0.91 inches (21.29x23.19 mm).
Shared on October 26th, 2016 19:08.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

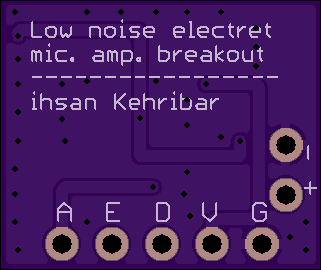

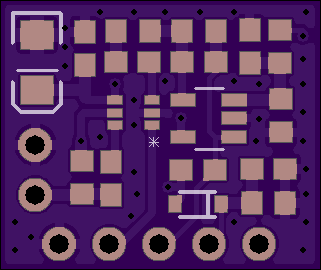

Low noise electret mic amp. breakout

by kehribar.
Top
Bottom

2 layer board of 0.64x0.54 inches (16.31x13.67 mm).
Shared on November 12th, 2014 22:46.

Details can be found here: http://kehribar.me/hardware/electretAmplifier/

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

nrf24l01+ node board with Attiny84

by kehribar.
Top
Bottom

2 layer board of 1.20x1.20 inches (30.48x30.48 mm).
Shared on October 25th, 2013 06:06.

Wireless sensor node board for nrf24l01+ RF transceiver with Attiny84.

Details can be found at: http://kehribar.me/hardware/nrf24_node/

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
