Shared projects

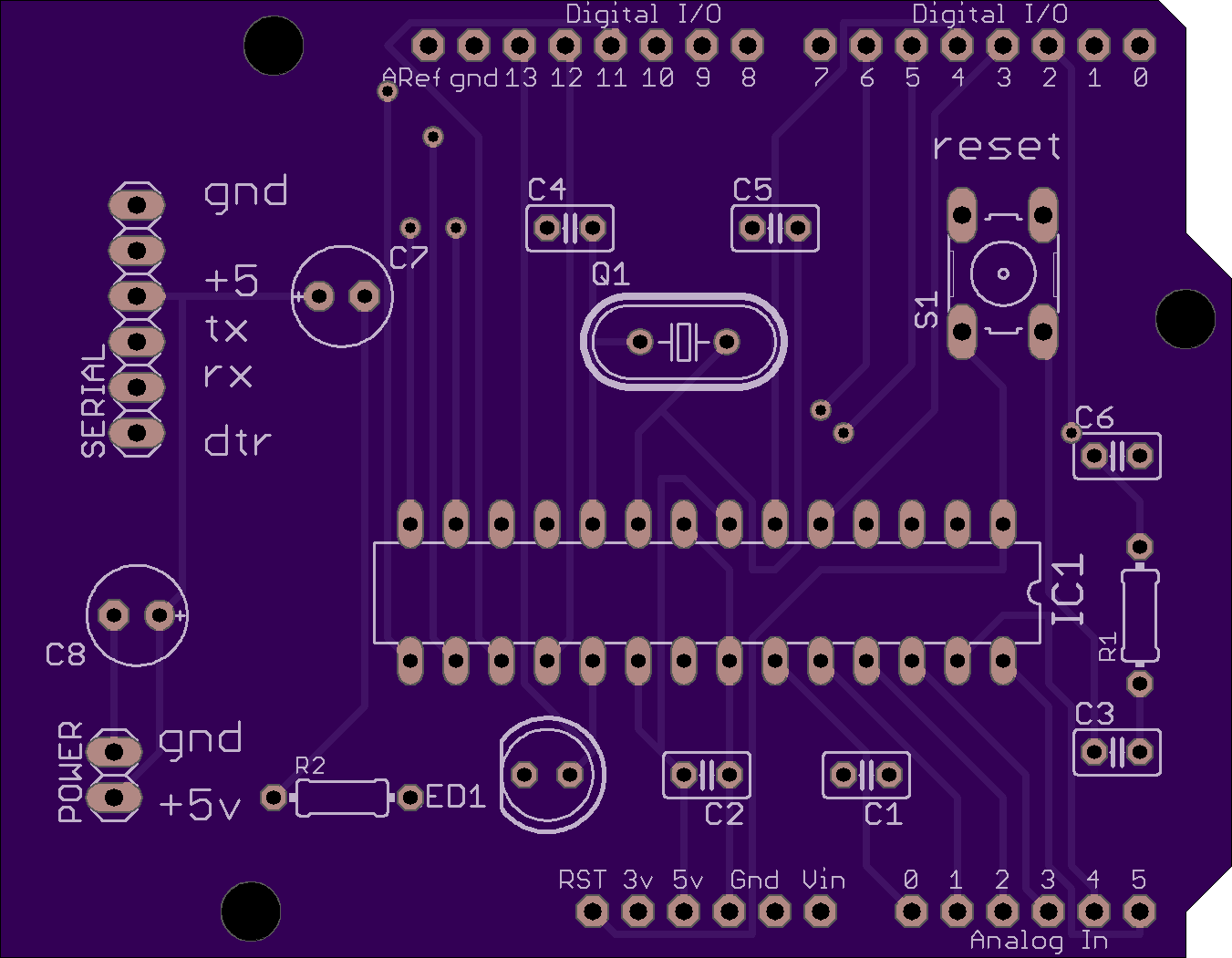

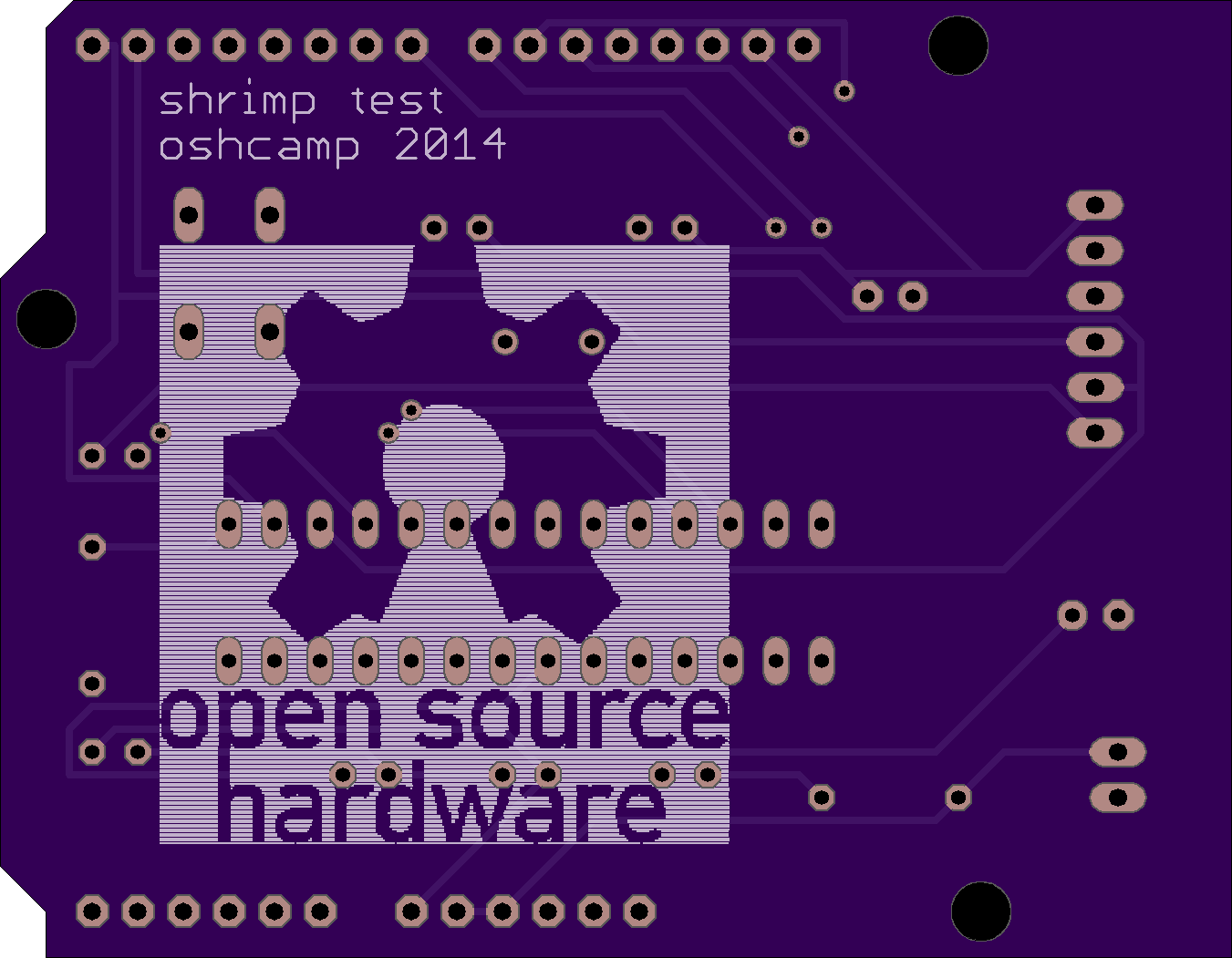

arduino shrimp

by mattvenn.
Top
Bottom

2 layer board of 2.70x2.10 inches (68.58x53.37 mm).
Shared on June 15th, 2014 11:25.

oshcamp test

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

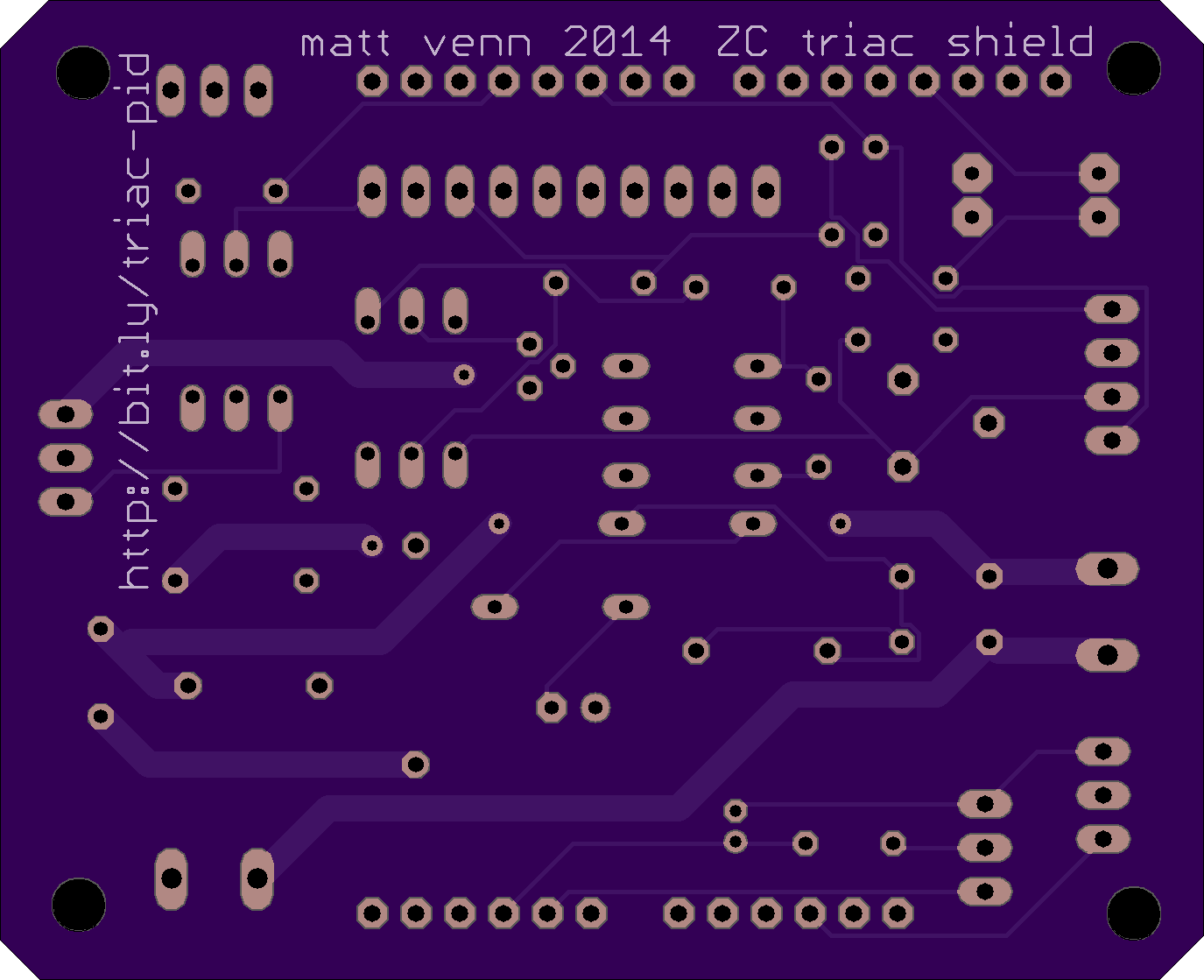

zc triac

by mattvenn.
Top
Bottom

2 layer board of 2.75x2.24 inches (69.85x56.82 mm).
Shared on June 5th, 2014 20:28.

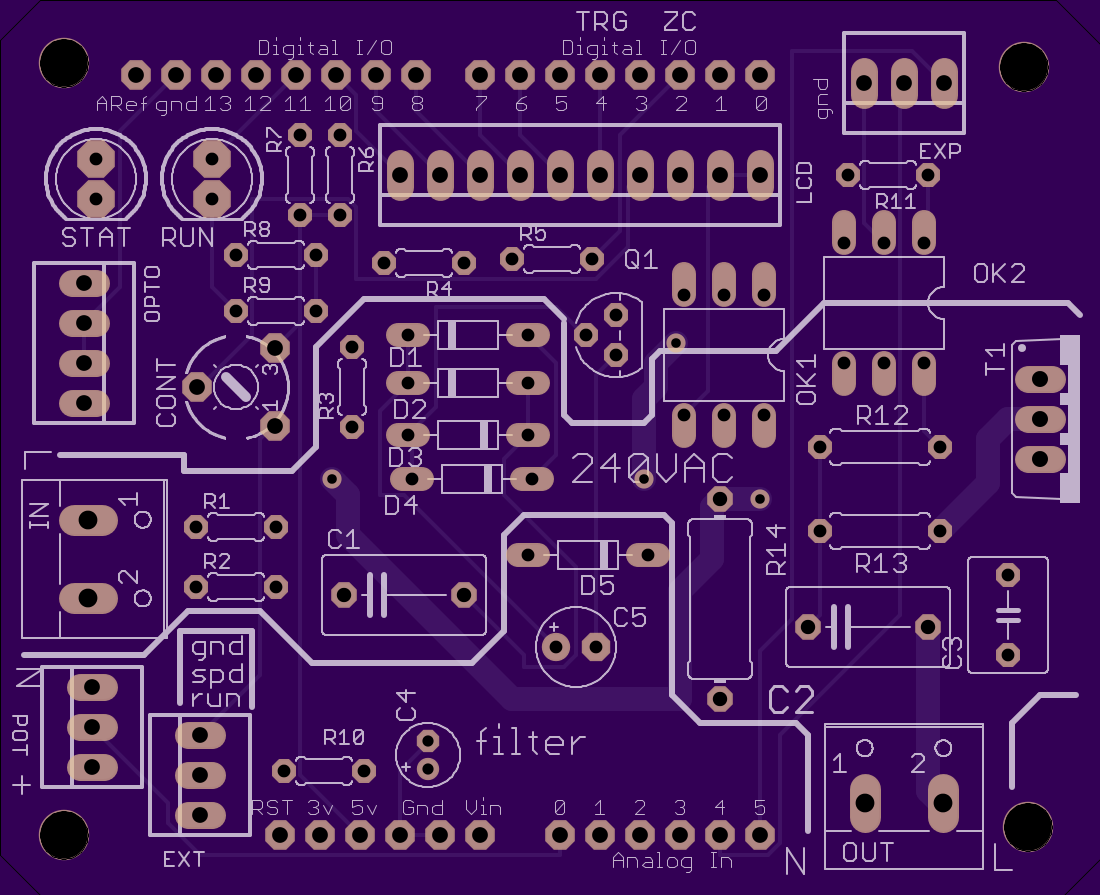

zero crossing triac arduino shield

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

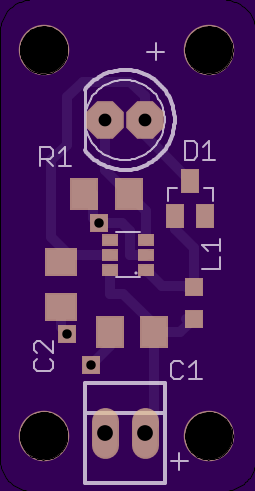

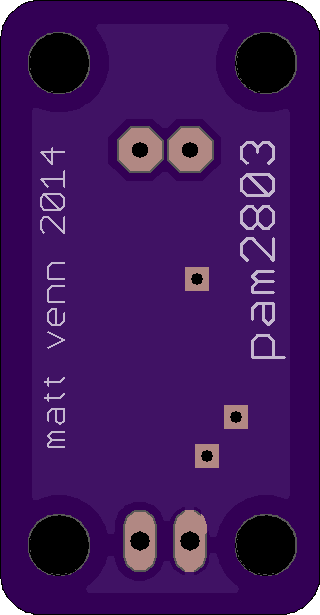

led driver

by mattvenn.
Top
Bottom

2 layer board of 0.64x1.23 inches (16.23x31.19 mm).
Shared on May 30th, 2014 18:47.

low voltage led driver

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

led driver

by mattvenn.
Top
Bottom

2 layer board of 0.63x0.77 inches (16.00x19.51 mm).
Shared on January 26th, 2014 12:32.

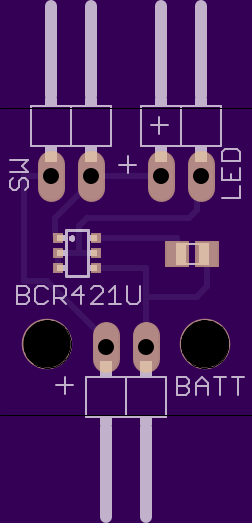

super simple constant current led driver using the bcr421u

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

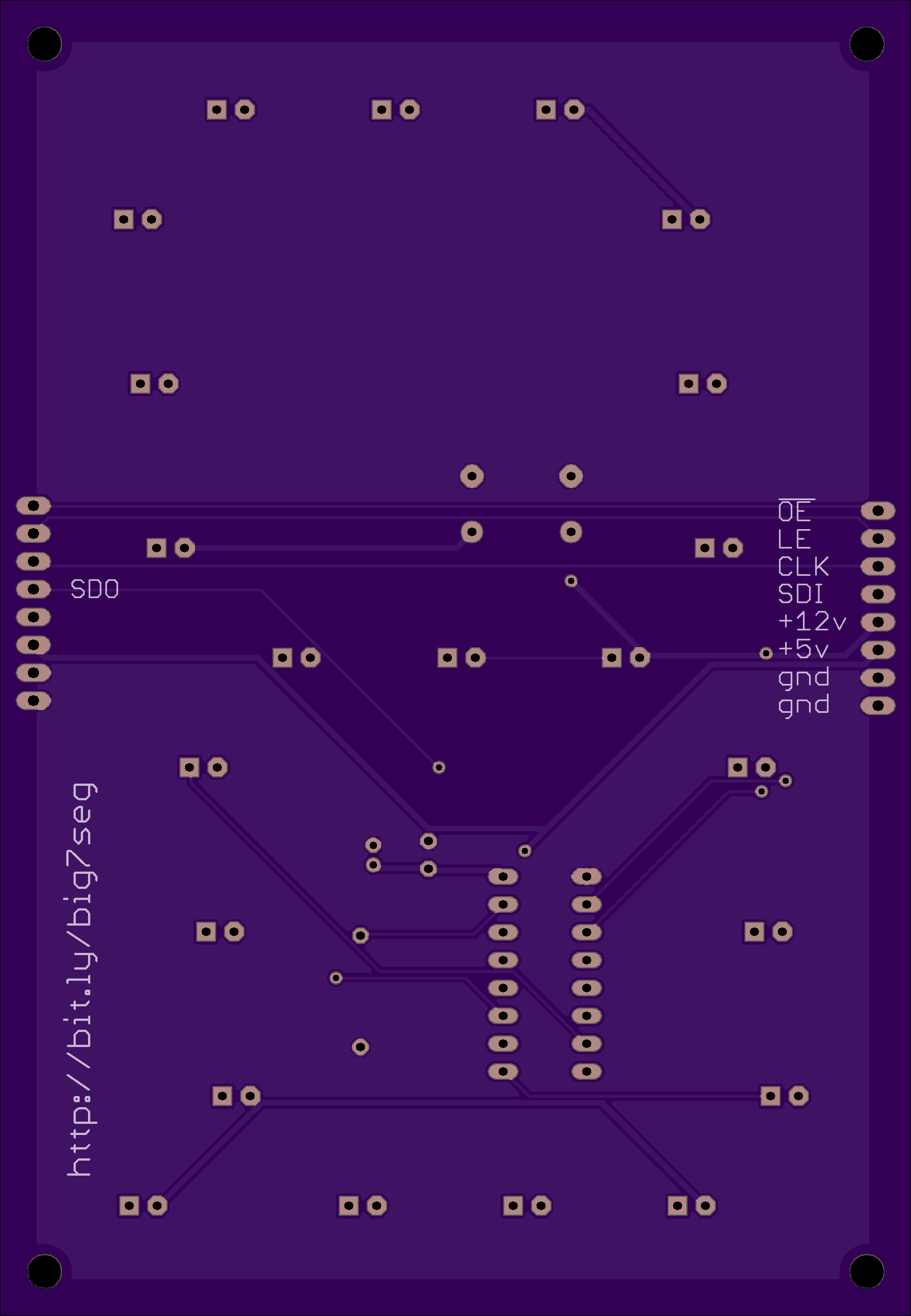

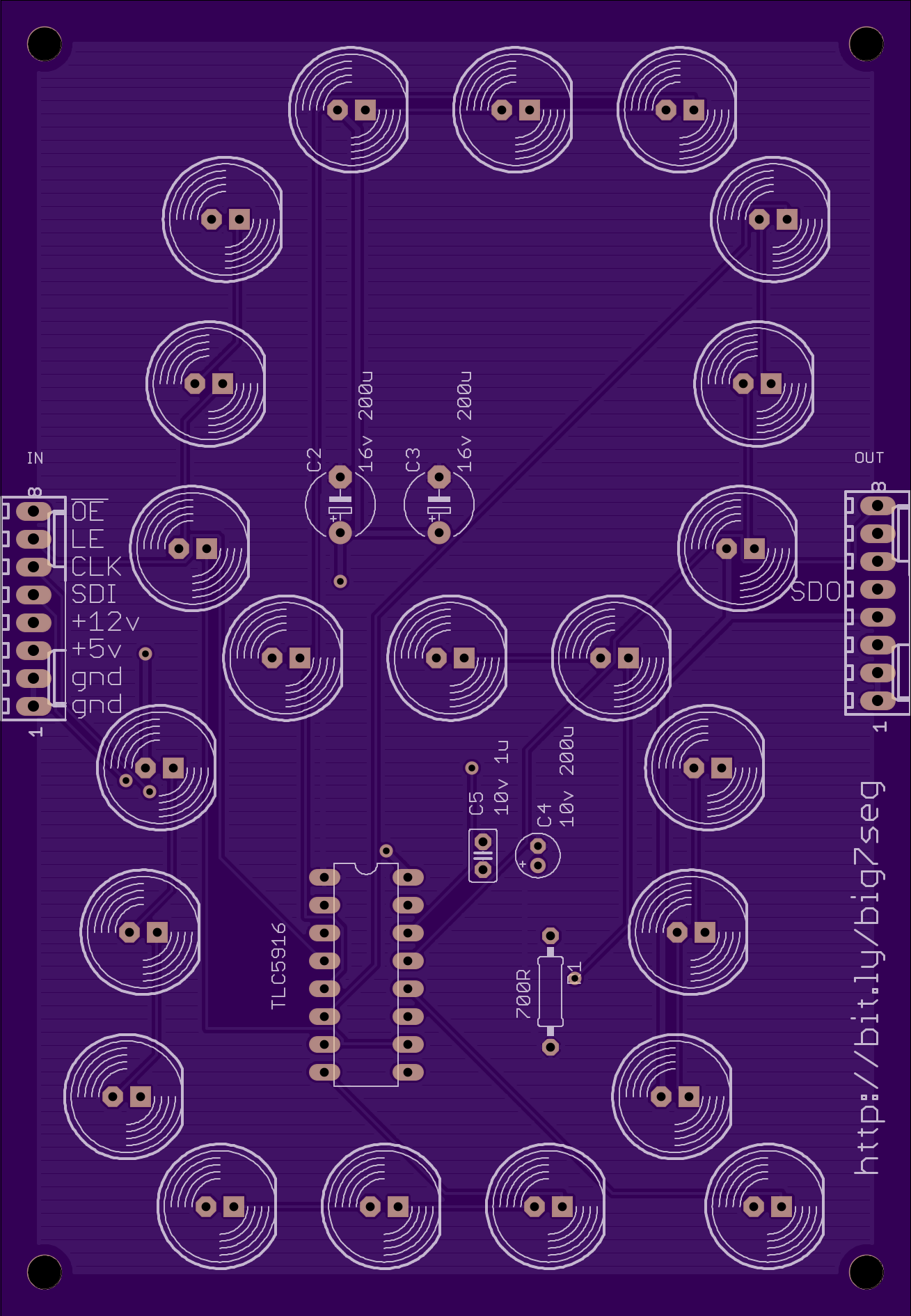

large 7 segment display

by mattvenn.
Top
Bottom

2 layer board of 3.27x4.72 inches (83.01x120.02 mm).
Shared on January 26th, 2014 12:32.

uses TLC5916IN to drive segment

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
