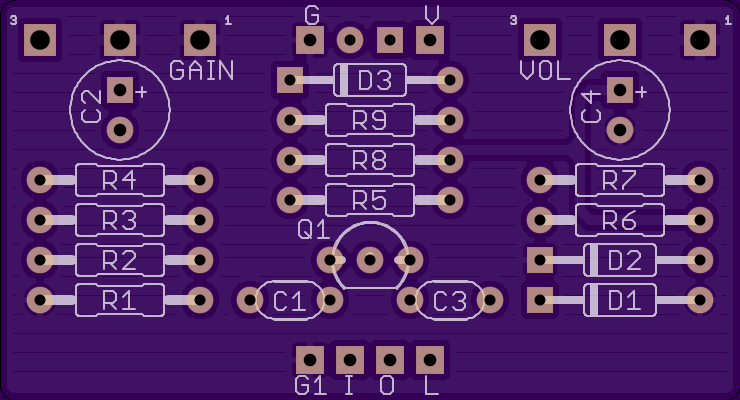

COT50

by

2 layer board of 1.85x1.00 inches (46.99x25.43 mm).
Shared on August 24th, 2014 22:45.

Board for clone of COT50 with master volume control.

Schematic: https://dl.dropboxusercontent.com/u/8021347/ChurchOfTone.png

Copy this HTML into your page to embed a link to order this shared project

ICBM

by

4 layer board of 2.03x1.80 inches (51.46x45.72 mm).
Shared on August 11th, 2014 00:36.

1590B sized IC Big Muff clone board with tone bypass switch

Schematic: https://www.dropbox.com/s/s7k3489ex6y4lna/ICBM.png?dl=0

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 2.33x2.24 inches (59.06x56.85 mm).
Shared on August 6th, 2014 02:47.

Same as the other one, but with 1/2W resistors.

Schematic: https://dl.dropboxusercontent.com/u/8021347/MayonaiseIII.png

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.79x0.90 inches (45.42x22.89 mm).
Shared on August 5th, 2014 21:57.

For true bypass with basic onboard power filtering.

Schematic: https://dl.dropboxusercontent.com/u/8021347/Switch.png

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 2.15x1.90 inches (54.64x48.29 mm).
Shared on June 14th, 2014 20:33.

First rev of Dumbloid board with jazz switch

Copy this HTML into your page to embed a link to order this shared project
