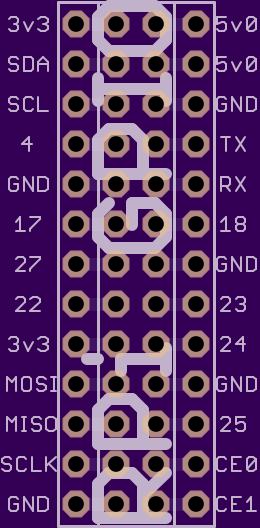

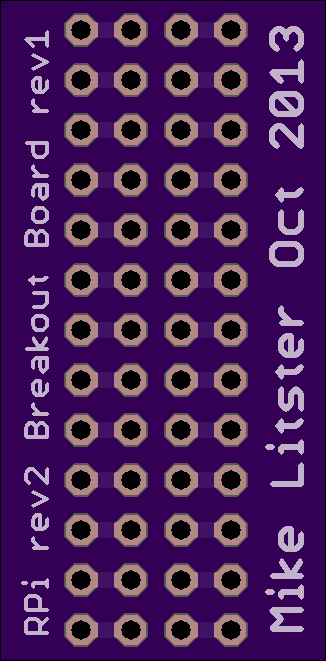

RPi rev2 GPIO breakout board

2 layer board of 0.65x1.32 inches (16.54x33.53 mm).
Shared on October 26th, 2013 12:43.

Land ribbon cable from Raspberry Pi’s GPIO Header in inner holes, DIP headers for breadboard in outer.

Copy this HTML into your page to embed a link to order this shared project

Atmega168 Dev Board

2 layer board of 1.10x2.00 inches (27.89x50.80 mm).
Shared on September 22nd, 2013 04:51.

Includes headers for FTDI, I2C, ISP.
The labels for Gnd and 5v0 on the I2C Bus should be reversed.
