Shared projects
board-ignition.zip
by
night_ghost.
2
layer board of
1.77x1.77
inches
(45.01x45.01
mm).
Shared on
April 13th, 2017 10:49.

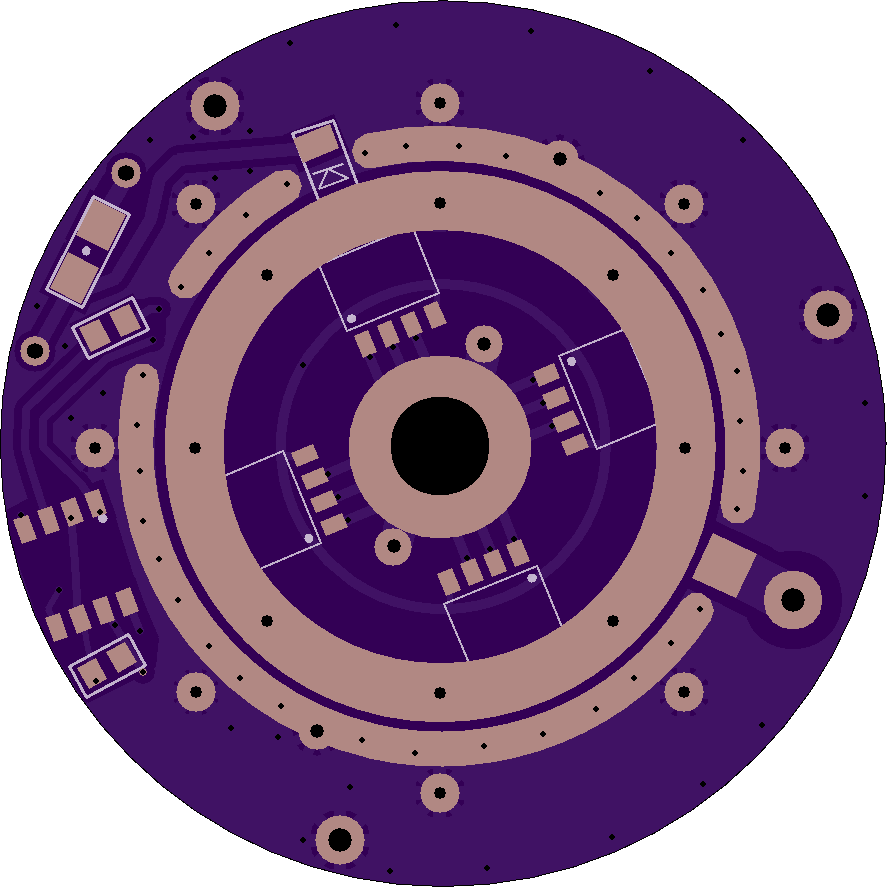

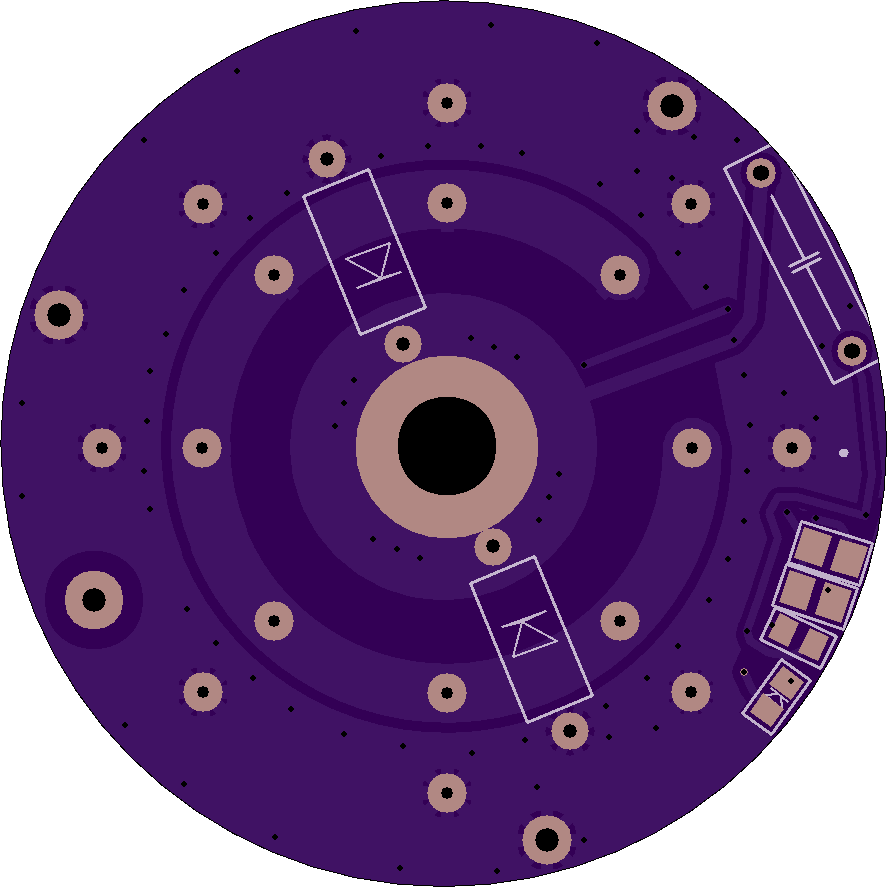

HF ballast for SHAAZ heater
board for http://www.gorbunov.narod.ru/grubka.html
board_roundGPS.zip
by
night_ghost.
2
layer board of
1.39x1.39
inches
(35.20x35.20
mm).
Shared on
April 13th, 2017 10:48.

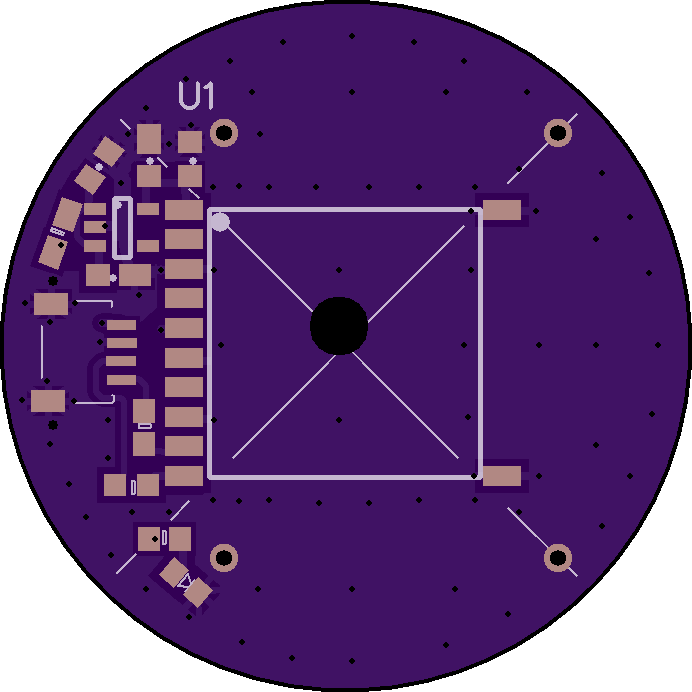

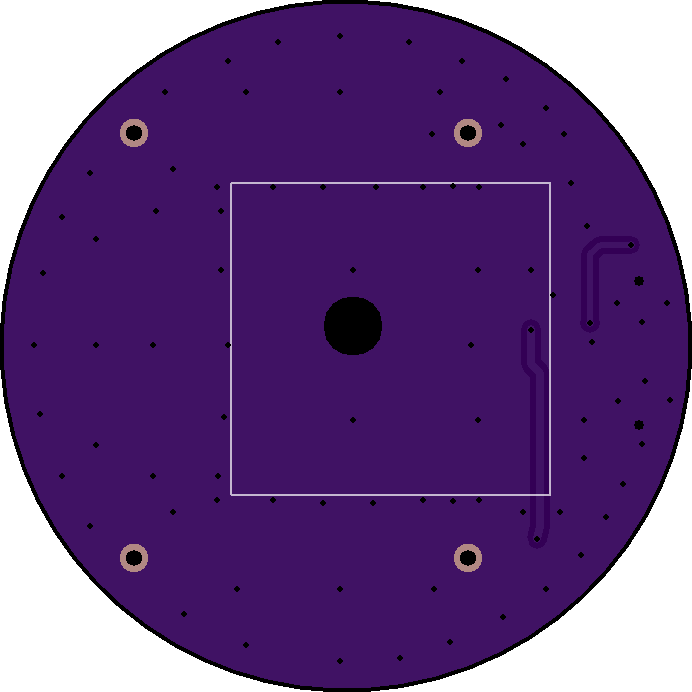

board for GMS-g9 GPS module
This board designed for transplanting parts from this board - https://ru.aliexpress.com/item/FREE-SHIPPING-GPS-GLONASS-Module-GNSS-MT3333-PA6E-CAM-FGPMMOPA6E-breakout-Titan-1-10Hz-115200bps/32440564245.html
board-tracker.zip
by
night_ghost.
2
layer board of
1.08x1.12
inches
(27.36x28.52
mm).
Shared on
March 27th, 2017 11:29.

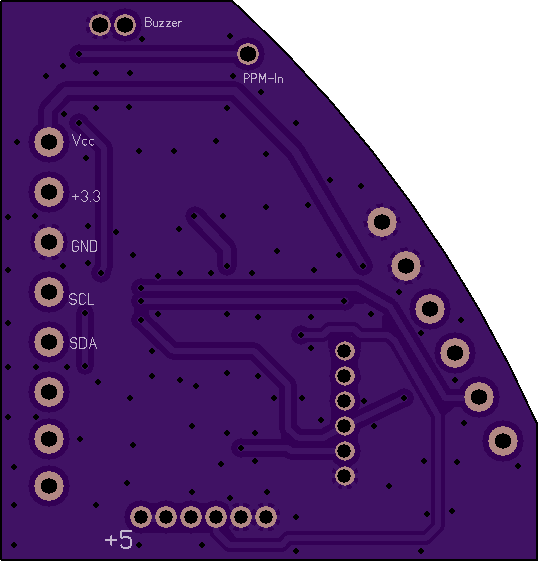

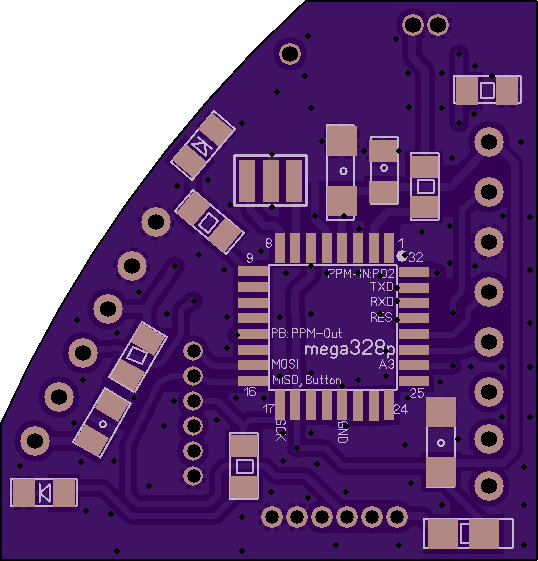

OpenSource Headtracker FatShark Module
board_modem.zip
by
night_ghost.
2
layer board of
2.48x0.98
inches
(62.97x24.87
mm).
Shared on
March 26th, 2017 05:40.

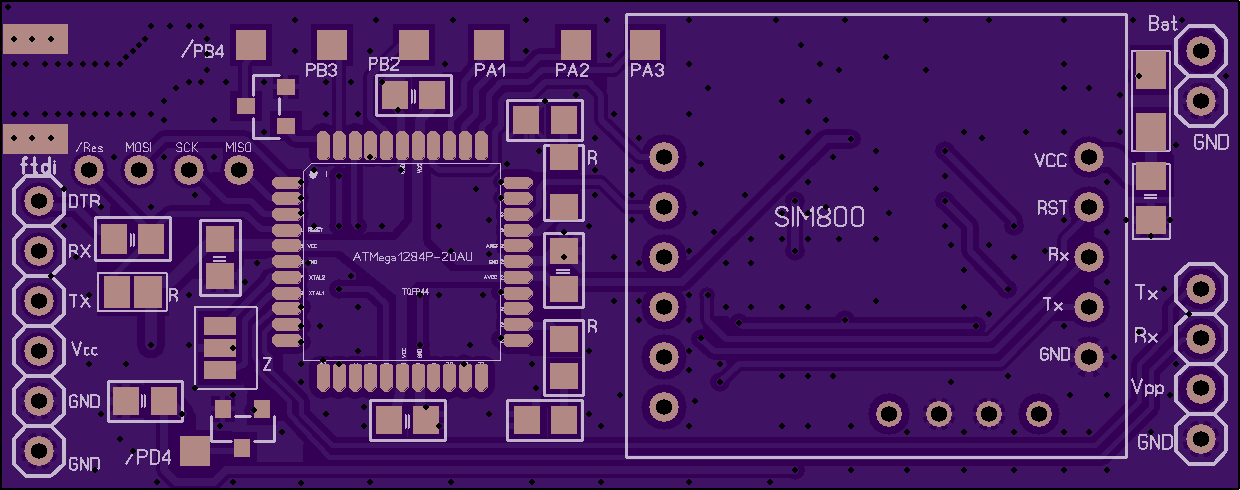

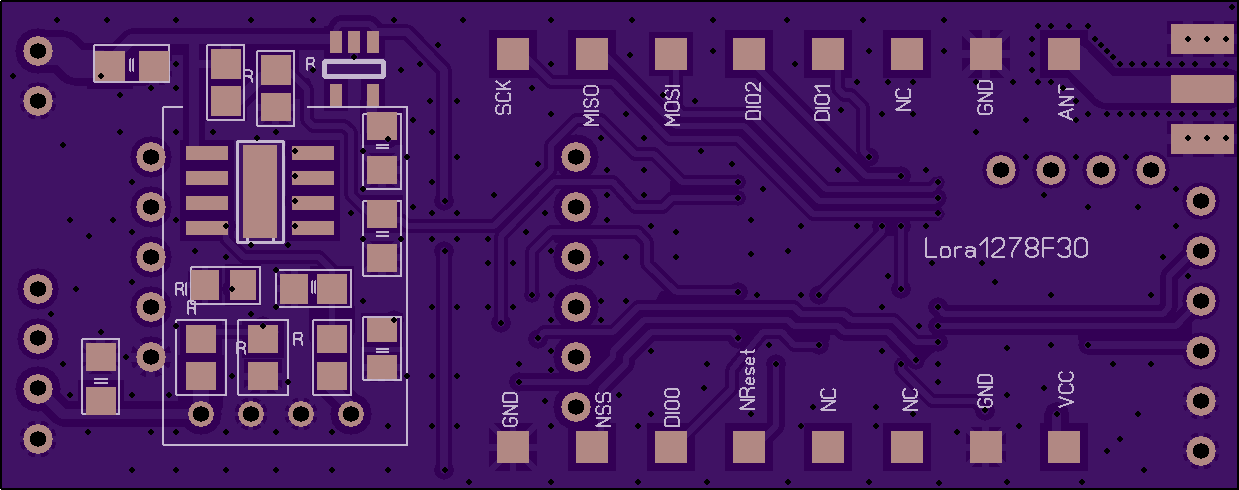

Al-in-one Radio&GSM modem
board_sensor.zip
by
night_ghost.
2
layer board of
0.55x0.46
inches
(13.87x11.63
mm).
Shared on
March 21st, 2017 06:16.
Current (up to 30A) and Voltage sensor on ACS712
This board designed for transplanting parts from a such board - https://ru.aliexpress.com/item/SMD-Inductor-Kit-CDRH104R-10uH-to-330uH-10x10x4mm-10values-10pcs-100pcs-SMD-Power-Inductor-Assorted-Sample/998611357.html?spm=2114.13010608.0.0.z0Cf6I, plus 2 voltage divider resistors. It is made all by a gas lighter and a soldering iron in 15 minutes.
