Mini DC/DC 5V 1A

by nppc.
Top
Bottom

2 layer board of 0.50x0.44 inches (12.62x11.18 mm).
Shared on December 9th, 2016 13:26.

Schematic is taken from datasheet of LM2734

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Arduino Mega Sound 9X

by nppc.
Top
Bottom

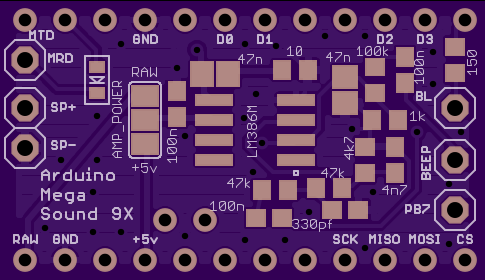

2 layer board of 1.21x0.70 inches (30.78x17.78 mm).
Shared on June 12th, 2015 09:31.

PCB for mini version of ArduSound for Turnigy 9x transmitters. This is a parallel version (D0-D3, PB7). Works excellent with OpenTX firmware. Details are here: http://openrcforums.com/forum/viewtopic.php?f=5&t=6831
