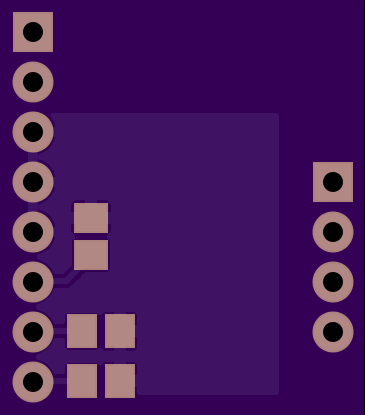

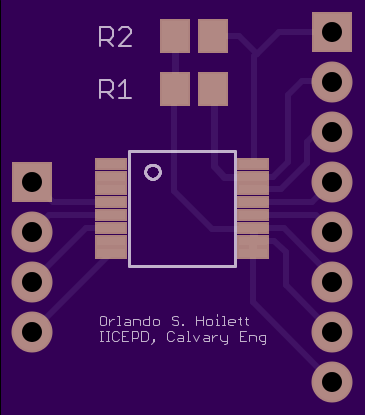

MAX30100 Breakout

2 layer board of 0.42x0.57 inches (10.74x14.43 mm).
Shared on March 29th, 2016 15:32.

Breadboard breakout for MAX30100 PulseOx and Pulse Sensor from Maxim Integrated.

Tested and works.

Copy this HTML into your page to embed a link to order this shared project

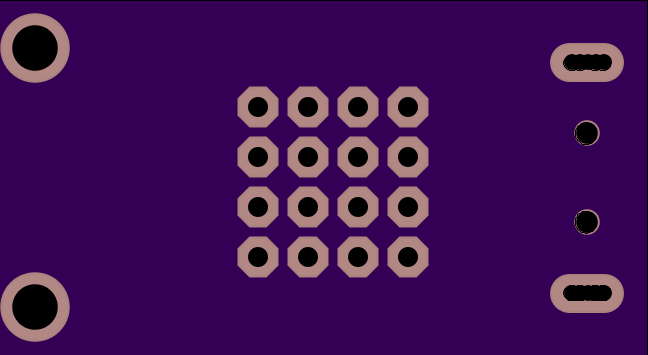

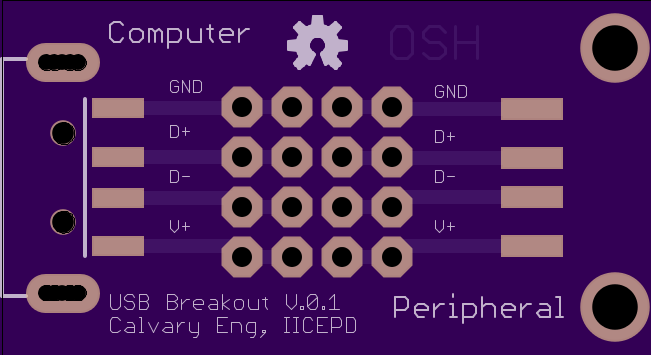

USB Breakout V.0.1

2 layer board of 1.30x0.71 inches (32.94x18.03 mm).
Shared on March 13th, 2016 02:05.

computer to peripheral breakout Inspiration from Jeff of Tech Unboxed https://oshpark.com/profiles/Ktulu

Copy this HTML into your page to embed a link to order this shared project

2 layer board of 0.73x0.83 inches (18.57x21.11 mm).
Shared on March 13th, 2016 00:40.

Simple breadboard adapter from the AD5933 Impedance Analyzer from Analog Devices. The AD5933 is really good for bioimpedance measurements

Tested and works.
