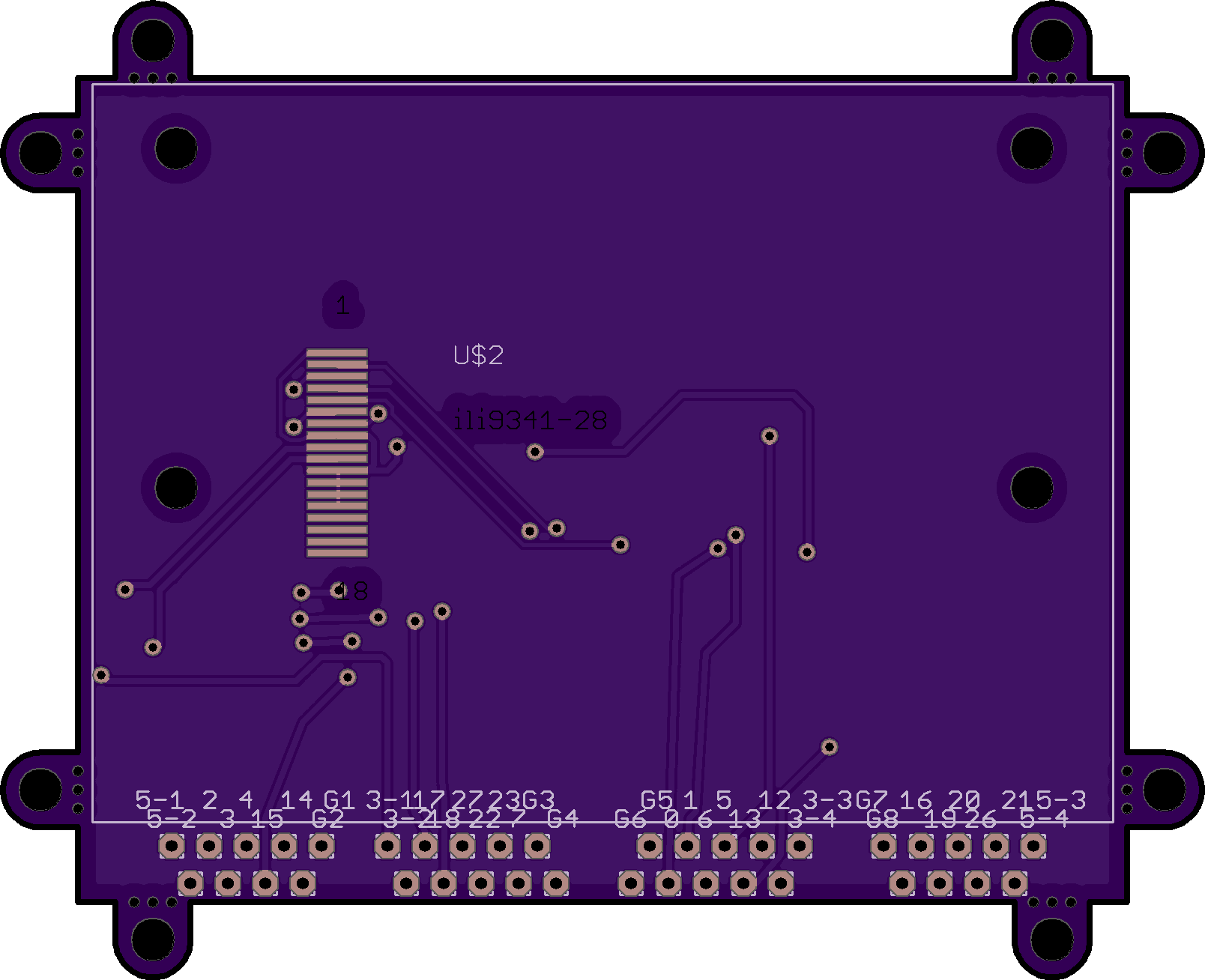

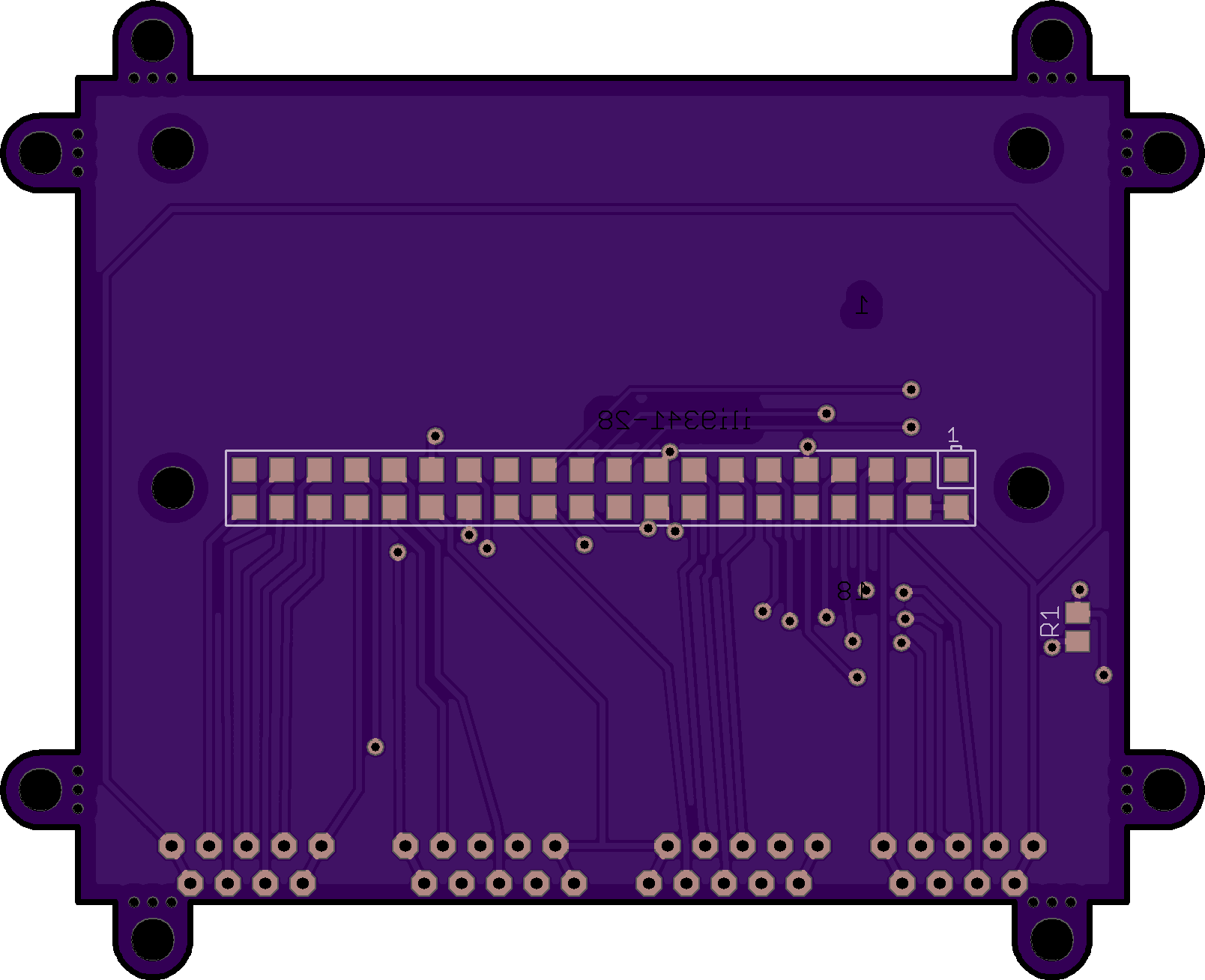

PiCB.brd

by

2 layer board of 3.22x2.62 inches (81.71x66.47 mm).
Shared on March 11th, 2017 22:53.

Merge an ili9341, and a pi zero, with access to all 22 gpio!! - fixed issue with 3.3v not being linked

Copy this HTML into your page to embed a link to order this shared project

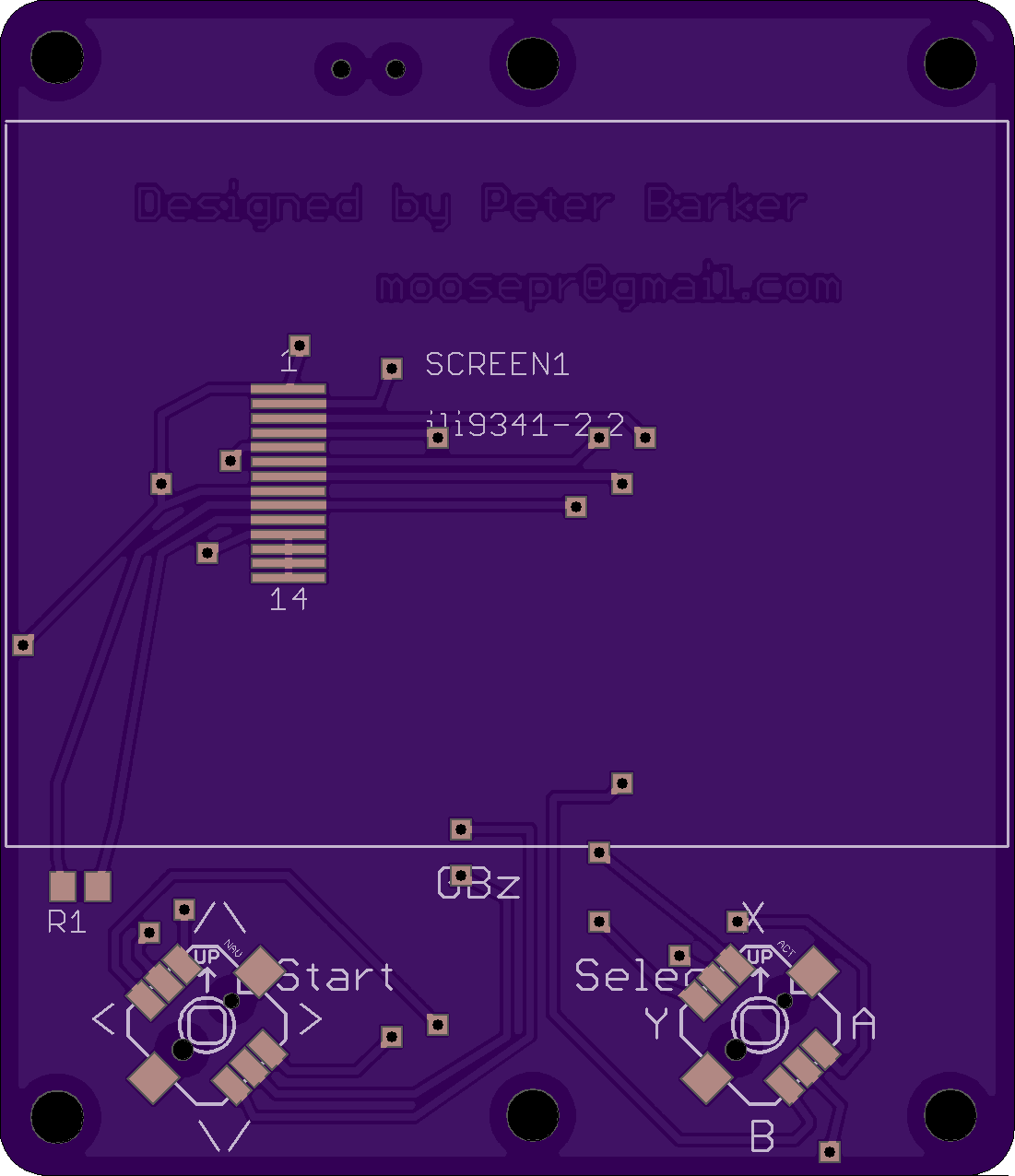

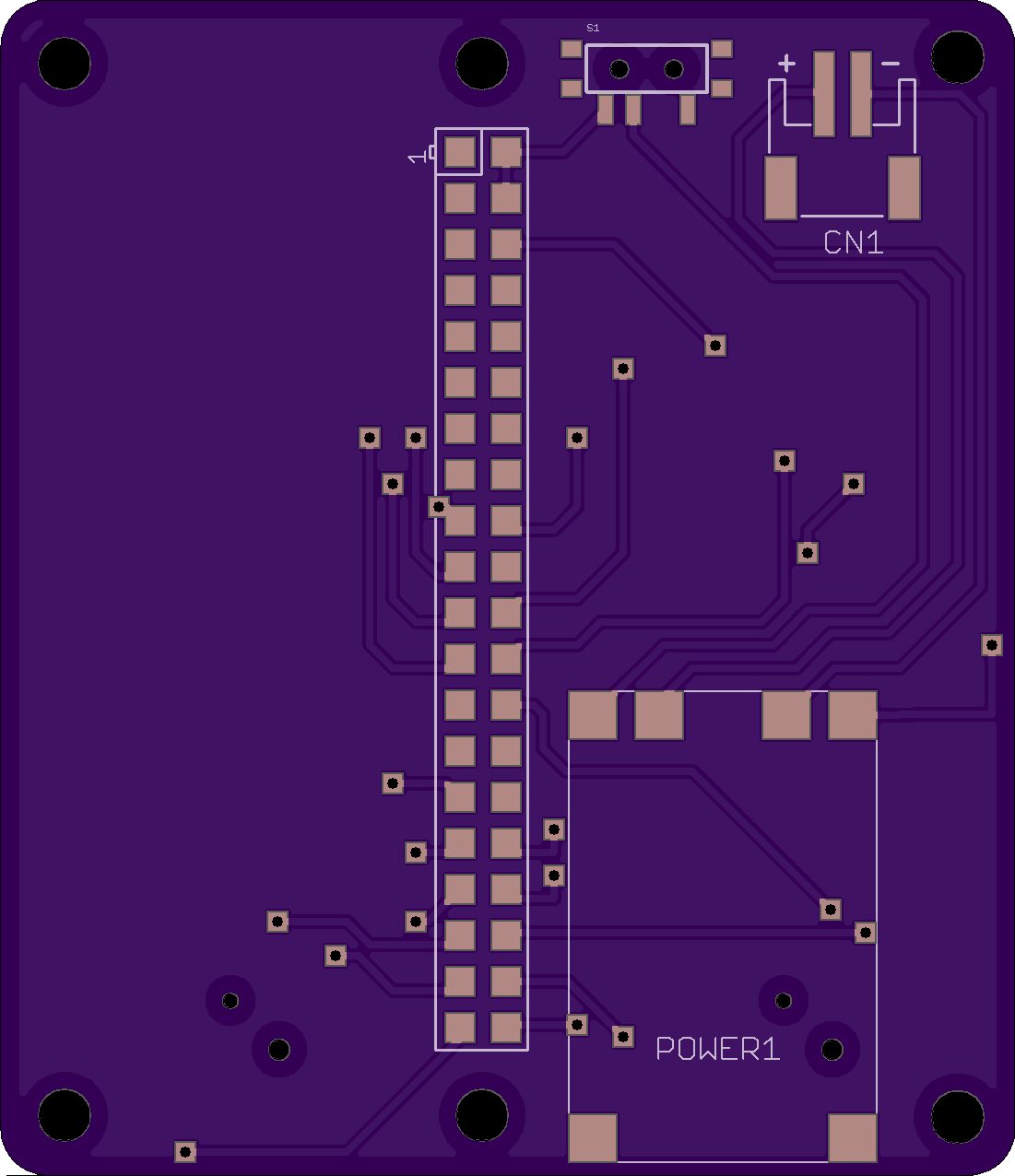

GBz

by

2 layer board of 2.20x2.55 inches (55.88x64.80 mm).
Shared on March 4th, 2017 21:26.

Tiny gameboy style interface board merging a pi0, ili9341 screen, battery charge/protect board, and 2 5way nav switches

Copy this HTML into your page to embed a link to order this shared project

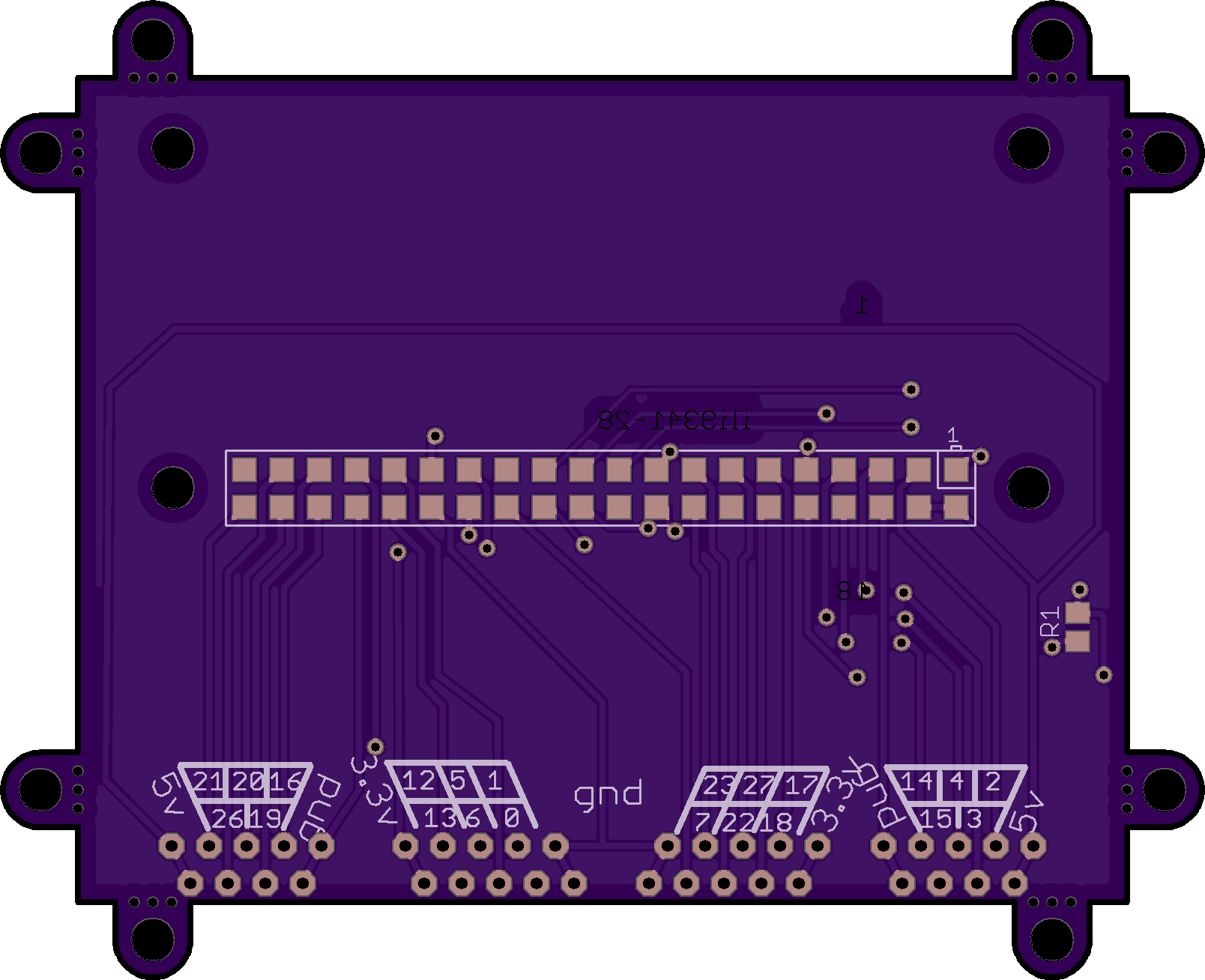

by

2 layer board of 3.22x2.62 inches (81.71x66.47 mm).
Shared on February 25th, 2017 22:52.

UNTESTED board to merge a 2.8 tft and a pi zero, with access to the gpio

Copy this HTML into your page to embed a link to order this shared project

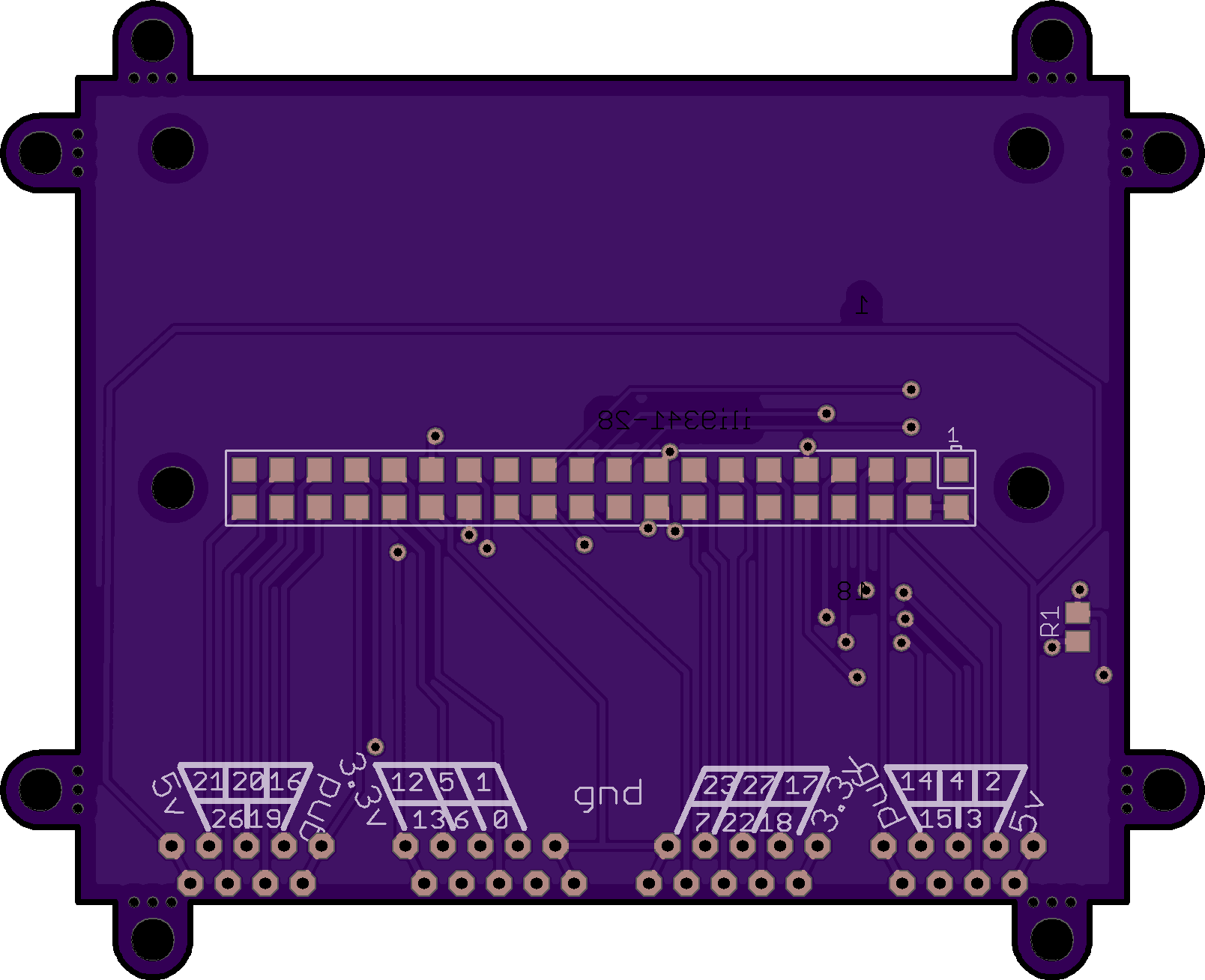

by

2 layer board of 3.22x2.62 inches (81.71x66.47 mm).
Shared on February 21st, 2017 22:14.

UNTESTED board to merge a 2.8 tft and a pi zero, with access to the gpio

Copy this HTML into your page to embed a link to order this shared project

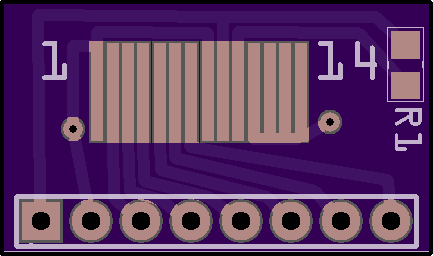

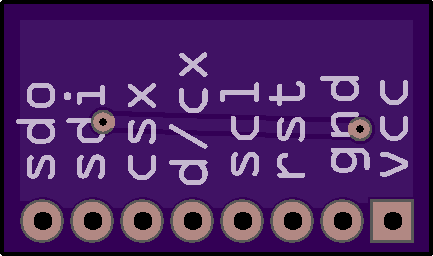

by

2 layer board of 0.87x0.51 inches (22.00x13.03 mm).
Shared on July 29th, 2016 15:13.

the bare minimum for connecting an ili9341 screen Tested with esp8266 and adafruit sketch
