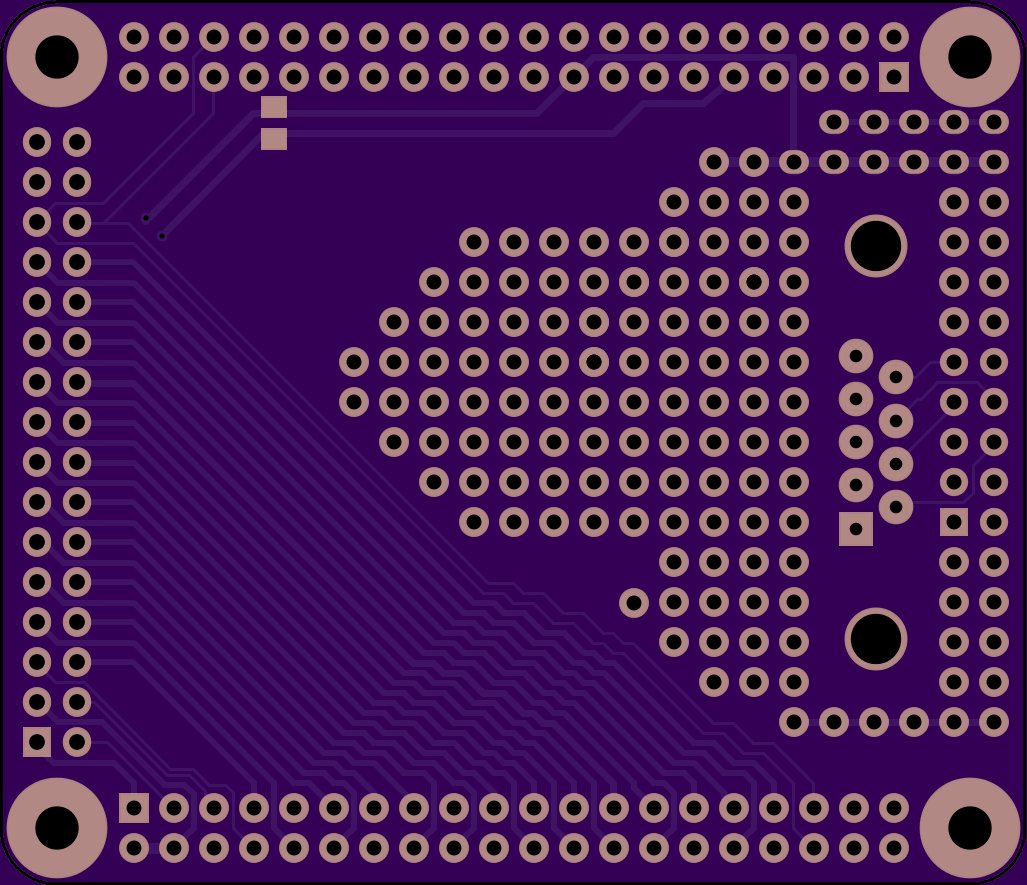

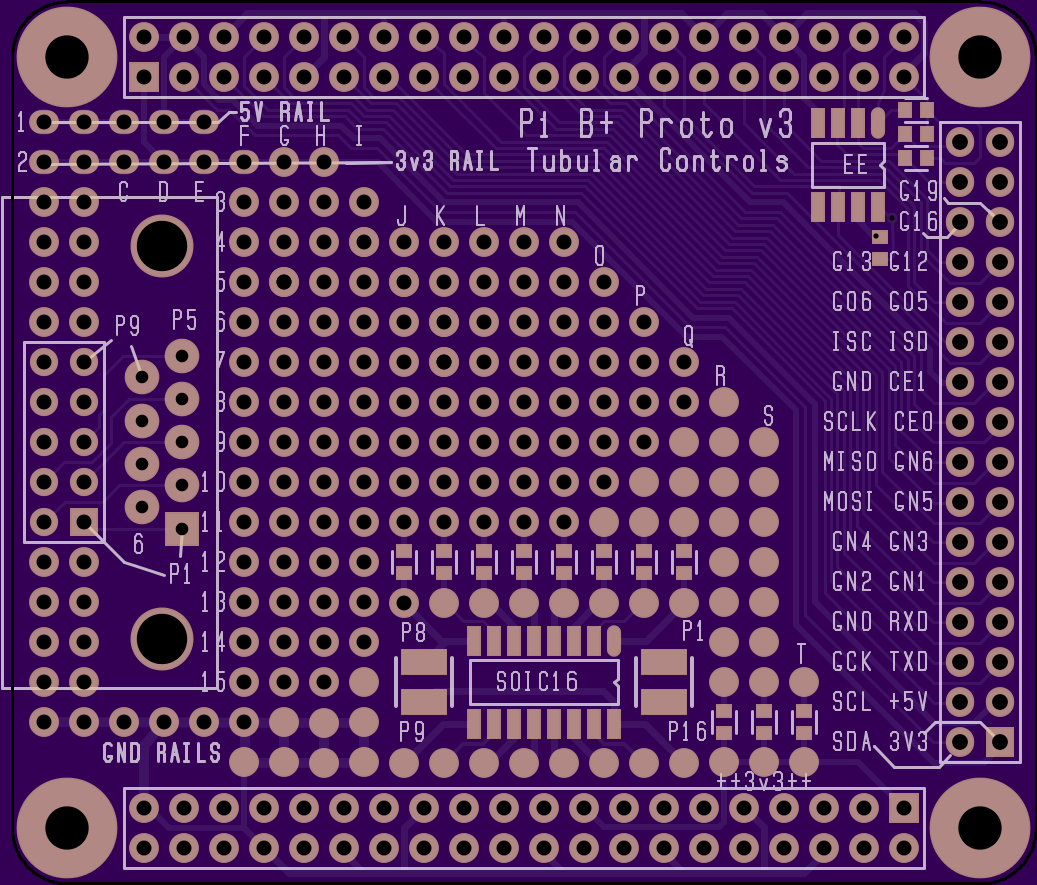

Pi B+ proto v3

by

2 layer board of 2.57x2.21 inches (65.20x56.21 mm).
Shared on July 16th, 2014 03:00.

Pi B+ proto v3

Copy this HTML into your page to embed a link to order this shared project

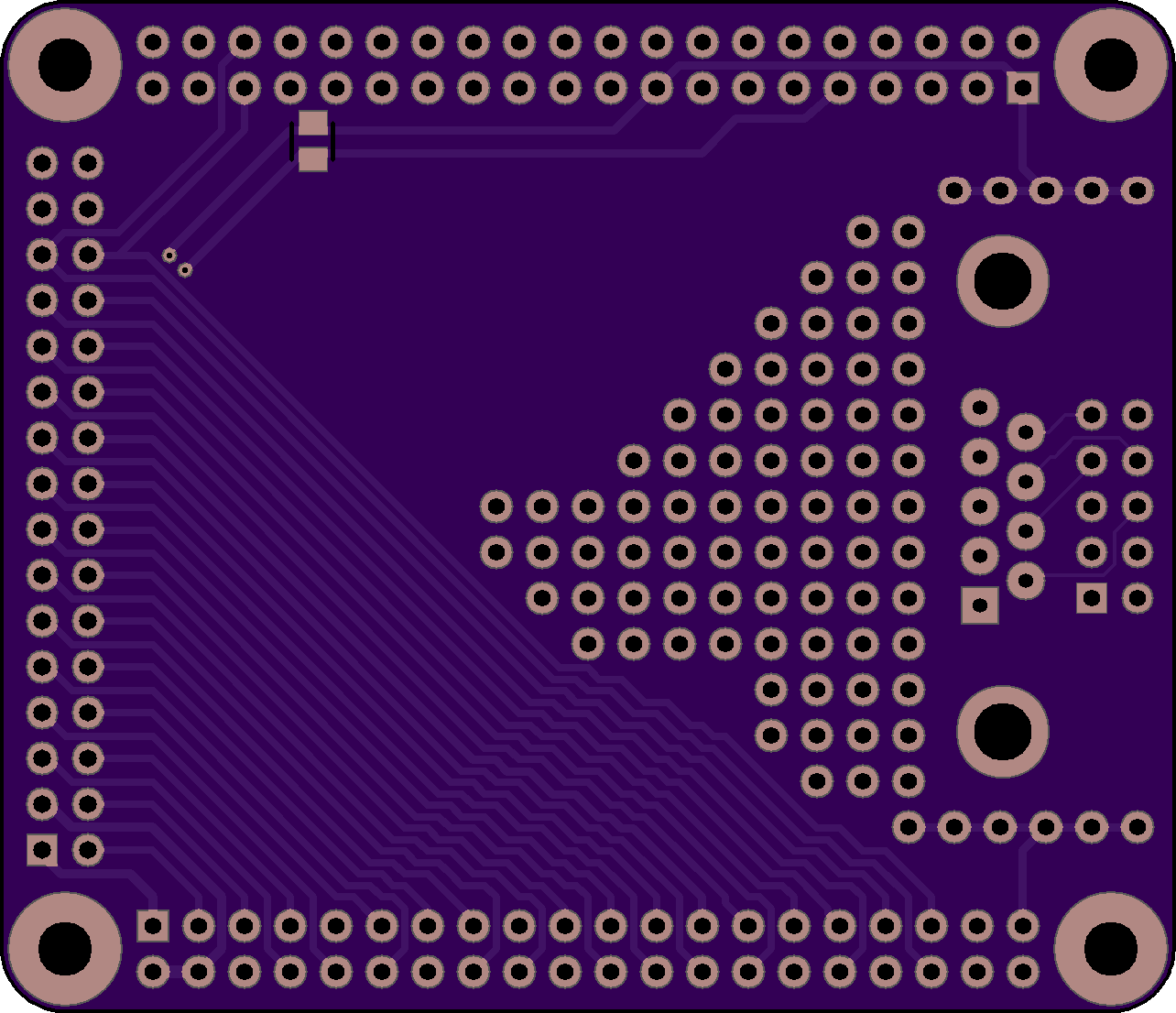

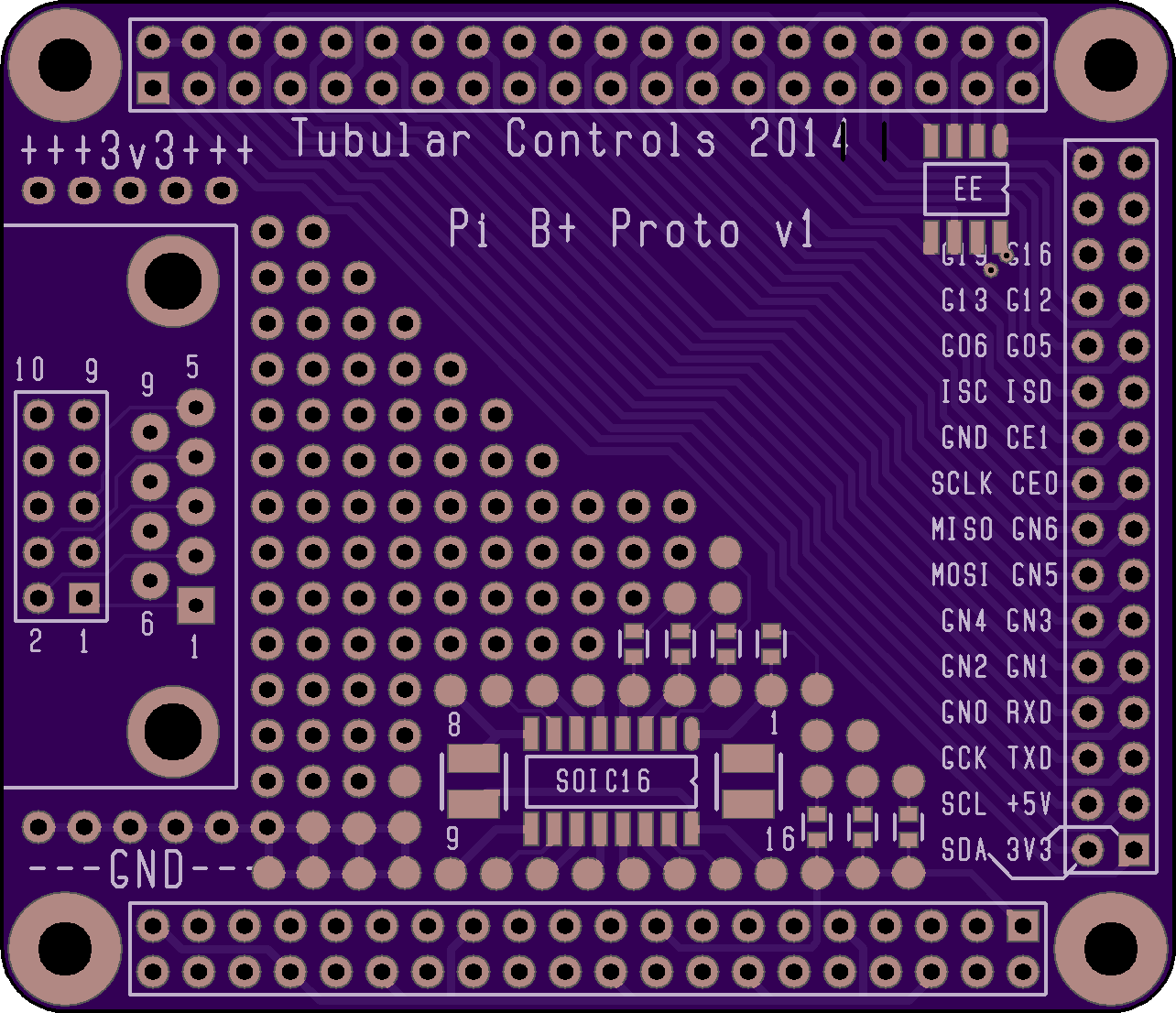

Pi B+ proto v1

by

2 layer board of 2.57x2.21 inches (65.20x56.21 mm).
Shared on July 15th, 2014 02:52.

Pi B+ proto v1

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.10x0.52 inches (27.97x13.23 mm).
Shared on May 5th, 2014 03:07.

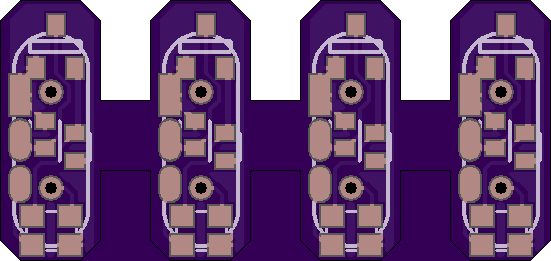

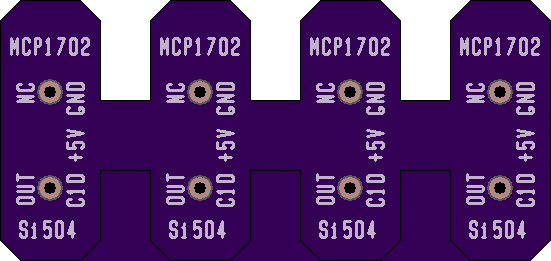

Si504 flexible oscillator in HC49 form. Solder servo cable to control frequency up to 100 MHz from 5v servo header.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.40x1.40 inches (35.59x35.59 mm).
Shared on December 16th, 2013 00:28.

PropCam WS2812Bx11 LED Mezzanine
