Shared projects

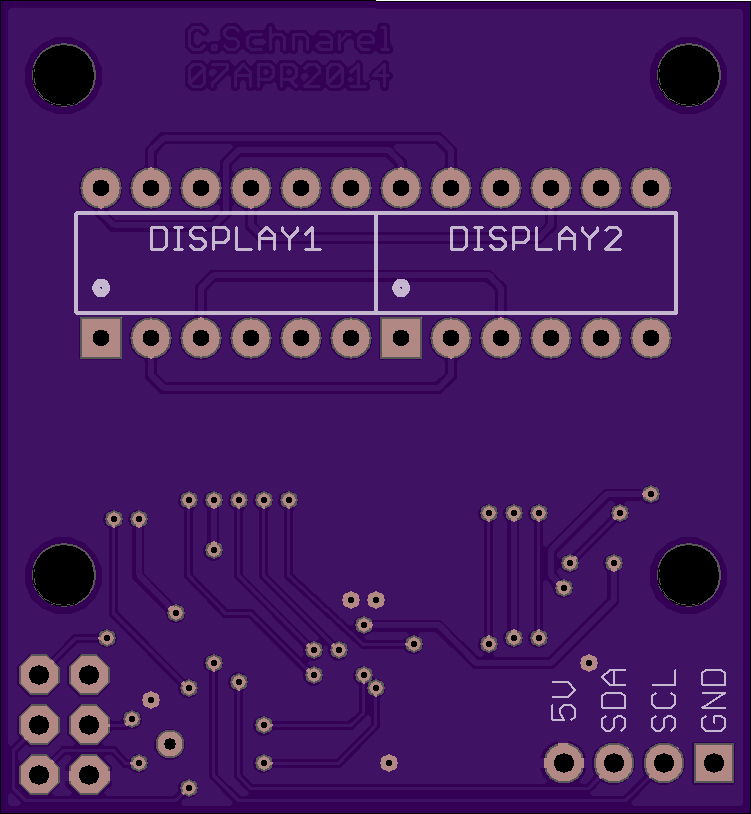

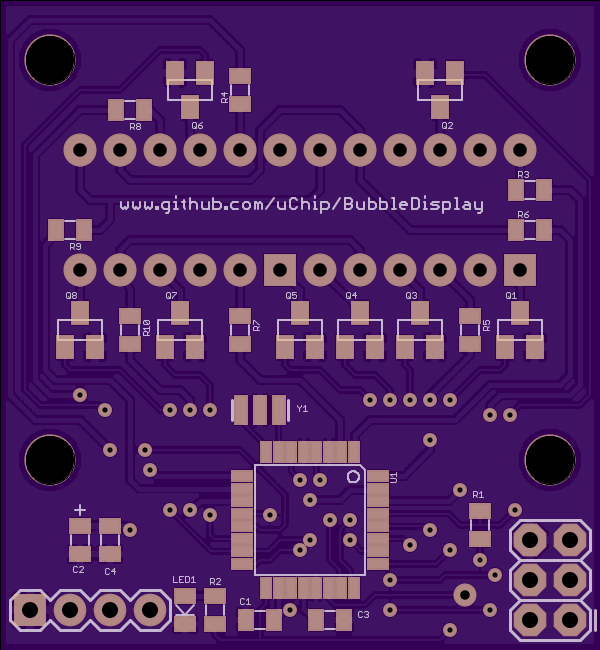

Display Controller

by uChip.
Top
Bottom

2 layer board of 1.50x1.63 inches (38.13x41.30 mm).
Shared on April 18th, 2014 03:44.

I2C to 7-segment, 8-digit LED display

See my project on GitHub for details, latest versions and code.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

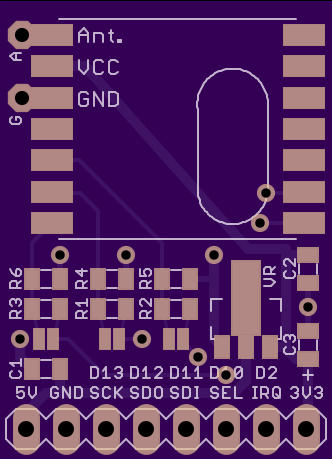

Radio Breakout

by uChip.
Top
Bottom

2 layer board of 0.83x1.15 inches (21.08x29.16 mm).
Shared on March 30th, 2014 17:39.

RFM12B to 0.1" pins

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

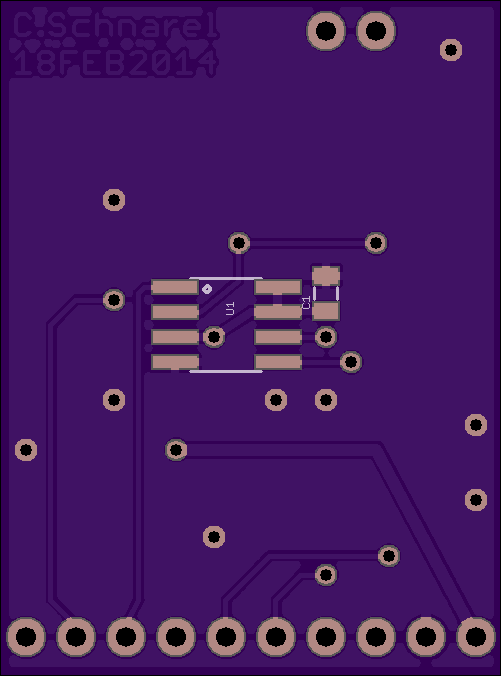

Moteino Peripherals Half-Shield

by uChip.
Top
Bottom

2 layer board of 1.00x1.35 inches (25.43x34.29 mm).
Shared on March 2nd, 2014 23:00.

Add Radio, LED & Flash Mem to Arduino Uno

Moteino Peripherals

See my project on GitHub for details, latest versions and links to code.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

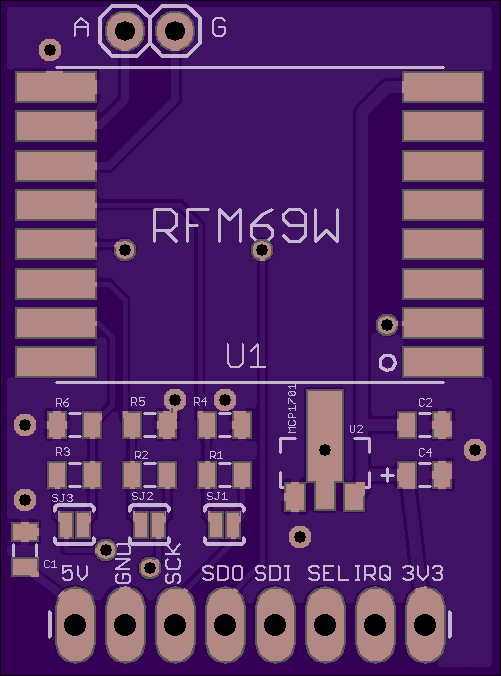

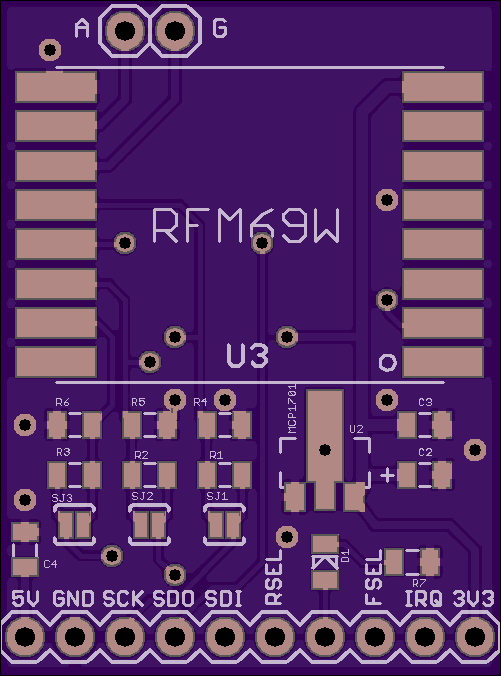

Radio Breakout

by uChip.
Top
Bottom

2 layer board of 1.00x1.35 inches (25.43x34.29 mm).
Shared on January 20th, 2014 01:03.

RFM69W breakout board

See my project on GitHub for details, latest versions and links to code.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

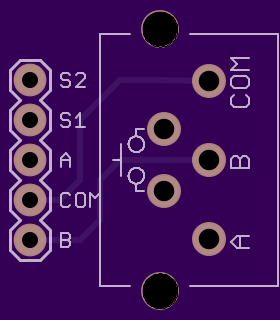

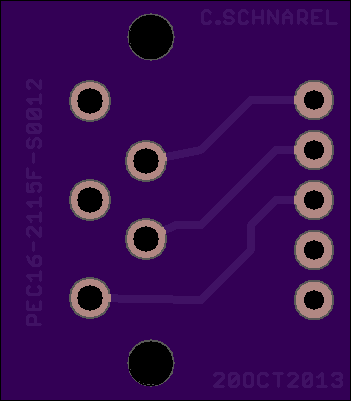

PEC16 edge

by uChip.
Top
Bottom

2 layer board of 0.70x0.80 inches (17.78x20.32 mm).
Shared on October 21st, 2013 02:27.

Rotary Encoder Breakout Boards

See my project on GitHub for details, latest versions and links to code.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
