sSDecTR2.brd

by wassi.

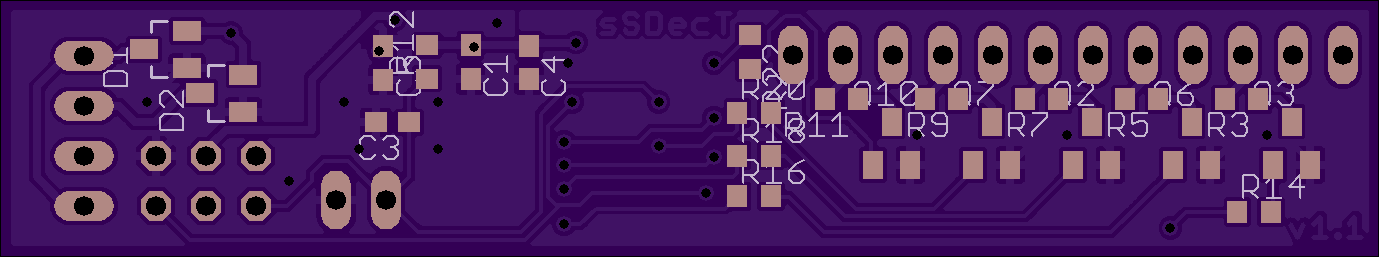

Top

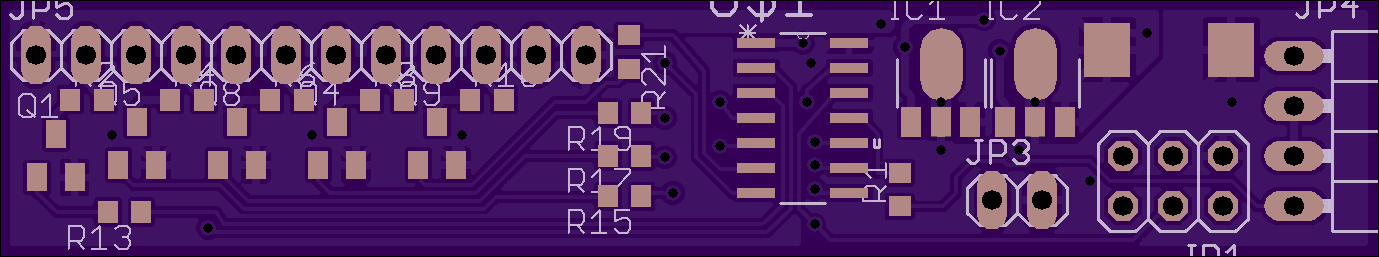

Bottom

2 layer board of 2.76x0.51 inches (70.00x13.00 mm).
Shared on November 8th, 2016 07:23.

ssDecTR2

DCC decoder pcb for the digital-bahn.de project of a 10ch Light decoder adapted to the FREMO N-RE Signalschacht spec.

first version with abba connector, updated version with abab will follow soon
