Shared projects
E0001 Rev A: Individual
by
bob_rudolph.
2
layer board of
4.11x3.32
inches
(104.37x84.30
mm).
Shared on
January 26th, 2014 16:45.

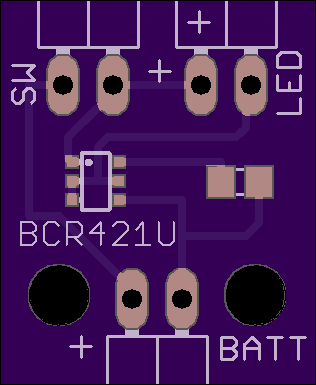

led driver
by
mattvenn.
2
layer board of
0.63x0.77
inches
(16.00x19.51
mm).
Shared on
January 26th, 2014 12:32.
super simple constant current led driver using the bcr421u

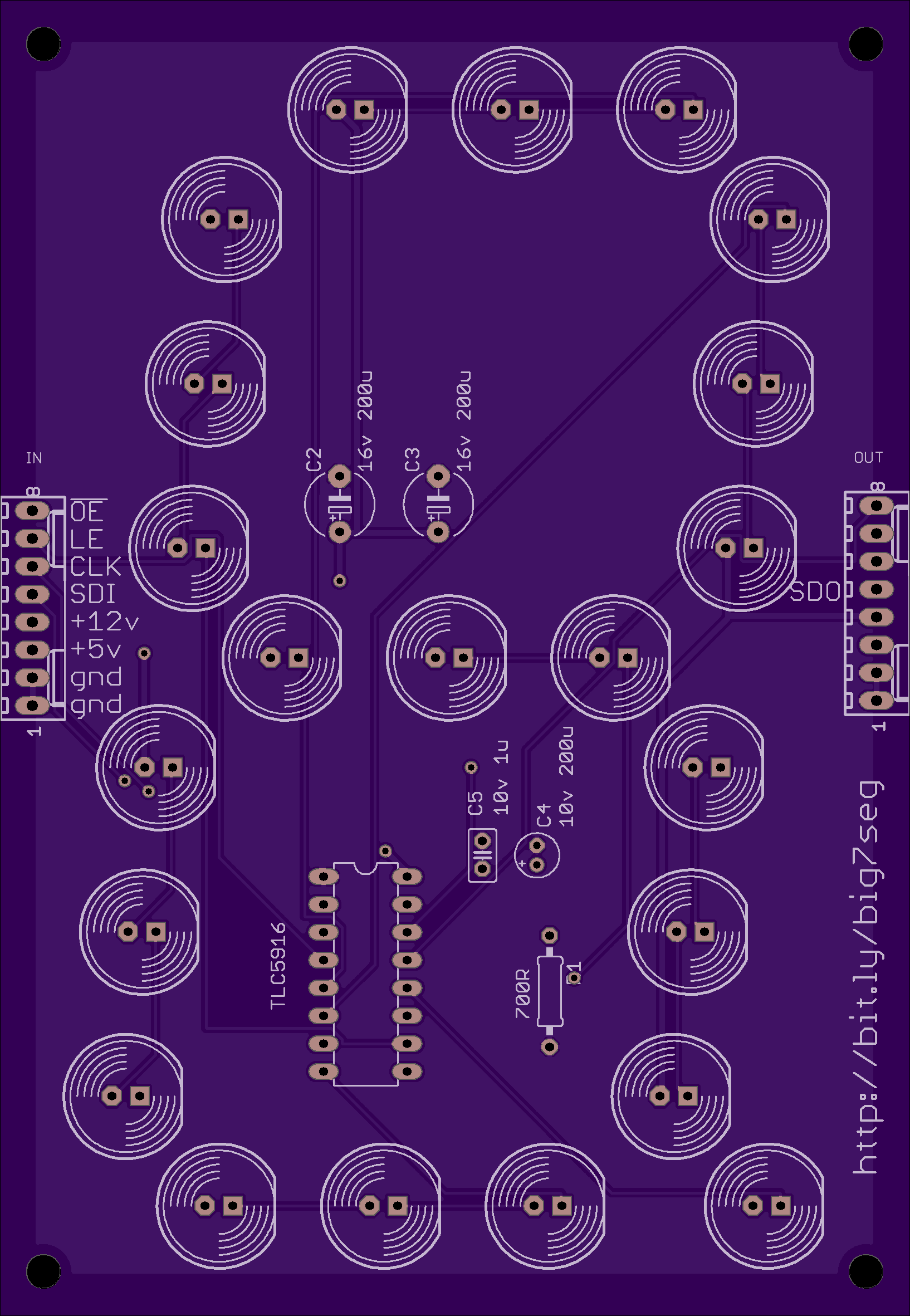

large 7 segment display
by
mattvenn.
2
layer board of
3.27x4.72
inches
(83.01x120.02
mm).
Shared on
January 26th, 2014 12:32.
uses TLC5916IN to drive segment

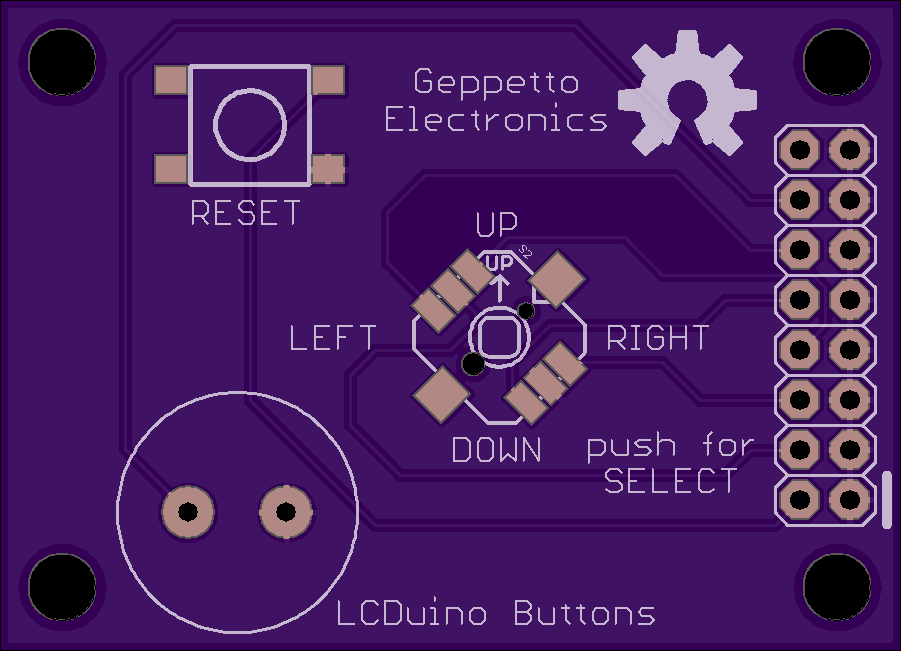

LCDuino Buttons
by
nsayer.
2
layer board of
1.80x1.30
inches
(45.72x33.02
mm).
Shared on
January 26th, 2014 02:24.
Button board for LCDuino
J201 SMD Adapter board
by
pappasmurfsharem.
2
layer board of
0.30x0.30
inches
(7.62x7.62
mm).
Shared on
January 25th, 2014 23:56.
J201 SMD Adapter board
