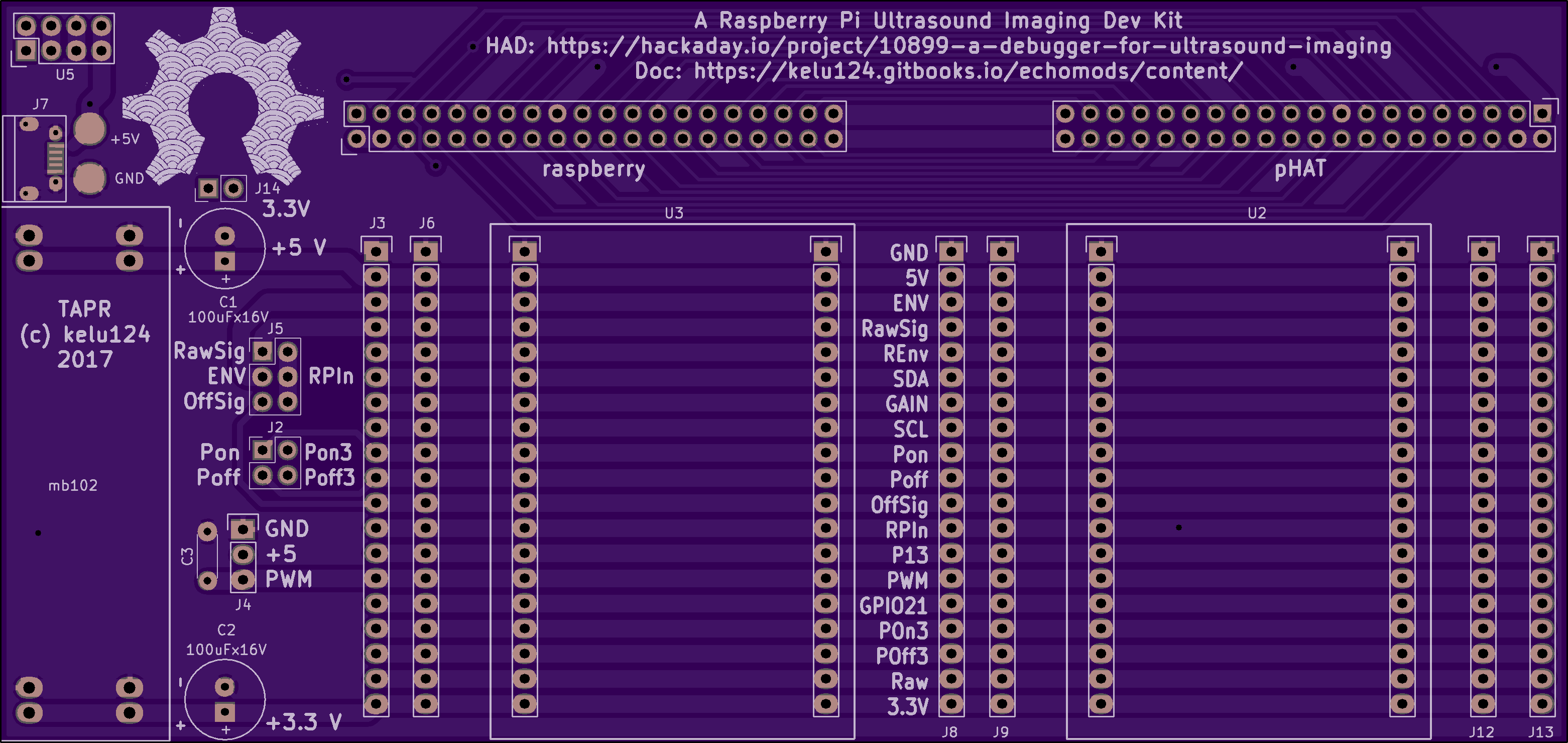

Raspberry Pi Ultrasound Imaging motherboard
by
kelu124.
2
layer board of
6.25x2.96
inches
(158.67x75.16
mm).
Shared on
June 2nd, 2017 06:33.
Connecting some modules with a raspberry pi and its ADC pHAT

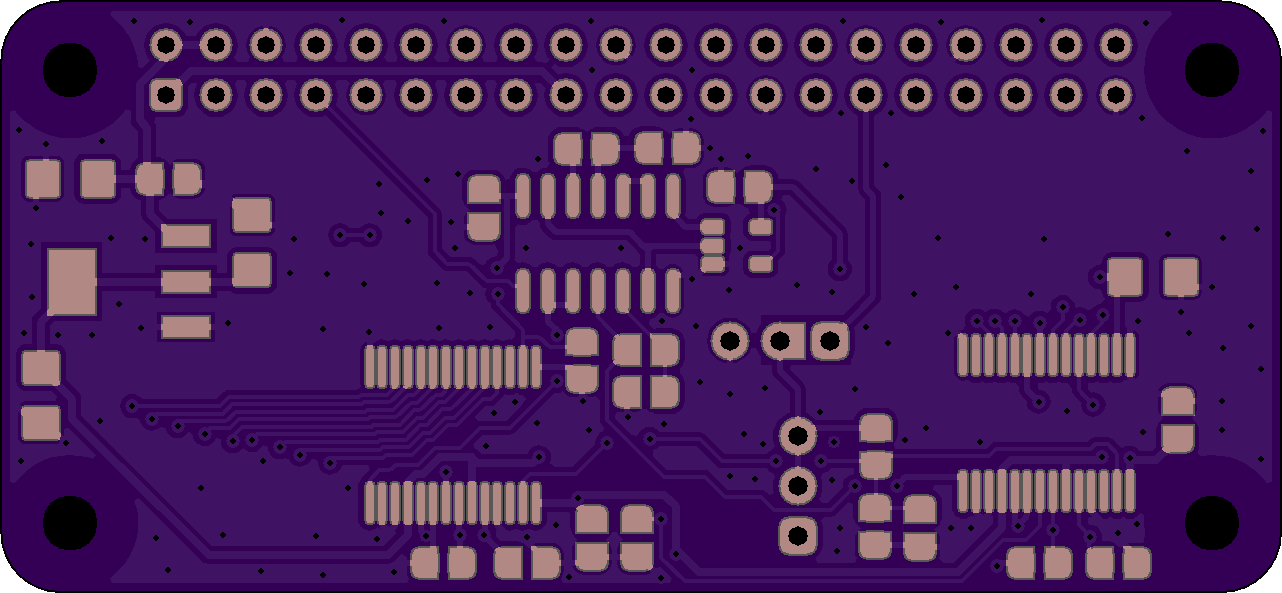

2x20Msps ADC shield for Raspberry Pi
by
kelu124.
2
layer board of
2.56x1.19
inches
(65.10x30.12
mm).
Shared on
June 2nd, 2017 06:33.
After the CA3306 project, the AD08200 shield, let’s push the Pi DAQ limits !
nRF24L01p_adapter
by
calcium3000.
2
layer board of
0.71x0.51
inches
(17.93x12.85
mm).
Shared on
June 2nd, 2017 03:38.
Adapter for attaching an nRF24L01+ module into a Raspberry Pi’s GPIO header, as seen on calcium3000.wordpress.com
LadybugFlightController.v01a
by
PeskyProducts.
4
layer board of
1.11x0.80
inches
(28.09x20.35
mm).
Shared on
June 2nd, 2017 03:29.
STM32L432-based flight controller for brushed motor quadcopter. Swapped A2 for D1 on motor 1 PWM, replaced JST connector on end for receiver with three 2-mm-pitch PTHs.
Bubble LED adapter
by
sjm.
2
layer board of
0.41x0.61
inches
(10.36x15.44
mm).
Shared on
June 2nd, 2017 03:02.
Allows a QDSP-6064 bubble LED to mount on a standard IDC header to assist with FPGA development. 0603 resistors mount under the LED module.
