OpenBuilds XY Table Build
Here we show how to use two OpenRail linear actuators to create and X/Y axis table suitable for light duty milling or 3D print applications.
We wanted to show just how quick and easy it is to build an X
and Y axis table using OpenRail in this short video.

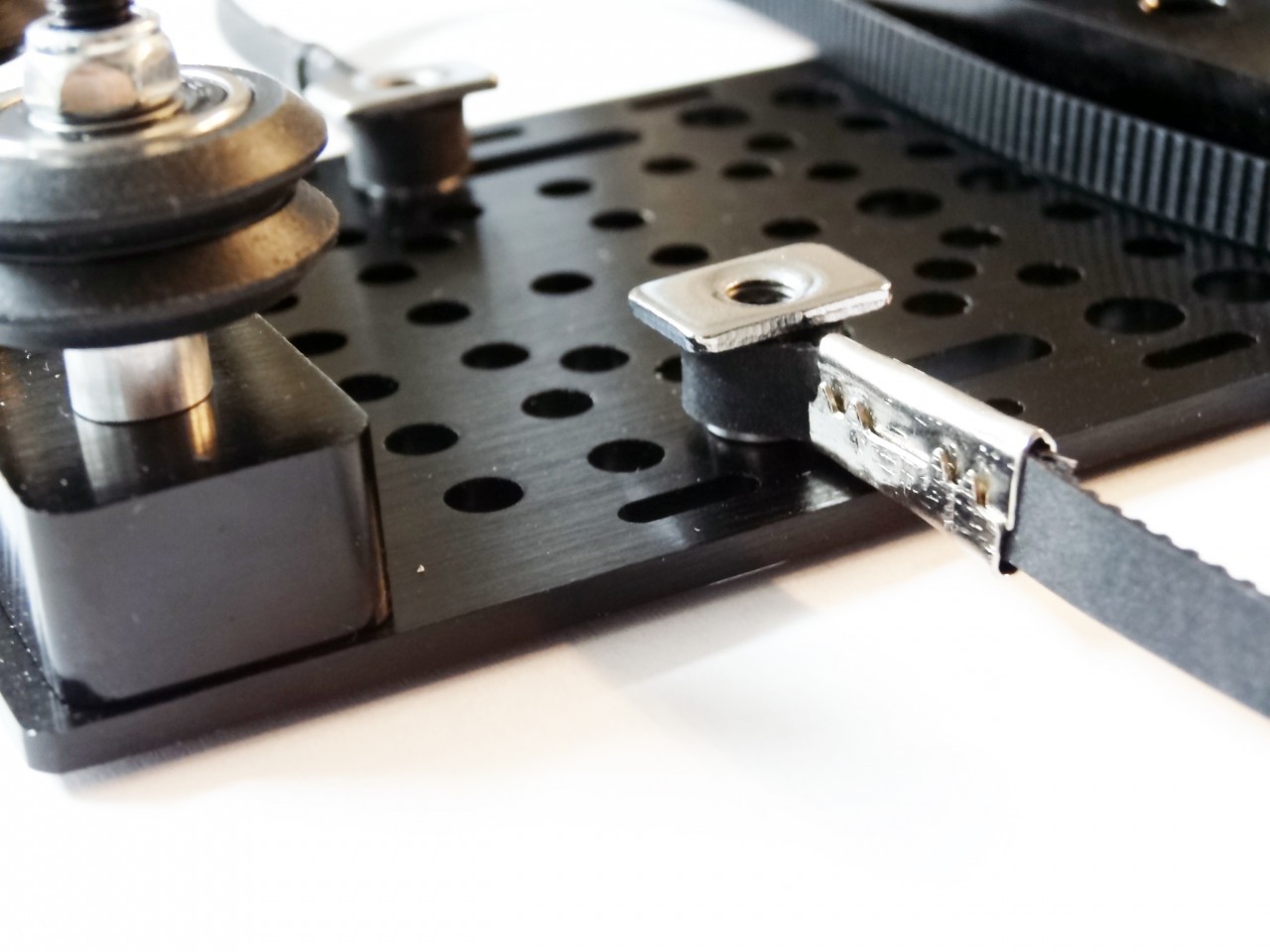

TIP: The Parts list below uses 'post mount' belt clamp style as shown in this picture.
The Belt simply wraps around the 1/4" aluminum spacer and is clamped or cable tied back onto itself for a simple belt clamp solution, where no other special belt clamps are needed.
Be sure to download the SketchUp model for the best view of different example setups for this X/Y system.
![[IMG]](../../../cdn1.bigcommerce.com/server2300/itwgldve/products/150/images/754/DSC02039__84580.1372621052.1280.1280.jpg)
DOWNLOAD SketchUp Examples from the File tab at the top of this build To Use In You Own Builds
X Y Table OpenRail / V-Slot Build Examples
Build in 'Other Builds' published by kram242, Dec 30, 2013.
The X/Y table system is a great starting point for many CNC projects giving you the ability to move an object on the X and Y axis in a simple compact style.
-
-
-
- Build Progress:
-
- Build Complete!
-
-
Build Author kram242, Find all builds by kram242
-
- Loading...
-
Build Details
- Build License:
-
- CC - Attribution - CC BY
Reason for this Build
As an example for an XY stage using OpenRail to help other get a good idea of how the OpenRail system works. This is a foundation build that will hopefully lead to many future builds. -
Parts list
Qty Part Name Part Link Comments 1 Build Plate http://openbuildspartstore.com/universal-build-plate/ Link 1 OpenRail Gantry Plate (80mm) http://openbuildspartstore.com/openrail-gantry-plate-univers... Link 0 V-Slot 20x80 http://openbuildspartstore.com/v-slot-20-x-80mm/ Link Get the length that you want to use as the slider 8 Dual V Wheel kit http://openbuildspartstore.com/openbuilds-dual-v-wheel-kit-d... Link 4 Eccentric Spacers http://openbuildspartstore.com/eccentric-spacers/ Link 1 OpenRail Black Anodized http://openbuildspartstore.com/openrail-black-anodized/ Link Make sure you get enough to do both sides of the rail 0 MXL Timing Belt http://openbuildspartstore.com/mxl-1-4-timing-belt/ Link Make this belt length double the length of your rail plus add an extra to wrap around the pulleys 2 MXL Timing Pulley http://openbuildspartstore.com/5mm-mxl-aluminum-timing-pulle... Link 20 tooth GT2 can be used as well - http://openbuildspartstore.com/gt2-2mm-aluminum-timing-pulley-20/ 2 Smooth Idler Pulley http://openbuildspartstore.com/smooth-idler-pulley-kit/ Link 2 Belt Crimp Clamp (or cable ties) http://openbuildspartstore.com/belt-crimp-clamp/ Link 2 Idler Pulley Plate http://openbuildspartstore.com/idler-pulley-plate/ Link 2 Motor Mount Plate http://openbuildspartstore.com/motor-mount-plate/ Link 2 Stepper Motor (NEMA 17) http://openbuildspartstore.com/nema-17-stepper-motor/ Link 1 Tee Nuts Tee Nuts http://openbuildspartstore.com/tee-nuts-30-pack/ Link Misc. - Extra parts you may already have or not necessarily need for this build 1 Low Profile Screws (10mm) http://openbuildspartstore.com/tee-nuts-30-pack/ Link Misc. - Extra parts you may already have or not necessarily need for this build 2 Aluminum Spacers http://openbuildspartstore.com/aluminum-spacers-sizes-1-8-1-... Link Misc. - Extra parts you may already have or not necessarily need for this build -
