PIC16F877A + nRF24L01 linked to PC

by 25GHz.
Top
Bottom

2 layer board of 3.26x2.56 inches (82.78x65.00 mm).
Shared on September 13th, 2015 03:02.

The cheapest project i’ve done for nRF24L01 module so far. Made to control remote stuff with your computer. It’s basically a nRF24L01 controlled by PIC16F877A connected through MAX232 with PC(designed with Proteus Ares v8.3 SP2).

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

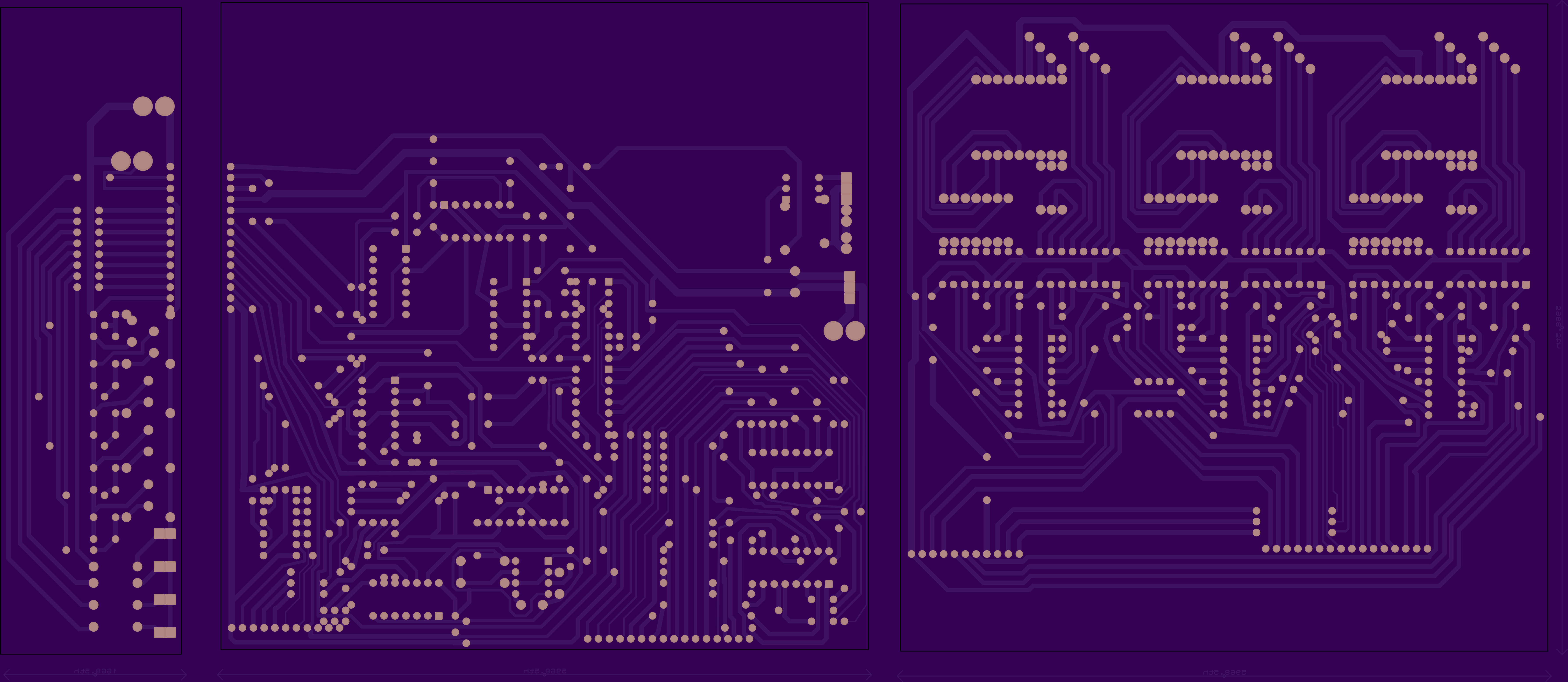

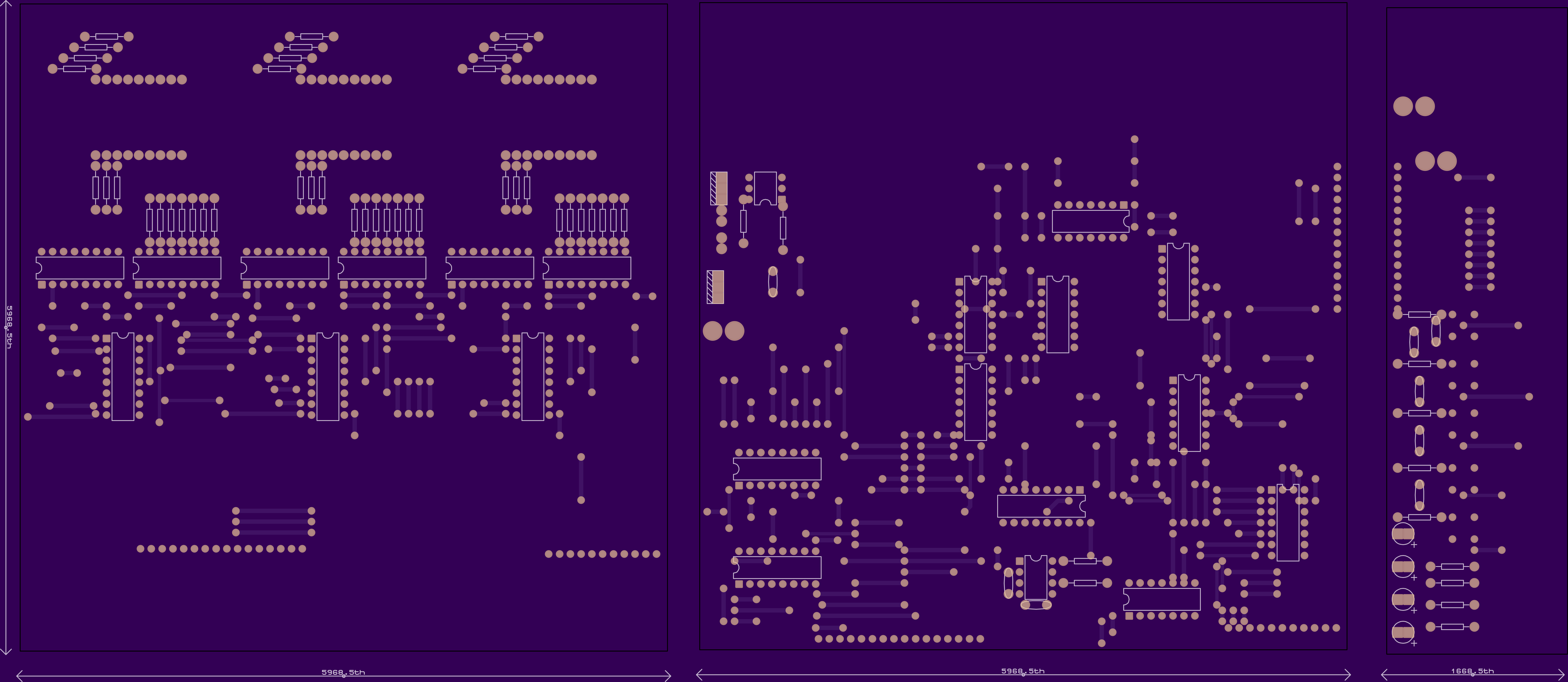

TTL factory process controller(with 74ls logic gates and a 4585 only)

by 25GHz.
Top
Bottom

2 layer board of 14.13x5.96 inches (358.80x151.26 mm).
Shared on September 13th, 2015 02:39.

100% manual job(using Proteus Ares v8.3 SP2).

Order board. Download. Permalink. Embed order link.
