Shared projects

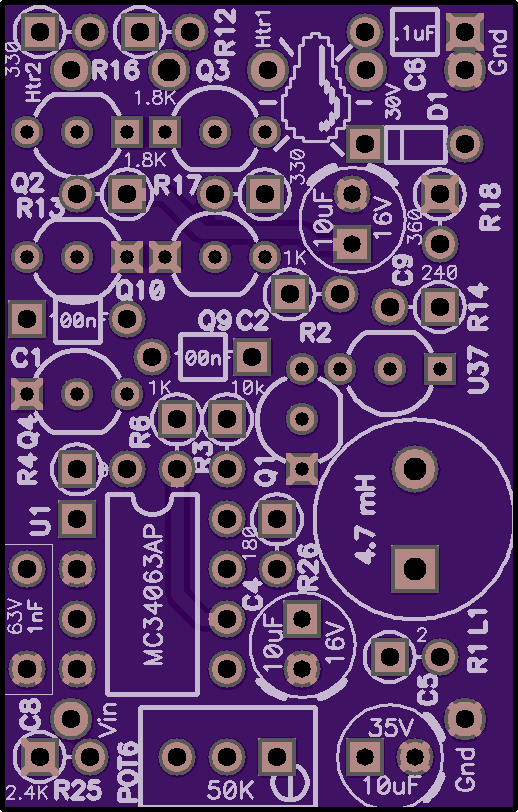

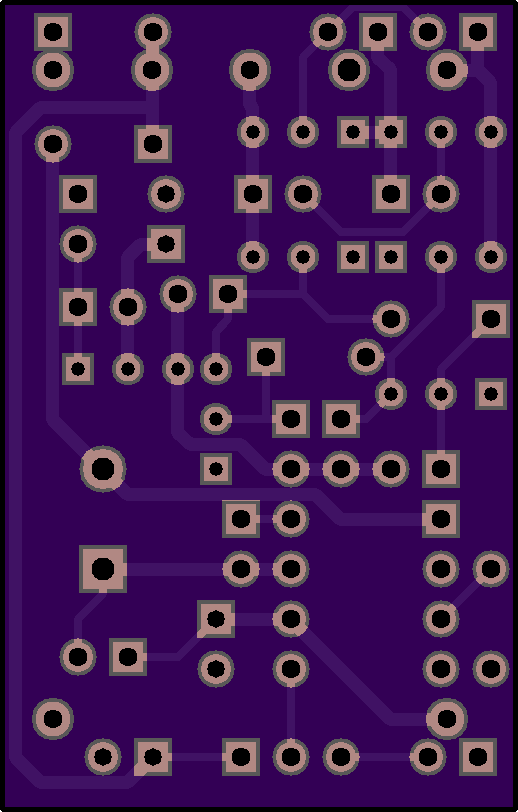

30V Sup

by Animo.
Top
Bottom

2 layer board of 1.04x1.63 inches (26.31x41.28 mm).
Shared on November 15th, 2015 20:24.

Fluorescent Supply

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

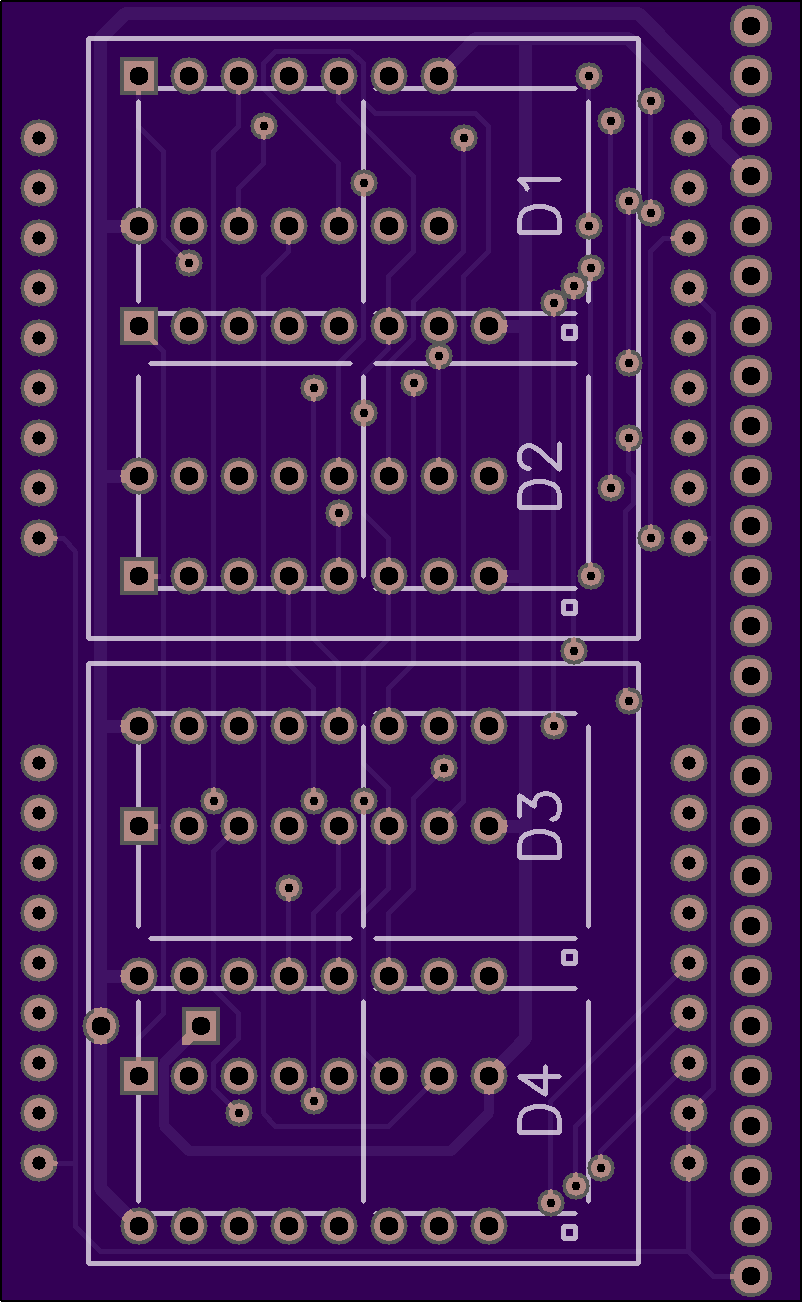

4 Dig LCD

by Animo.
Top
Bottom

2 layer board of 1.60x2.60 inches (40.74x66.14 mm).
Shared on November 15th, 2015 17:01.

4 Digit ½" hi LCD with 4543 BCD decoder-drivers. LCD-200 from All Electronics

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

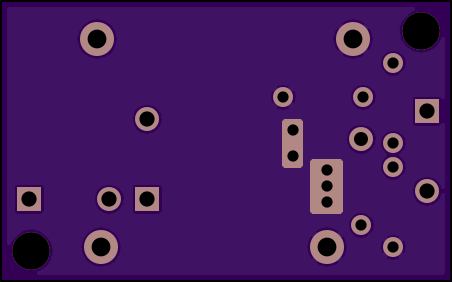

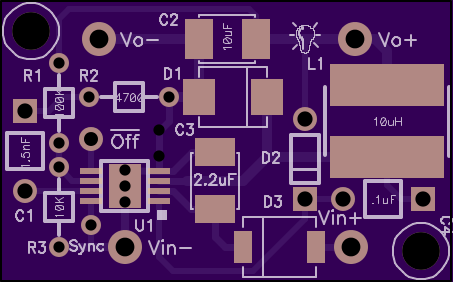

Camera Supply2

by Animo.
Top
Bottom

2 layer board of 1.13x0.71 inches (28.73x17.93 mm).
Shared on May 9th, 2015 14:01.

3.3V 1A Buck. Built this to run my power hog digital camera. Uses LT1767EMS8E-3.3 with sync & on/off provision. Can be used with all other versions. Output pad spacing fits 2XAA batteries

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

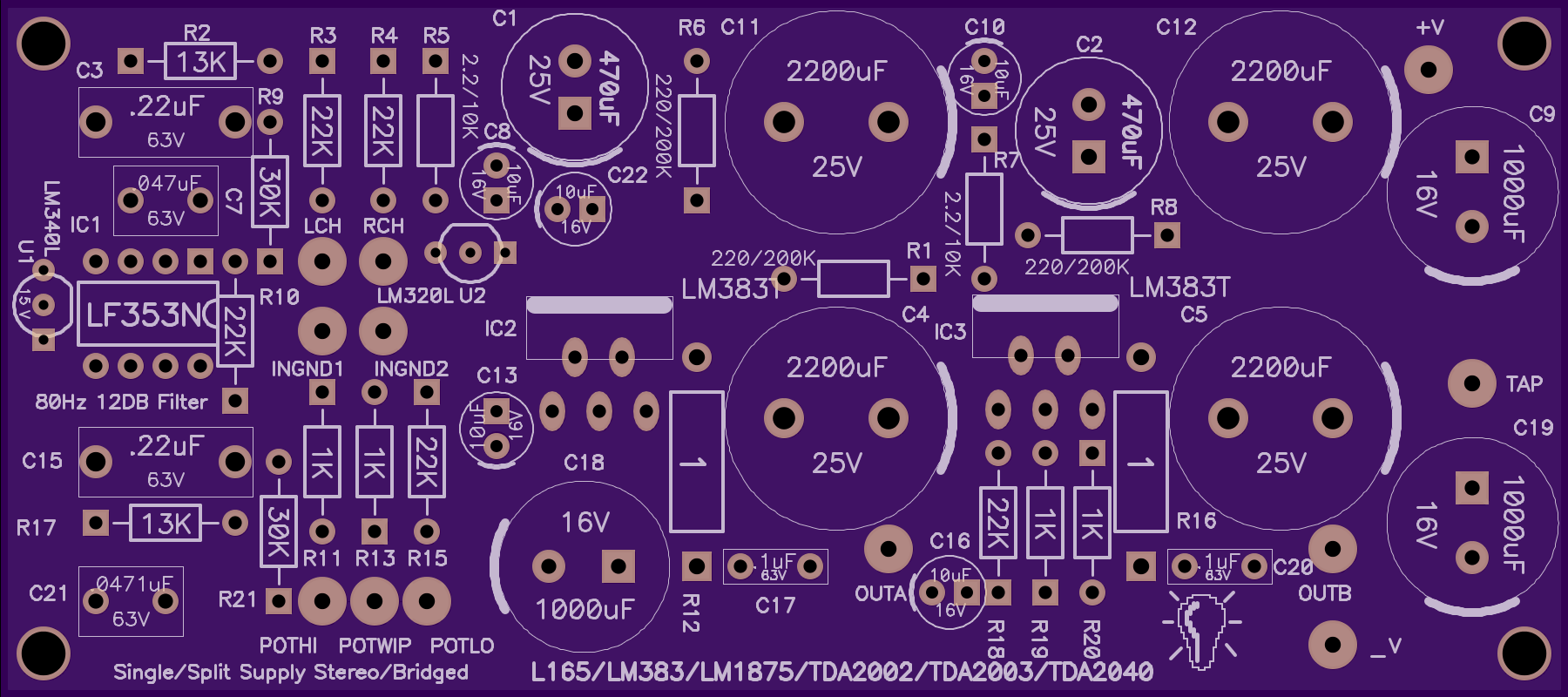

Lowpass Amplifier

by Animo.
Top
Bottom

2 layer board of 4.50x2.00 inches (114.33x50.85 mm).
Shared on December 20th, 2014 14:54.

Bridgeable Stereo Amp using L165/LM383/LM1875/TDA2002/TDA2003/TDA2040 +80Hz lowpass filter. Split or single supplies Use datasheet for config guide. korion7388@yahoo.com

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

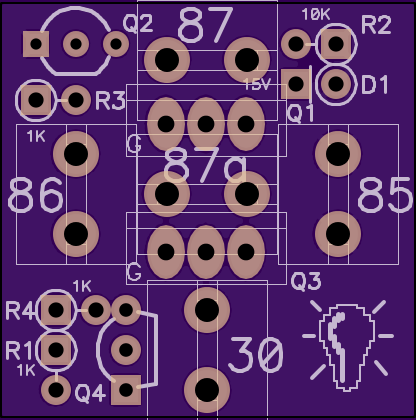

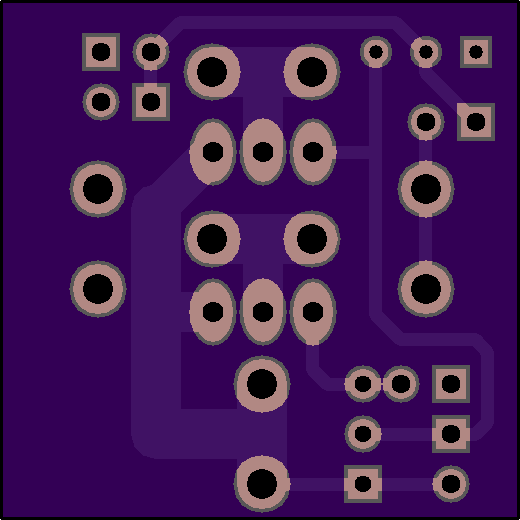

Auto Relay

by Animo.
Top
Bottom

2 layer board of 1.04x1.04 inches (26.44x26.42 mm).
Shared on January 24th, 2014 13:24.

Solid State version of NC/NO Uses Pch mosfets for relay contacts Optional NC or NO Schematic/BOM korion7388@yahoo.com

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
