Shared projects

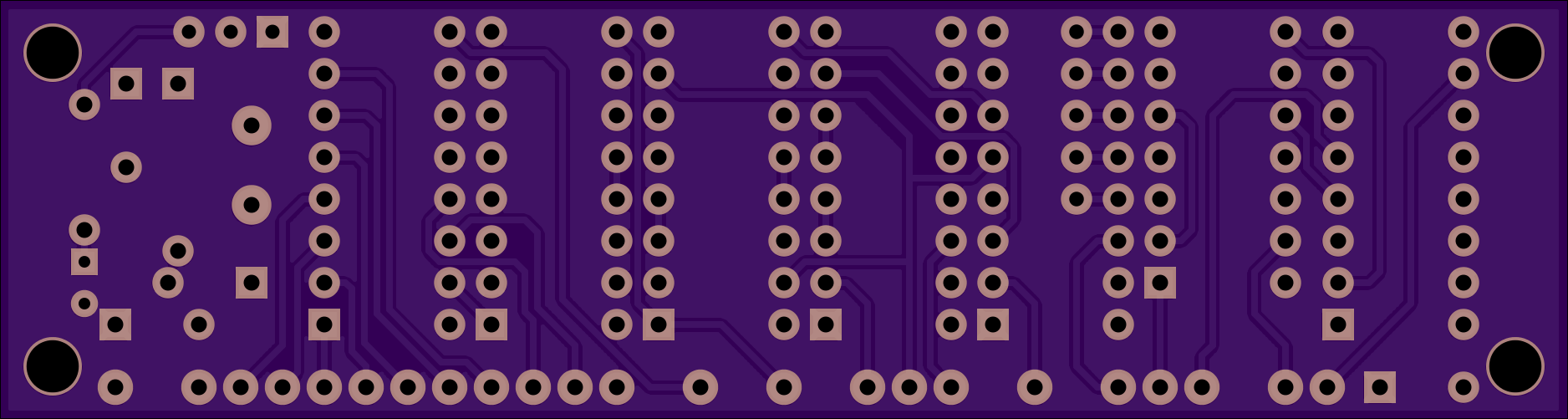

Timebase%202.zip

by Animo.
Top
Bottom

2 layer board of 3.75x1.00 inches (95.33x25.48 mm).
Shared on March 30th, 2017 20:00.

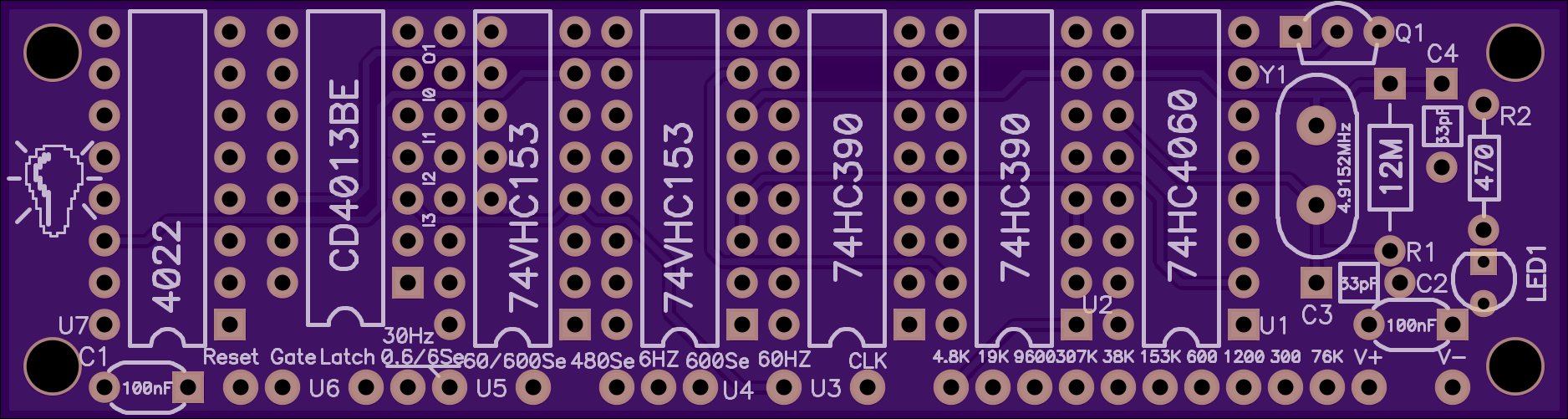

Frequency Counter timebase & gate + all 4060 clock divider outputs. 4022 instead of 4017. Changed 390 divider config to shorten reset pulse width. Switched to crystal as TH osc’s are going away.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

SMPS Driver

by Animo.
Top
Bottom

2 layer board of 1.60x1.50 inches (40.72x38.18 mm).
Shared on November 15th, 2015 20:47.

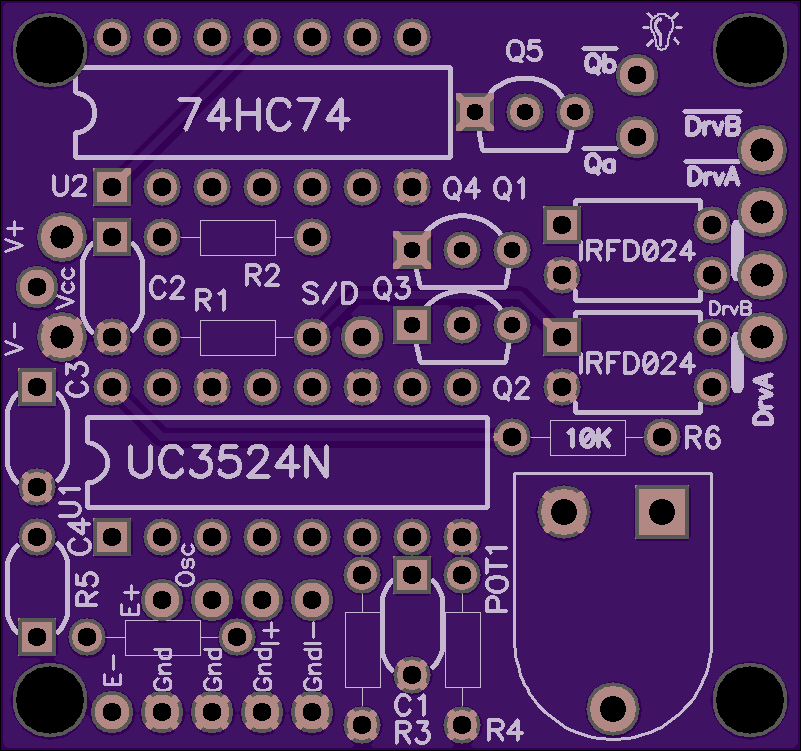

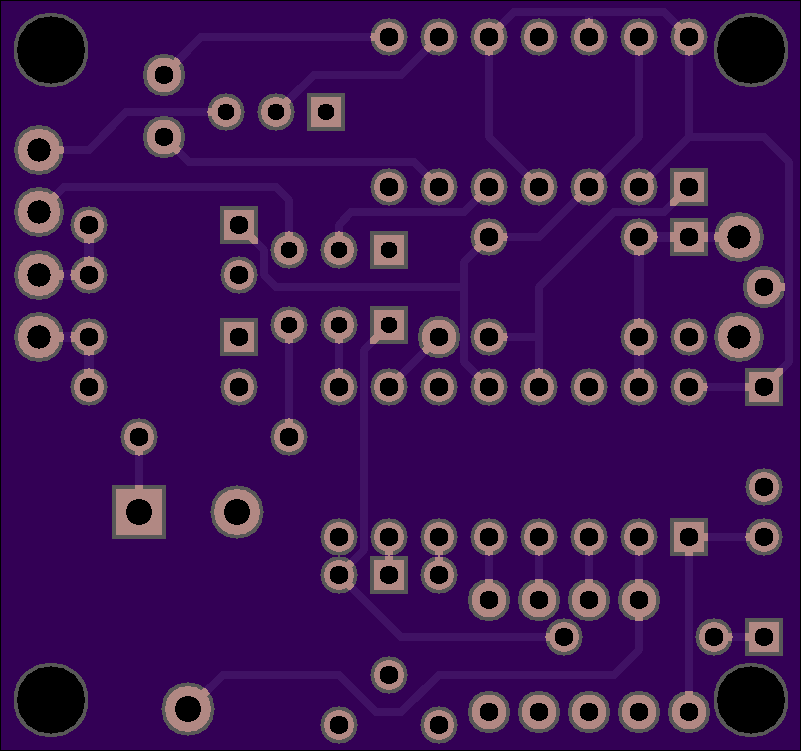

UC3524 + FF + Mosfet drivers. Creates dead time drive for basedrive transformers.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

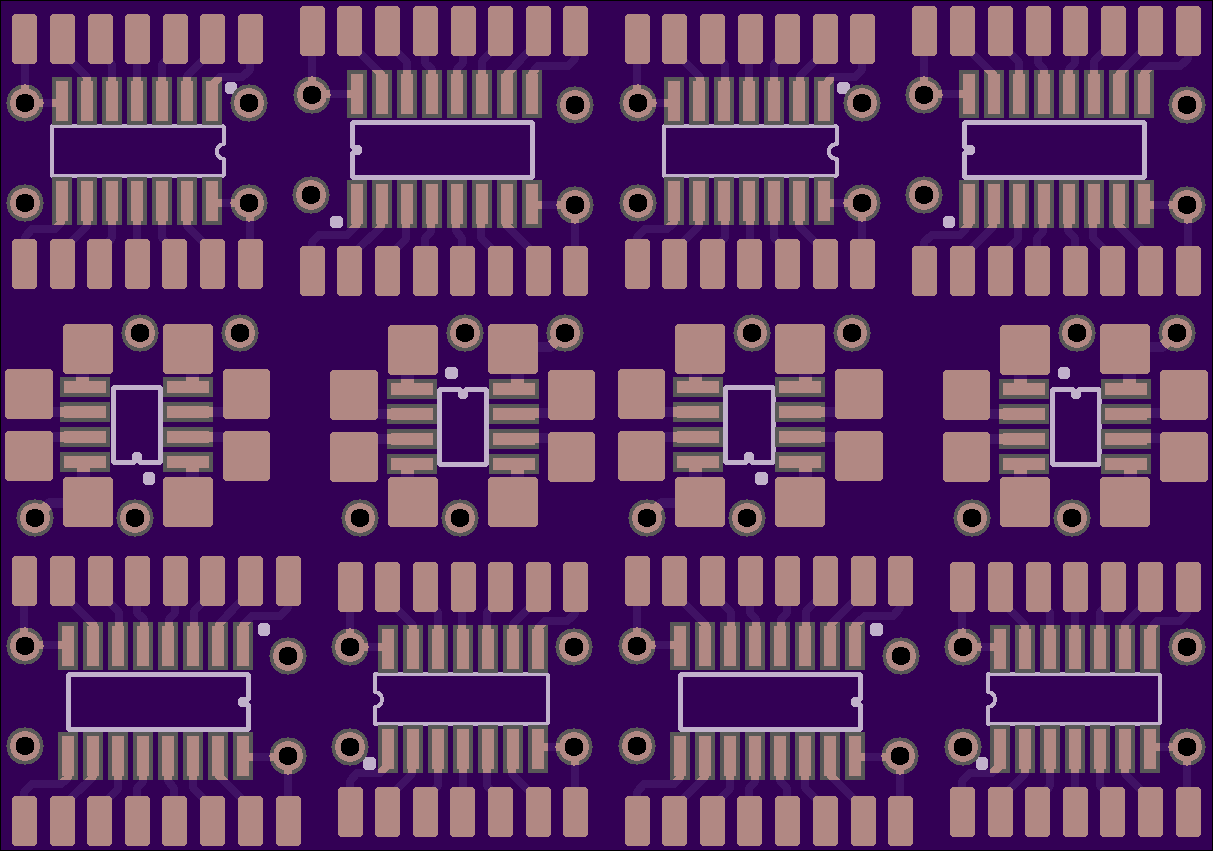

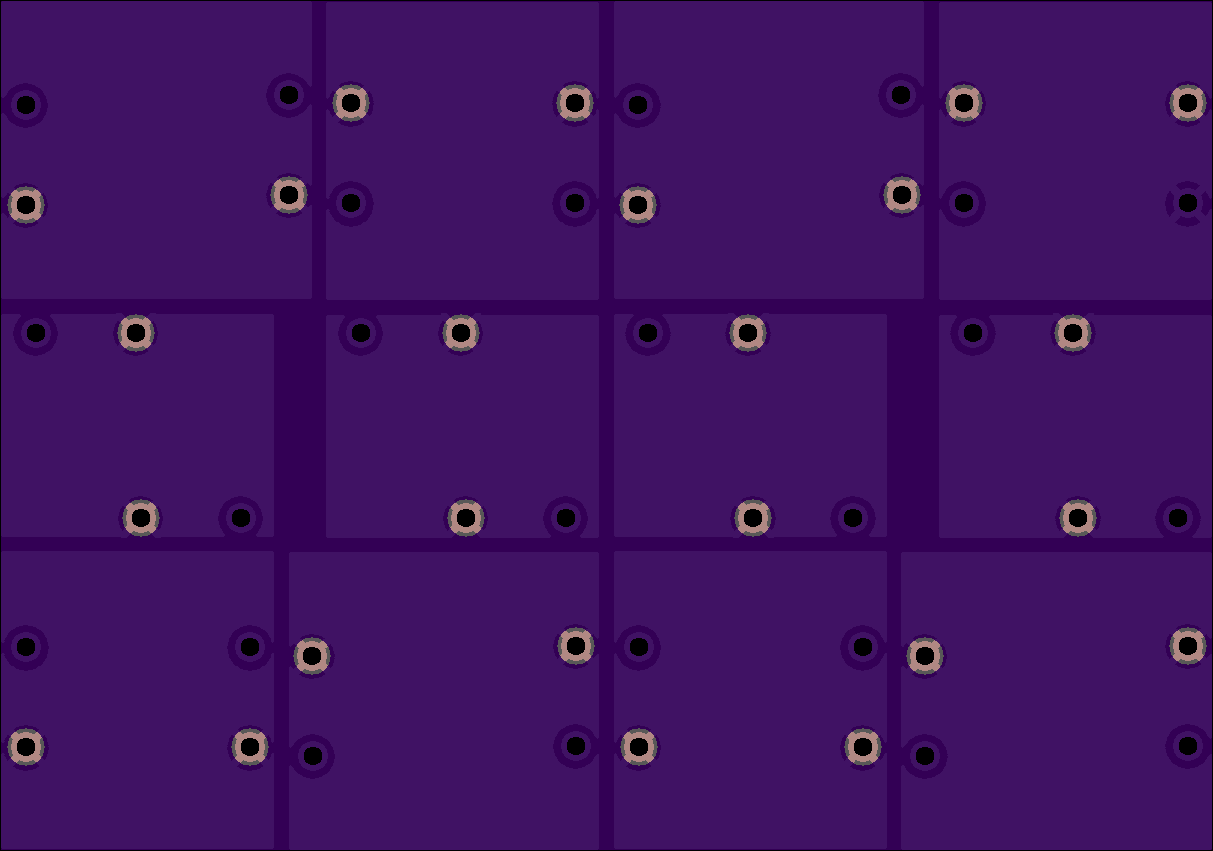

SM IC Patterns

by Animo.
Top
Bottom

2 layer board of 2.43x1.70 inches (61.65x43.26 mm).
Shared on November 15th, 2015 20:37.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Hitch Interface

by Animo.
Top
Bottom

2 layer board of 2.50x2.35 inches (63.58x59.77 mm).
Shared on November 15th, 2015 20:36.

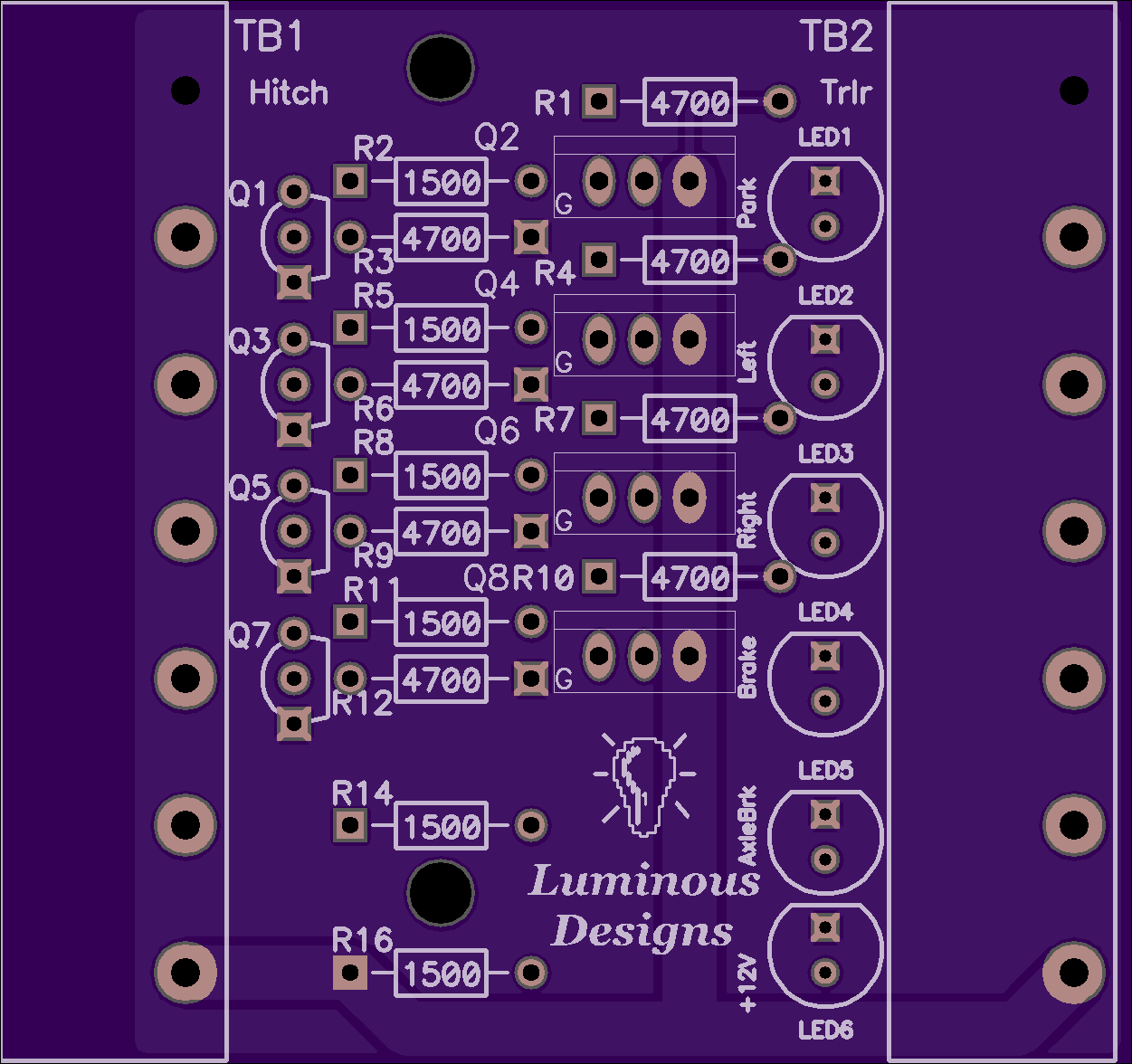

Trailer Hitch with lights sourced from trailer battery. LED continuity indicators. 7-way connector. Can be used with 5-way.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Merz Fan

by Animo.
Top
Bottom

2 layer board of 2.01x1.51 inches (51.05x38.35 mm).
Shared on November 15th, 2015 20:31.

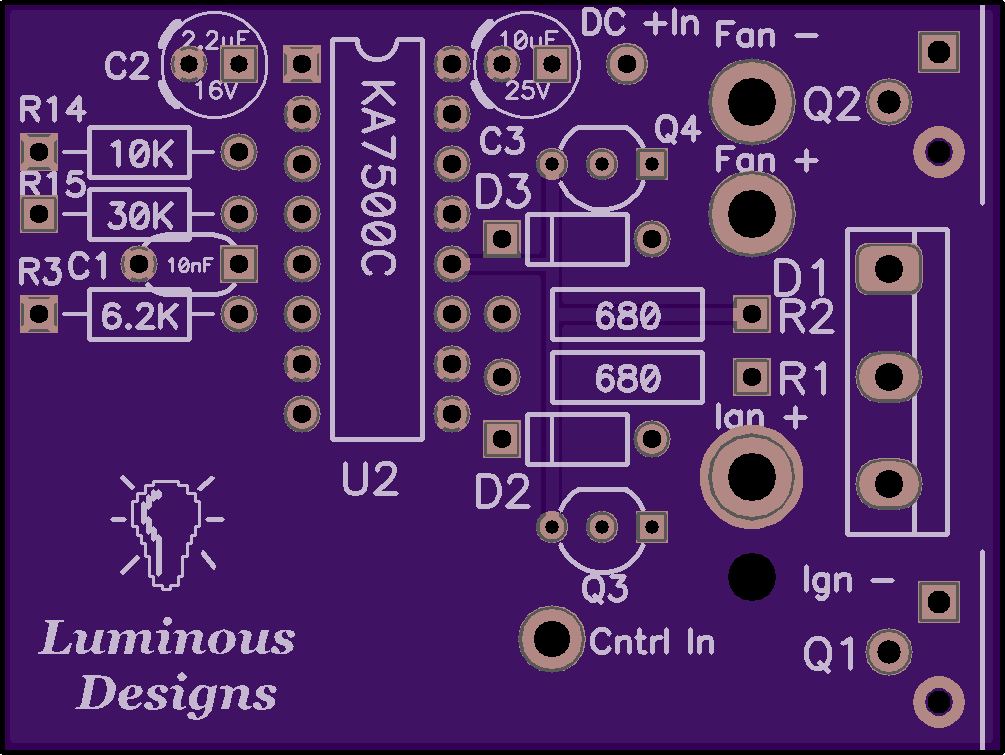

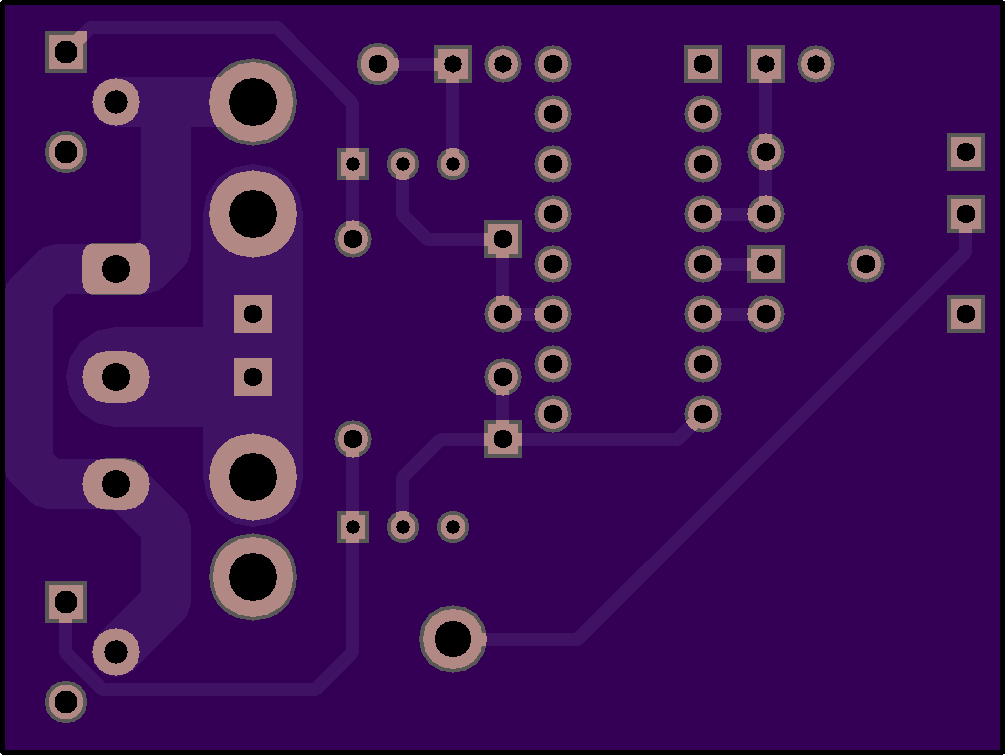

40A DC PWM Fan Controller D/C pot controlled.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
