Test of GBA Link Port footprint
by
Arno.
2
layer board of
0.60x0.60
inches
(15.24x15.24
mm).
Shared on
February 26th, 2017 21:23.

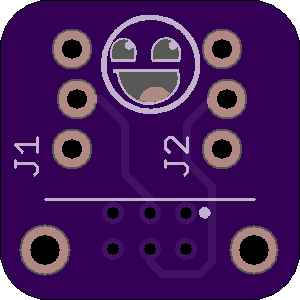

This footprint is workable (the part can be soldered on), but I think it still needs some tweaking.
Game Link Breakout Board
by
Arno.
2
layer board of
0.43x0.57
inches
(10.90x14.50
mm).
Shared on
January 12th, 2017 15:46.
Breakout board for the Nintendo Gameboy Game Link cables.
Note that I would NOT recommend to use these. Replacement ports for the GBA are rather cheap and work way beter than this. However, if you want, you can use these and they might be “good enough” in some cases, but you will most likely have to sand off the mouse bites that OSH Park adds.
MIDI connector - MOUNT
by
Arno.
2
layer board of
1.06x0.27
inches
(26.92x6.76
mm).
Shared on
December 27th, 2013 22:52.

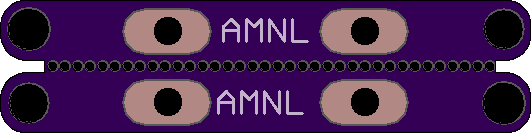

Mount your DIN5 connector using these small PCB strips. One of these boards is good for 2 connectors (otherwise the board would be too small for OSH Park to process).
Also see MIDI connector - BREAK OUT.
PS: I’ve used these boards with connectors similar to Sparkfun PRT-09536 (MIDI Connector - Female Right Angle).

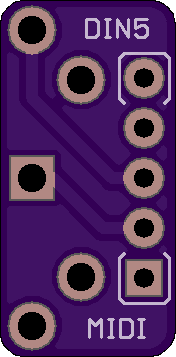

MIDI connector - BREAK OUT
by
Arno.
2
layer board of
0.35x0.71
inches
(8.92x18.11
mm).
Shared on
December 27th, 2013 22:52.

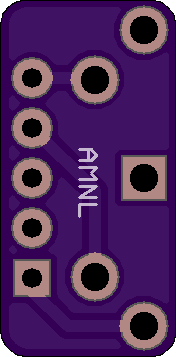

Solder these to your DIN5 connector to easily solder some wires to it or solder some (fe)male pin headers to these boards for your MIDI prototype.
Also see MIDI connector - MOUNT.
PS: I’ve used these boards with connectors similar to Sparkfun PRT-09536 (MIDI Connector - Female Right Angle).
Arno's Nano2Nove 002
by
Arno.
2
layer board of
1.68x2.13
inches
(42.55x53.97
mm).
Shared on
November 17th, 2013 13:10.
Use Arduino Duemilanove / Uno compatible shields with your Nano v3.
Improvements compared to N2N001:
Double headers (so you can decide to put it on a shield or put another shield on top of it)
Diodes to protect your Nano from power supplies with a wrong polarity
Smaller size!
