One Watt Audio Amplifier - RevA

2 layer board of 1.50x1.25 inches (38.13x31.78 mm).
Shared on September 15th, 2016 00:54.

Revised One Watt audio amplifier with a Mini USB port and a IS31AP4991A amplifier. C1 thru C3 are 1uF ceramic caps, C4 is a 100uF electrolytic. R1 thru R3 are 4.7k-ohm resistors. R4 and R5 are 47k-ohm for a gain of 10 (20 dB) on the amplifier. As in the previous one-watt amplifier, a stereo signal from the 3.5mm jack is combined into a mono signal using a simple resistor network. The USB input is only used as a 5-volt power source.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

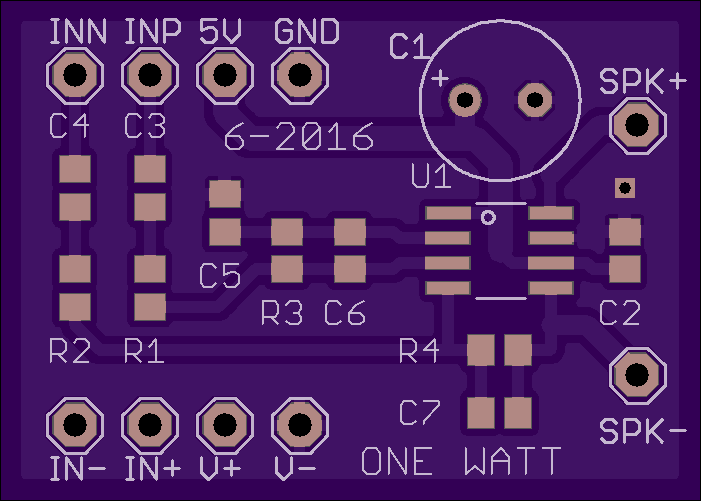

One Watt Distributed Amplifier

Blueberry.

2 layer board of 1.40x1.00 inches (35.59x25.43 mm).
Shared on July 1st, 2016 16:12.

An amplifier for a single speaker in a linear array. Uses differential inputs. Based on the IS31AP4991A chip. (Note the “A” suffix denotes a different pinout than those without the suffix). The electrolytic capacitor is 100 uF, the feedback capacitors are 33 pF, and the others are 1 uF. The input resistors are 20 kohm, and the feedback resistors are 100 kohm. All are 0805 packages.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

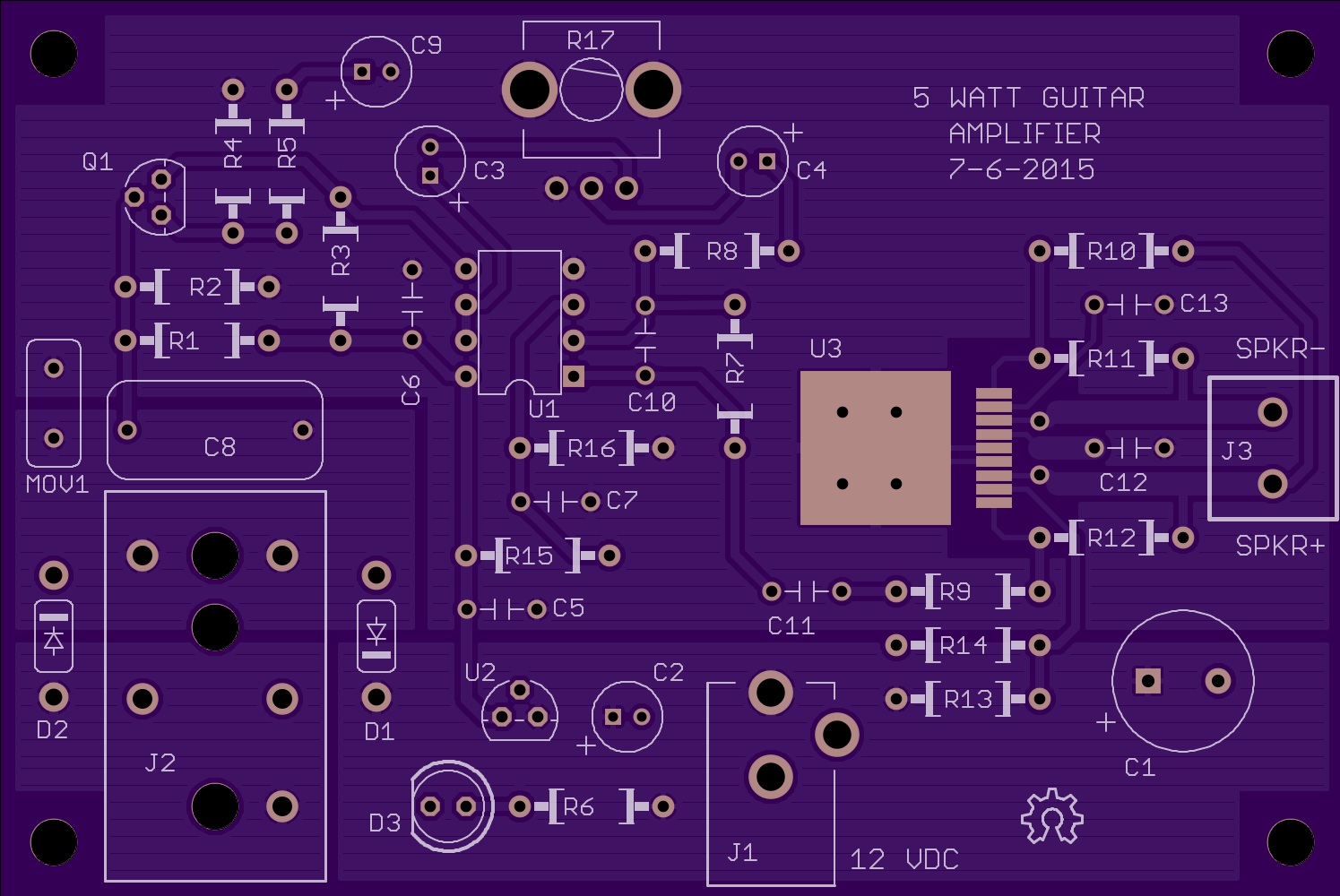

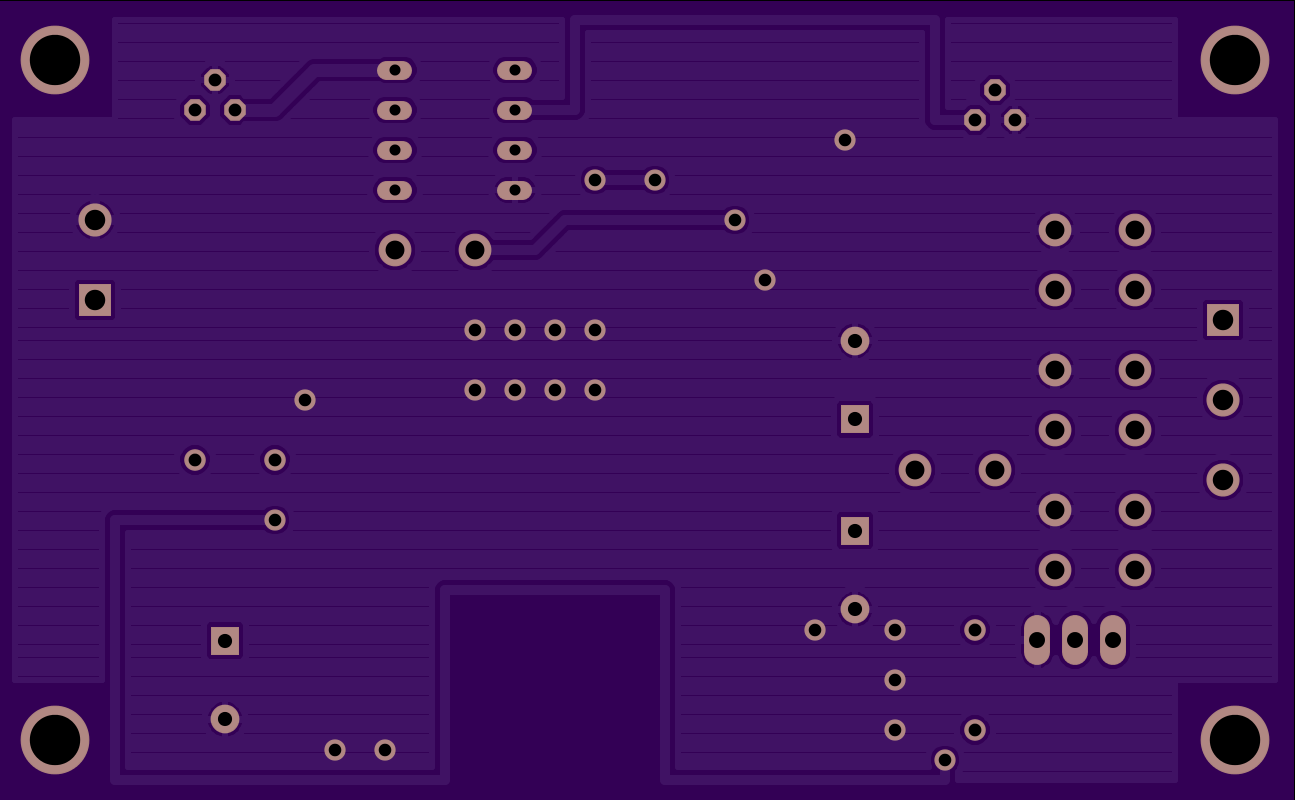

5 Watt Guitar Amplifier - LM4950

Blueberry.

2 layer board of 3.74x2.50 inches (94.92x63.50 mm).
Shared on July 20th, 2015 10:44.

A small practice amplifier for guitars based on the LM4950 power amp; specifically designed for a bass guitar. Intended for a single 8-ohm speaker.

Parts list:
C1 - CAP ALUM 220UF 20% 35V RADIAL, DigiKey p/n: P12411-ND
C2, 3, 4 - CAP ALUM 10UF 20% 50V RADIAL, DigiKey p/n: 493-11003-1-ND
C5, 6, 7 - CAP CER 0.22UF 50V 10% RADIAL, DigiKey p/n: 445-8625-ND
C8 - CAP FILM 1UF 10% 250VDC RADIAL, DigiKey p/n: P10979-ND
C9 - CAP ALUM 100UF 20% 16V RADIAL, DigiKey p/n: 493-4638-1-ND
C10 - CAP CER 82PF 50V 5% RADIAL, DigiKey p/n: 445-4725-ND
C11 - CAP FILM 0.39UF 5% 63VDC RADIAL, DigiKey p/n: 495-4846-1-ND
C12 - CAP TANT 1UF 35V 10% RADIAL, DigiKey p/n: 478-4168-ND
C13 - CAP CER 10UF 16V 20% RADIAL, DigiKey p/n: 445-8550-ND
D1, 2 - DIODE SCHOTTKY 100V 1A DO204AL, DigiKey p/n: SB1H100-E3/73GICT-ND
D3 - LED 5MM GREEN CLEAR 527NM 30DEG, DigiKey p/n: C503B-GCN-CY0C0791-ND
J1 - CONN JACK POWER 2.1MM PCB, DigiKey p/n: CP-102A-ND
J2 - CONN PHONE JACK 2COND SGL CLOSED, DigiKey p/n: SC2014-ND
J3 - TERMINAL BLOCK 5.08MM 2POS PCB, DigiKey p/n: ED1643-ND
KNOB - SWITCH KNOB RIBBED .551" PKG, DigiKey p/n: 450-1742-ND
MOV - VARISTOR 24V 250A DISC 7MM, DigiKey p/n: MOV-07D270K-ND
Q1 - MOSFET N-CH 60V 200MA TO-92, DigiKey p/n: 2N7000TACT-ND
R1, 2 - RES 1M OHM 1/4W 1% AXIAL, DigiKey p/n: 1.00MXBK-ND
R3, 4, 5, 6 - RES 2.21K OHM 1/4W 1% AXIAL, DigiKey p/n: 2.21KXBK-ND
R7 - RES 82K OHM 1/4W 1% AXIAL, DigiKey p/n: S85KCACT-ND
R8 - RES 39.2K OHM 1/4W 1% AXIAL, DigiKey p/n: 39.2KXBK-ND
R9, 10, 11 - RES 22K OHM 1/4W 1% AXIAL, DigiKey p/n: S22KCACT-ND
R12 - RES 69.8K OHM 1/4W 1% AXIAL, DigiKey p/n: 69.8KXBK-ND
R13, 14, 15, 16 - RES 100K OHM 1/4W 1% AXIAL, DigiKey p/n: 100KXBK-ND
R17 - POT 10K OHM 1/20W CARBON LINEAR, DigiKey p/n: PTV09A-4225F-B103-ND
SUPPLY - AC/DC WALL MOUNT ADAPTER 12V 12W, DigiKey p/n: 237-1455-ND
U1 - IC OPAMP AUDIO 15MHZ 8DIP, DigiKey p/n: LM833NGOS-ND
U2 - IC REG LDO 10V 0.1A TO92-3, DigiKey p/n: 296-1996-ND
U3 - IC AMP AUDIO PWR 7.5W AB TO263-9, DigiKey p/n: LM4950TSX/NOPBCT-ND

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

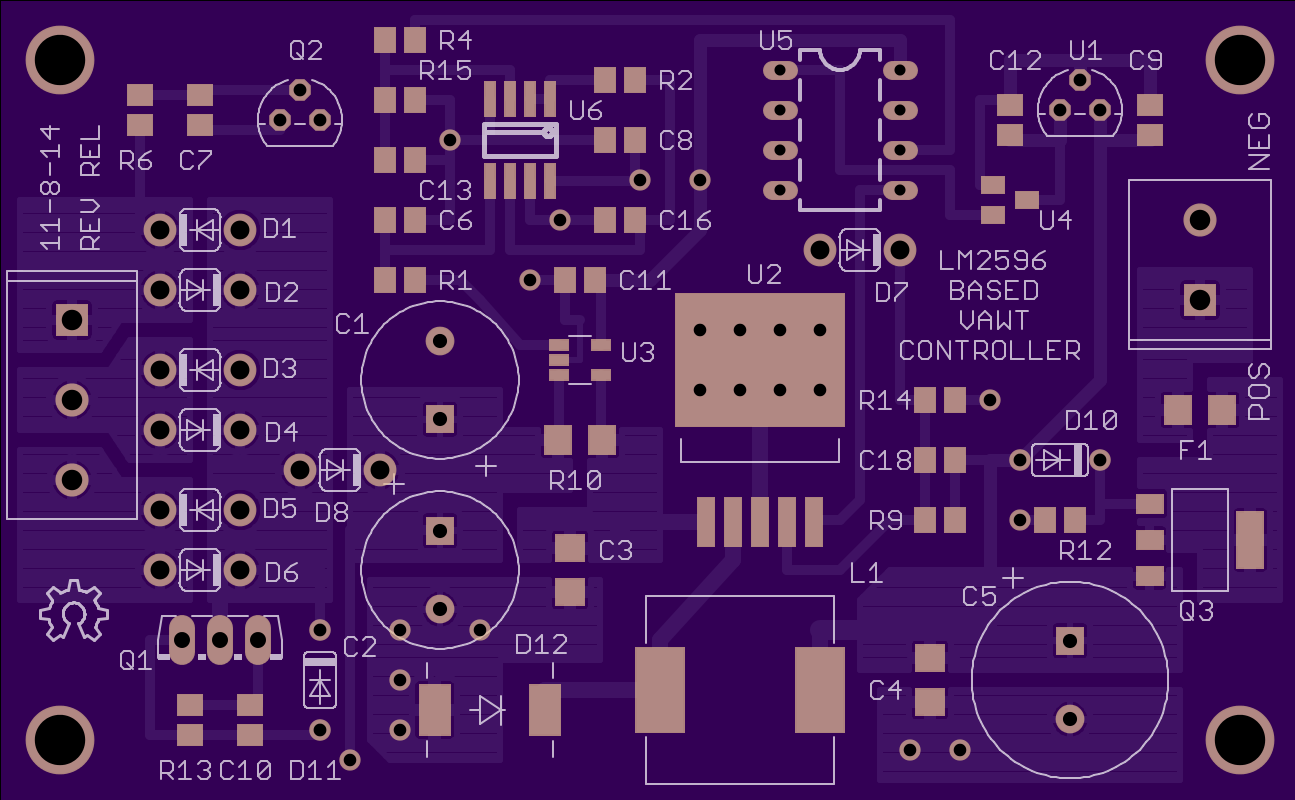

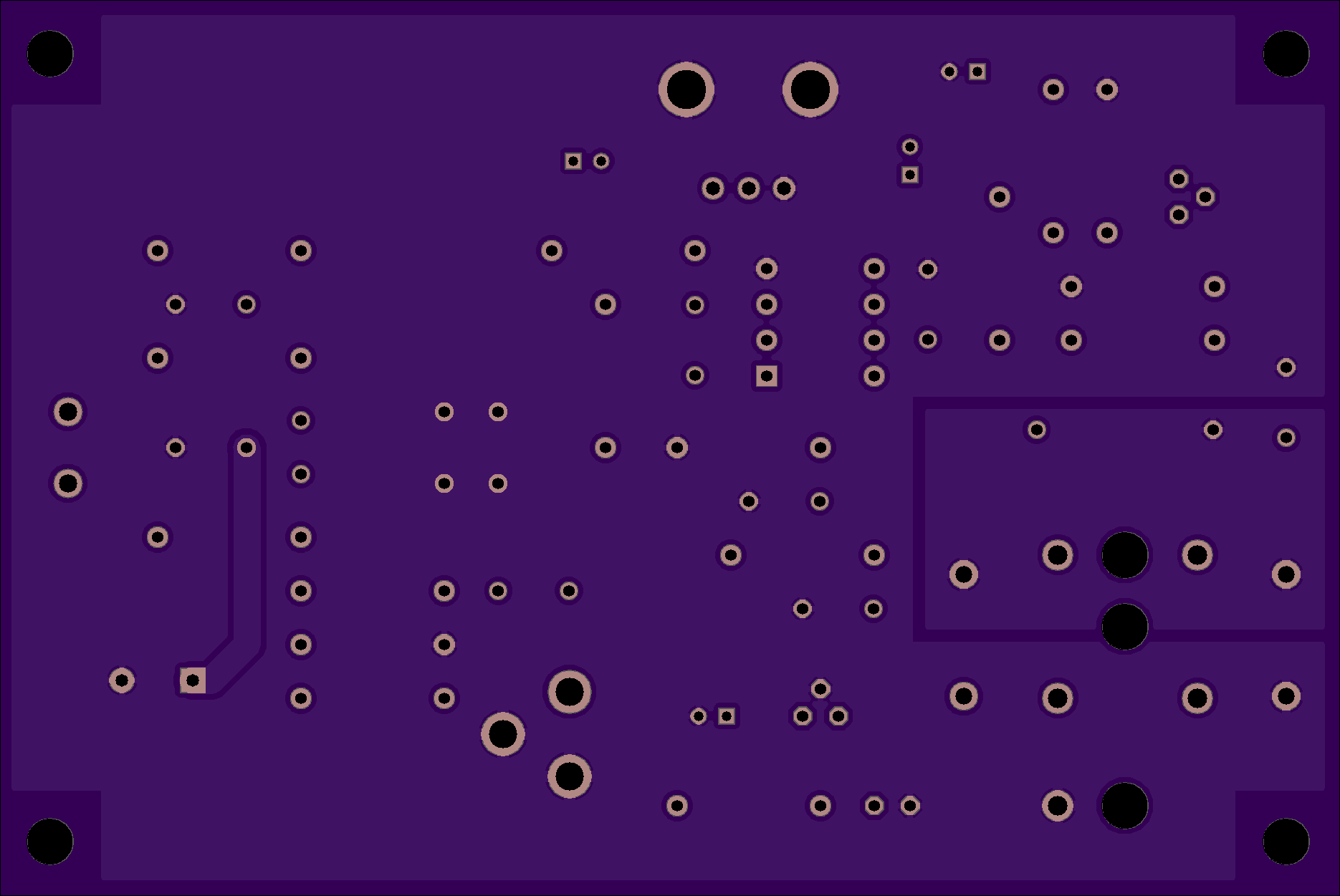

LM2596 Based VAWT Controller

Blueberry.

2 layer board of 3.24x2.00 inches (82.22x50.80 mm).
Shared on June 11th, 2015 00:51.

A control board for a small wind turbine based on the LM2596.
Part List:
C1, 2 - 220uF, 50V Cap - Digikey p/n - 565-4067-ND
C3, 4 - 4.7uF, 50V Cap - Digikey p/n - 587-2994-1-ND
C5 - 560uF, 35V Cap - Digikey p/n - UPJ1V561MHD-ND
C6, 16 - 220 pF, 50V Cap - Digikey p/n - 311-1129-1-ND
C7, 8, 9, 10, 11, 12 - 1uF, 50V Cap - Digikey p/n - 1276-1029-1-ND
C13 - 10uF, 16V Cap - Digikey p/n - 1276-1096-1-ND
C18 - 1200pF, 50V Cap - Digikey p/n - 399-8018-1-ND
D1, 2, 3 4, 5, 6, 7, 8 - 2A Schottky - Digikey p/n - 497-8032-1
D10 - 10V Zener - Digikey p/n - BZX79C10-ND
D11 - 36V Zener - Digikey p/n - 1N5258B-TPCT-ND
D12 - 60V 5A Schottky - Digikey p/n - 497-8487-1-ND
F1 - 7A Fuse - Digikey p/n - 507-1566-1-ND
J1 - 3 Pos. Term Blk - Digikey p/n - 277-1248-ND
J2 - 2 Pos. Term Blk - Digikey p/n - ED1643-ND
L1 - 68uH, 3.2A Inductor - Digikey p/n - 732-1247-1-ND
Q1 - 12A Thyristor - Digikey p/n - 568-3674-5-ND
Q2 - NPN Transistor - Digikey p/n - 2N3904FS-ND
Q3 - N-CH MOSFET - Digikey p/n - 568-10997-1-ND
R1, 2, 4, 6, 9, 12 - 33.2K Ohm resistor - Digikey p/n RNCP0805FTD33K2CT-ND
R10 - 0.01 Ohm resistor - Digikey p/n - 989-1021-1-ND
R13 - 100 Ohm resistor - Digikey p/n - P100CCT-ND
R14 - 3.32K Ohm resistor - Digikey p/n RMCF0805FT3K32CT-ND
R15 - 1.74K Ohm resistor - Digikey p/n - 311-1.74KCRCT-ND
S1 - 8 Pos. DIP Socket - Digikey p/n - AE9988-ND
U1 - 5V LDO Regulator - Digikey p/n - 497-2952-ND
U2 - 3A Buck Reg. Adj. - Digikey p/n - LM2596DSADJGOS-ND
U3 - Current Monitor - Digikey p/n - ZXCT1084E5TACT-ND
U4 - 4.00V MPU Reset - Digikey p/n - APX809-40SAGDICT-ND
U5 - 8bit MCU - Digikey p/n - ATTINY85-20PU-ND
U6 - OpAmp - Digikey p/n - LM358AMX/NOPBCT-ND
