Shared projects

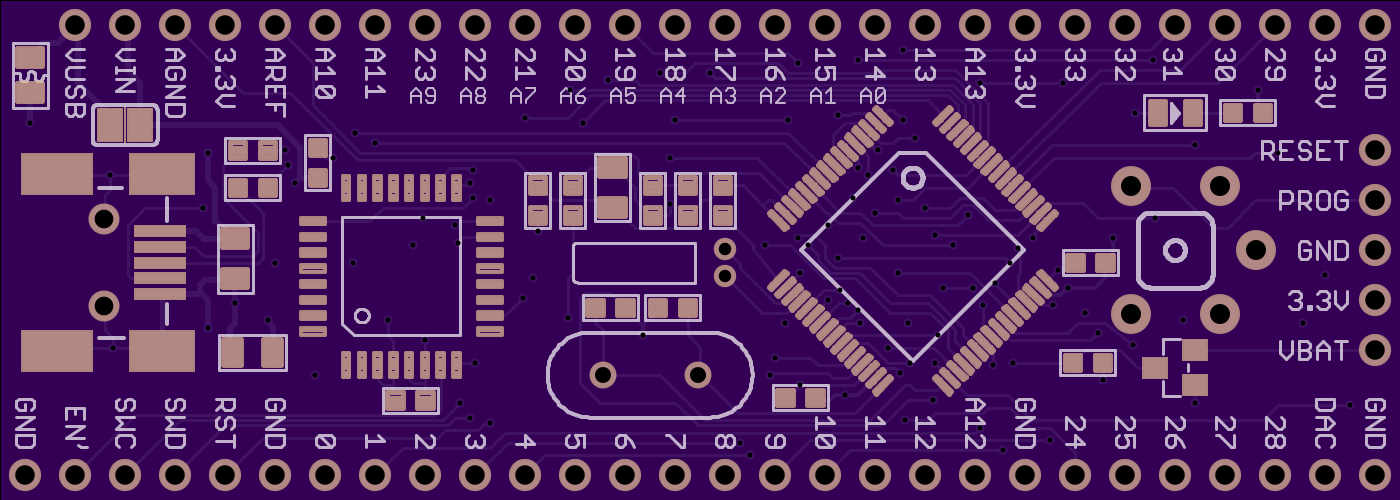

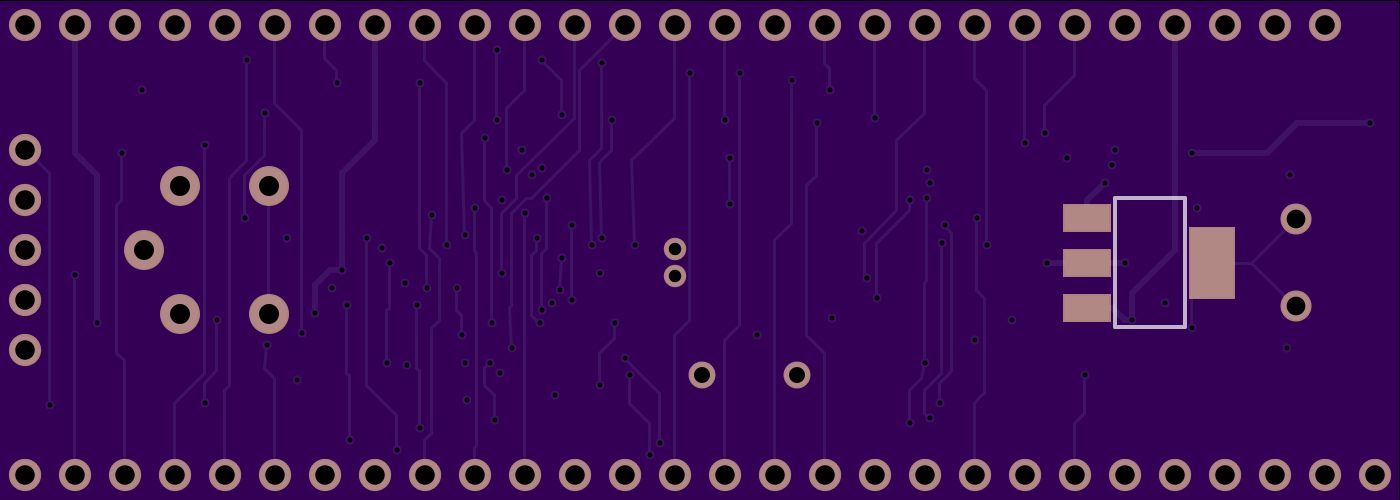

Teensy3 reference board clone

by CPT.
Top
Bottom

4 layer board of 2.80x1.00 inches (71.15x25.43 mm).
Shared on April 16th, 2017 09:28.

board image
Teensy3 reference board in eagle board design files

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

teensy3 reference board clone (old)

by CPT.
Top
Bottom

4 layer board of 2.80x1.00 inches (71.15x25.43 mm).
Shared on April 29th, 2016 17:40.

old version.

please use https://www.oshpark.com/shared_projects/aDHCXuGt

board image

teensy3.2 reference board in eagle

board design files

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

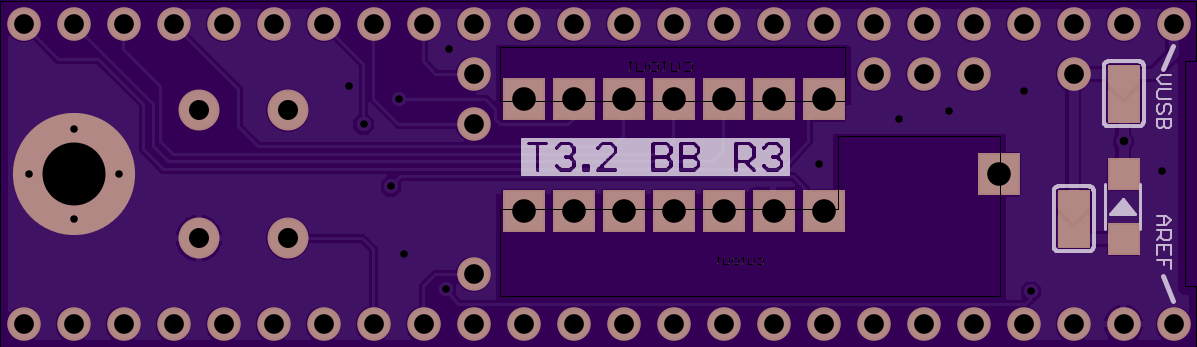

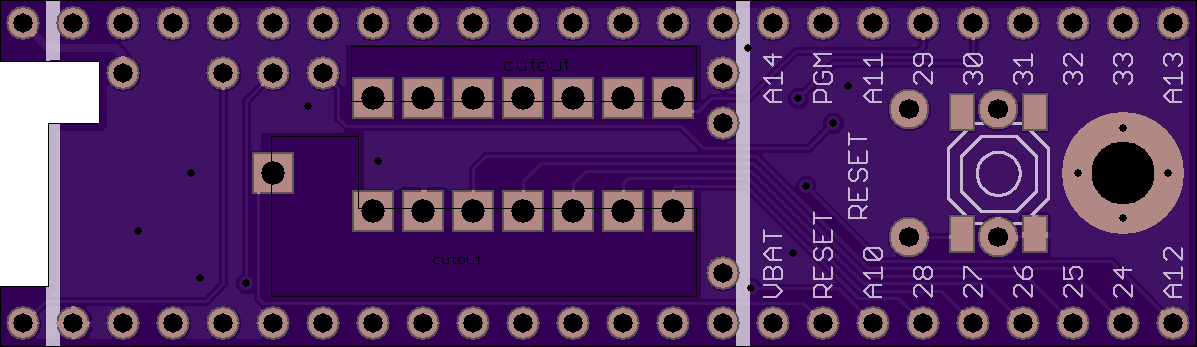

Teensy 3.2 Breakout Board R3

by CPT.
Top
Bottom

2 layer board of 2.39x0.69 inches (60.81x17.63 mm).
Shared on September 19th, 2015 04:05.

NOT TESTED

Breadboard compatible breakout board for Teensy 3.2 from pjrc.

CUT TEENSY 3.2 VIN-VUSB PAD!

Parts list

  • male pin header with long pins
    • 5.84mm pin length on both sides, total height 14.14mm: Sullins PREC040SABN-RC (Digi-Key: S1022EC-40-ND)
    • ~6.2mm pin length on both sides, total height 15mm: Aliexpress
    • head: 5.97mm / tail: 5.33mm: 3M 929834-02-36-RK (Digi-Key: 929834E-02-36-ND, Mouser: 517-929834-02-36-RK)
  • optional: Tactile switch for reset
    • Surface Mount: ALPS SKQGADE010 (Mouser: 688-SKQGAD)
    • Through Hole 6x6x5MM: ALPS SKHHAMA010 (Mouser: 688-SKHHAM)
  • optional: VUSB to VIN diode
    • Schottky diode SOD-123: Diodes Incorporated B130LAW-7-F (Mouser: 621-B130LAW-F)
  • optional: RTC Crystal
    • 32.768 kHz 12.5 pF: Citizen Finetech Miyota CFS206-32.768KDZF-UB (Mouser: 695-CFS206-327KF-U)
  • (+ Teensy 3.2)

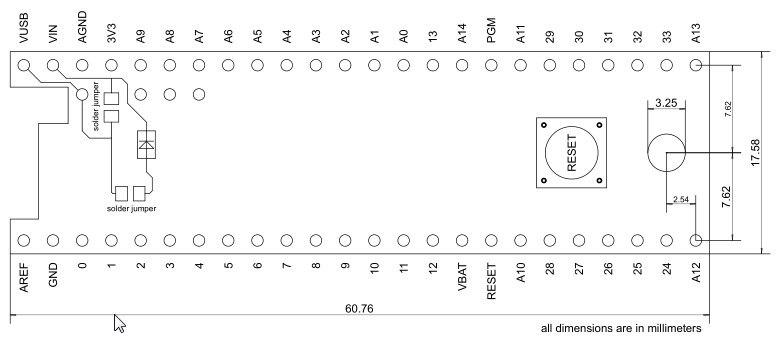

Pinmap & Dimensions


Older revisions

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

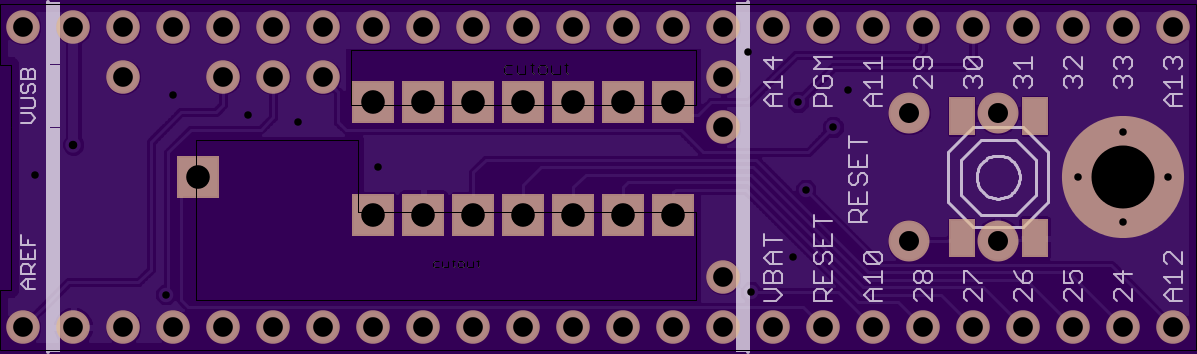

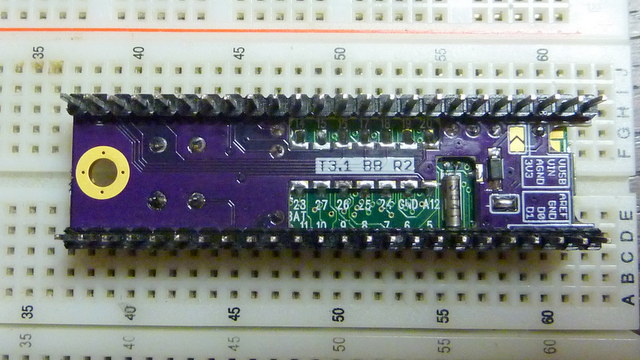

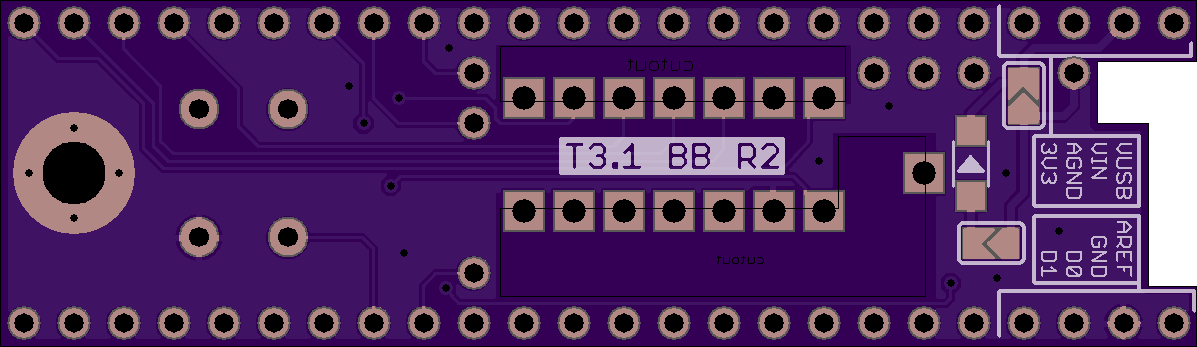

Teensy 3.1 Breakout Board R2

by CPT.
Top
Bottom

2 layer board of 2.39x0.69 inches (60.81x17.63 mm).
Shared on September 2nd, 2015 00:34.

Link to the Teensy 3.2 compatible version

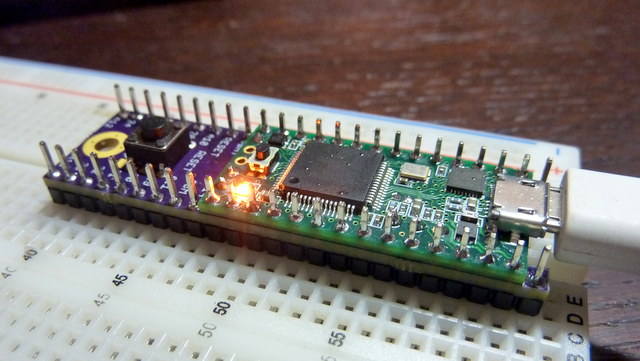

Breadboard compatible breakout board for Teensy 3.1 from pjrc.

img2 img1

Parts used

  • male pin header with long pins: ~6.2mm pin length on both sides, total height 15mm Aliexpress
  • optional: Tactile switch for reset
    • Surface Mount: ALPS SKQGADE010 (Mouser Part #: 688-SKQGAD)
    • Through Hole 6x6x5MM: ALPS SKHHAMA010 (Mouser Part #: 688-SKHHAM)
  • optional: VUSB to VIN diode
    • Schottky diode SOD-123: Diodes Incorporated B130LAW-7-F (Mouser Part #: 621-B130LAW-F)
  • optional: RTC Crystal
    • 32.768 kHz 12.5 pF: Citizen Finetech Miyota CFS206-32.768KDZF-UB (Mouser Part #: 695-CFS206-327KF-U)
  • (+ Teensy 3.1)

Pinmap & Dimensions


Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Teensy 3.1 breakout board

by CPT.
Top
Bottom

2 layer board of 2.39x0.69 inches (60.81x17.63 mm).
Shared on August 16th, 2015 06:07.

link to the slightly improved version

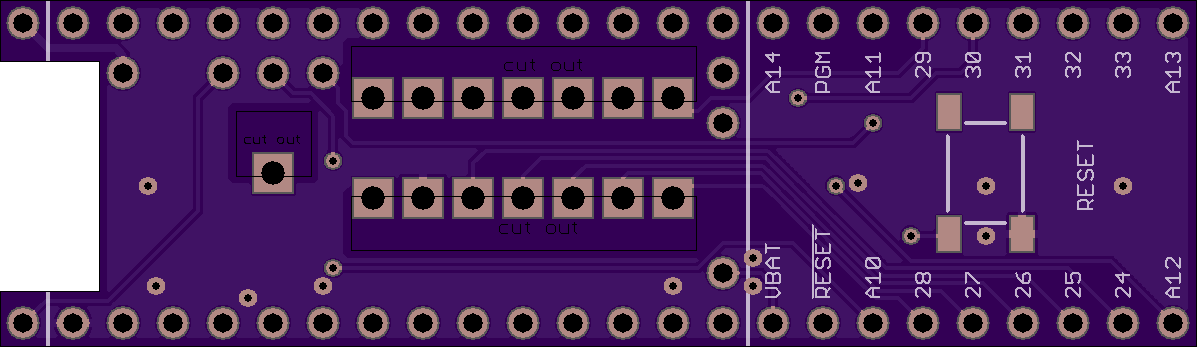

Breakout board for Teensy 3.1

img1 img2 img3

Parts used

  • male pin header with long pins: ~6.2mm pin length on both sides, total height 15mm - Aliexpress
  • optional: Tactile switch for reset - ALPS SKQGADE010 (Mouser Part #: 688-SKQGAD)
  • (+ Teensy 3.1)

Pinmap

       _________
AREF -|  [USB]  |- VUSB
 GND -|         |- VIN
   0 -|         |- AGND
   1 -|         |- 3V3
   2 -|         |- A9
   3 -|         |- A8
   4 -|         |- A7
   5 -|         |- A6
   6 -|         |- A5
   7 -|         |- A4
   8 -|         |- A3
   9 -|         |- A2
  10 -|         |- A1
  11 -|         |- A0
  12 -|         |- 13
VBAT -|         |- A14
/RST -|         |- PGM
 A10 -|         |- A11
  28 -|   RST   |- 29
  27 -|   BTN   |- 30
  26 -|         |- 31
  25 -|         |- 32
  24 -|         |- 33
 A12 -|_________|- A13
