ASM LogicFCS v0.1

by CQB-PCB.
Top
Bottom

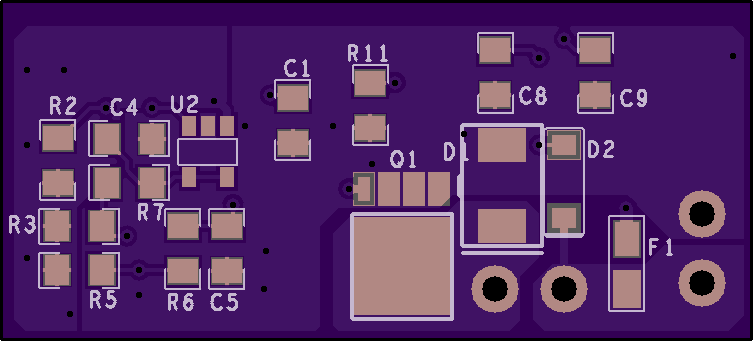

2 layer board of 1.51x0.68 inches (38.25x17.30 mm).
Shared on June 2nd, 2016 13:18.

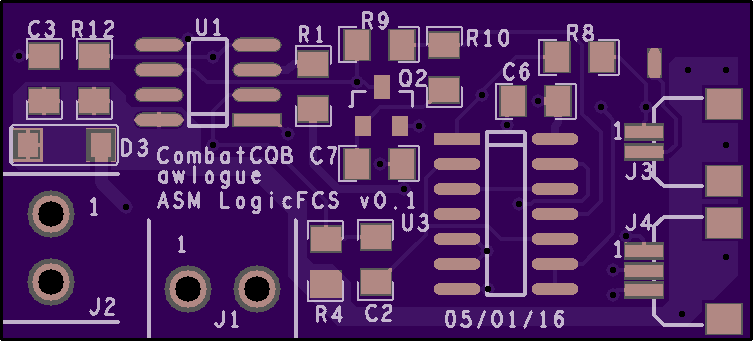

Second iteration of the airsoft fire control system using only discreet logic components. More information at Airsoft Mechanics forum.

Here is the schematic and BOM

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

30 Pin FFC Offset Cou

by CQB-PCB.
Top
Bottom

2 layer board of 1.66x0.71 inches (42.06x17.96 mm).
Shared on November 29th, 2013 21:06.

Couple two 30 pin FFC using Omron XF2

Order board. Download. Permalink. Embed order link.
