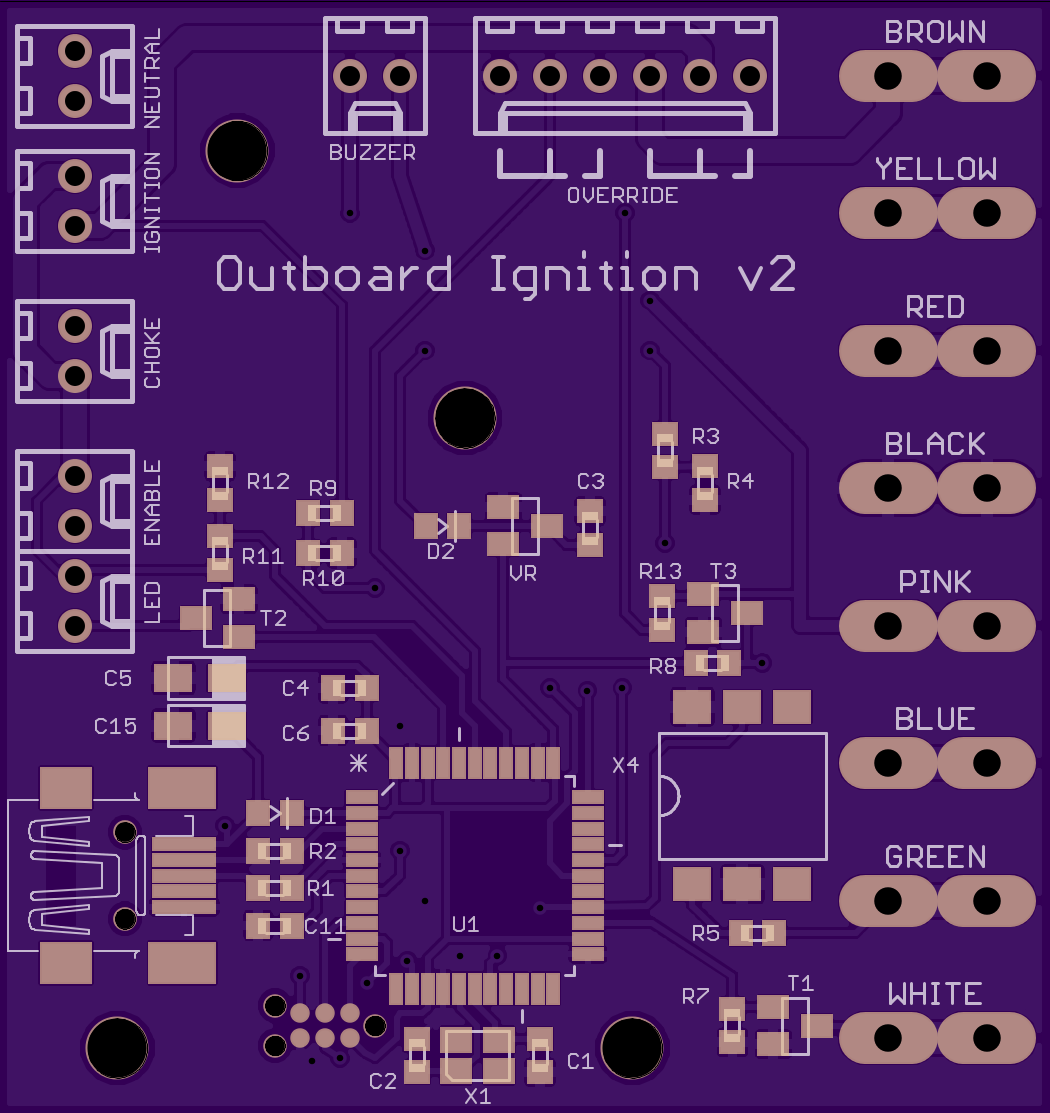

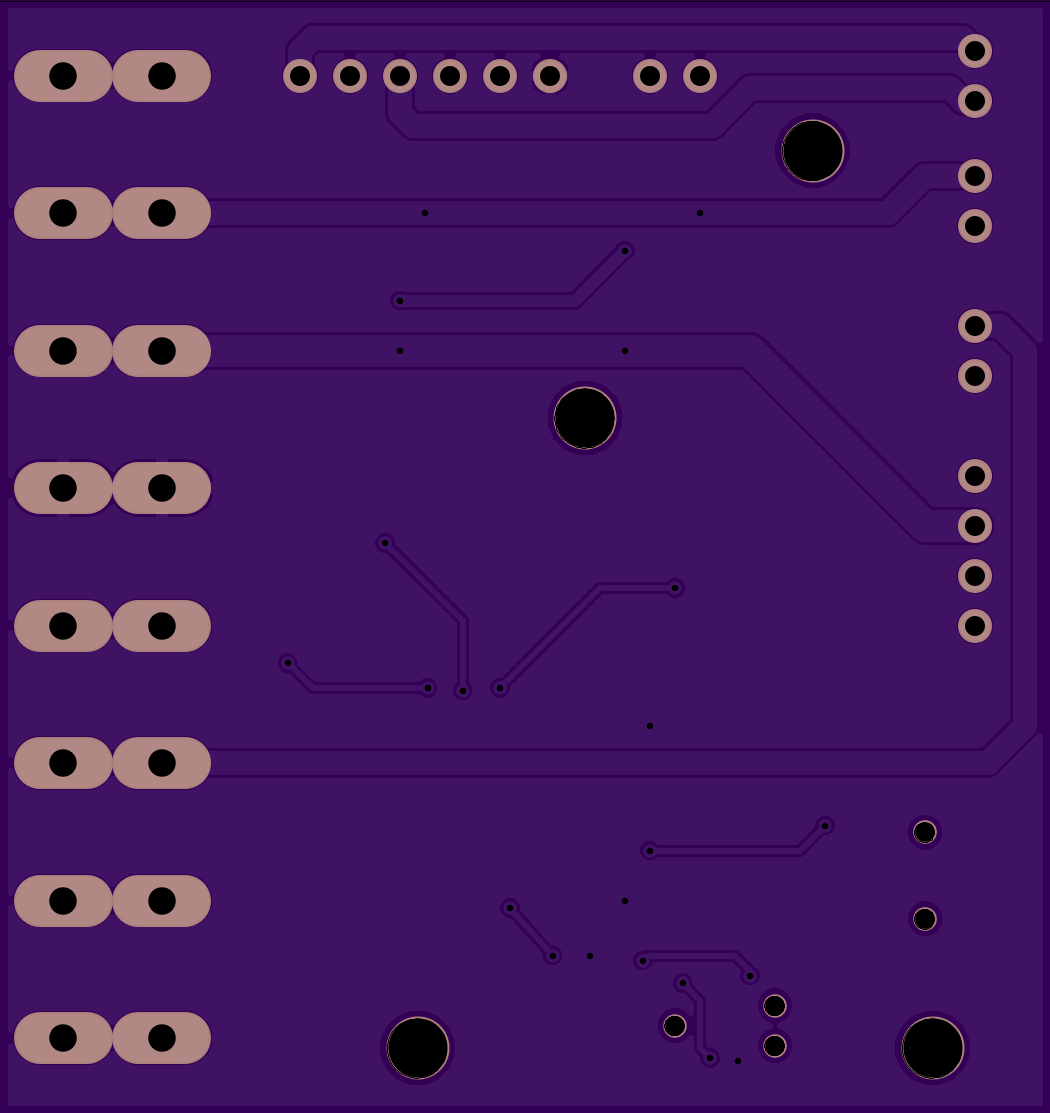

Ignition-v2

by

CaptainUnlikely.

2 layer board of 2.10x2.23 inches (53.37x56.54 mm).
Shared on May 24th, 2016 13:03.

A circuit to replace the electrics in a Yamaha 703 Outboard Motor control. See http://captainunlikely.com

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

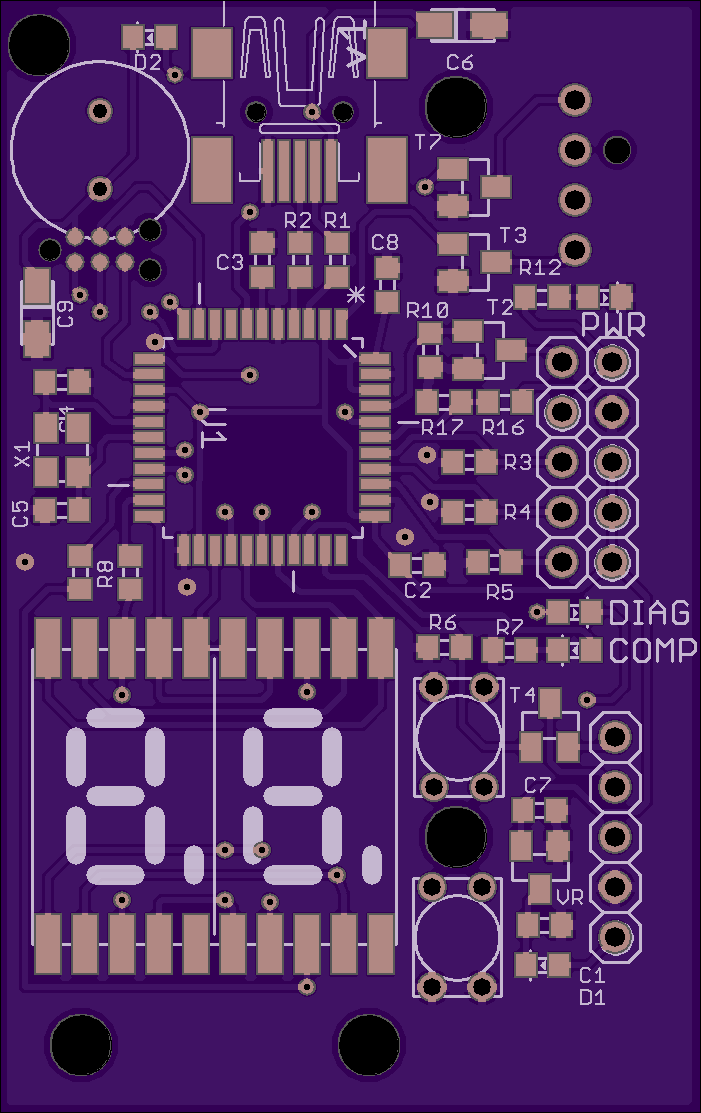

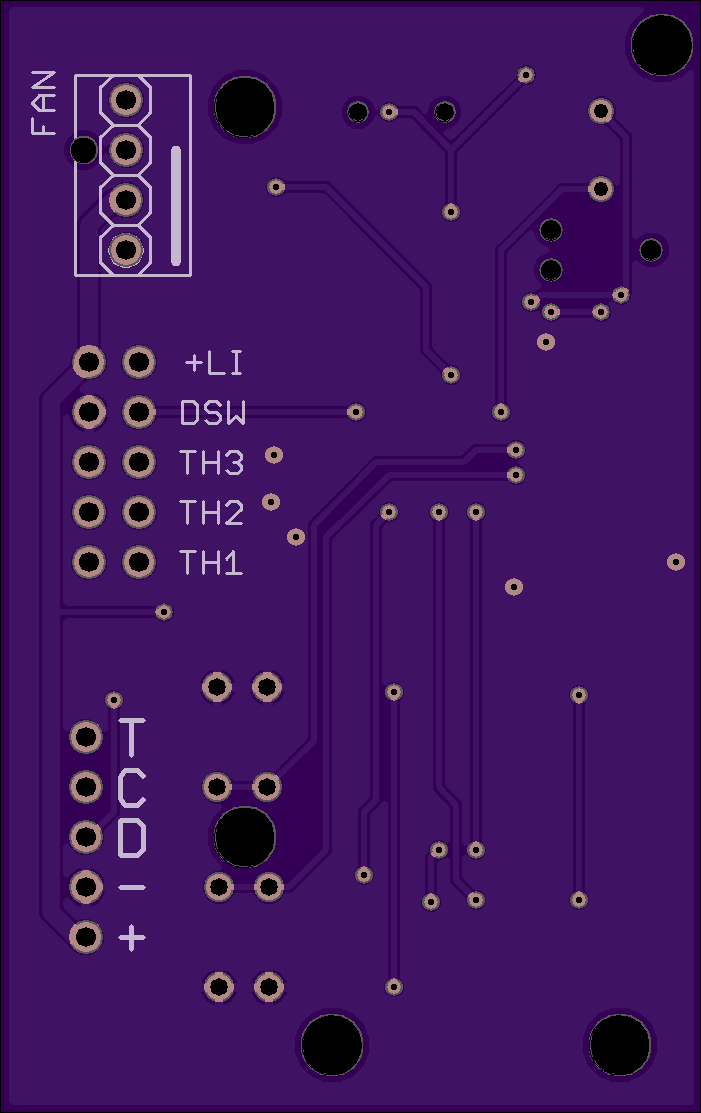

Fridge-v2

by

CaptainUnlikely.

2 layer board of 1.40x2.23 inches (35.59x56.54 mm).
Shared on December 16th, 2015 12:05.

Control board for a Danfoss BD-35 fridge compressor. See http://captainunlikely.com/blog/tags/fridge for details.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

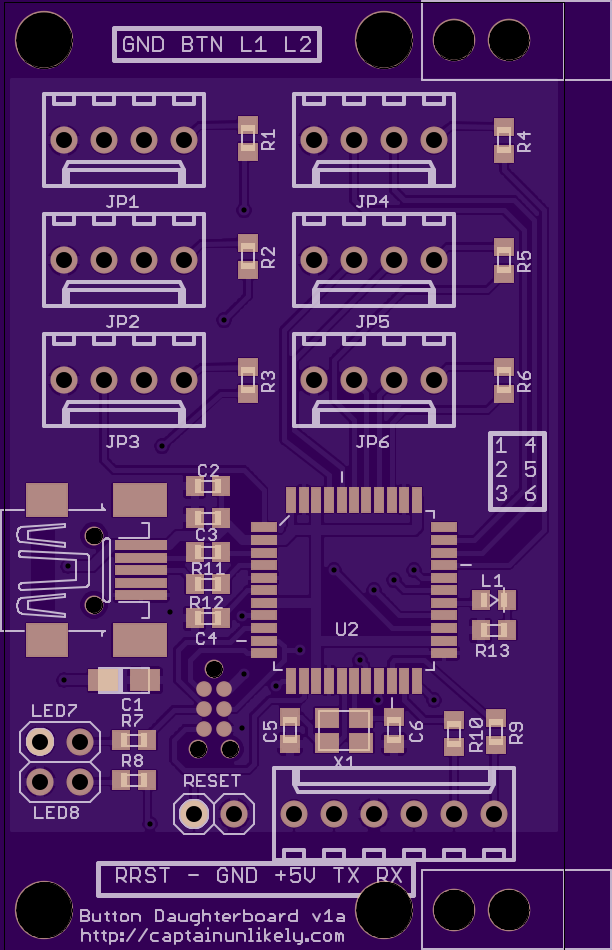

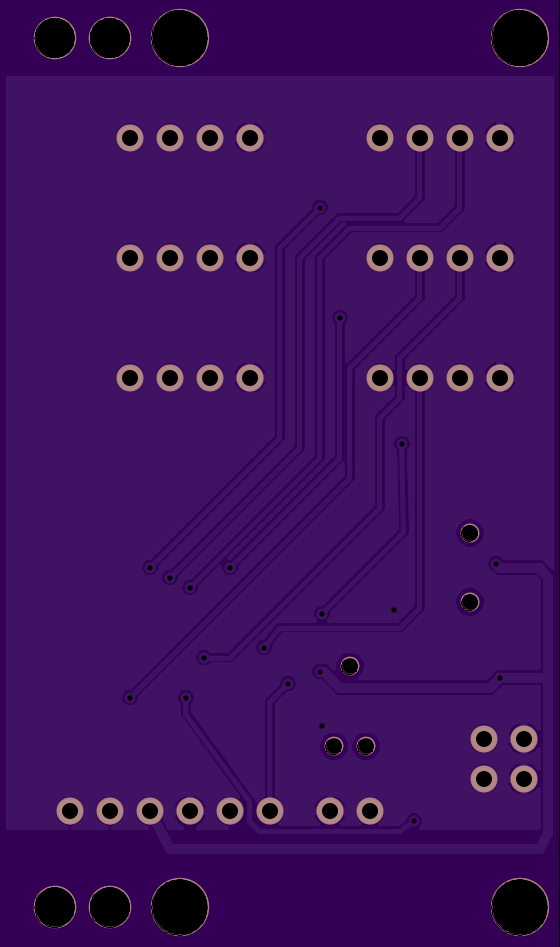

ButtonBoard-v1a

by

CaptainUnlikely.

2 layer board of 1.40x2.37 inches (35.59x60.17 mm).
Shared on December 12th, 2014 23:34.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

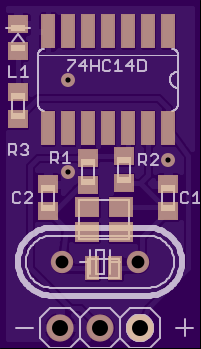

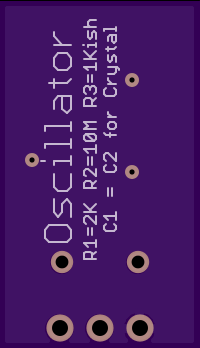

Clock Signal Generator

by

CaptainUnlikely.

2 layer board of 0.50x0.87 inches (12.70x22.10 mm).
Shared on September 10th, 2014 15:31.

Pierce Oscillator to generate a square wave from a crystal - see here or here for the theory. Board works with 3.2x2.5mm, 2.1x1.2mm or HC/49 through-hole crystals. Voltage range will depend on IC, e.g. this will accept 2 - 6V. R3/L1 are just there to show power is present.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
