Shared projects

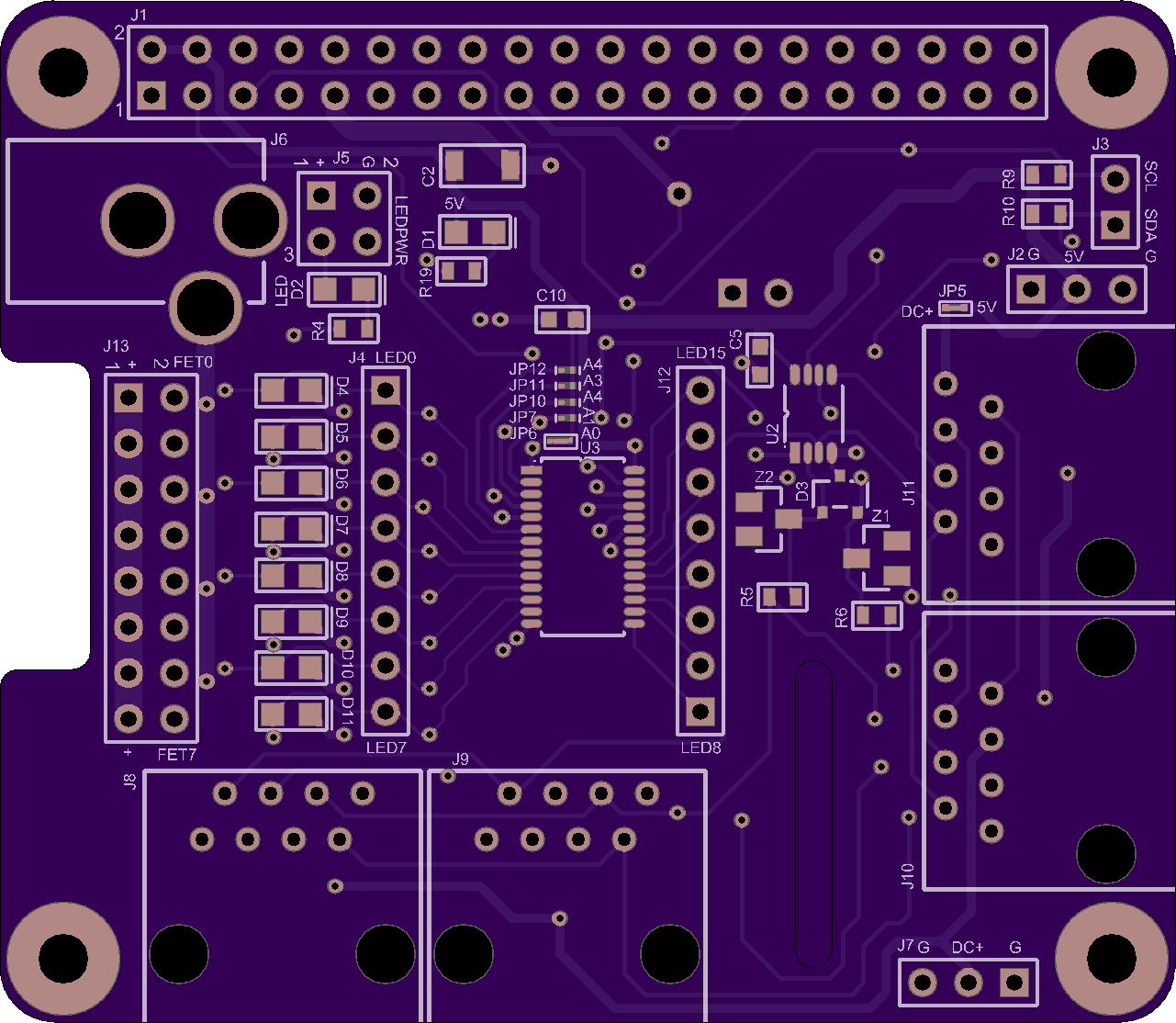

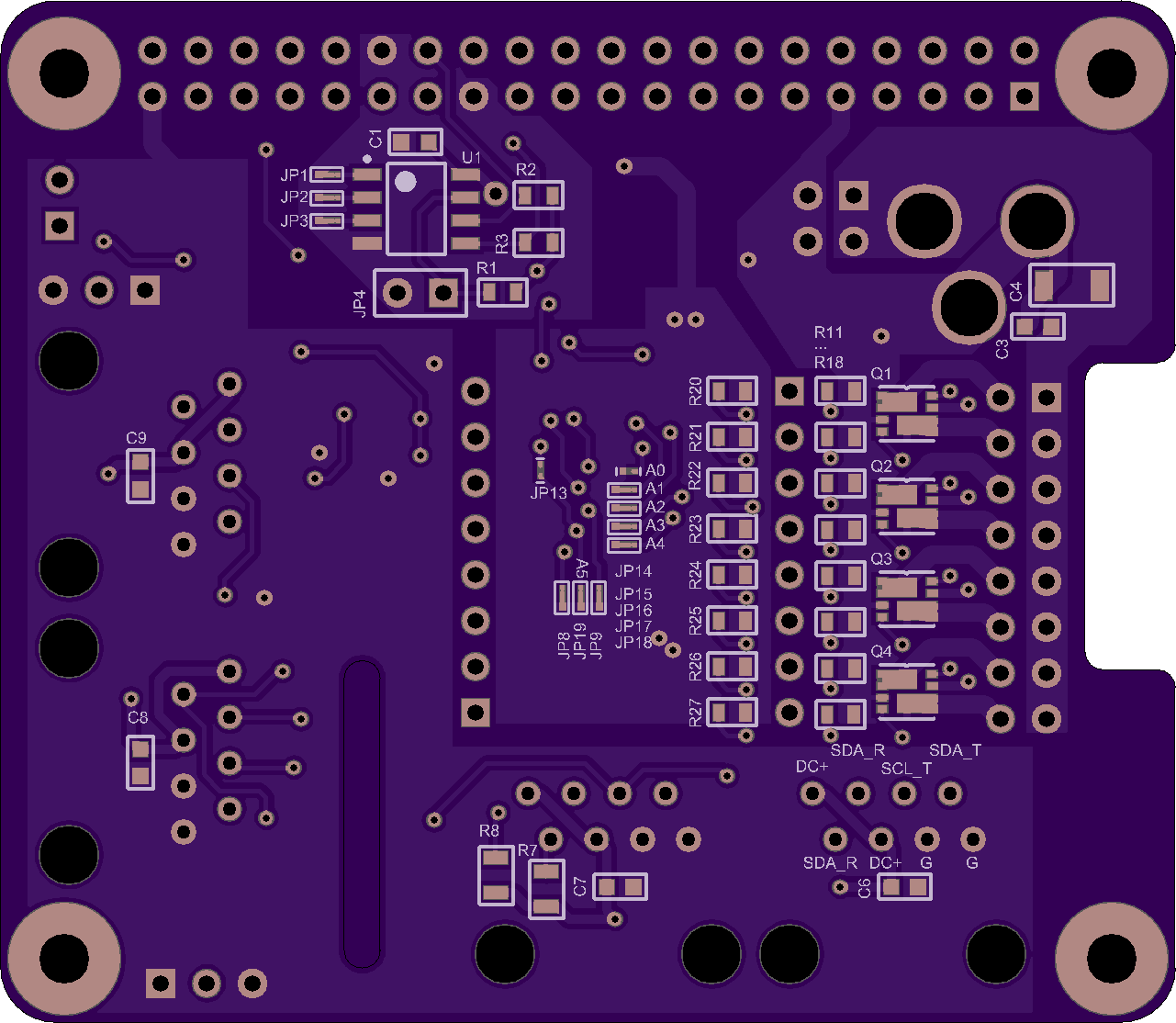

i2cHub-v0.2_09132016.zip

by Dan.
Top
Bottom

2 layer board of 2.56x2.23 inches (65.05x56.54 mm).
Shared on September 13th, 2016 05:04.

Updated for higher power - thicker led_pwr trace

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

i2cHub_v0.1_06222015

by Dan.
Top
Bottom

2 layer board of 2.56x2.23 inches (65.05x56.54 mm).
Shared on October 11th, 2015 01:59.

I2C Hub for led control

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

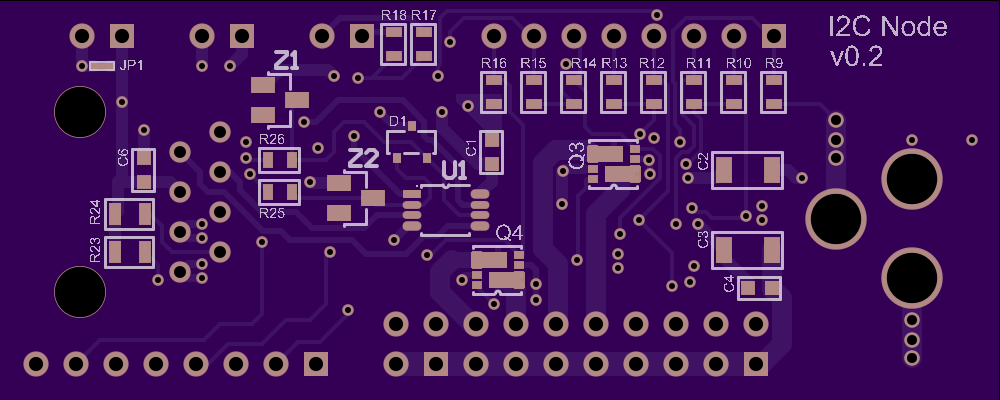

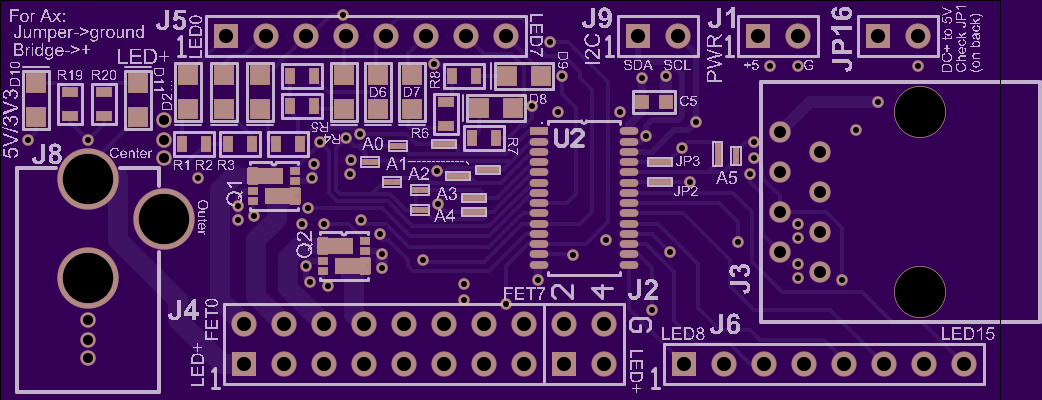

I2Cnode v0.2

by Dan.
Top
Bottom

4 layer board of 2.50x1.00 inches (63.50x25.43 mm).
Shared on May 12th, 2015 06:50.

I2Cnode v0.2

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

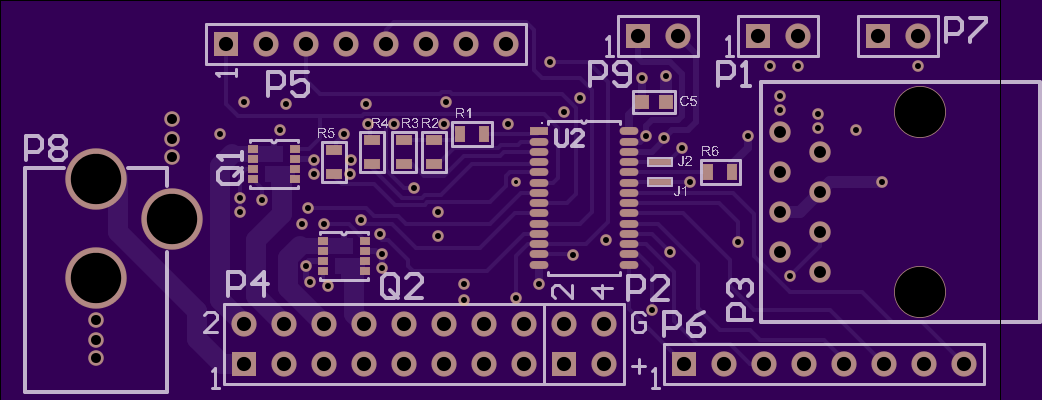

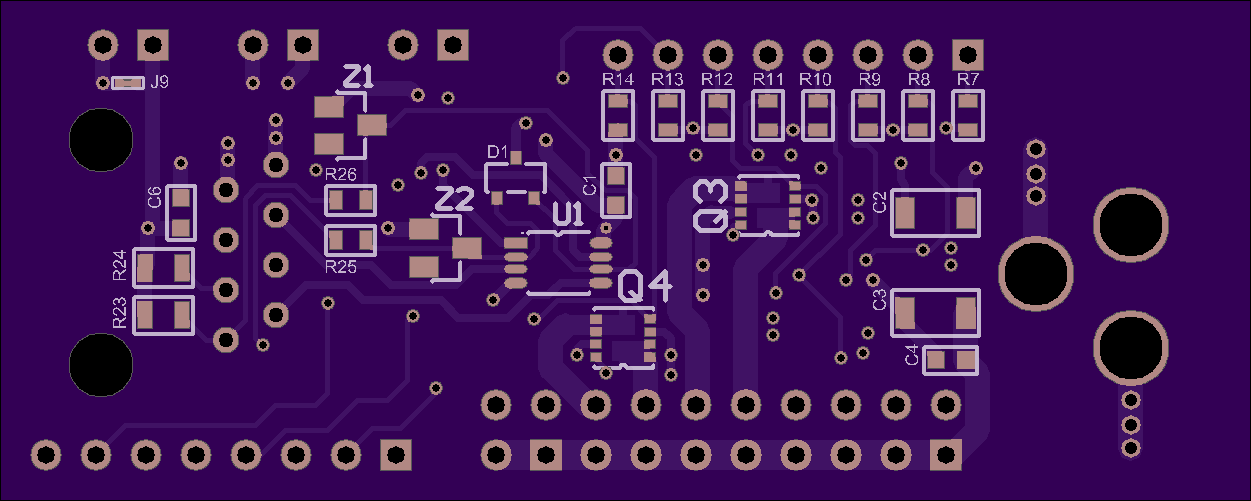

I2Cnode

by Dan.
Top
Bottom

4 layer board of 2.50x1.00 inches (63.50x25.43 mm).
Shared on November 21st, 2014 19:03.

Long Range I2C PWM module

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

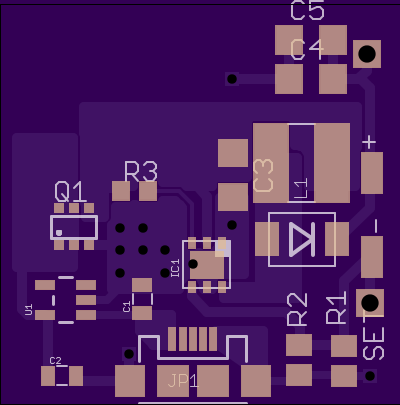

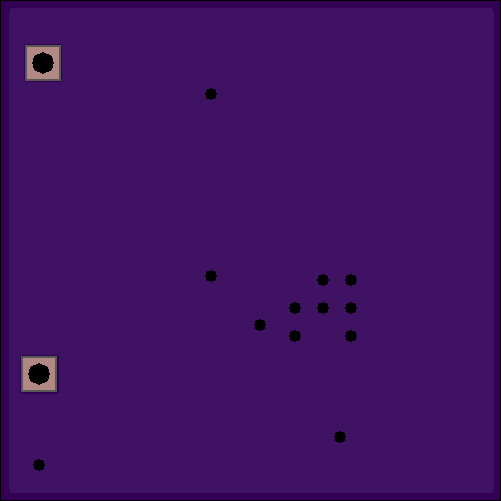

Laser driver/charger

by Dan.
Top
Bottom

2 layer board of 1.00x1.00 inches (25.43x25.43 mm).
Shared on April 19th, 2014 21:21.

Laser driver and microusb charger for lipo, v1

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
