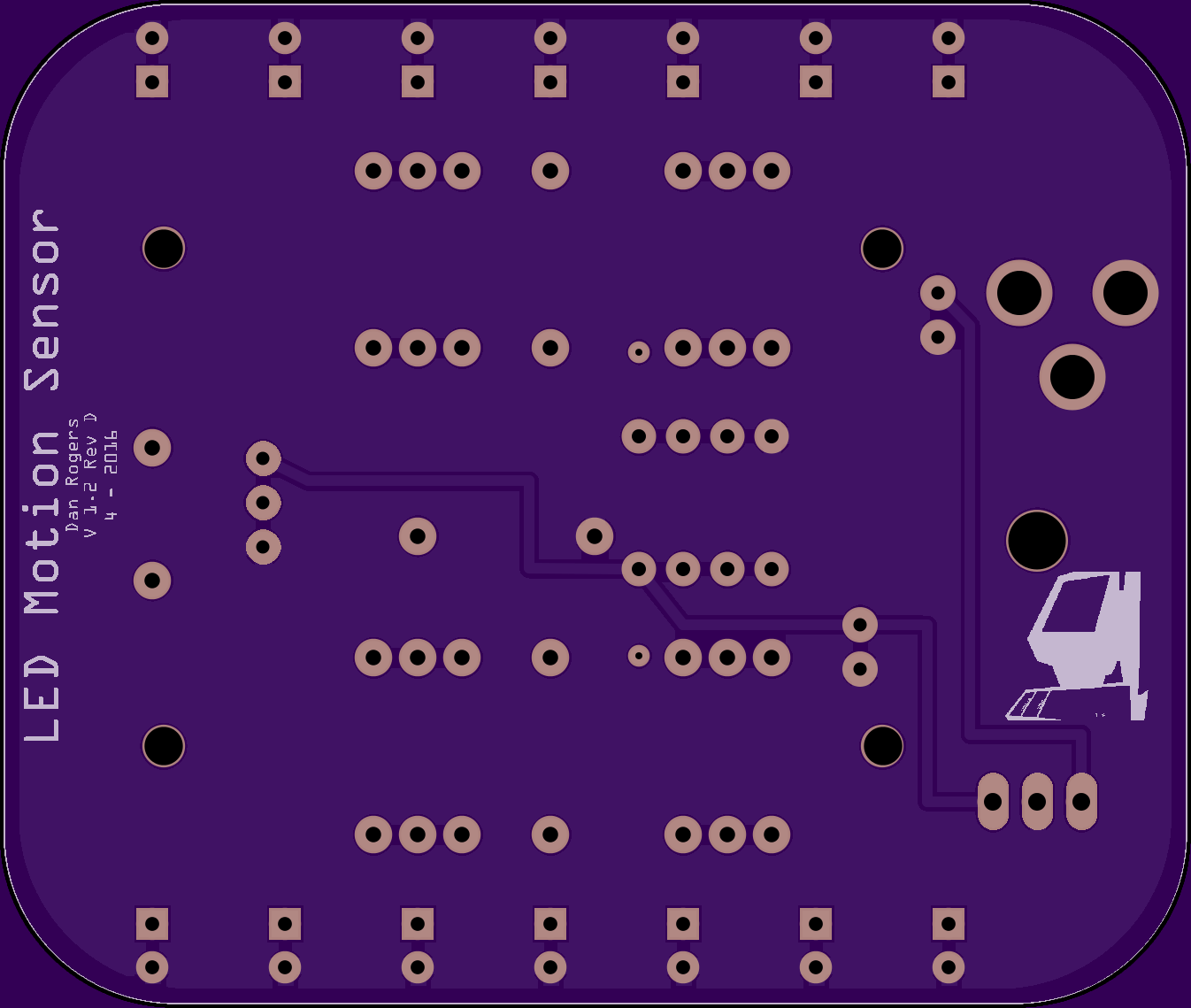

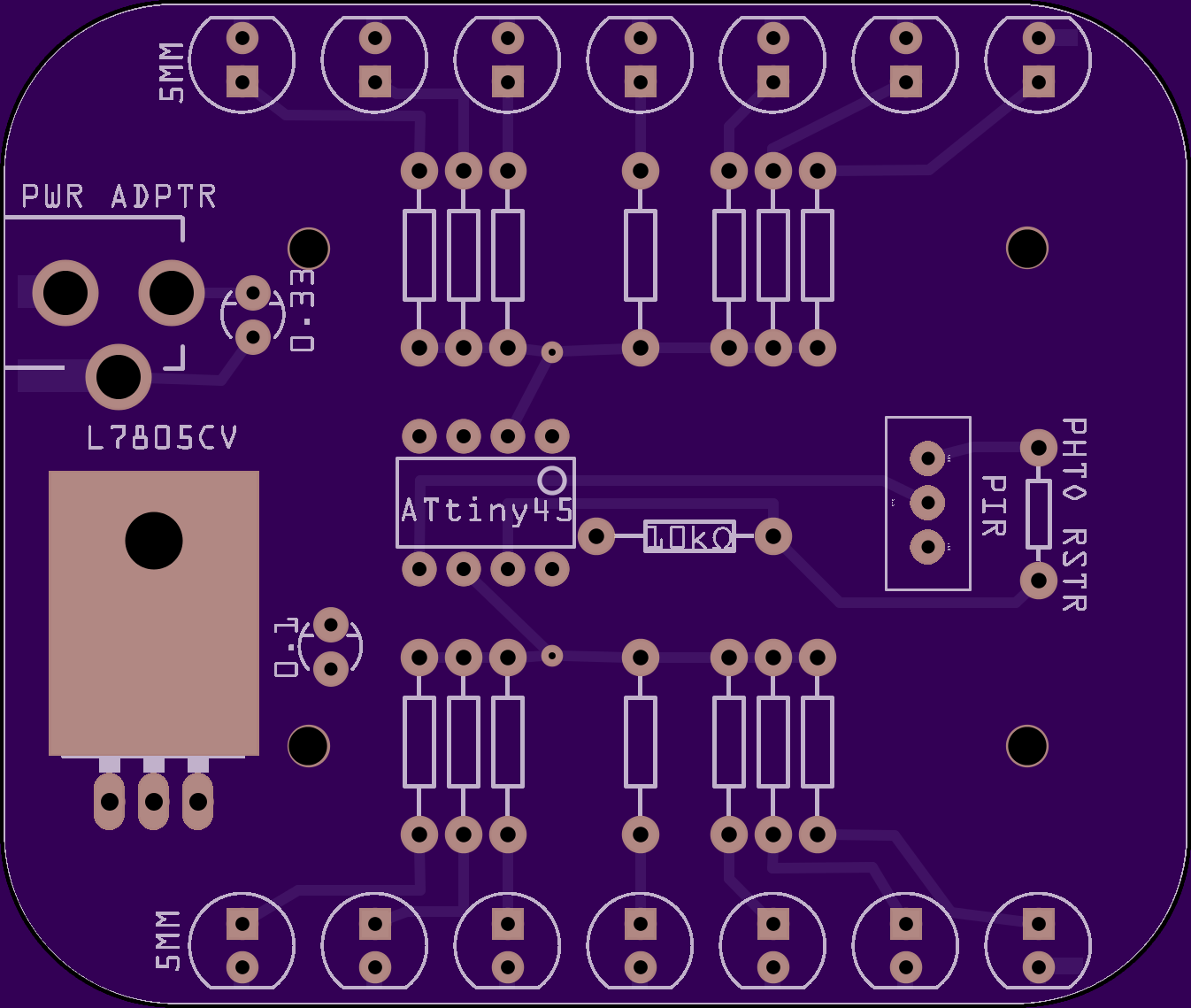

ATtiny45 motion sensing night light V1.2 D
by
DanR.
2
layer board of
2.69x2.28
inches
(68.40x57.89
mm).
Shared on
December 23rd, 2016 00:38.
VERIFIED WORKING
This light is powered by an ATtiny45/85 which powers on the 14 LED lights when motion is sensed and it is in a dark room. The light sensor on the board will not allow the lights to come on if it is in a reasonably lit room.
It is fitted with a barrel plug for power, this model specifically with an L7805CV voltage regulator.
NOTE - I use a 3 pin female header to plug the PIR sensor into to the PCB.
Designed using Fritzing
My Fritzing file
If you have any questions, you can email me HERE
Motion Sensing Night Light V1.2 Rev E
by
DanR.
2
layer board of
2.69x2.28
inches
(68.40x57.89
mm).
Shared on
October 2nd, 2016 09:42.

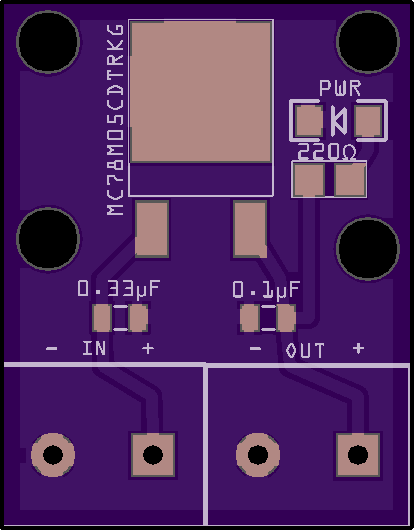

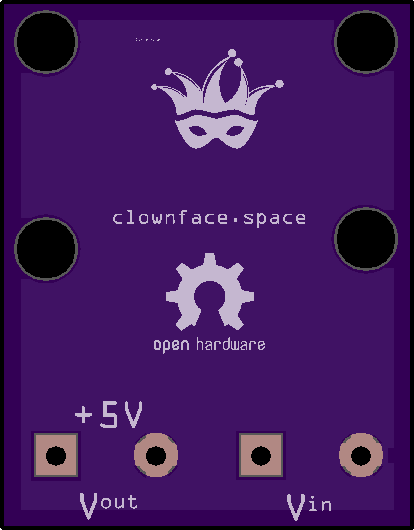

Clownface +5V DC Voltage Regulator RevC OH
by
DanR.
2
layer board of
0.83x1.06
inches
(21.03x26.97
mm).
Shared on
September 10th, 2016 02:46.
Tested and Verified Working
EDIT: Added NEGATIVE (-) and POSITIVE (+) indicators on this design
Input voltage 7-18V
Output voltage 5V
12V input and 5V output. Minimum input voltage is ~6.3V
Output amperage is 500ma

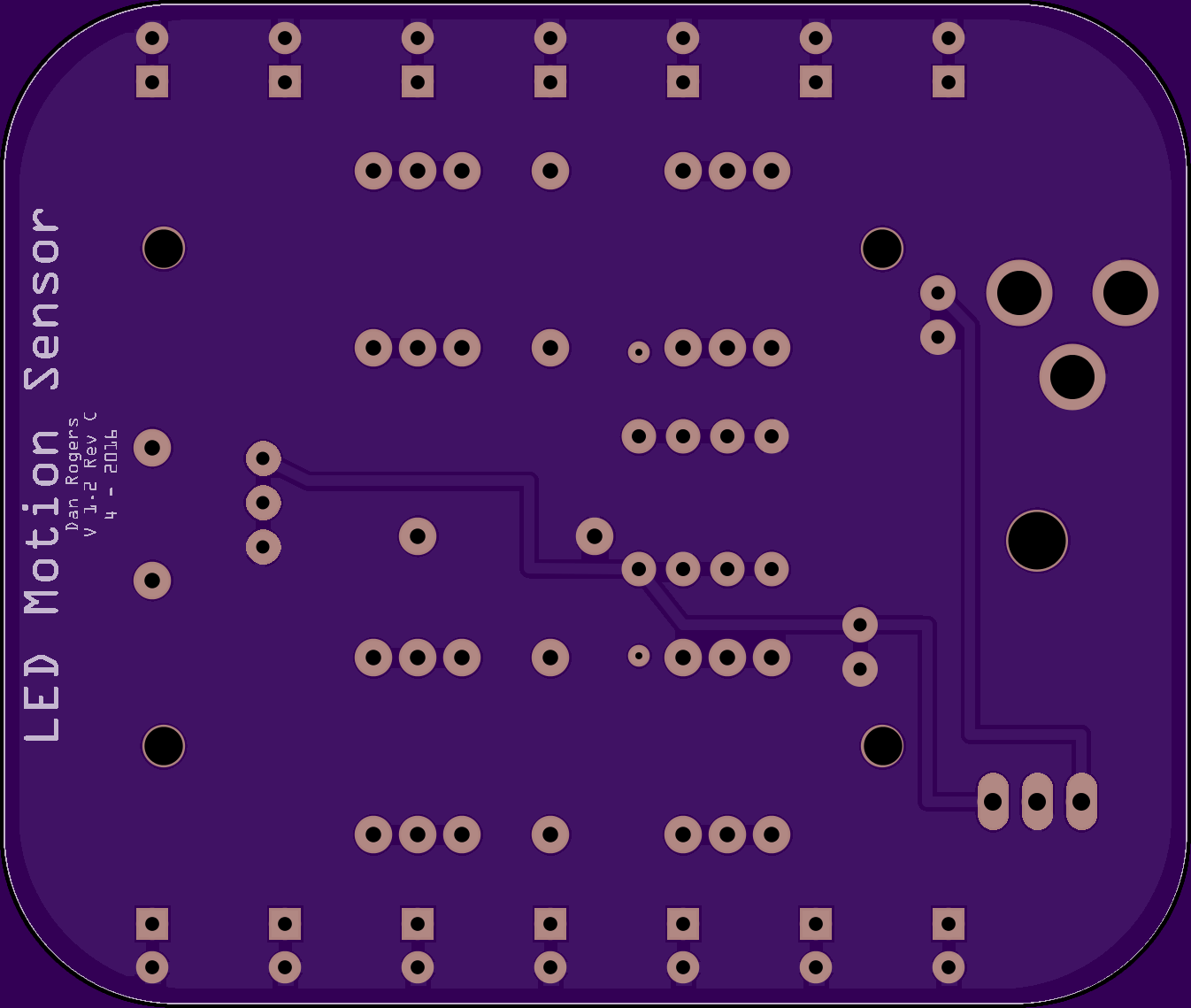

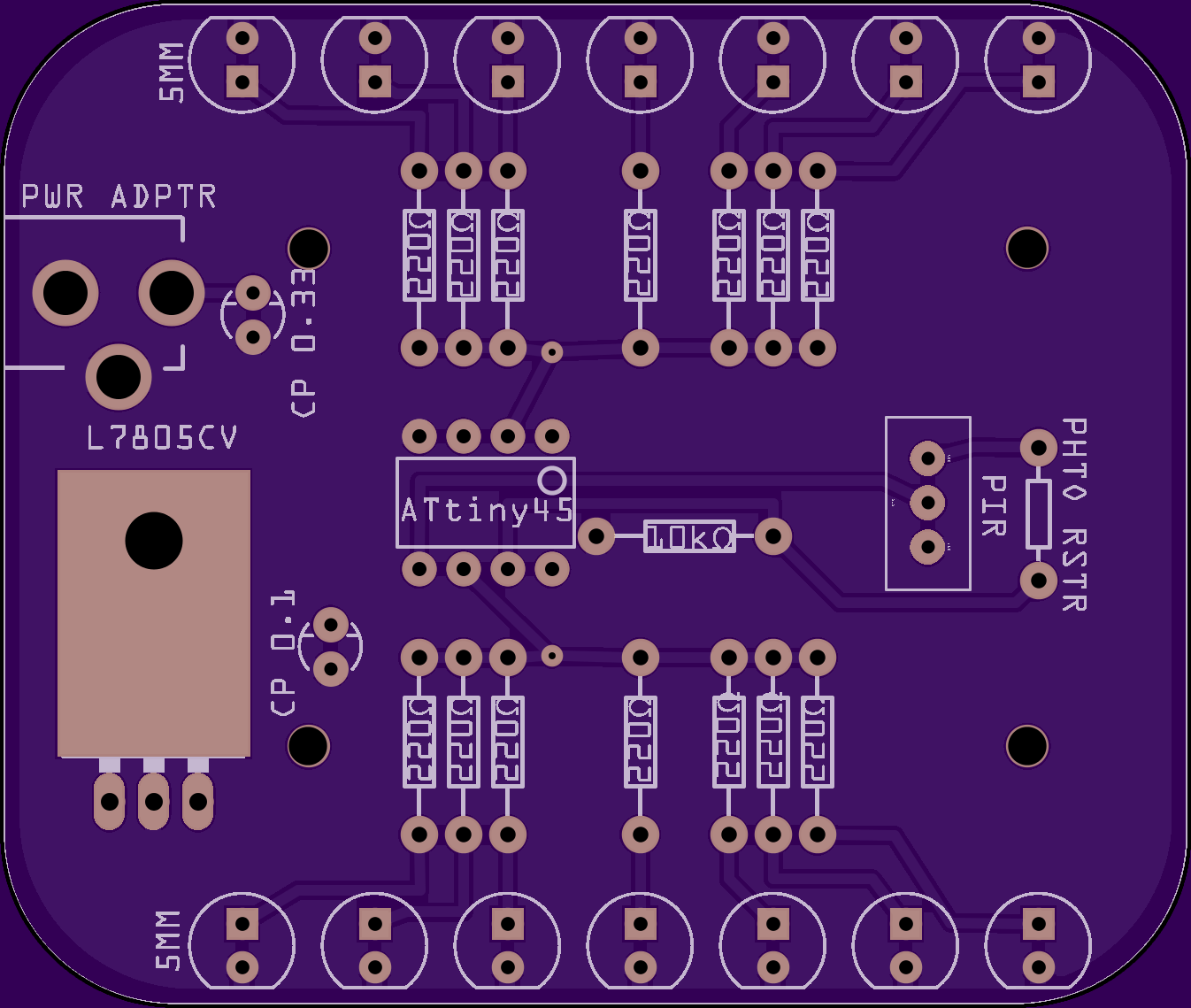

ATtiny45 motion sensing night light V1.2 c
by
DanR.
2
layer board of
2.69x2.28
inches
(68.40x57.89
mm).
Shared on
April 18th, 2016 09:31.
VERIFIED WORKING
This light is powered by an ATtiny45/85 which powers on the 14 LED lights when motion is sensed and it is in a dark room. The light sensor on the board will not allow the lights to come on if it is in a reasonably lit room.
It is fitted with a barrel plug for power, this model specifically with an L7805CV power regulator.
NOTE - I use a 3 pin female header to plug the PIR sensor into to the PCB.
Designed using Fritzing
My Fritzing file
If you have any questions, you can email me HERE

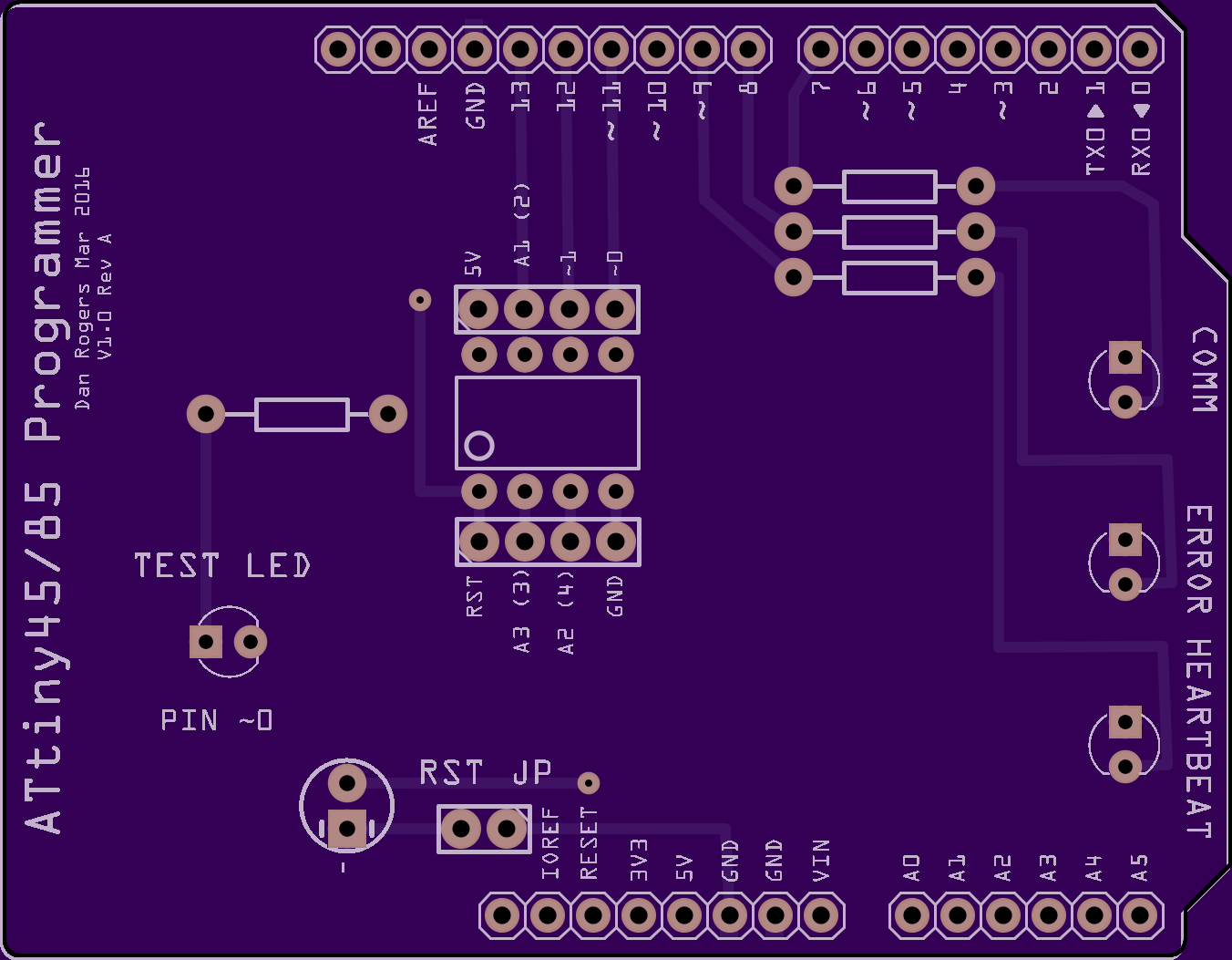

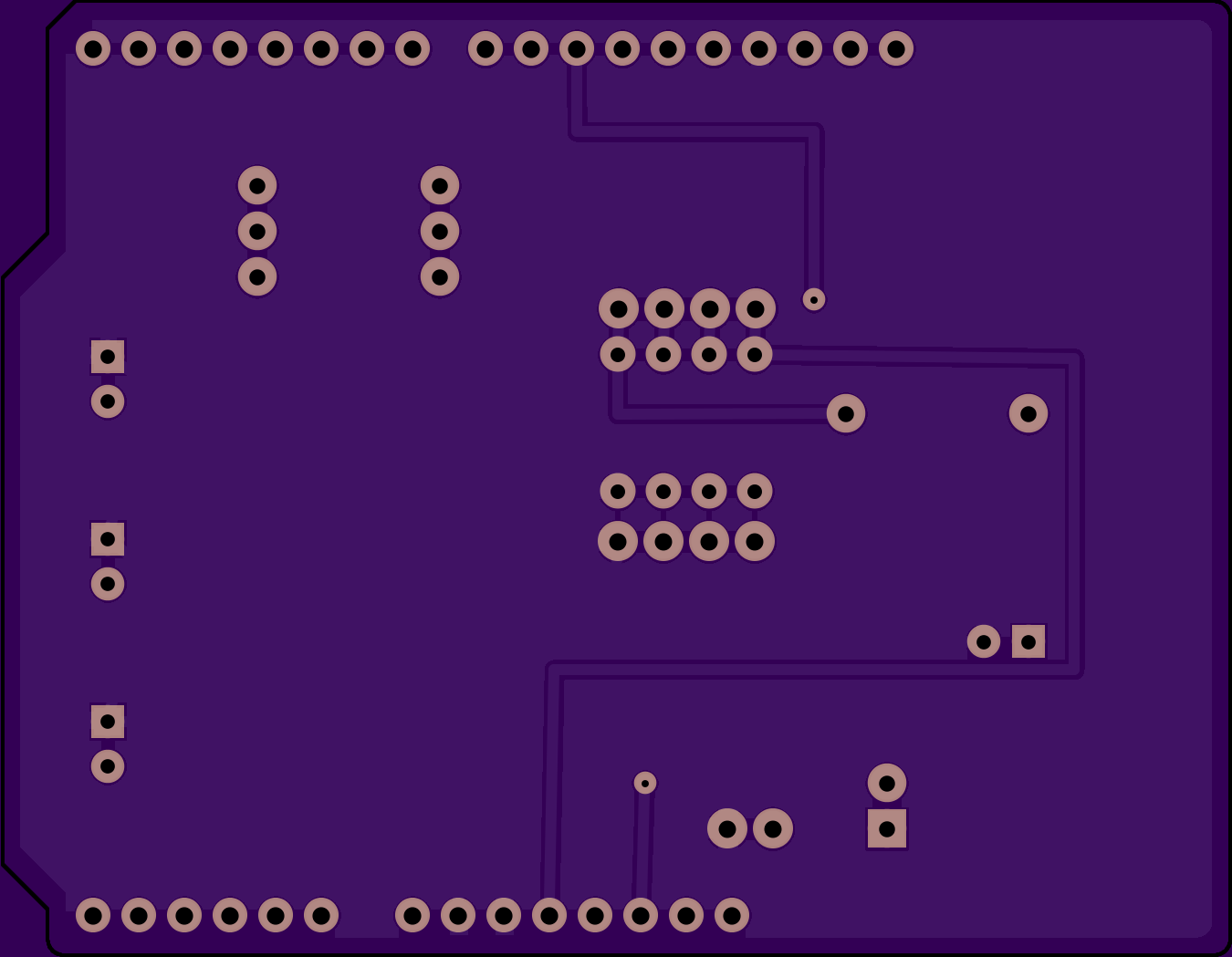

ATtiny45/85 Programmer 3mm LEDs V2
by
DanR.
2
layer board of
2.70x2.10
inches
(68.58x53.31
mm).
Shared on
March 30th, 2016 05:58.
For those who prefer 3mm LED’s instead of 5mm.
The recommended capacitor is a 10µF polarized capacitor.
Arduino Uno shield for programming the ATtiny45 and ATtiny85 through hole ICs, with breakout headers and a test LED to use with the blink arduino example, though you must set the LED pin to pin 0.
VERIFIED WORKING - The reset jumper is fixed in this version
Designed using Fritzing
