Shared projects

spider

by DannyH.
Top
Bottom

2 layer board of 0.89x1.18 inches (22.50x30.00 mm).
Shared on April 2nd, 2017 18:54.

Home automation IR/RF hub connecting and ATMega(32/8)8 to and esp8266, an NRF24L01+, a 433Mhz transmitter and an IR transmitter/receiver pair.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

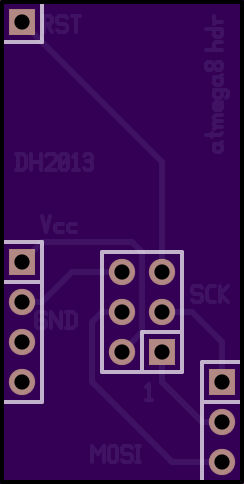

Atmega8 header

by DannyH.

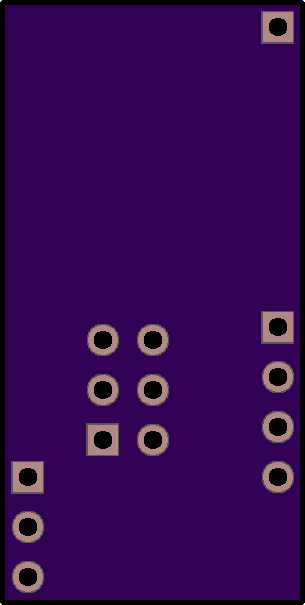

Top
Bottom

2 layer board of 0.61x1.21 inches (15.52x30.73 mm).
Shared on October 9th, 2014 22:51.

Breadboard header for Atmel Atmega88 AVR. Place this over the atmega and connect your programmer.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
