Shared projects

RPI HAT 5

by Designer23.

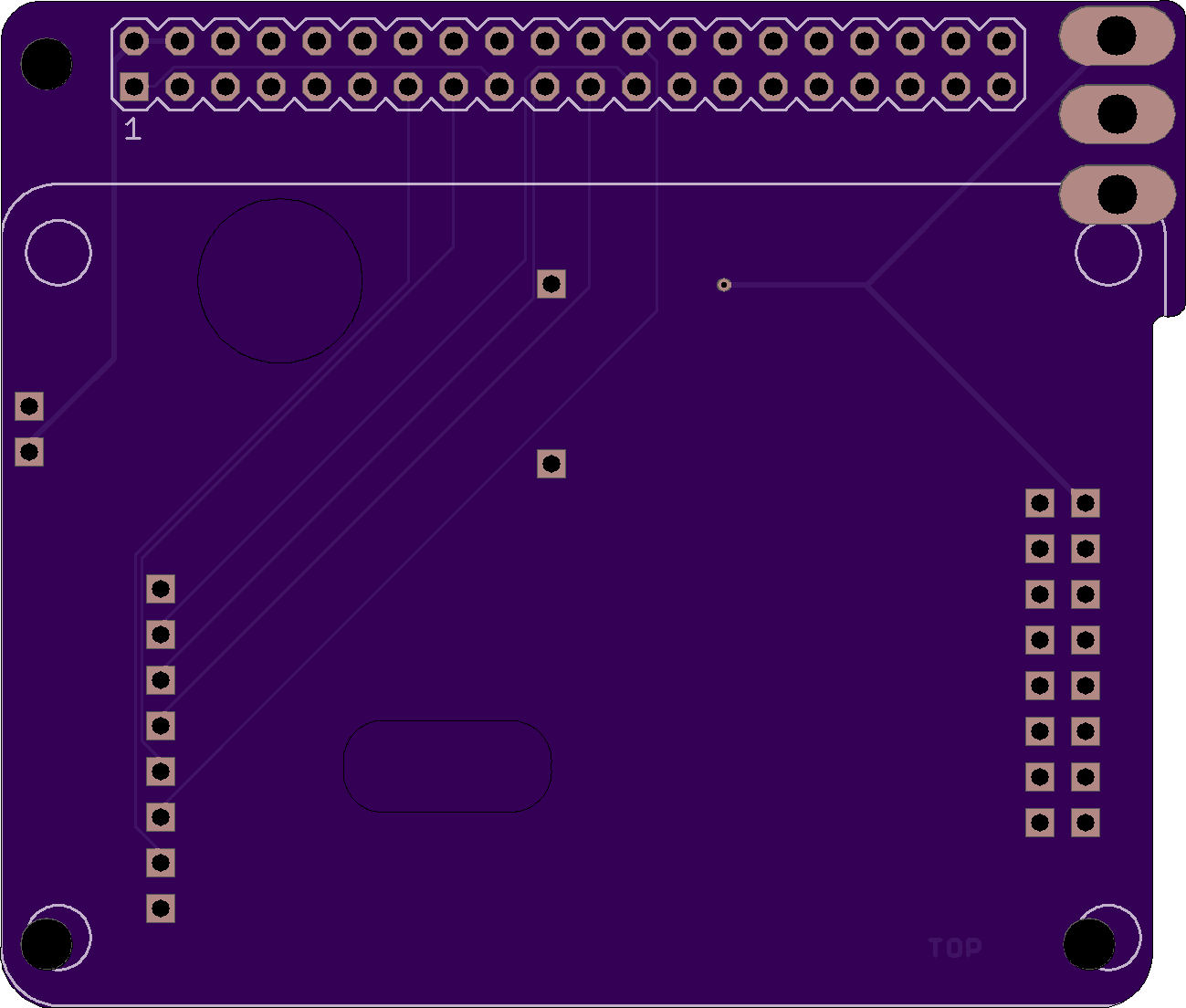

Top

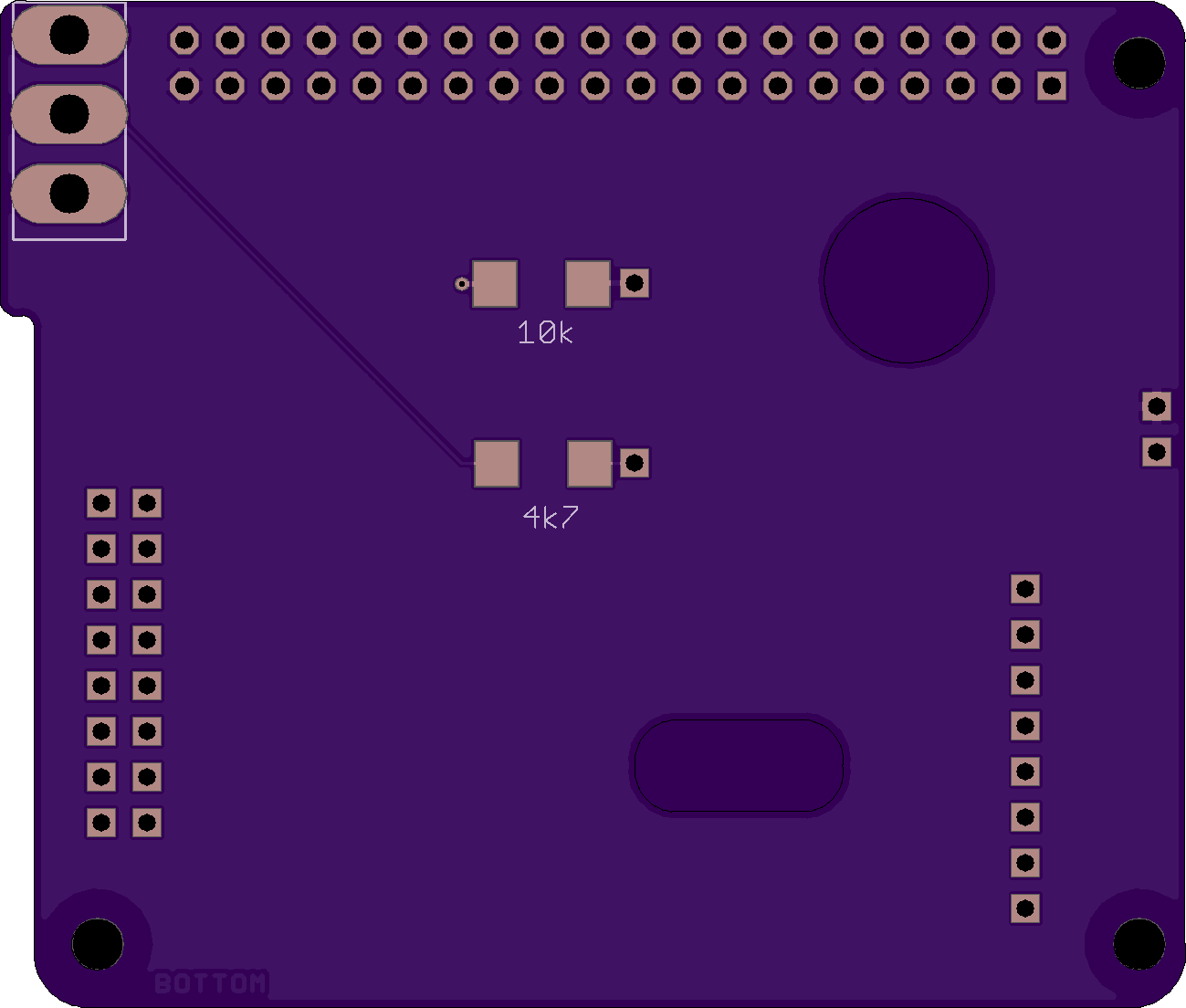

Bottom

2 layer board of 2.62x2.21 inches (66.62x56.03 mm).
Shared on May 31st, 2017 20:41.

Upside ADC with side socket Raspberry Pi 2 HAT for ADS1256 blue module mounted upside down on HAT

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

RasPi-BplusHAT_ADC5.brd

by Designer23.
Top
Bottom

2 layer board of 2.60x2.21 inches (65.96x56.08 mm).
Shared on May 24th, 2017 07:35.

GSR piggy back board for Pi3

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
